China Manufacturer Hospital Patient Latest Manual Folding Adjustable Wheelchair
- Category: >>>
- Supplier: Suzhou Ideal Medical Co. Ltd.
Share on (1600367457488):
Product Overview
Description
Certifications
Products Description
Details Images
Lithium Battery * 1pc
(Standard)
Lithium Battery * 2pcs
Lithium Battery * 3pcs
Self-Lock when open
Lightly pull for folding

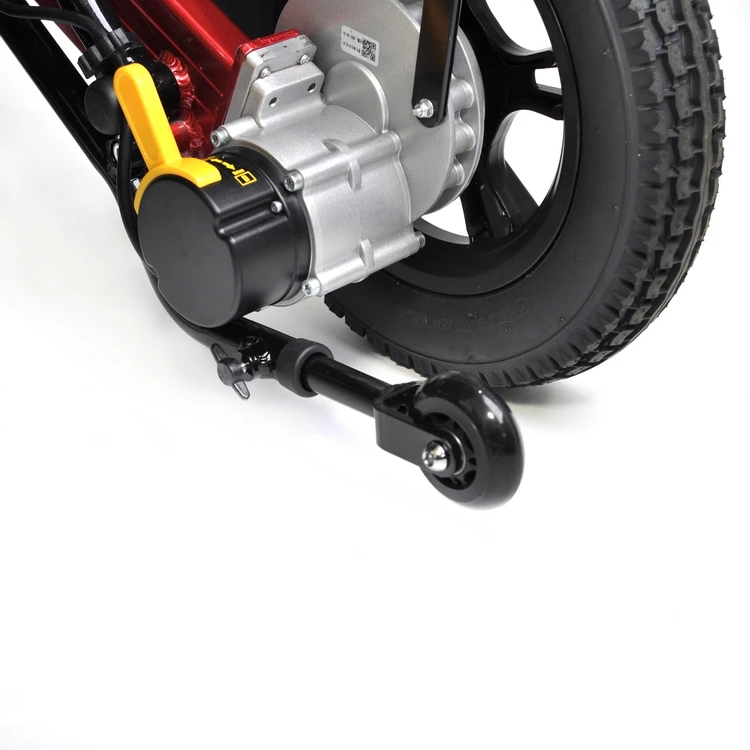

Anti-Tipper
Height Adjustable Backrest
Comfortable Cushion
Flip-Up Armrests
Flip-Up Footrest
Product Paramenters
Parameter Name | Tiny 6LC |
Brushless servo motor: | 220W*2, DC24V |
Max. speed: | 8.5 km/h |
Braking distance: | ≤ 1.0 m |
Max. grade ability: | 15° |
Turning radius: | 85 cm |

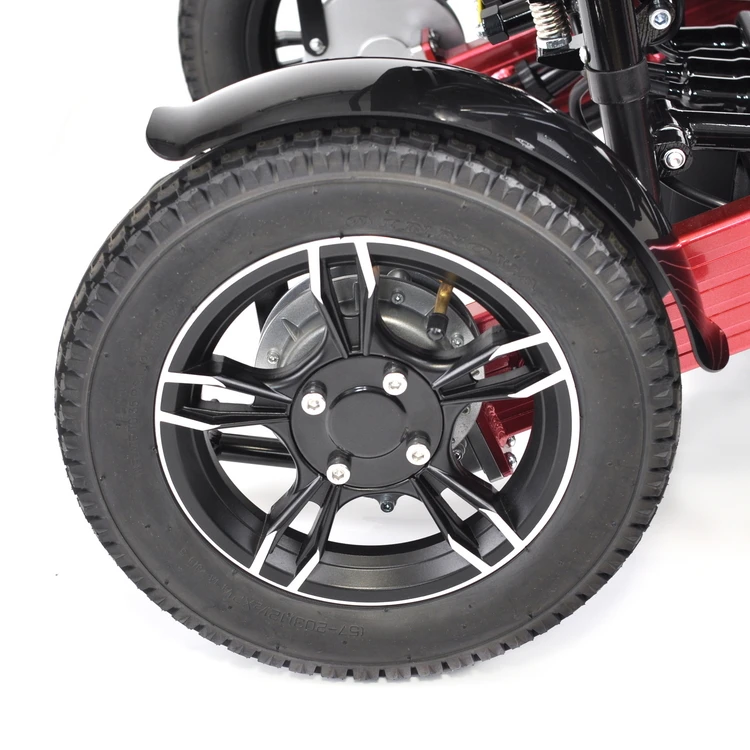

Rear wheel: | 12 inch (Pneumatic tire) (Tire pressure max. 2.5 Bar) |
Front wheel: | 8 inch |
N.W. (without battery): | 24.8 kg |
Max. safe weight capacity: | 120 kg |
Lithium battery: | 24V10Ah |
N.W. of battery: | 1.7 kg/pc |
Max. driving distance: | 20 km/1 battery 40 km/2 batteries 60 km/3 batteries |
Charger DC output: | 24V2A |
Charger AC input: | 100 – 240V, 50/60Hz |
Measurements | Tiny 6L |
Seat width: | 450 mm |
Seat depth: | 440 mm |
Seat to floor: | 500 mm |
Backrest width: | 440 mm |
Width between armrest: | 470 mm |
Armrest to seat: | 210 mm |
Ground clearance: | 65 mm |
Wheelbase: | 600 mm |
Total length: | 1040 mm |
Total width: | 640 mm |
Total height: | 910 – 1060 mm (Height adjustable) |
Folding size: | 640 x 340 x 740 mm (L*W*H=0.16 m3) |
Carton size: | 730 x 420 x 840 mm (L*W*H=0.26 m3) |
Manufacturing
Company Profile
Make the complexity to ourself and the convenience to users.
Suzhou Ideal Medical Co., Ltd. was established in 2017 and located in beautiful city – Suzhou. Providing high quality products and services for users' portable travel are our mission. We adhere to the concept of minimalism and practicality, and focuses on the lightweight and portability of products, which were manufactured with market-proven and reliable materials through reasonable and optimized design, in order to guarantee the safety performance and cost-effective.
With the progress and increasing maturity of new materials (such as carbon fiber) and new technology, the weight of the product itself is further reduced, for the sake of achieving the purpose of more portable products and meet the higher requirements of users.
Ideal's connotation:
I – Identify the essential demand of customer;
D – Define the product and its application environment;
E – Explore probable solutions;
A – Act on best solution;
L – Let user be satisfied.
Suzhou Ideal Medical Co., Ltd. was established in 2017 and located in beautiful city – Suzhou. Providing high quality products and services for users' portable travel are our mission. We adhere to the concept of minimalism and practicality, and focuses on the lightweight and portability of products, which were manufactured with market-proven and reliable materials through reasonable and optimized design, in order to guarantee the safety performance and cost-effective.
With the progress and increasing maturity of new materials (such as carbon fiber) and new technology, the weight of the product itself is further reduced, for the sake of achieving the purpose of more portable products and meet the higher requirements of users.
Ideal's connotation:
I – Identify the essential demand of customer;
D – Define the product and its application environment;
E – Explore probable solutions;
A – Act on best solution;
L – Let user be satisfied.
Located at Medical Industrial Park
Company Office
Staff Working Section
FAQ
A) Do you have a factory? Can I vist?
For sure, we have a factory and its 10% share. Warmly weclome to visit us at any time.
C) Whether you could make our brand on your products?
D) What information should I let you know for quotation?
E) How to guarantee the quality of your products?
B) Sample time?
Existing items: Within 10-30 days according to exactly request.
C) Whether you could make our brand on your products?
Yes. We can print or stick your Logo on both the products and the packages.
D) What information should I let you know for quotation?
1)The important information will be order quantity or estimated quantity.
2)The configuration, like as: joytick, motor, color.
E) How to guarantee the quality of your products?
1) Strict detection of each produt during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
