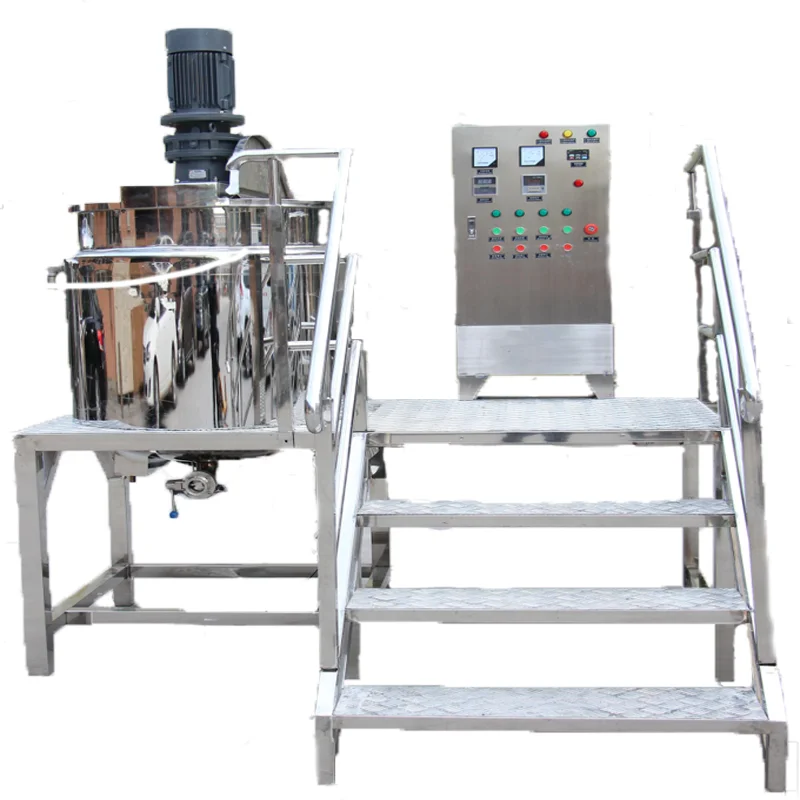

300L Soap Base Mixer with electrical heating
This mixer is specially designed for handmade soap base. It integrates mixing, dispersing, heating, cooling and pumping functions in the same machine.
1. High speed disperser can separate the materials with strong power so the solid or liquid materials can be melted and mixed together. Saving energy and time;
2. Main mixing blade is equipped with a stepless speed change device, which can decrease the air bulbs during mixing low temperature and sticky materials;
3. Gear pump discharging device, which helps to discharge the soap base quickly.
4. Mixing system adopts singe direction or dual direction and VFD control, which can be used for different technology.
5. It can be used for heating or cooling the material according to actual needs. Heating can be steam heating or electrical heating.(optional)
6. SS304 Material, high class mirror polishing for the tank and pipes
1. High speed disperser can separate the materials with strong power so the solid or liquid materials can be melted and mixed together. Saving energy and time;
2. Main mixing blade is equipped with a stepless speed change device, which can decrease the air bulbs during mixing low temperature and sticky materials;
3. Gear pump discharging device, which helps to discharge the soap base quickly.
4. Mixing system adopts singe direction or dual direction and VFD control, which can be used for different technology.
5. It can be used for heating or cooling the material according to actual needs. Heating can be steam heating or electrical heating.(optional)
6. SS304 Material, high class mirror polishing for the tank and pipes
Volume (L) | 100L | 300L | 500L |
Speed (rpm) | 0-1450RPM | 0-1450RPM | 0-1450RPM |
Power (KW) | Mixing:1.5KW, Heating:6KW | Mixing:2.2KW, Heating:12KW | Mixing:3KW, Heating:18KW |
Mirror Polishing | ≥100目 | ≥100目 | ≥100目 |

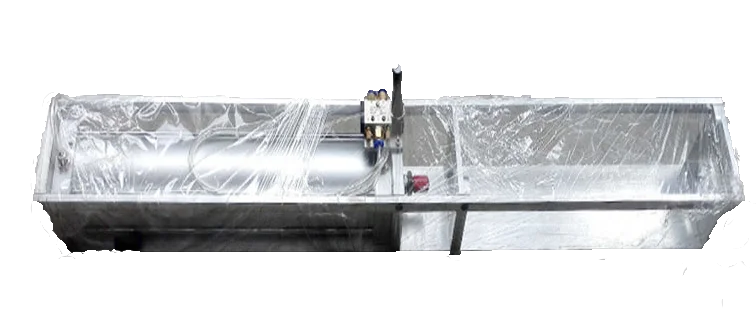

Round Soap Pushing Machine
This machine is used for pushing the cold round soap bar from the PVC pipes.
Controlled by air cylinder, it is easy, simple and convenient for operation.
Controlled by air cylinder, it is easy, simple and convenient for operation.
Automation | Semi-automatic |
Air pressure | 0.4-0.6Mpa |
Dimensions(mm) | 1330X150X142 |

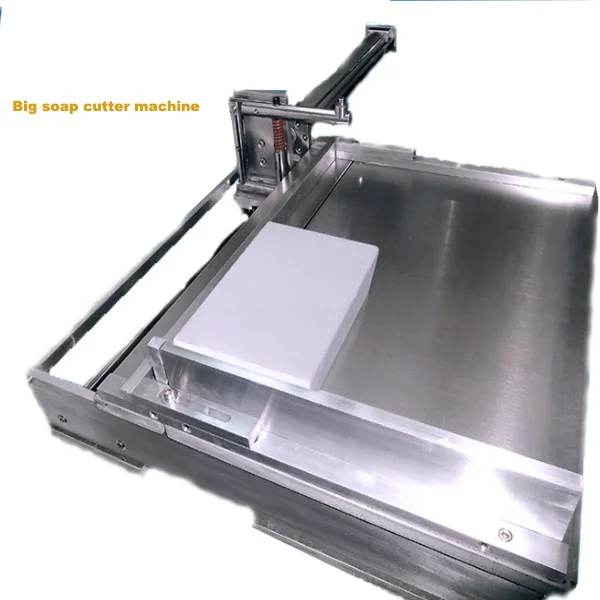

Rectangular Soap Bar Cutting Machine
This machine is designed for rectangular soap bar cutting.
Controlled by air cylinder, it is easy, simple and convenient for operation.
Controlled by air cylinder, it is easy, simple and convenient for operation.
Dimensions(mm) | 1250X641X245 |
Total weight | 25KG |

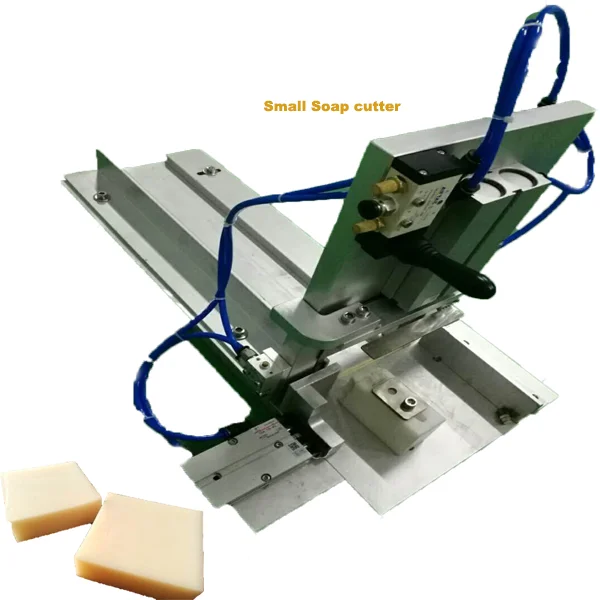

Manual Cutter for Hand Soap
This machine is designed for round or rectangular cutting.
Controlled by air cylinder, it is easy, simple and convenient for operation. The soap length can be adjusted.
Controlled by air cylinder, it is easy, simple and convenient for operation. The soap length can be adjusted.
Speed(pcs/min) | 20~30 pcs/min |
Power | 50w |
Dimensions(mm) | 805 x202x430 |

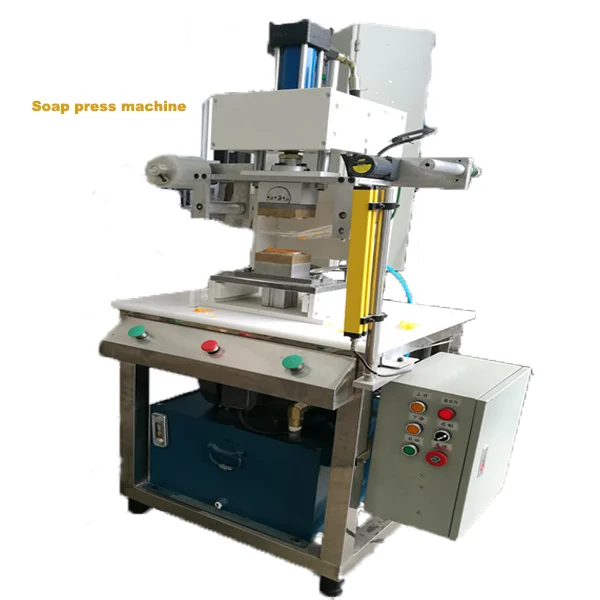

XD30 Hydraulic Vertical Soap Press
This machine stamp one soap eachcycle.It uses hydraulic station to drive the oil cylinder to move downwards and press the soap bar and a soap will be formed inside the mould.Plastic film is used to be put below the soap, so that the soap can easily get out of the mould, suitable for standard formula soap and very sticky transparent soap.There is light curtain each side of the machine, when people’s arms reach into the stamping area, the sensor can detect it so that the machine will not run. When people’s arm outside and the operator use both hands to push down the button, only then the machines runs. This will protect operator’s safety.
Speed(pcs/min) | 20~30 pcs/min |
Air Pressure | 0.4~0.6Mpa |
Hydraulic Oil pressure (Ton) | 3 |
Power (KW) | 2.2 |
Dimensions(mm) | 1000x820x1800 |
