Cassava Flour Production Cassava Flour Processing Manioc Machine for Cassava Flour Plant

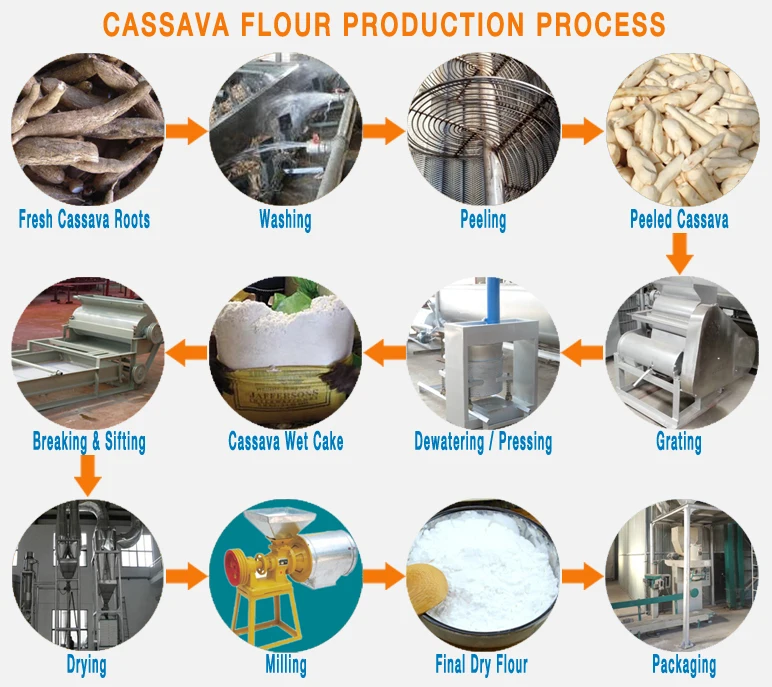

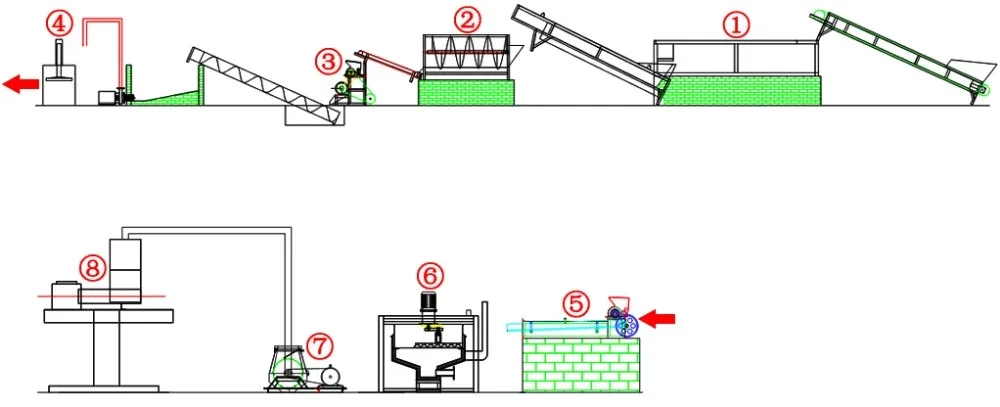

The production of cassava flour comprises the machines such as cassava washing machine, peeling machine, grating machine,
hydraulic press, second crusher-wet cake crushing machine, airflow flash dryer, cassava flour milling machine and packaging
machine.
We have provided below a brief description on the main steps of the cassava flour production process.
hydraulic press, second crusher-wet cake crushing machine, airflow flash dryer, cassava flour milling machine and packaging
machine.
We have provided below a brief description on the main steps of the cassava flour production process.
Product Description
1. Cassava washing machine:
Wash the fresh cassava roots in clean water to remove mud, sand and other impurities.
2. Cassava peeling machine:
Wash the cassava roots to remove the surface sand, silt, and peel the cassava roots to remove the outer brown skin and partial inner thick cream layer, also avoid over damaging of raw materials.
Cassava washing machine
Cassava peeling machine
3. Cassava grating machine:
Cassava roots or slices enter the grater and are then grated into the cassava slurry between rotating nail roll and rotary drum while the engine is running with the electricity as power.
Model No. | GD-B-300 | GD-B-600 | GD-B-900 |
Machine Material | Stainless Steel | Stainless Steel | Stainless Steel |
Capacity | 1-2Tons/Hour | 2-3Tons/Hour | 4-5Tons/Hour |
Voltage | 380V & 50/60Hz 3Phase | 380V & 50/60Hz 3Phase | 380V & 50/60Hz 3Phase |
Power | 4.0KW | 5.5KW | 7.5KW |
Weight | 250KG | 350KG | 400KG |
Dimension(L ×W ×H) | 900×600×1000mm | 1100×600×1100mm | 1300×600×1100mm |
4. Cassava dewatering machine(hydraulic press dewater):
Load the bags directly on to a hydraulic press. Under control of hydraulic station and electric cabinet to lift and press the jack handle up and down until it becomes hard to move. Repeat the process several times each day until no more water comes out of the bag to produce a firm wet cake.
Cassava grating machine
Cassava dewatering machine

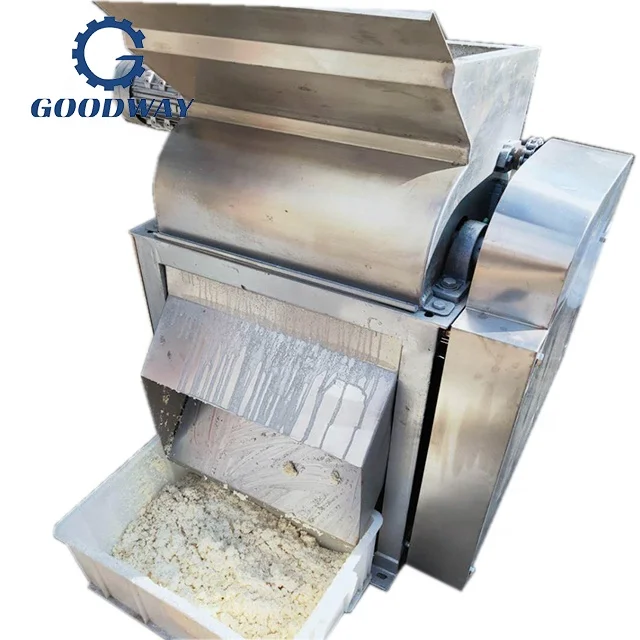

5. Second crusher - wet cake crushing machine:
After pressing, the de-watered cassava slurry is a solid cake which has to be crushed into uniform size granules obtain an homogenous product. Uniform particle size is important because it makes for a more uniform drying of individual particles, smaller particles taking less time and less energy in drying.
6. Cassava flour drying machine(airflow flash dryer):
Effectively dry the wet slurry to low moisture content by principle of heat transfer exchange, the drying process is more reliable
and of higher quality.
and of higher quality.
Second crusher
Airflow flash dryer

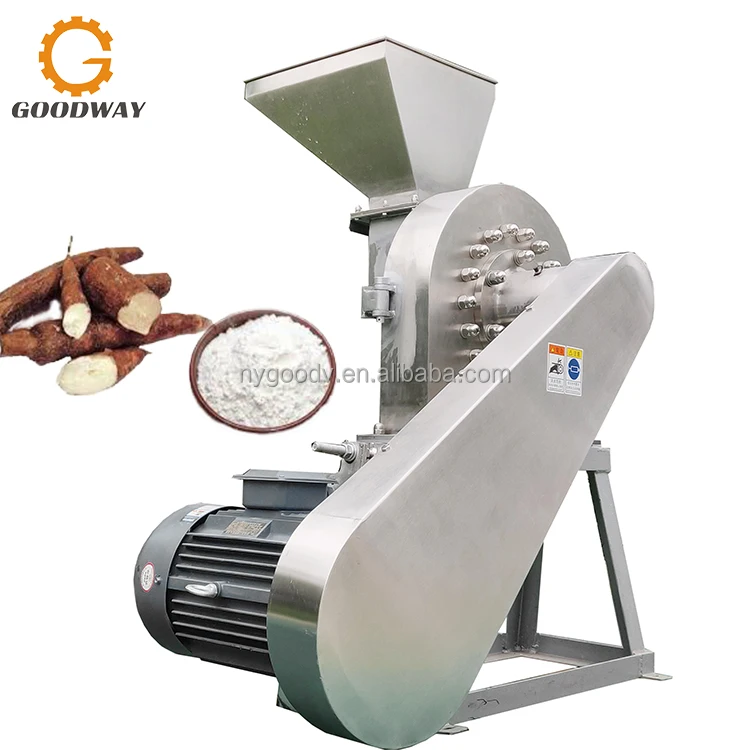

7. Cassava flour milling machine:
Mill the dried coarse cassava flour to produce fine cassava flour. Milling can be done using a roller mill machine.

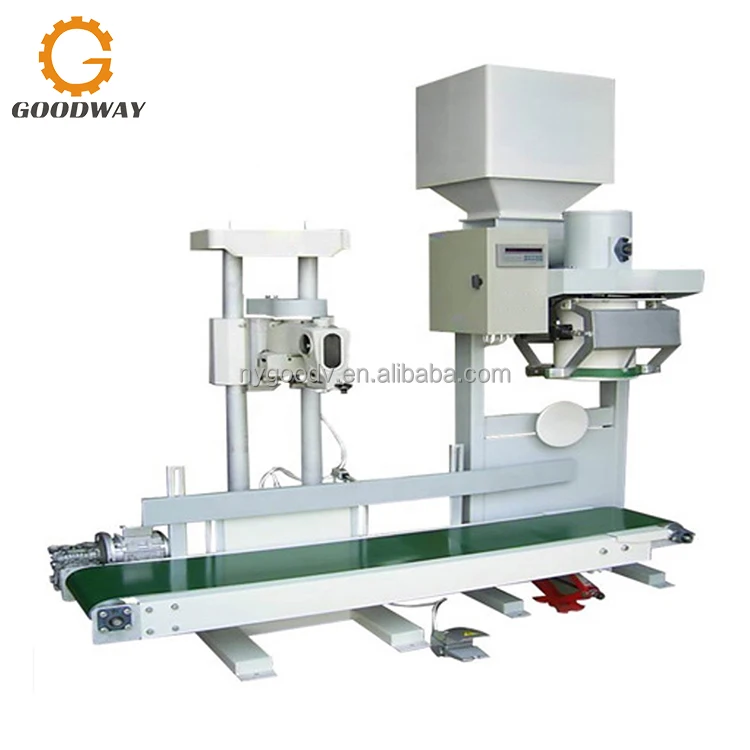

8. Flour packaging machine:
Pack desired quantities into a woven polythene sack with a plastic lining, seal or stitch the sack to keep the flour clean and fresh during storage. Properly label the packages according to the standards of national reguArialry agencies.
Milling machine
Packaging machine

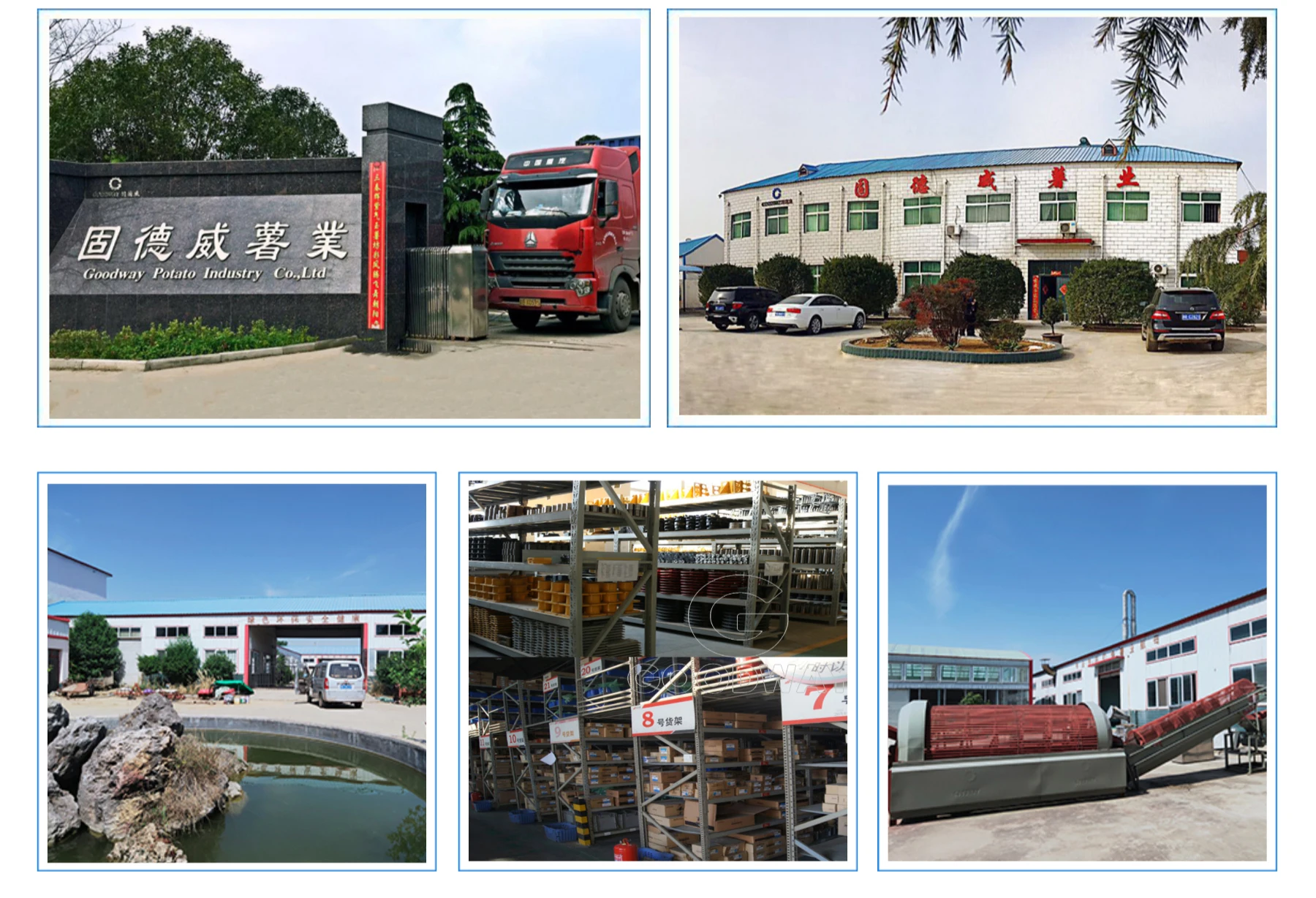

Company Profile

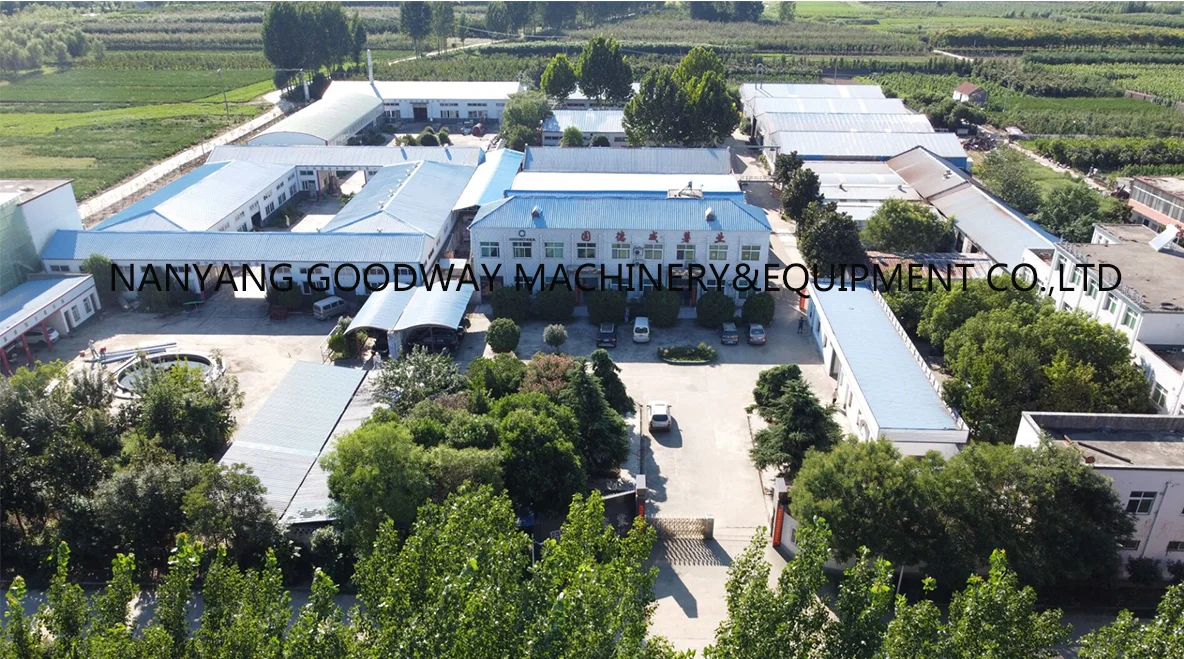

Nanyang Goodway Machinery & Equipment Co., Ltd. is a leading manufacturer and supplier of Cassava & Potato Processing Machineries since 1991, focus on providing the system solutions in the fields of Cassava Processing Machine, Cassava Starch Processing Machine, Potato Starch Making Machine, Sweet Potato Starch Making Machine, and Cassava Flour Making Machine, Yam Flour Processing Machine, Garri Processing Machinery, Fufu Processing Machine, Cassava Chips Making Machine.
