ODM 3.0 Pitch 3 Pins SMT Type Pogo Pin H8.0mm Connectors

Share on (1600367887550):


Price:

Quantity:


Product Overview

Description

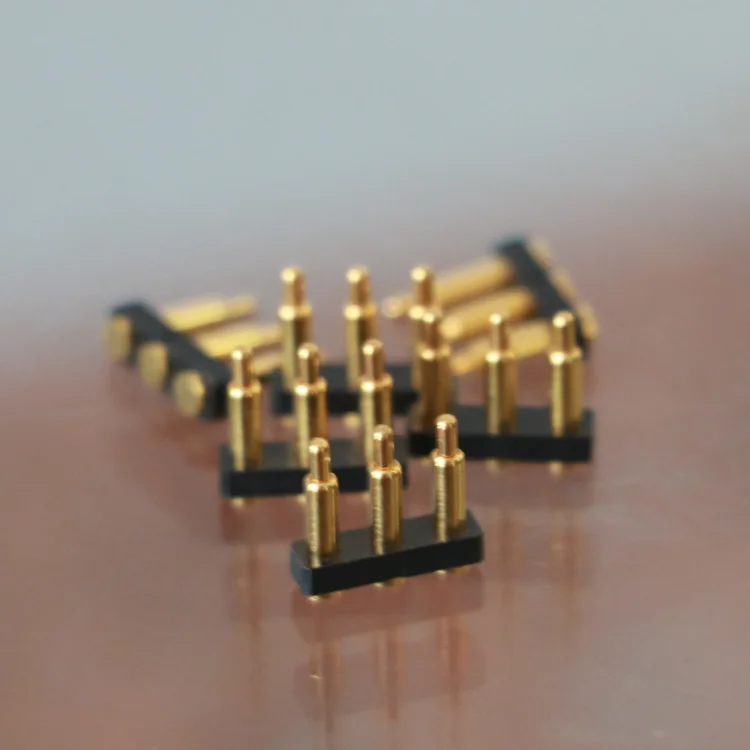

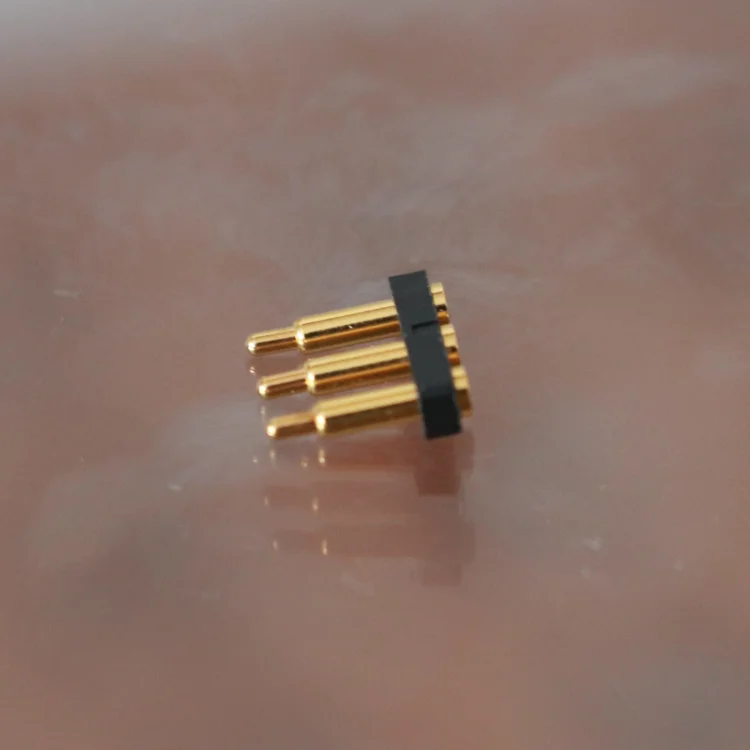

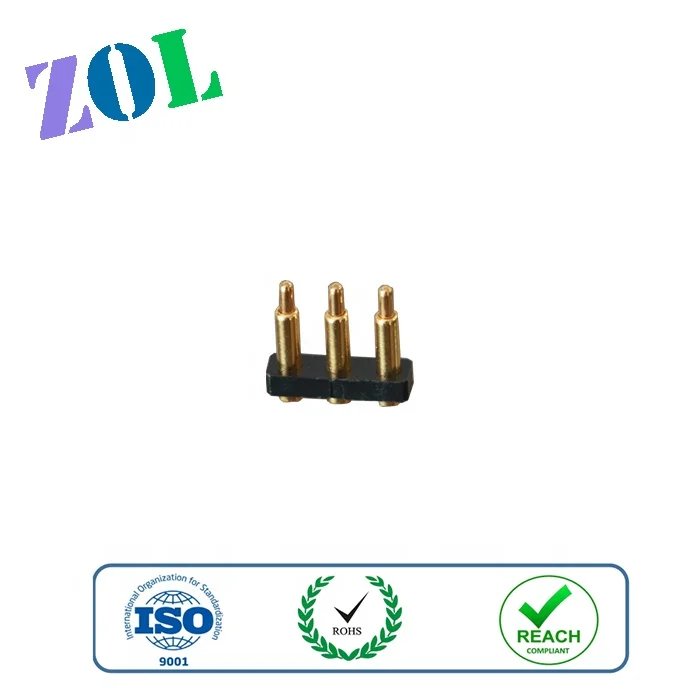

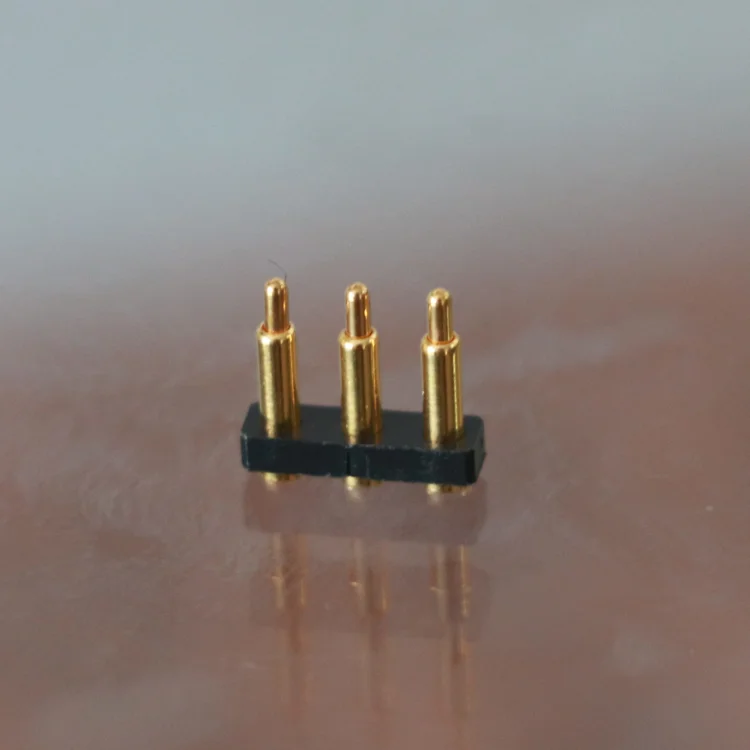

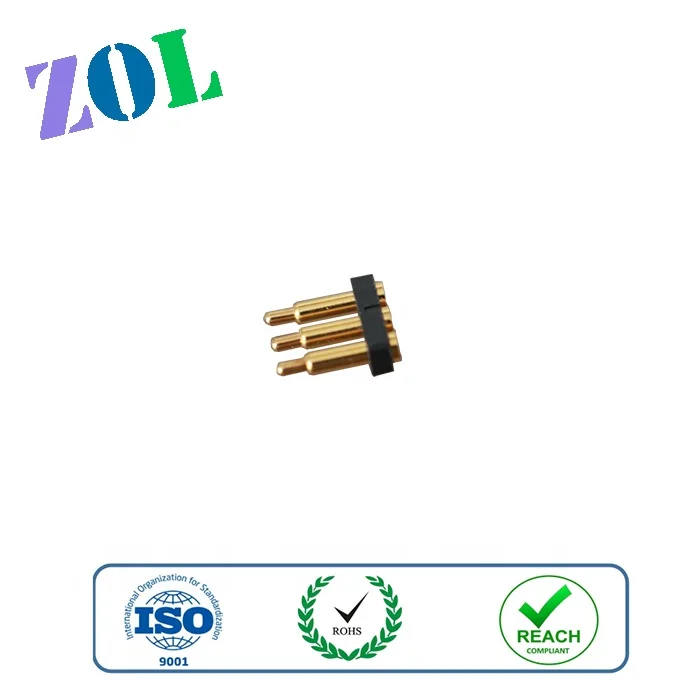

ODM 3.0 Pitch 3 Pins SMT Type Pogo Pin H8.0mm Connectors

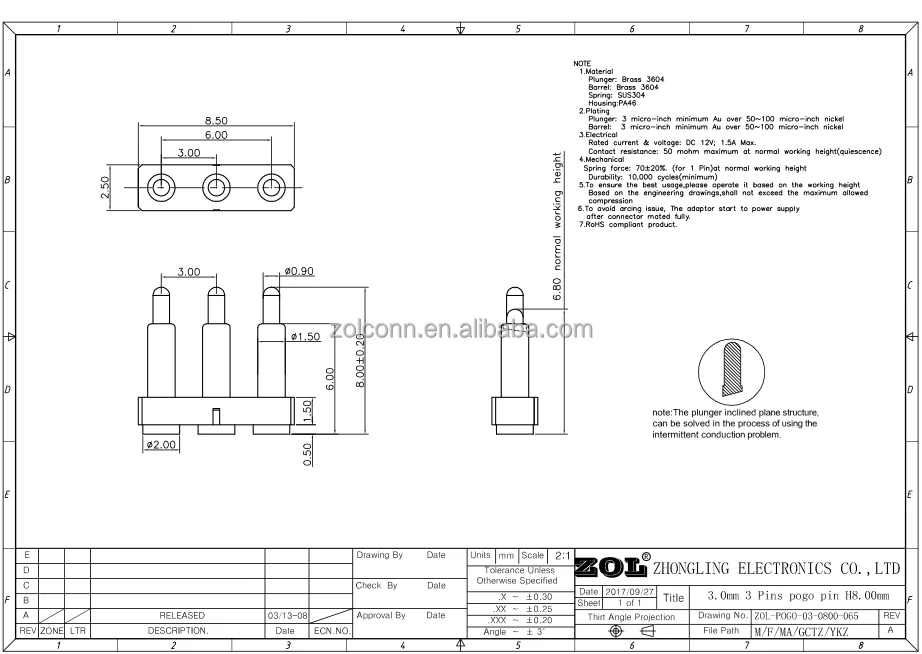

ODM 3.0 Pitch 3 Pins SMT Type Pogo Pin H8.0mm Connectors Drawing

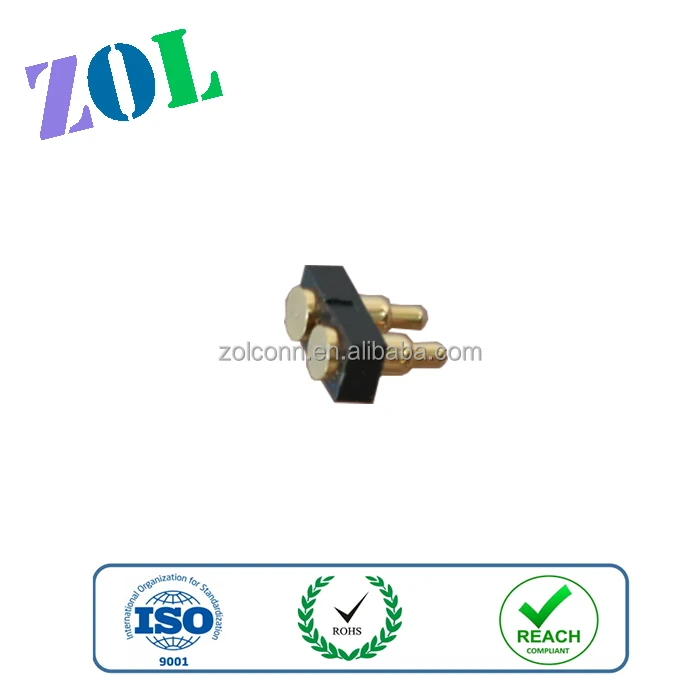

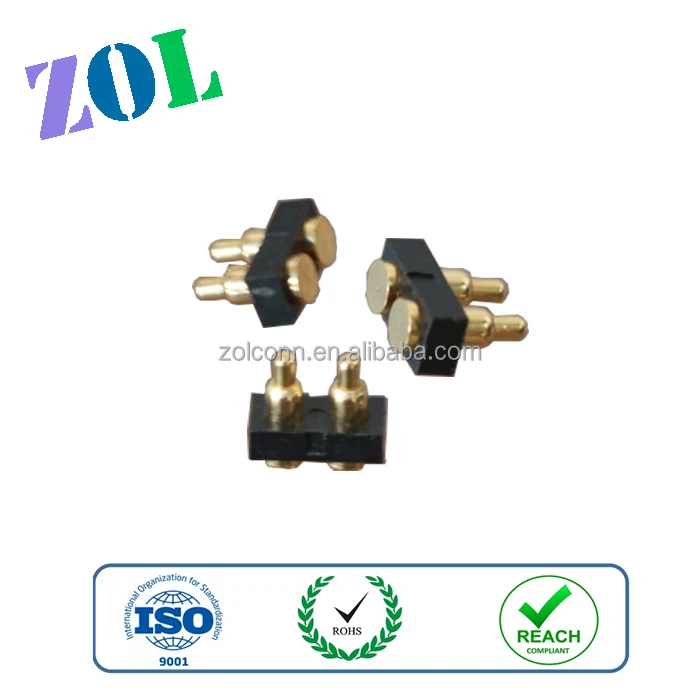

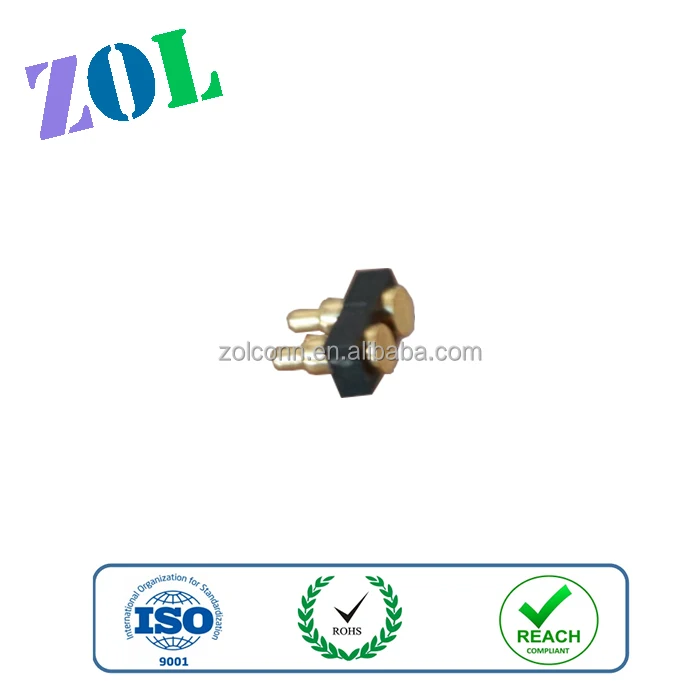

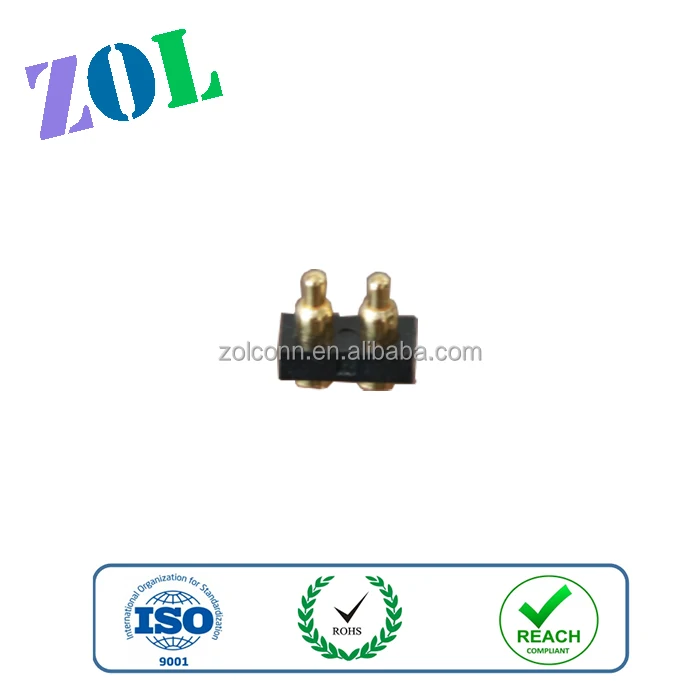

 custom 2.50 pitch 2pin SMTtype Pogo Pin H5.5mm

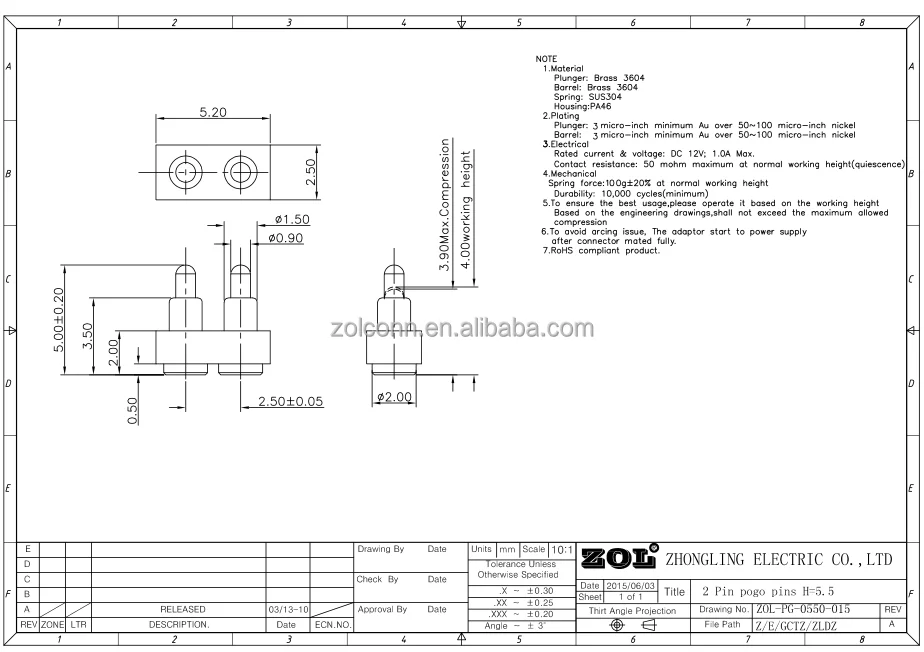

custom 2.50 pitch 2pin SMTtype Pogo Pin H5.5mm drawing

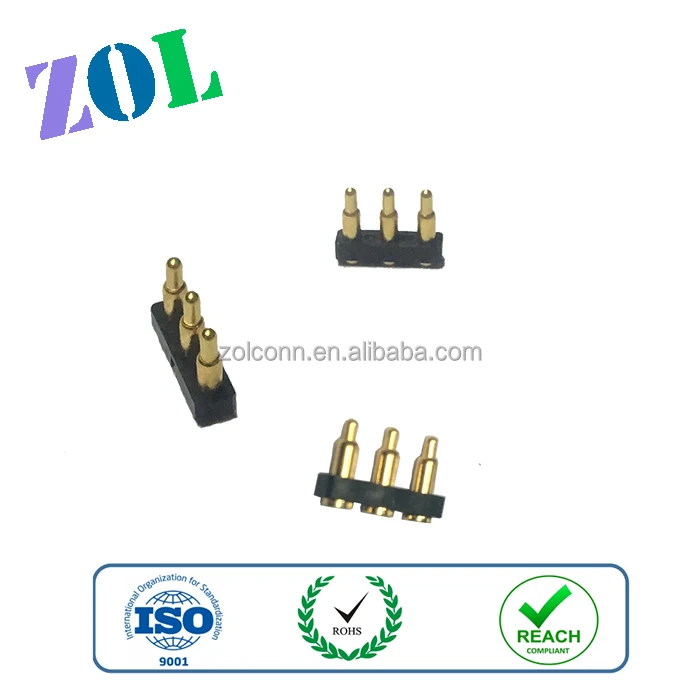

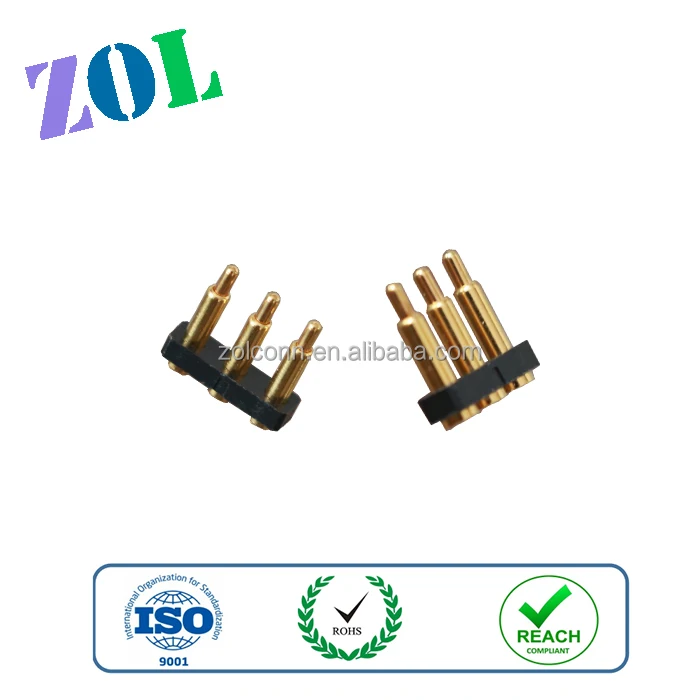

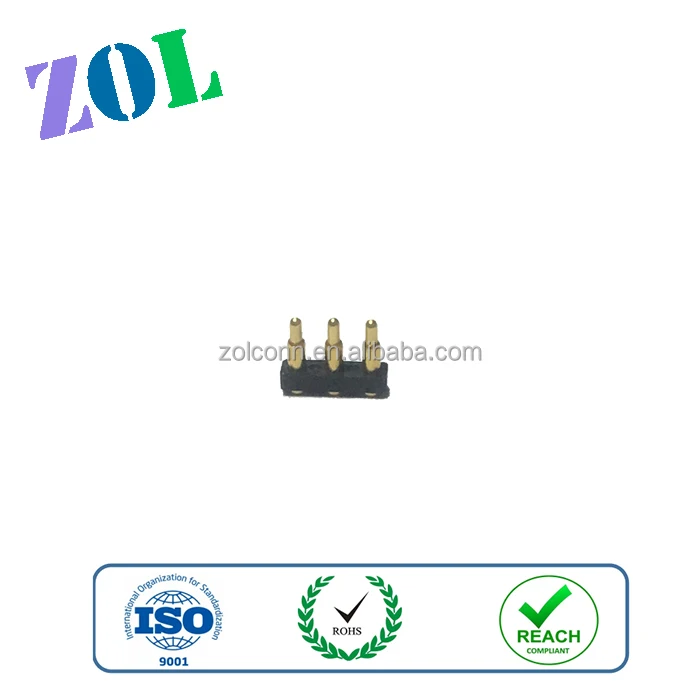

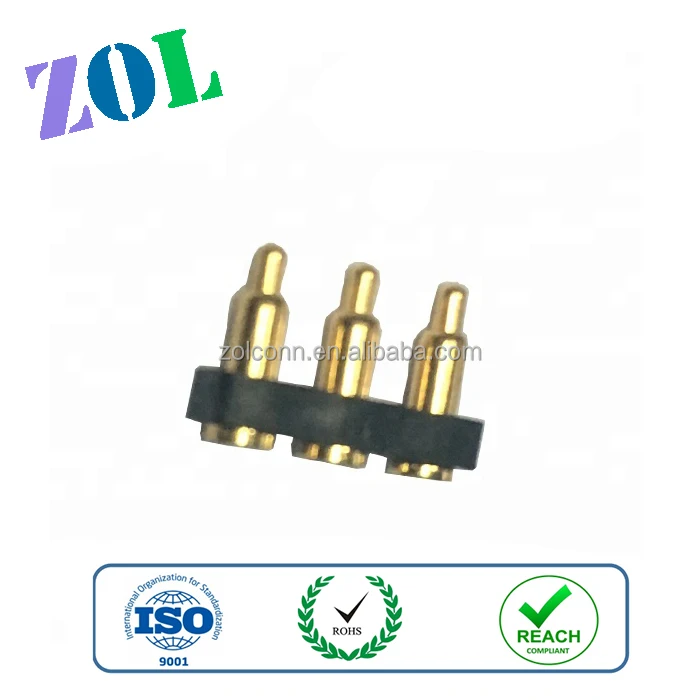

3.0 pitch 3 pins spring loaded  pogo pin Connectors H5.5mm SMD Pogo Pin

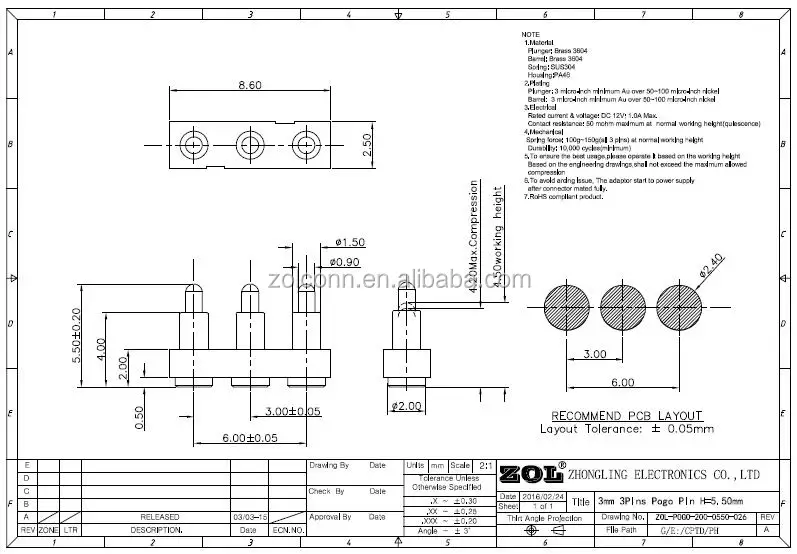

The drawing for 3.0 pitch  3 pins pogo pin H5.5 mm

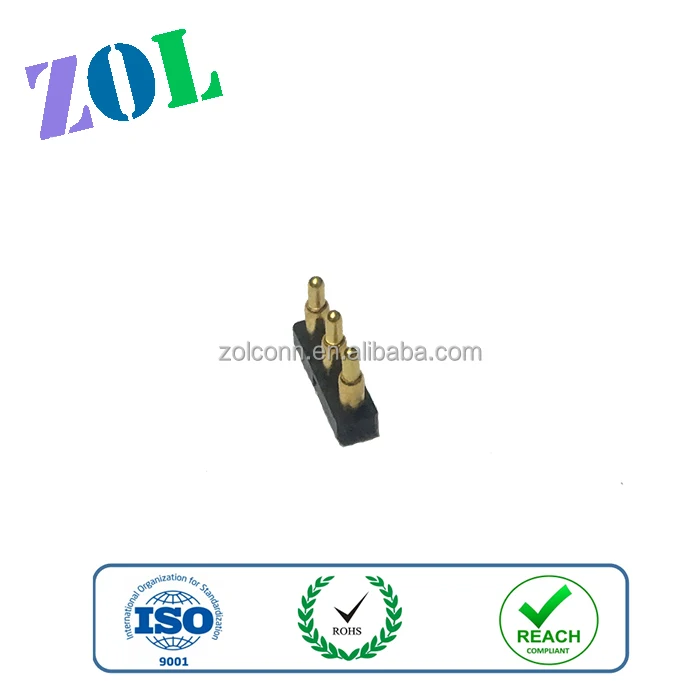

3.0 pitch 3 pins H5.5 pogo pin connectors.jpg


pogo pin connector 2 pin 1~20 micro gold plated

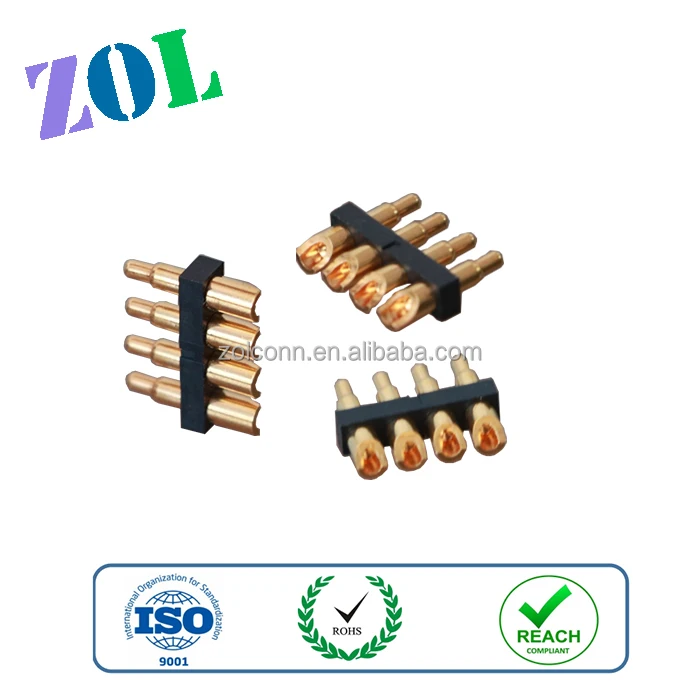

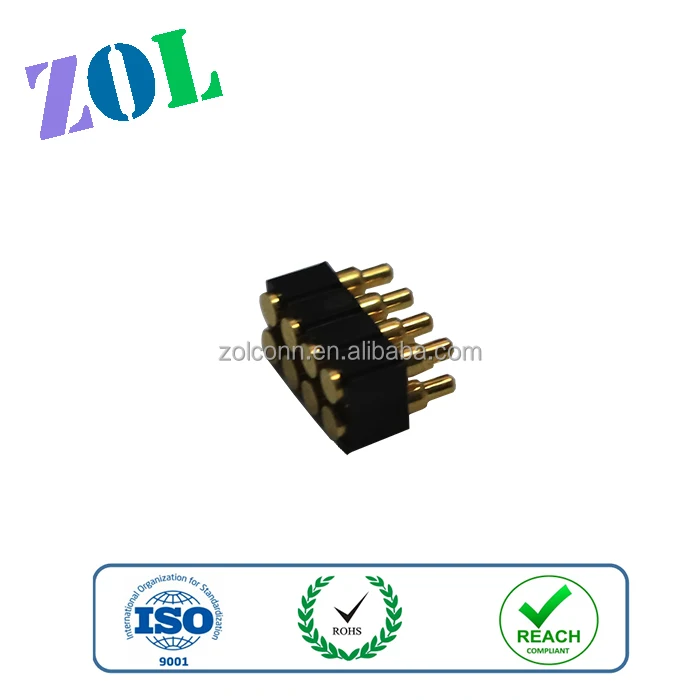

2x4 pogo pin connector







4 pin pogo pin solder type customized















1,Specifications:













































PlungerBrass 3604
BarrelBrass 3604
Plating plunger3 micro inch gold 50 to100 micro inch Nickel
Plating barrel3 micro inch  gold 50 to100 micro inch Nickel
Rated Current 2.0 A Max
Rated VoltageDC 12 V
Contact Resistance50 mΩ Max
Spring   Force100~150g  at normal working height
Durability10,000 cycles min
DimensionCustomized Dimension welcome







 2,Packing Details:






Packaging & Shipping


ZOL  .jpg




 Why Buy From US









Company Information


Shenzhen ZhongLing Electronics co., Ltd is professional in D&R ,production,marking brass pin ,pogo pin  ,cables ,and other electronic products.

Products mainly are brass pin , pogo pin , D-Sub connector ,Round Pin Header ,Pin Header , Box Header,Ejector Header , IDC Socket,DIN Male/Female Connector,Sata Mele/Female connector,wire hardness and cable assembly.

We insist on " Quality,Service,Intergrity" first as the company concept.
We hope that our business partner and us become the vin-vin relationship forever.

Welcome all the clients worldwide to contact us, we will be your best partner.








Our factory photo12680-1














FAQ


Q1:Why choosing our company


A:   1,We are a professional manufacturer with many years design and research experience ,and also have a  standout design and research team, we can deal with our customers'  project efficiently .





      2, Small MOQ , High quality





      3,Free sample ,


Q2:What about shipping method


 A:  1,China Post Air Mail





      2,DHL





      3,EMS





      4,UPS





      5,Fedex and son


Q3: What is your price term & payment terms


A:  1,  Usually the price is Exw price( factory price ),but others terms are available





      2, Payment terms:T/T,Paypal ,Escrow,Western Union,Money Gram and others


Q4:What about your delivery time


A:  Usually 7-15 working days , if you are urgent ,we can negociate it







2, For the POGO Pins we can do customized dimentions,welcome to order





Any questions,kindly contact us, we will reply you as soon as possible
