23 Year Plant CE Certified Automatic Tool Changer VMC CNC Milling Machine 5 axis ATC CNC 5 Axis

Share on (1600367906145):


Price:$53,768.00 - $53,968.00

Quantity:


Product Overview

Description


23 Year Plant CE Certified  Automatic Tool Changer VMC CNC Milling Machine 5 axis ATC CNC 5 Axis

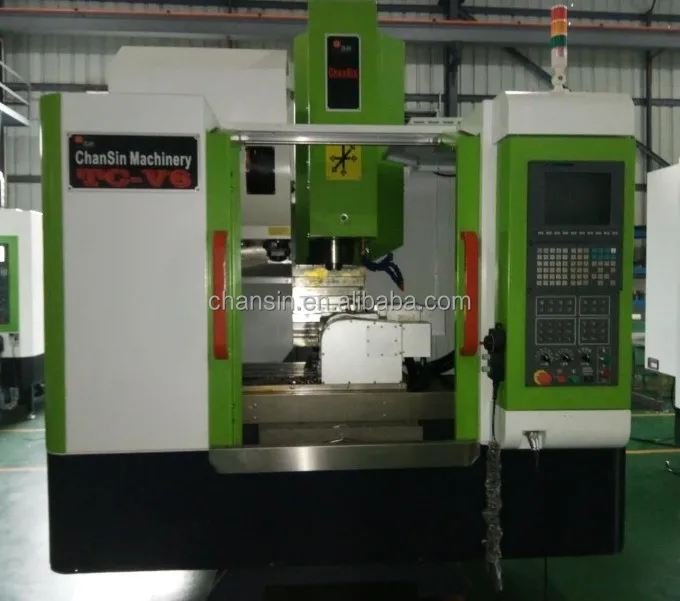

 5-axis S.JPG

































































































































SystemSyntec/Mitsubishi/Fanuc/Siemens
MotorYaskawa/Mitsubishi/Siemens/Fanuc

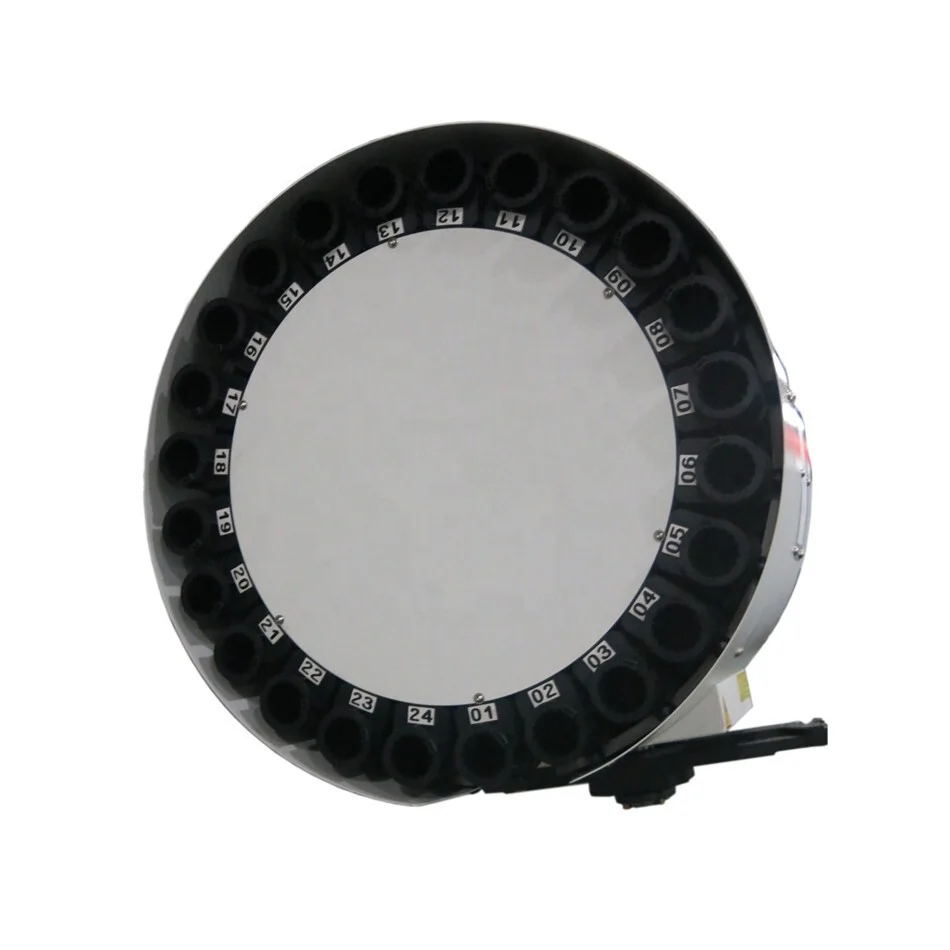

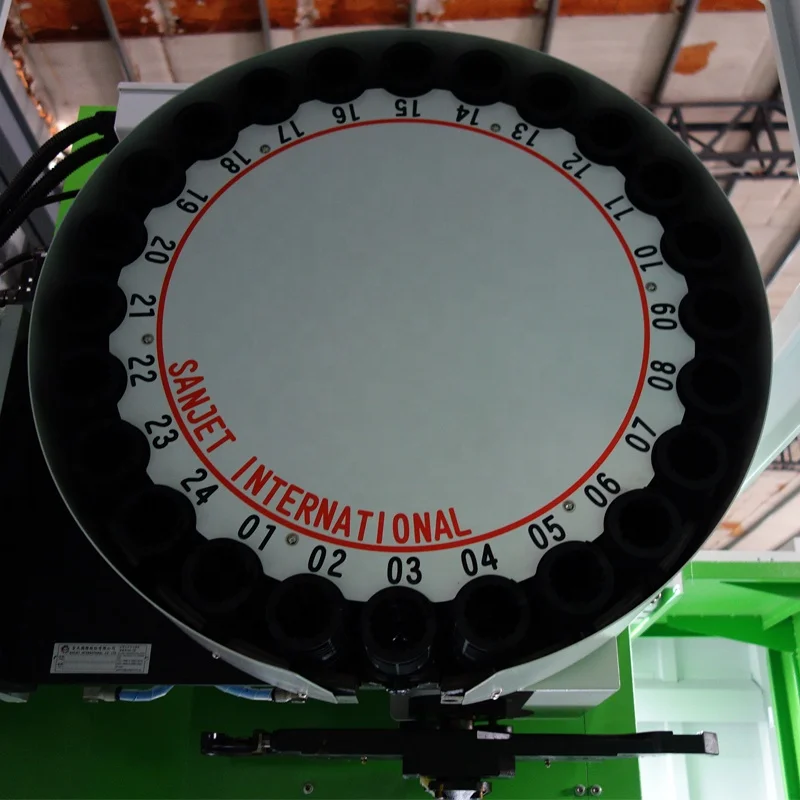

Tool Magazine CapacityDisc type tool magazine
Tool Number:24
Lubrication SystemAutomatic
Cooling SystemOil Cooling
X/Y/Z-axis Travel600/400/450mm
Distance from Spindle Nose to table140mm-590mm
Distance from Spindle Center to Column guide rail550mm
Working Table Size700*420mm
Table Max Load500kg
T Slot4pcs,size:18T,space:100mm
Spindle Speedstandard:8000rpm;optional:12000rpm
Spindle Motor Power7.5kw
X/Y/Z-axis Motor Power2.0kw/2.0kw/3.0kw
Rapid Traverse(X/Y/Z)48000/48000/48000mm/min
Cutting Speed12000mm/min
Spinldle Taper DiameterBT40
Positioning Accuracy±0.005mm
Repeat Positioning Accuracy±0.003mm
Line Rail Width38mm
Slider Quantity4
Machine Size2450mm*2200mm*2500mm
Machine Weight4ton
WarrantyOne Year
Main Component Brand
SystemSyntec/Mitsubishi/Siemens/Fanuc
SpindleVolis/Roaly in Taiwan
Tool MagazineSanjet/Okada in Taiwan
BearingNSK in Japan or FAG in Germany
Lead screw/Linear GuidewayHiwin/PMI in Taiwan
Relay/BreakerSchnieder/Merlin in France


Related Products

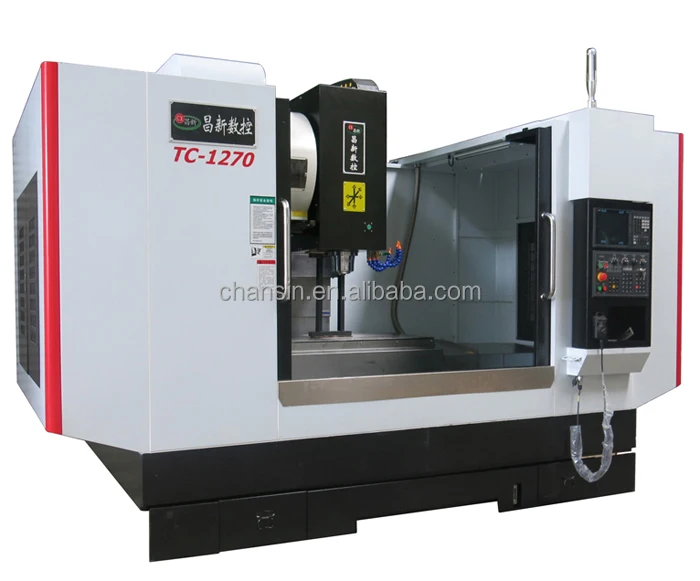

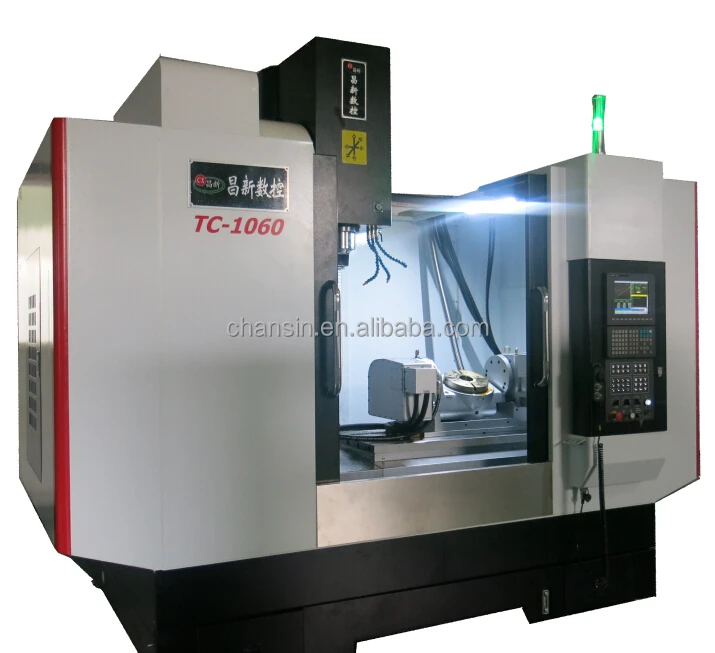

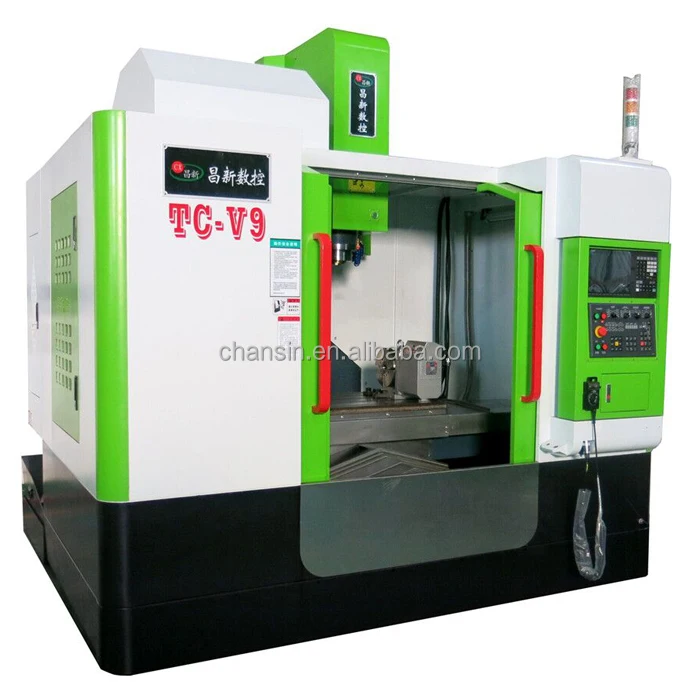

 TC-1060-S.jpg4 Axis V9-S.jpgTC-1270-S.jpg




  QQ20170701150653.jpg650 pic2.jpgscraping...780pixel.jpg



Company information


750 pixel-3.jpg750 pixel-2.jpg





Certifications







Our Partners


page 1.jpgpage 2.jpgpage 3.jpgpage 5.jpg





Packaging & Shipping


package and shipping.jpg





FAQ





Q1: Are you a factory?


A1: Yes,we are a professional factory that was founded in 1998.





Q2: Payment term


A2: After the contract is signed, you shall pay 40% deposit, then the contract comes into effect.





Q3:Production time


A3: 20 days upon order confirmation





Q4:Check the acceptance


A4: When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine. If there is any problem about machine, please take pictures and contact us immediately.





Q5:Warranty time


A5: 1) One year warranty. During the first year, if some parts need replacing, we will free provide. And we offer life-long maintenance. After warranty time, customers shall pay money for component and express fee.We can provide debugging on site and training for customers, but customers need to pay expense. In this case, the customer will pay for air tickets between China and buyer's destination and free provide accommodation and meals. 2)12 months warranty begins from the day when the machine arrives. If it can’t work normally, my company will send engineers to your factory within 24 hours after receiving your notice. We still support maintenance for machine even warranty expires. Each cnc machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.





Q6:OEM Service


A6: We accept purchase orders with customers' brand or trade mark.
