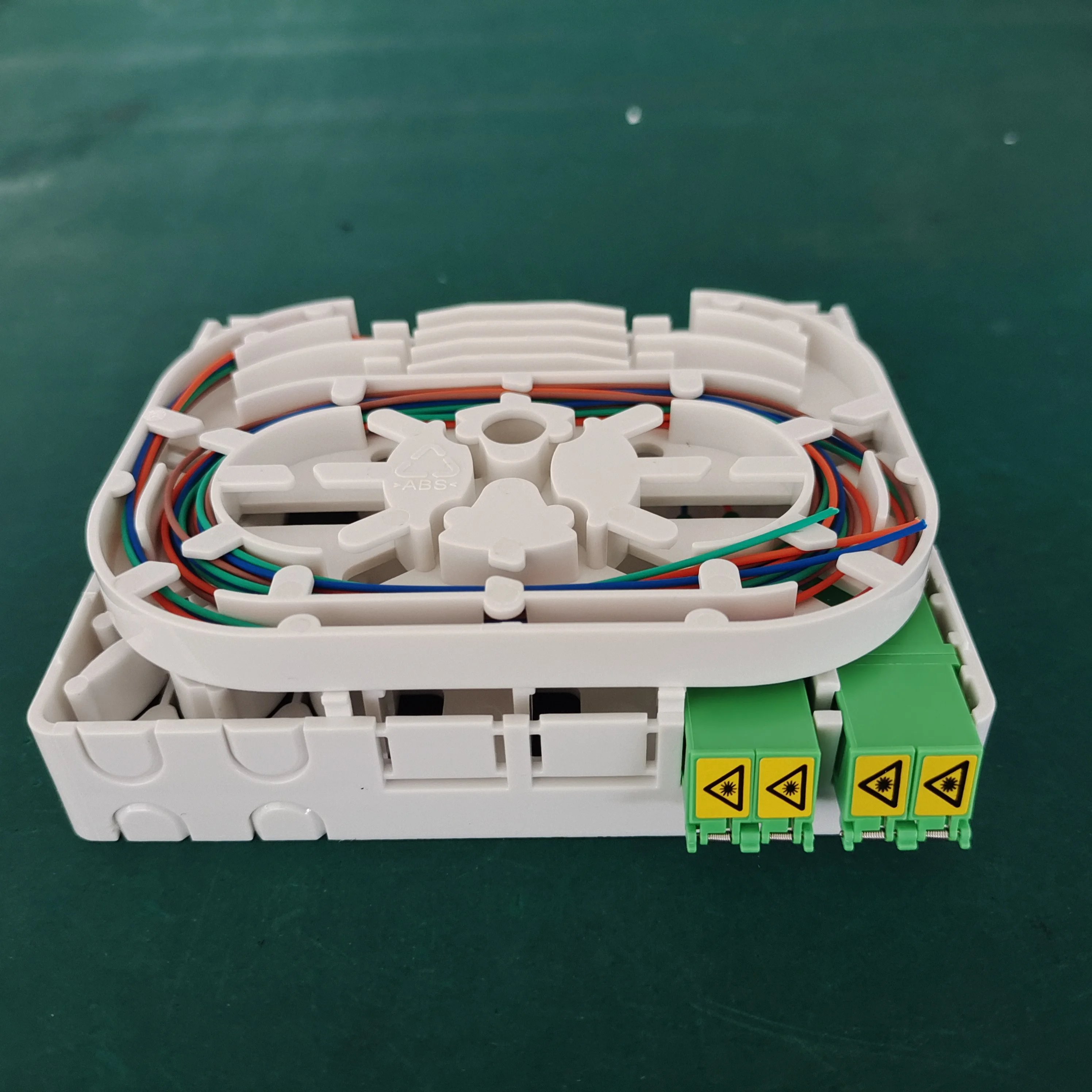

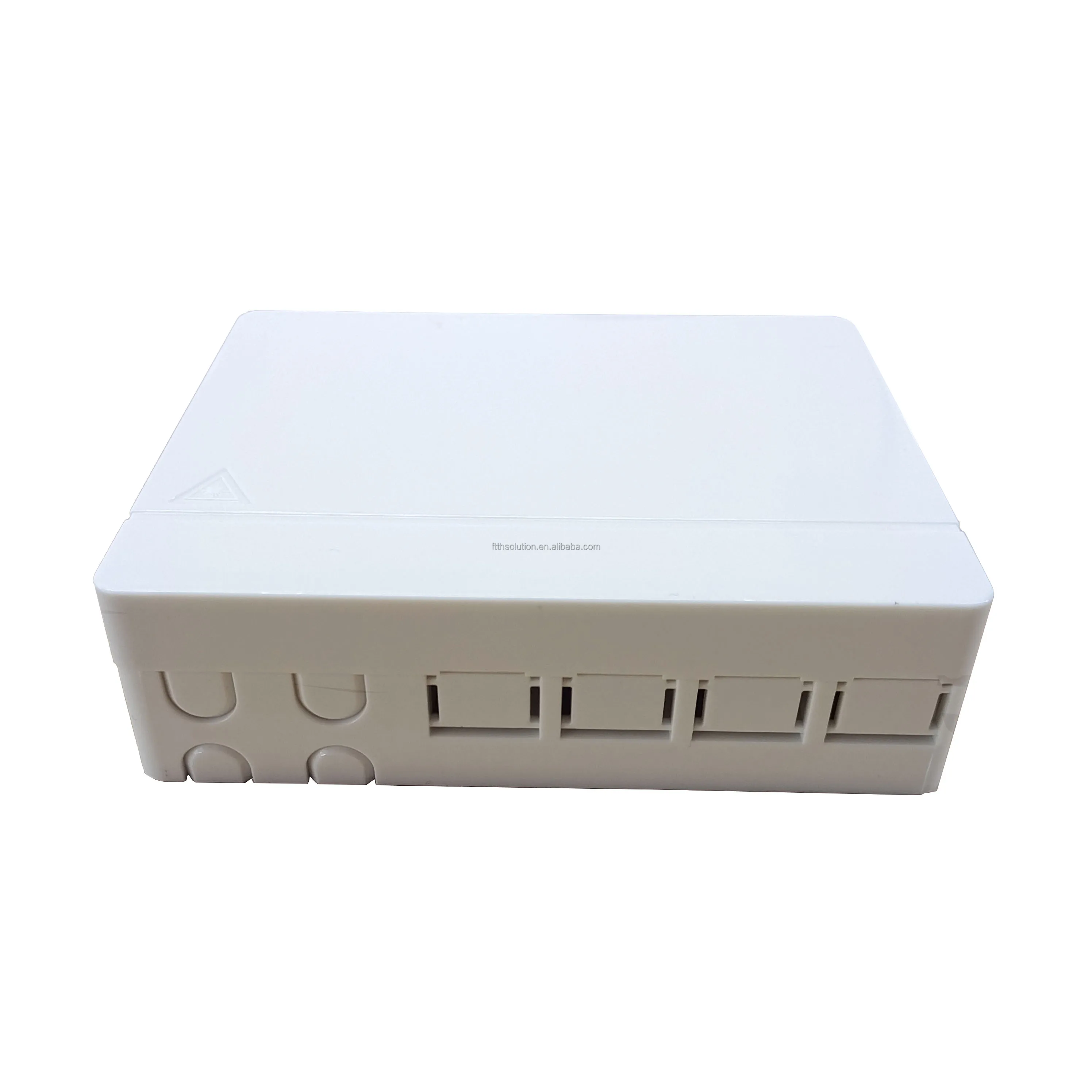

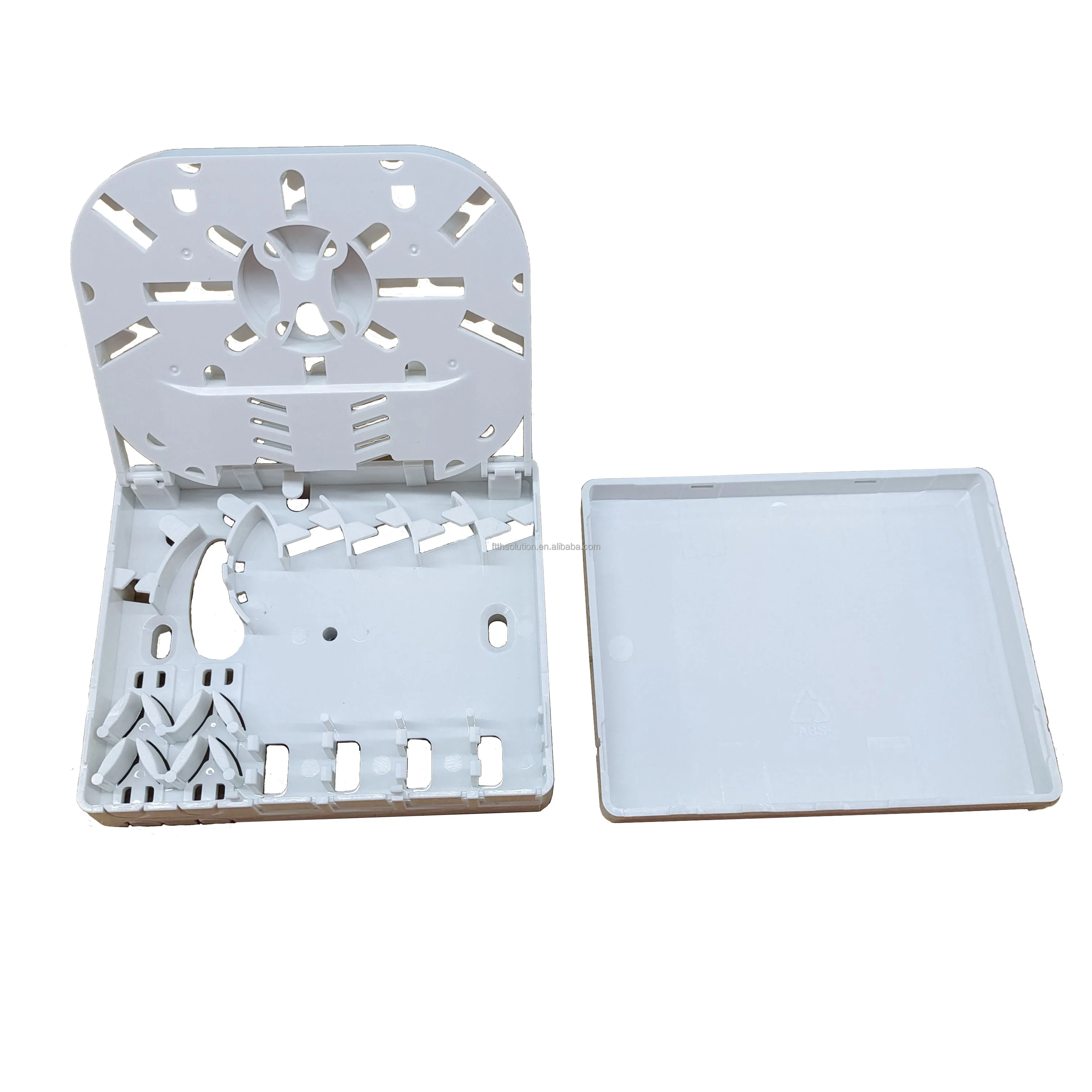

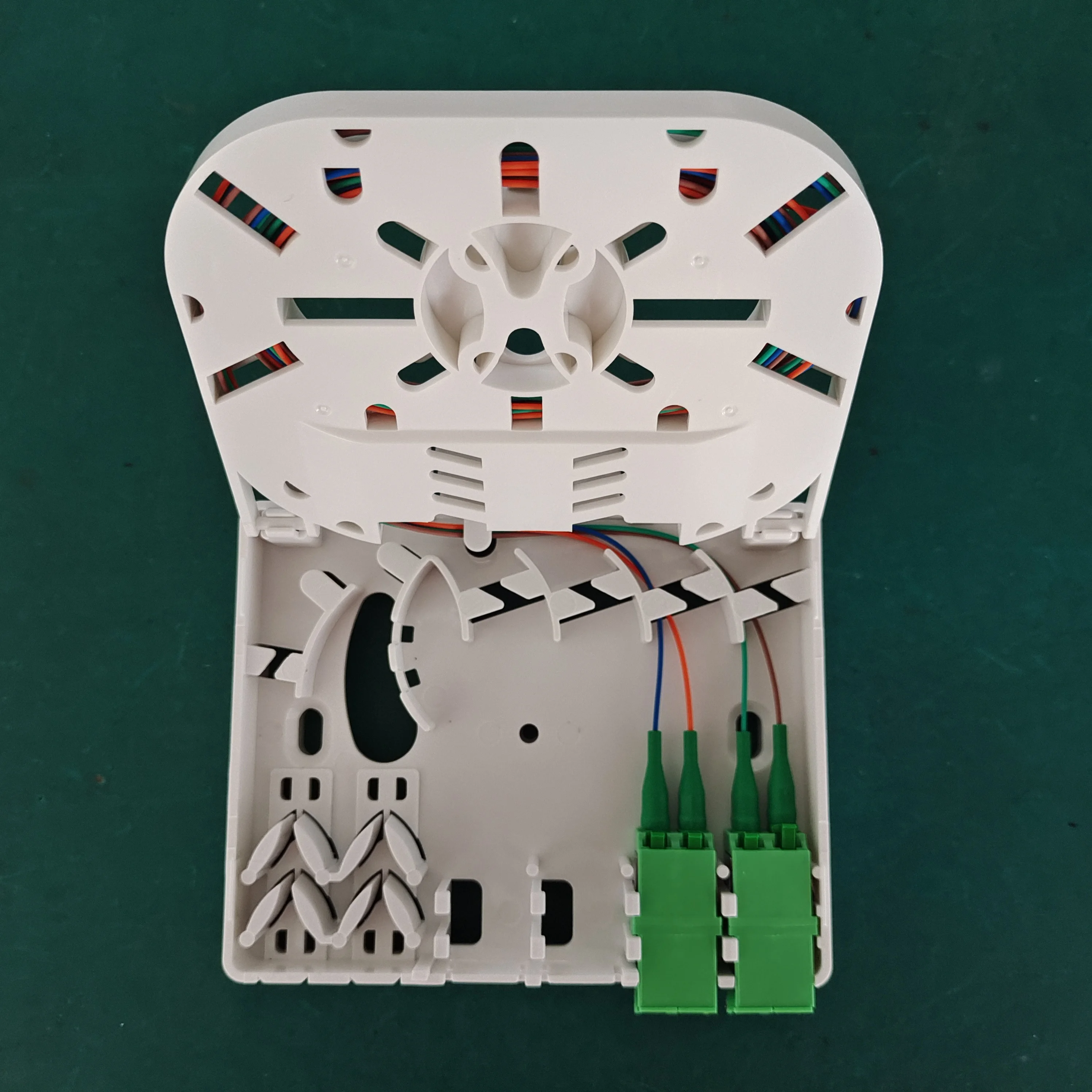

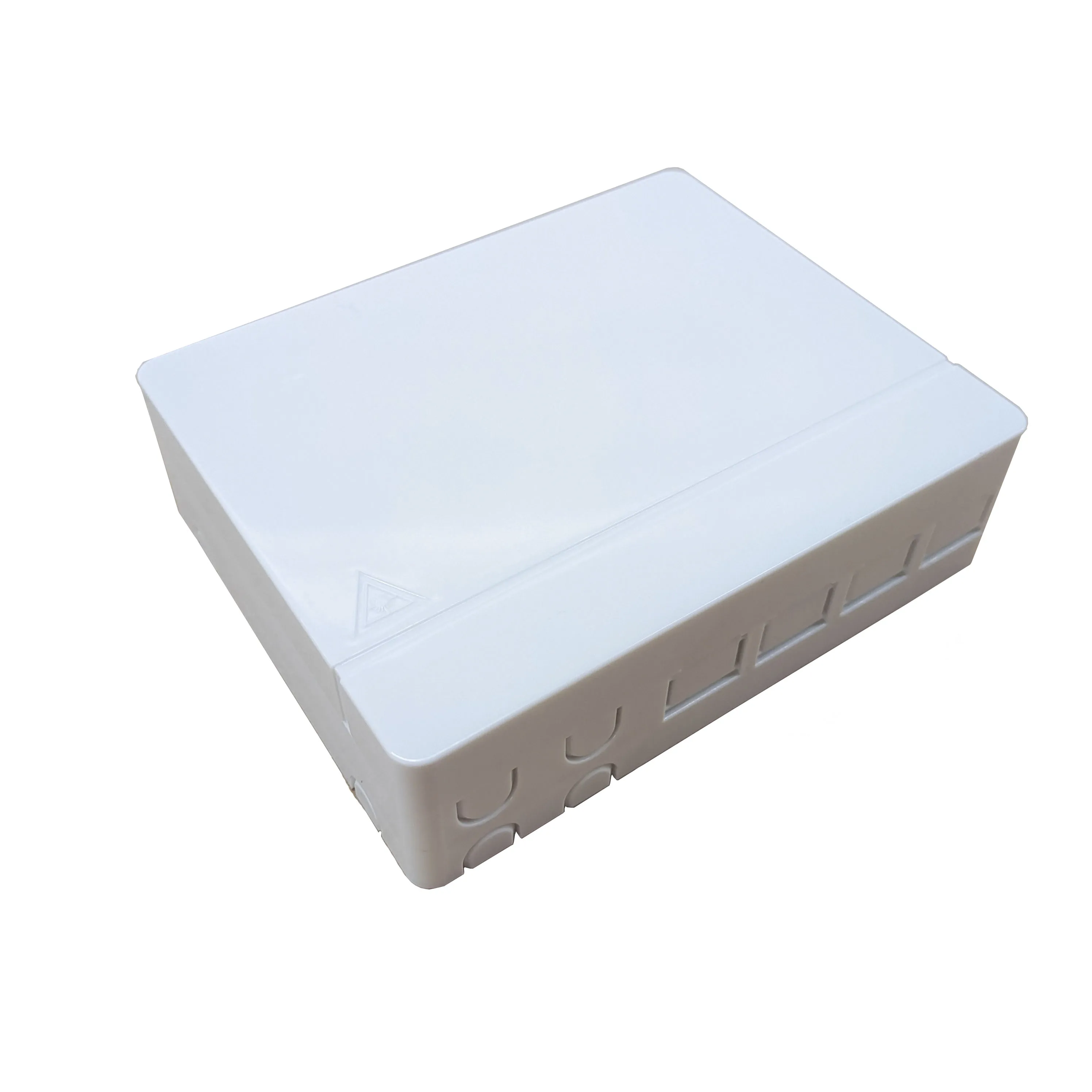

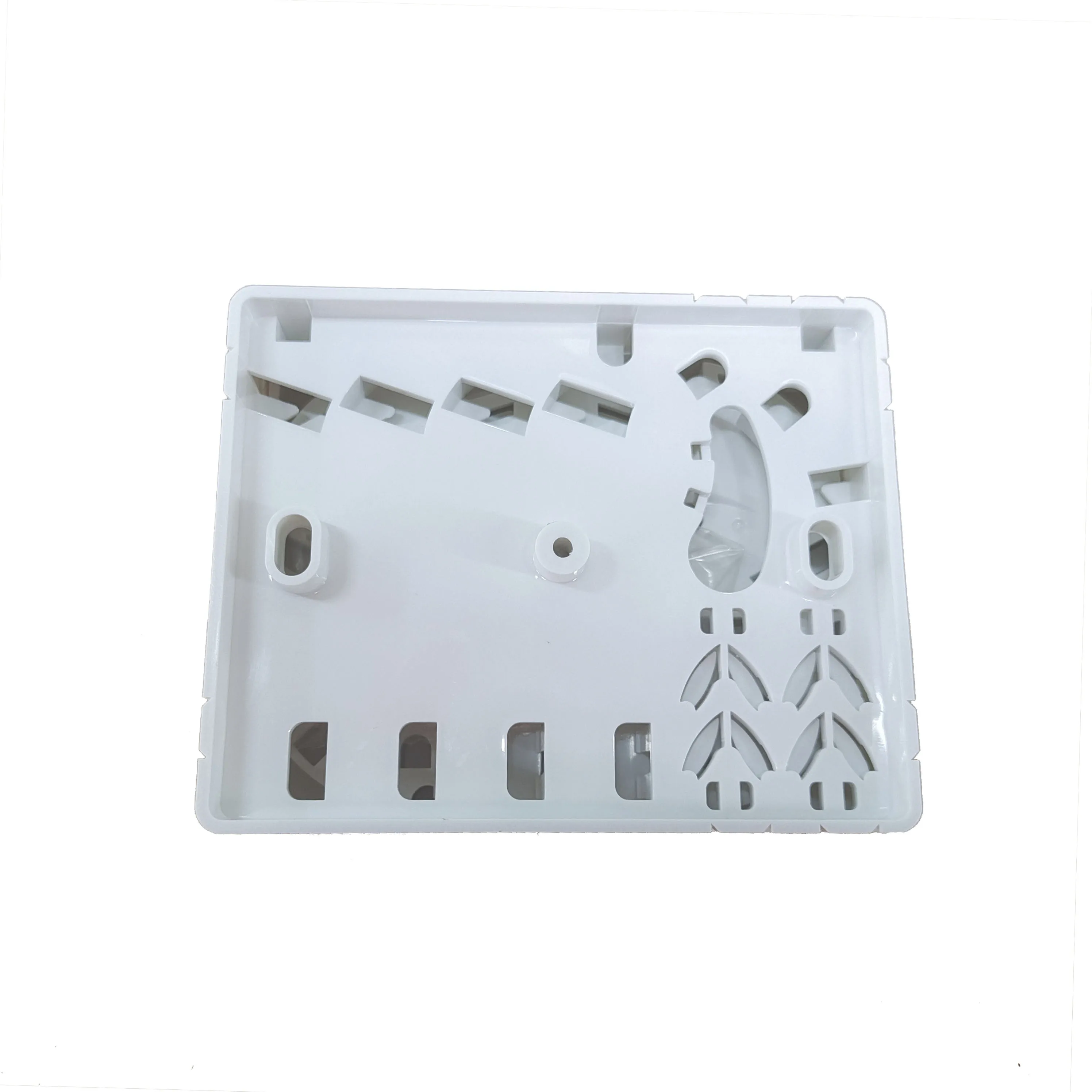

fiber optic equipment mini 4 cores fiber optic wall mounting terminal box capacity SC SX /LC DX adapters
- Category: >>>
- Supplier: Ningbo Eonkey Optical Communication Co. Ltd.
Share on (1600368028281):
Product Overview
Description
products desription
Name: Eonkey terminal wall mounting terminal distrubtion box with 4ports
Part No:Ek0601-4C
Outline Dimension:100*81*29mm
Port type: 4 ports SC/APC Simplex adapter ; 4 ports LC/APC Duplex adapter
Installation:Wall Mount (indoor)
Max. capacity:4 fibers
Applicable mode:G657A2,G657A1,G657B3
Insertion Loss:≤0.2dB(1310nm & 1550nm)
Color:White
It is used for different kinds of modules and applied to the working area subsystem.
It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO.
With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer’s choice.
Cable management can be connected without cutting(with express port)
All modules are free of welding.
Applications
Optical Telecommunication System, LAN , Optical fiber Communication System
Optical fiber testing machine /test equipment
CATV Networks, Fiber optical transducer
Optical fiber broadband access network, FTTH access network
Optical fiber ODF,Rack and wall mount fiber optical distribution frame
features
-Accommodation of 4 adapters.
-Easy installation.
-Suitable for SC SX and LC DX adapters.
-Easy slick-in cover mounting.
-Hinged and detachable splice cassette.
-Din Rail by two sides of the box.
