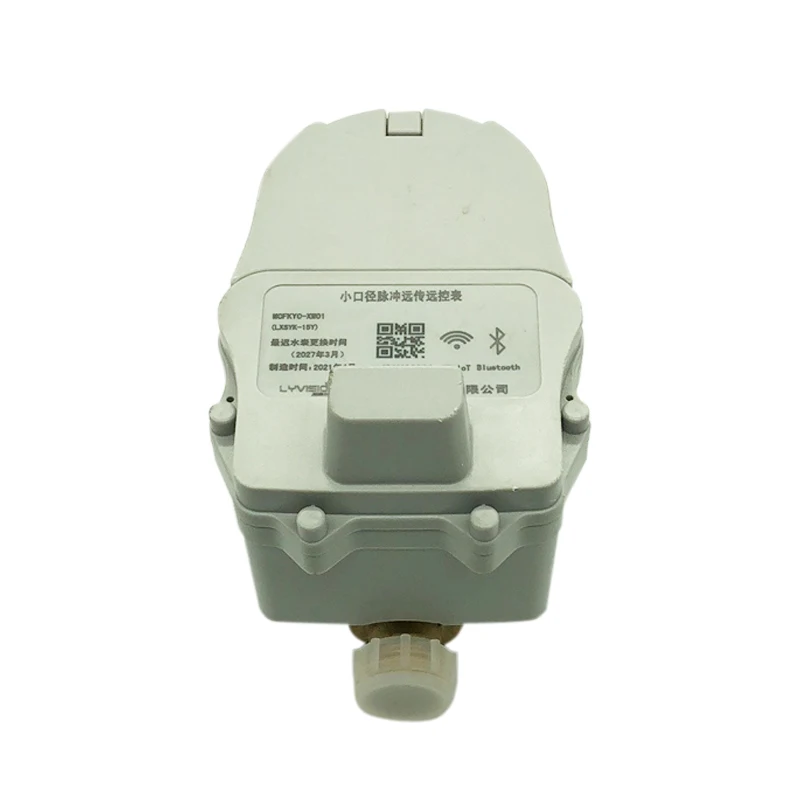

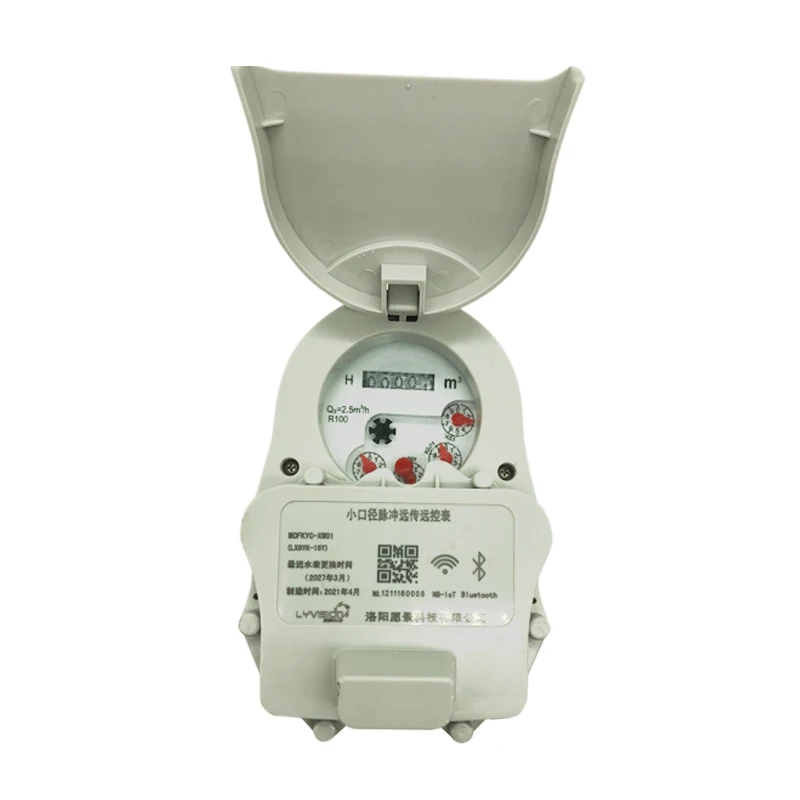

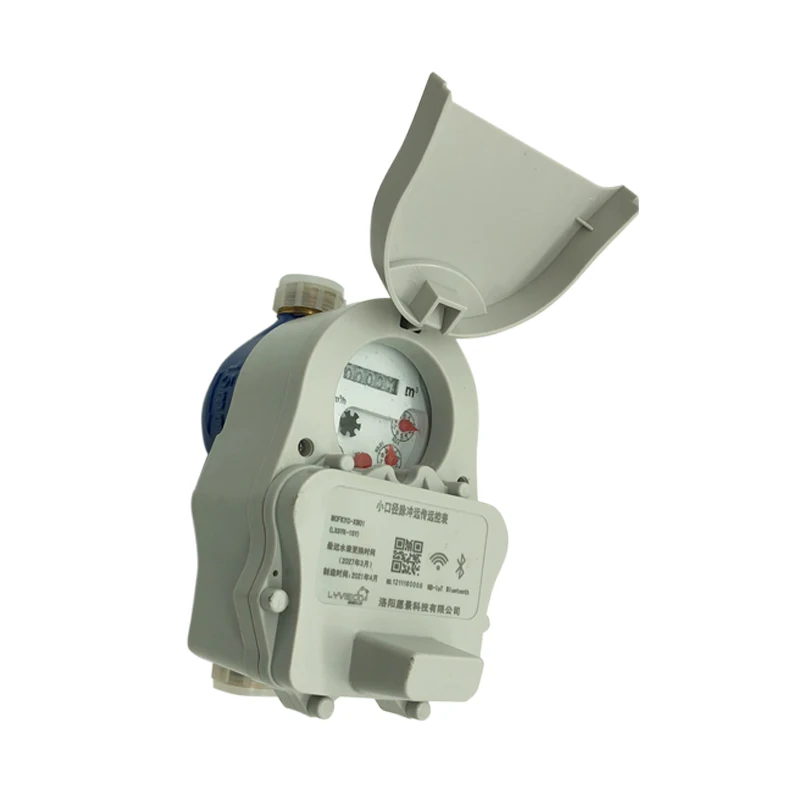

Rolla / Lorawan / Pulse / Gsm / Nb Iot Wireless Remote Reading Cold Water Meter
- Category: >>>
- Supplier: Cixi Zheyong Water Meter Co. Ltd.
Share on (1600368031997):
Product Overview
Description
Home
Products Description
DESCRIPTION
The magnetic needle pulse of water meter is collected by magnetic resistance sensor and converted into water consumption of water meter, which can be transmitted to the management background through wireless network to realize the measurement and remote transmission of water consumption information.
FEATURE
1. Wireless network transmission
2. Mechanical and electrical separation, convenient maintenance
3. Clock self-calibration
4. Strong magnetic interference alarm
5. Valve condition monitoring, failure alarm.
6. Battery voltage alarm
7. Data transmission adopts AES128 hardware encryption
WORKING CONDITION
Cold Water temperature:≤30°C
Hot Water temperature:≤90°C
Working pressure:≤10 Bar
The magnetic needle pulse of water meter is collected by magnetic resistance sensor and converted into water consumption of water meter, which can be transmitted to the management background through wireless network to realize the measurement and remote transmission of water consumption information.
FEATURE
1. Wireless network transmission
2. Mechanical and electrical separation, convenient maintenance
3. Clock self-calibration
4. Strong magnetic interference alarm
5. Valve condition monitoring, failure alarm.
6. Battery voltage alarm
7. Data transmission adopts AES128 hardware encryption
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)
WORKING CONDITION
Cold Water temperature:≤30°C
Hot Water temperature:≤90°C
Working pressure:≤10 Bar
BASIC DATA
Data acquisition | Pulse |
Data communication | Wireless |
Standby current | <7uA |
Battery | 3.6V lithium sub battery, replaceable |
Accurate | 2 |
Maximum working pressure | 1Mpa |
Protection level | IP68 |
Battery life | ≥7 years |
MAIN TECHNICAL DATA
DN | Q3/Q1 | Q4 | Q3 | Q2 | Q1 | Min | Max | |||
mm | —— | m3/h | L/h | m3 | ||||||
15 | 80 | 3.125 | 2.5 | 50 | 31.25 | 0.0001 | 99999 | |||
100 | 40 | 25 | ||||||||
20 | 80 | 5 | 4 | 80 | 50 | |||||
100 | 64 | 40 | ||||||||
25 | 80 | 7.785 | 6.3 | 126 | 78.75 | |||||
100 | 100.8 | 63 | ||||||||
DIMENSIONS AND WEIGHT
DN | L | B | H | D | |||||
mm | |||||||||
15 | 165 | 89 | 140 | R1/2 | G3/4 | ||||
20 | 195 | 91 | 140 | R3/4 | G1 | ||||
25 | 225 | 91 | 140 | R1 | G1 1/4 | ||||
WIRELESS DATA
Working frequency | 470-510MHz |
Wireless receiving current | <6mA |
Wireless sending current | <30mA |
Wireless transmission power | ≤13dBm |
Wireless reception sensitivity | <-120dBm |
VALVE CONTROL DATA
Valve drive current | <1A |
Valve maintenance cycle | 1 time/month |
