Top Sale Micron Powder Ultra Fine Vertical Roller Mill Mini Cement Clinker Grinding Plant in China
_________CLUM Ultra Fine Vertical Roller Mill Intorduction_________

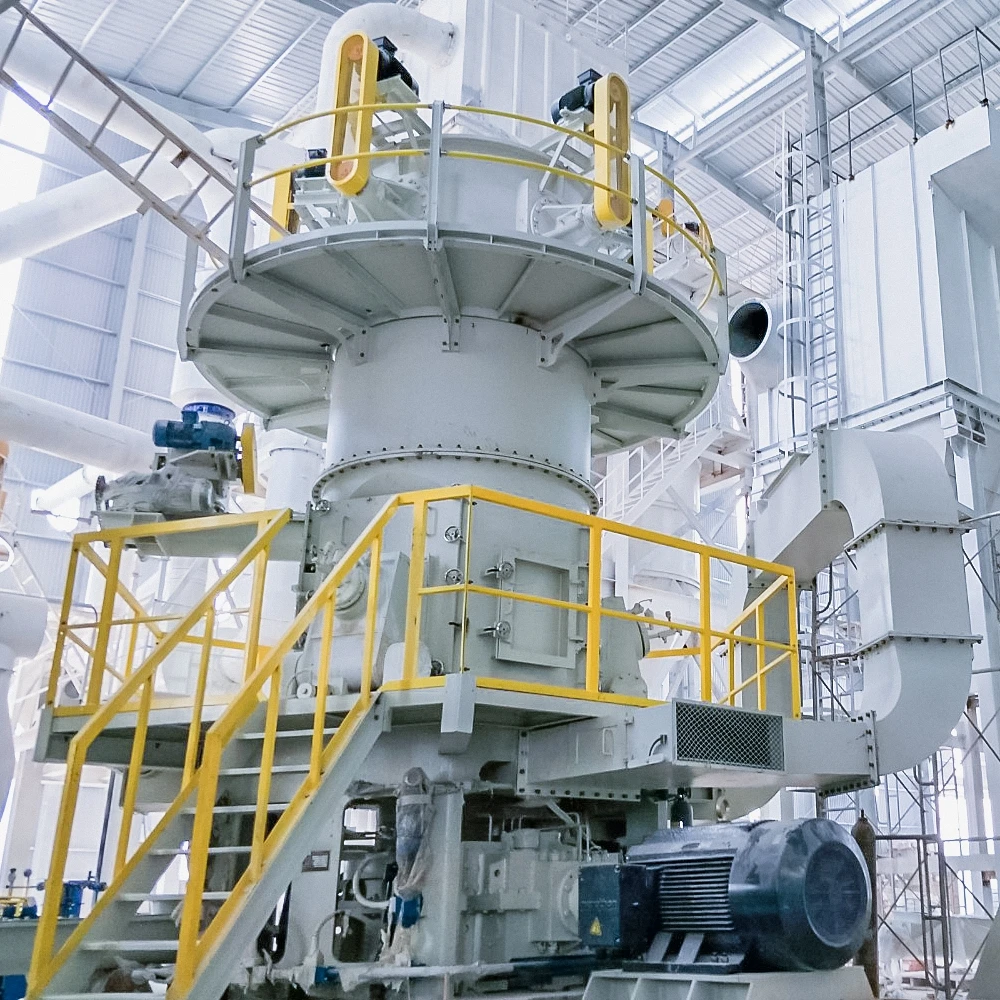

CLUM Ultra Fine Vertical Roller Mill Introdution
CLUM series vertical roller mill on the basis of introducing the vertical roller mill technology from Taiwan and Germany, which integrates the functions of grinding, classifying, conveying, secondary classifying, and packing progress into one machine.
Pre-sale services
Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investments;
♥ Select equipment model;
♥ Sdeign and manufacture products according to clients' special requirement;
♥ Train technical personnel for clients.
Services during the sale
Respect clients; devote ourselves to improving the total value of clients.
♥ Pre-check and accept products ahead of delivery;
♥ help clients to draft solution.
After-sales service
Provide considerate services to minimize clients' worries.
♥ Assist clients to prepare for the first construction scheme;
♥ Install and debug the equipment;
♥ Train the first-line operators on site;
♥ Examine the equipment regularly;
♥ Take initiative to eliminate the troubles rapidly at site;
♥ Distribute the guarantee fittings door-to-door;
♥ Provide technical exchanging;
♥ Provide maintenance for big items

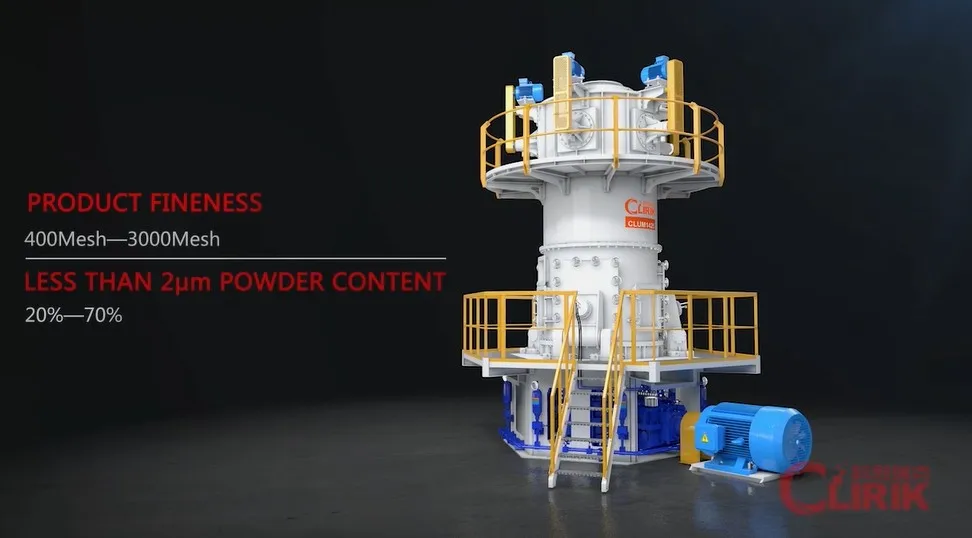

It powder fineness can reach 400-3000 mesh. The CLUM vertical roller mill breaks through the bottleneck of low capacity mentioned herein. Over 5 years' development, more than 30 ultra fine powder production lines have been installed worldwide.
CLUM vertical roller mill can provide high-end ultra fine fillers powder for paper making, coating materials, plastics, rubber, PVC, printing ink and other many industry.
CLUM Ultra Fine Vertical Roller Mill Technology Parameter
CLUM1425 Ultra Fine Vertical Roller Mill Production Parameters
Output (t/h) | 10.0-12.0 | 7.5-9.5 | 6.0-8.0 | 4.5-6.5 | 3.0-4.0 |
specific surface area (cm²/g) | 11000±500 | 13500±500 | 15000±500 | 17000±500 | 19000±500 |
325 mesh remaining amount(%) | 0.015 | 0.015 | 0.01 | 0 | 0 |
Less than 2 um powder content (%) | 30 | 40 | 45 | 50 | 60 |
Median particle diameter D50 (um) | 5.2 | 3.0 | 2.5 | 2.0 | 1.4 |
General name (mesh) | 600 | 800 | 1250 | 2000 | 2500 |
Particle size distribution D97 (um) | 30 | 25 | 20 | 15 | 9 |
Particle size cut point D100 (um) | 80 | 48 | 38 | 28 | 18 |
Moisture content (%) | <0.3% | <0.3% | <0.3% | <0.3% | <0.3% |
Energy consumption (Kw/T) | 38-40 | 40-50 | 47-53 | 50-53 | 110-125 |
CLUM1632 Ultra Fine Vertical Roller Mill Production Parameters
Output (t/h) | 12.5-14.5 | 9.5-11.5 | 7.5-9.5 | 6.0-8.0 |
specific surface area (cm²/g) | 11000±500 | 13500±500 | 15000±500 | 17000±500 |
325 mesh remaining amount(%) | 0.015 | 0.015 | 0.01 | 0 |
Less than 2 um powder content (%) | 30 | 40 | 45 | 50 |
Median particle diameter D50 (um) | 5.2 | 3.0 | 2.5 | 2.0 |
General name (mesh) | 600 | 800 | 1250 | 2000 |
Particle size distribution D97 (um) | 30 | 25 | 20 | 15 |
Particle size cut point D100 (um) | 80 | 48 | 38 | 28 |
Moisture content (%) | <0.3% | <0.3% | <0.3% | <0.3% |
Energy consumption (Kw/T) | 38-40 | 40-50 | 47-53 | 50-53 |
CLUM1736 Ultra Fine Vertical Roller Mill Production Parameters
Output (t/h) | 15.0-18.0 | 11.5-135. | 9.0-11.0 |
specific surface area (cm²/g) | 11000±500 | 13500±500 | 15000±500 |
325 mesh remaining amount(%) | 0.015 | 0.015 | 0.01 |
Less than 2 um powder content (%) | 30 | 40 | 45 |
Median particle diameter D50 (um) | 5.2 | 3.0 | 2.5 |
General name (mesh) | 600 | 800 | 1250 |
Particle size distribution D97 (um) | 30 | 25 | 20 |
Particle size cut point D100 (um) | 80 | 48 | 38 |
Moisture content (%) | <0.3% | <0.3% | <0.3% |
Energy consumption (Kw/T) | 38-40 | 40-50 | 47-53 |
-------------------------------------------------------------------------------Test Standard-------------------------------------------------------------------------------
Material: Base on calcite
Particle Size Distribution: Measured by micro laser diffraction particle size analyzer in British Malvern3000 instruments.
The Specific Surface Area: Converted from the average particle diameter, the unit is relative area of 1g powder.
325 Mesh Remaining Amount: A wet process is used to filter 1000g of the sample on a 325 mesh, to calculate the percentage.
Median Particle Diameter: The median particle size is obtained by particle size distribution.
Moisture Content: The 5g sample is placed on the moisture analyzer, and the measurement tested at 150 centigrade for 6 minutes.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CLUM Ultra Fine Vertical Roller Mill Certification
As a professional manufacturer of mining grinding mill, we had passed CE, BV, SGS, ISO9001 and many other certification, we also have our own patent, and we use our patent in our grinding mill machines, so don't worry about our quality.
CLUM Ultra Fine Vertical Roller Mill Features
CLUM Ultra Fine Vertical Roller Mill Application
CLUM ultra fine vertical roller mill can be widely applied in the industries of chemicals,metallurgy, non-metallic ores etc.
In particular, it is outstanding in processing white superfine non-metallic ore powders, providing superior quality fillers and
additives for paper making,coating materials, plastics, rubber, PVC, printing ink etc.
In particular, it is outstanding in processing white superfine non-metallic ore powders, providing superior quality fillers and
additives for paper making,coating materials, plastics, rubber, PVC, printing ink etc.
The CLUM mill can be extensively used to process superfine dry powder of non-mental materials such as calcite, marble,limestone, dolomite, barite, talc, kaolin, wollastonite, gypsum, feldspar, pyrophyllite etc.
_________CLUM Ultra Fine Vertical Roller Mill Related Products_________
Clirik is a professional mining equipment manufacturer, we have devoted into the field of grinding mill R&D and manufatcuring more than 20 years, CLUM ultra fine vertical roller mill is one of our new technology ultra fine grinding mill, and if you are interested in other mining machines, you also can visit our Online Store for more details
 |  |  |  |
surface powder modification plant |
_________CLUM Ultra Fine Vertical Roller Mill Manufacturer_________
Shanghai Clirik Machinery Co. Ltd., located in PUDONG New district of Shanghai china as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.
____________________________________Our Comapny____________________________________

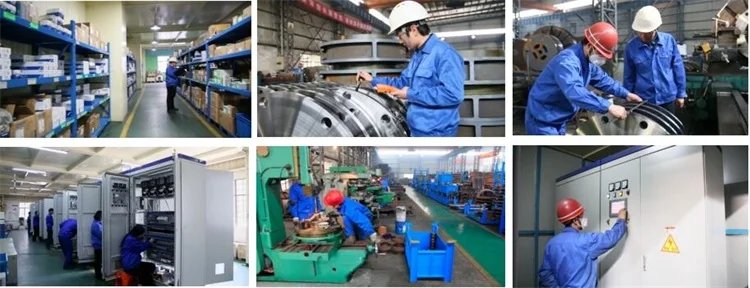

____________________________________Our Factory____________________________________
____________________________________Our Team____________________________________
____________________________________Tem Building____________________________________
____________________________________Exhibition We Attend____________________________________
____________________________________Customer Visit____________________________________

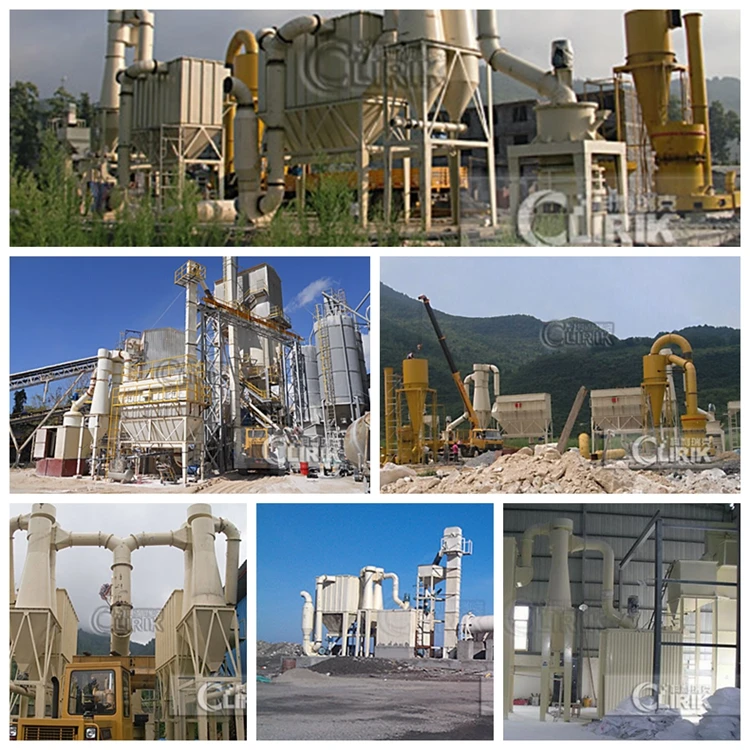

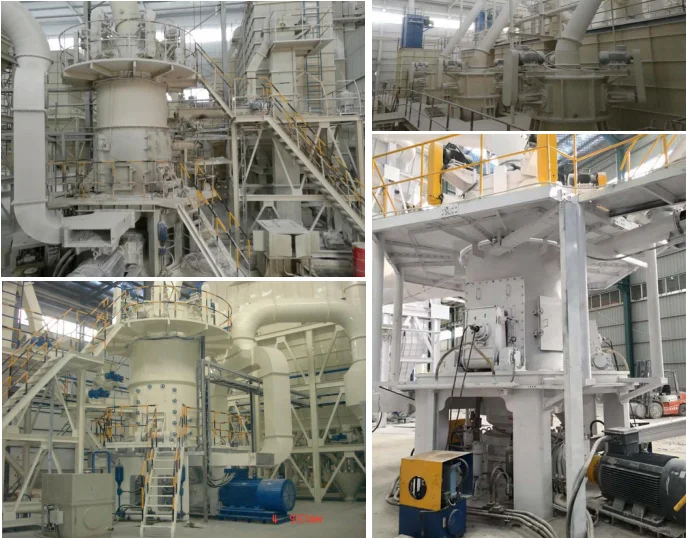

____________________________________Customer Sites____________________________________
