Product Overview
Description
Product Description

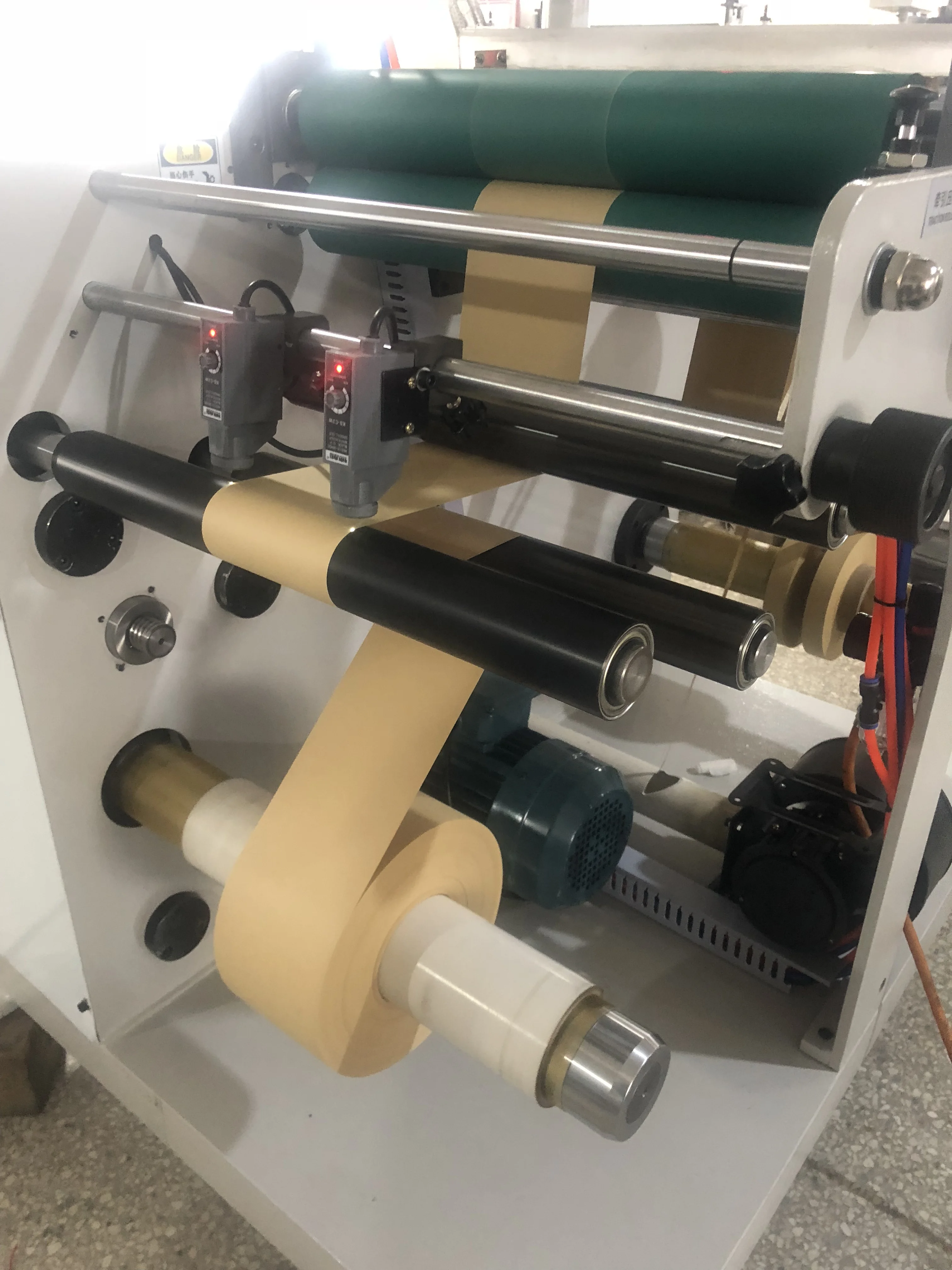

Paper Label Roll to Roll Slitting Rewinding Machine
Application:
This machine is suitable for slitting narrow width plastic film, paper, paper adhesive label etc.
Feature:
1. Unwind air shaft is controlled by magnetic powder brake
2. Two rewind air shafts is controlled by two brake clutch
3. Unwind EPC device to prevent the material moving left or right
4. Main motor inverter motor

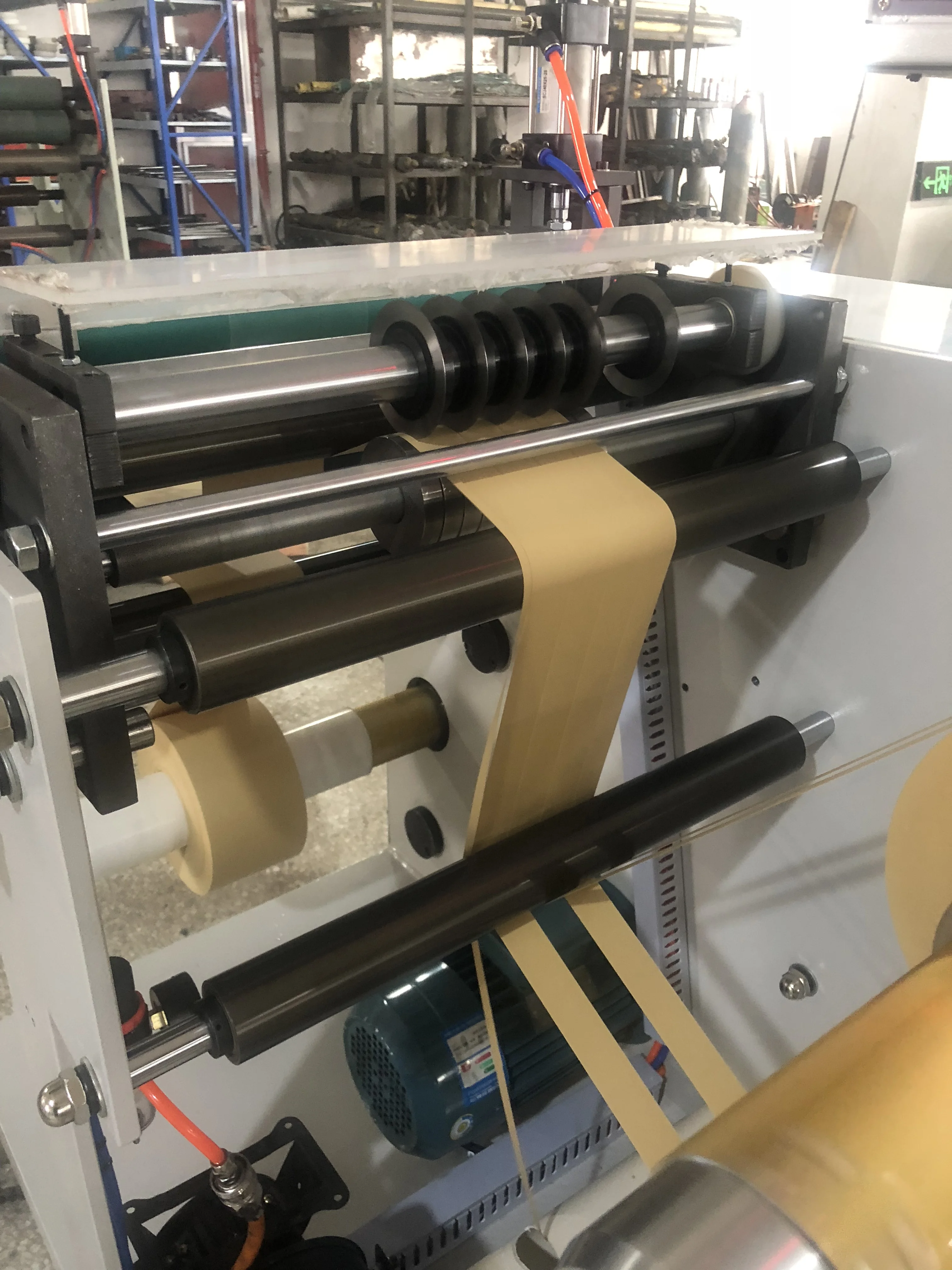

5. Equipped with rotary blade
6. The machine is installed with a blower to blow the waste edge away.
7. Rewind automatic roll change is optional
Speicification:
| Model | FQ320 |
| Width | 320mm |
| Speed | 120 m/min |
| Unwind diameter | 500mm |
| Rewind diameter | 400mm |
| Paper core diameter | 38 or 76mm |
| Slitting width | 10-320mm |
| Power | 1.1kw |
| Voltage | 220V 3 phase |
| Dimension | 1200*800*1200mm |
| Weight | 400kg |
Slitting Sample:
Certification:
Our company:
Workshop:
CNC facility:
Packing and shipping:
Exhibition:
