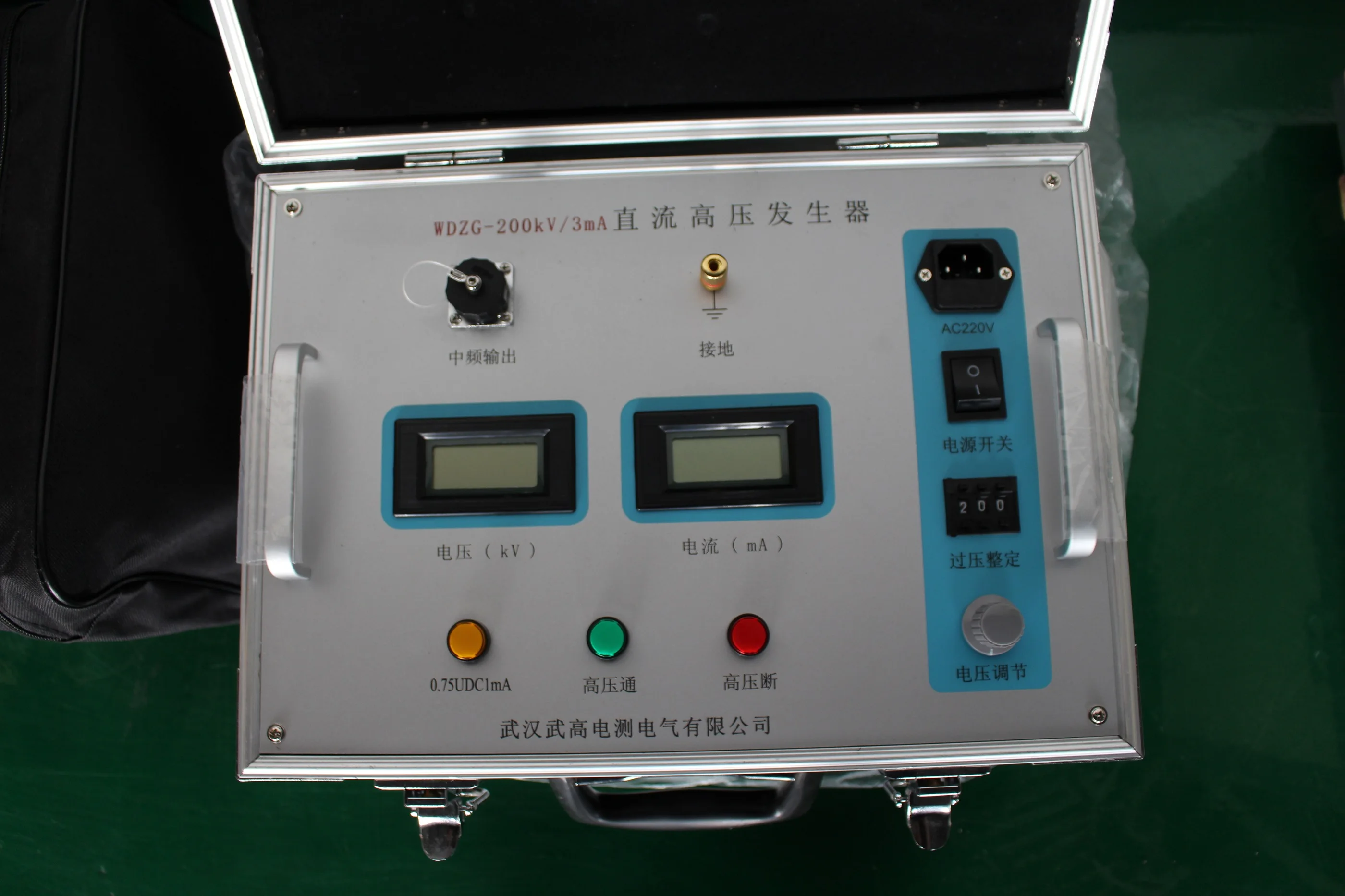

WDZG-II DC high voltage generator
WDZG-II series DC high voltage tester is a new generation of portable DC high voltage tester designed and manufactured according to the new Chinese electric power industry standard DL/T848.1-2004 "General technical Conditions of DC High Voltage Generator". It is mainly used for dc withstand voltage test of zinc oxide arrester, power cable, transformer, generator and other high voltage electrical equipment in power department, industry and mining, metallurgy, steel and other enterprises.
Products Description
1.● The chassis is made of aluminum alloy.
2.● Medium frequency voltage doubling circuit, application of PWM pulse width modulation technology and high power IGBT device.
3.● High voltage feedback, high output voltage stability, ripple coefficient ≤0.5%.
4.● Full range smooth voltage regulation, good voltage regulation accuracy, regulation accuracy ≤0.5%, stability ≤1%, voltage and current error ± (1.5%±2 words), current error ± (1.5%±2 words).
5.● Boost potentiometer zero boost.
6.● 0.75UDC1mA function button, convenient zinc oxide arrester test, accuracy ± (1.5%±2 words).
7.● Over-voltage protection with code setting, at a glance, error ±2%.
8.● Double pressure adopts new material, light and strong. The surface is coated with special insulating material, with good electrical performance and moisture resistance.
9.● WDZG-II products meet the technical requirements of DL/T848.1-2004, and by the type test of the Electrical equipment quality Testing center of the Ministry of Power, strictly comply with the enterprise standard.
2.● Medium frequency voltage doubling circuit, application of PWM pulse width modulation technology and high power IGBT device.
3.● High voltage feedback, high output voltage stability, ripple coefficient ≤0.5%.
4.● Full range smooth voltage regulation, good voltage regulation accuracy, regulation accuracy ≤0.5%, stability ≤1%, voltage and current error ± (1.5%±2 words), current error ± (1.5%±2 words).
5.● Boost potentiometer zero boost.
6.● 0.75UDC1mA function button, convenient zinc oxide arrester test, accuracy ± (1.5%±2 words).
7.● Over-voltage protection with code setting, at a glance, error ±2%.
8.● Double pressure adopts new material, light and strong. The surface is coated with special insulating material, with good electrical performance and moisture resistance.
9.● WDZG-II products meet the technical requirements of DL/T848.1-2004, and by the type test of the Electrical equipment quality Testing center of the Ministry of Power, strictly comply with the enterprise standard.

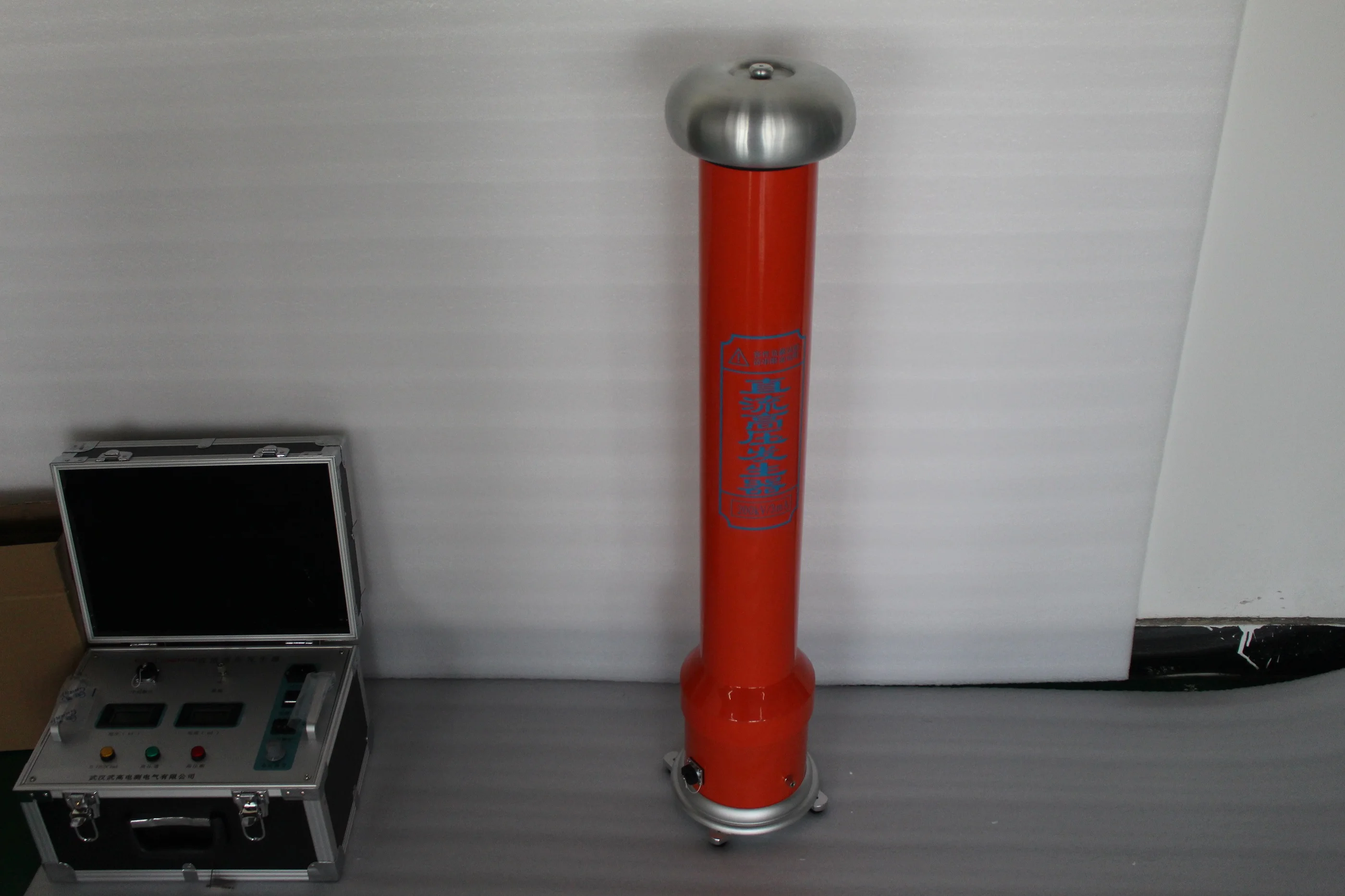

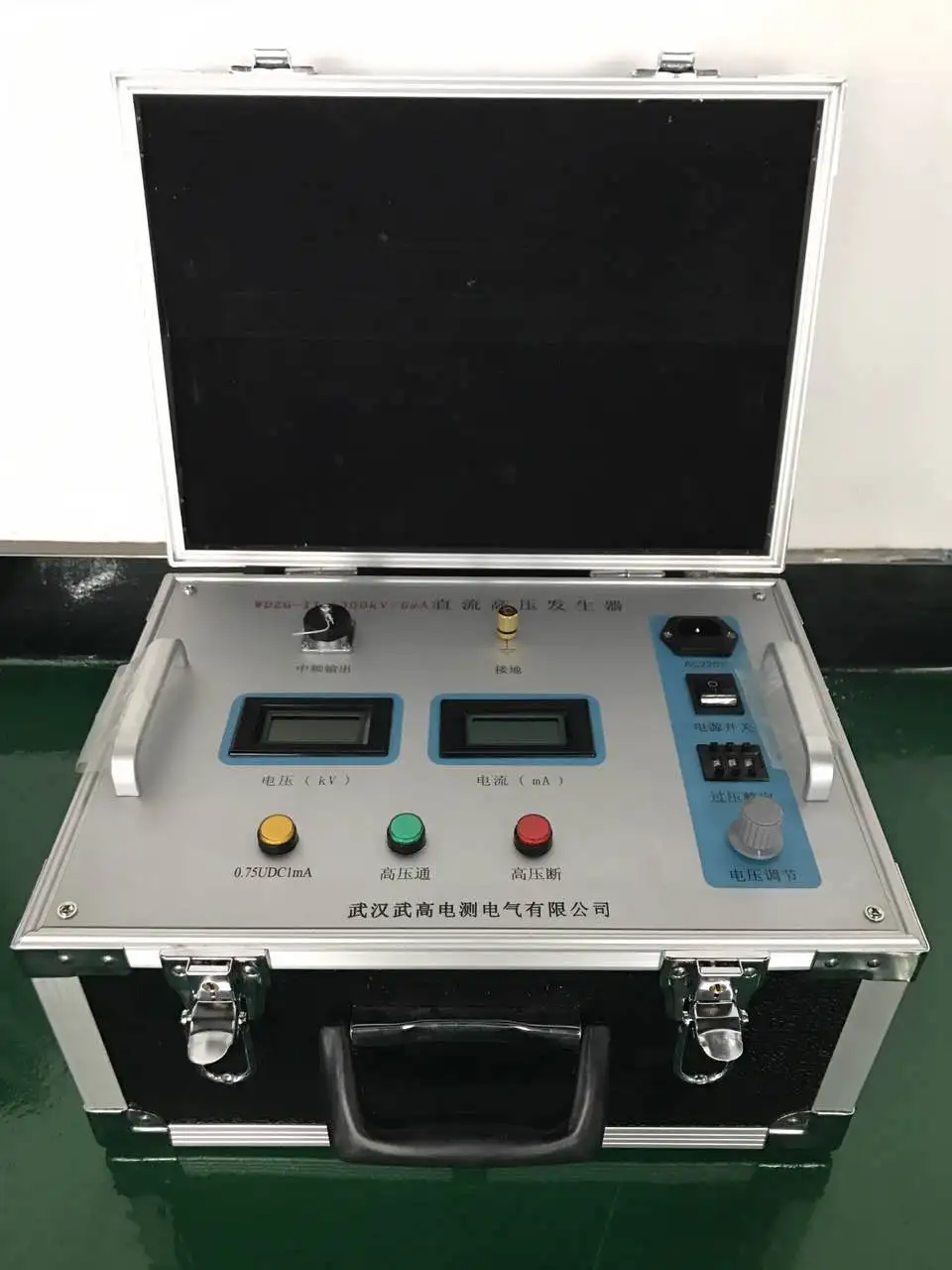

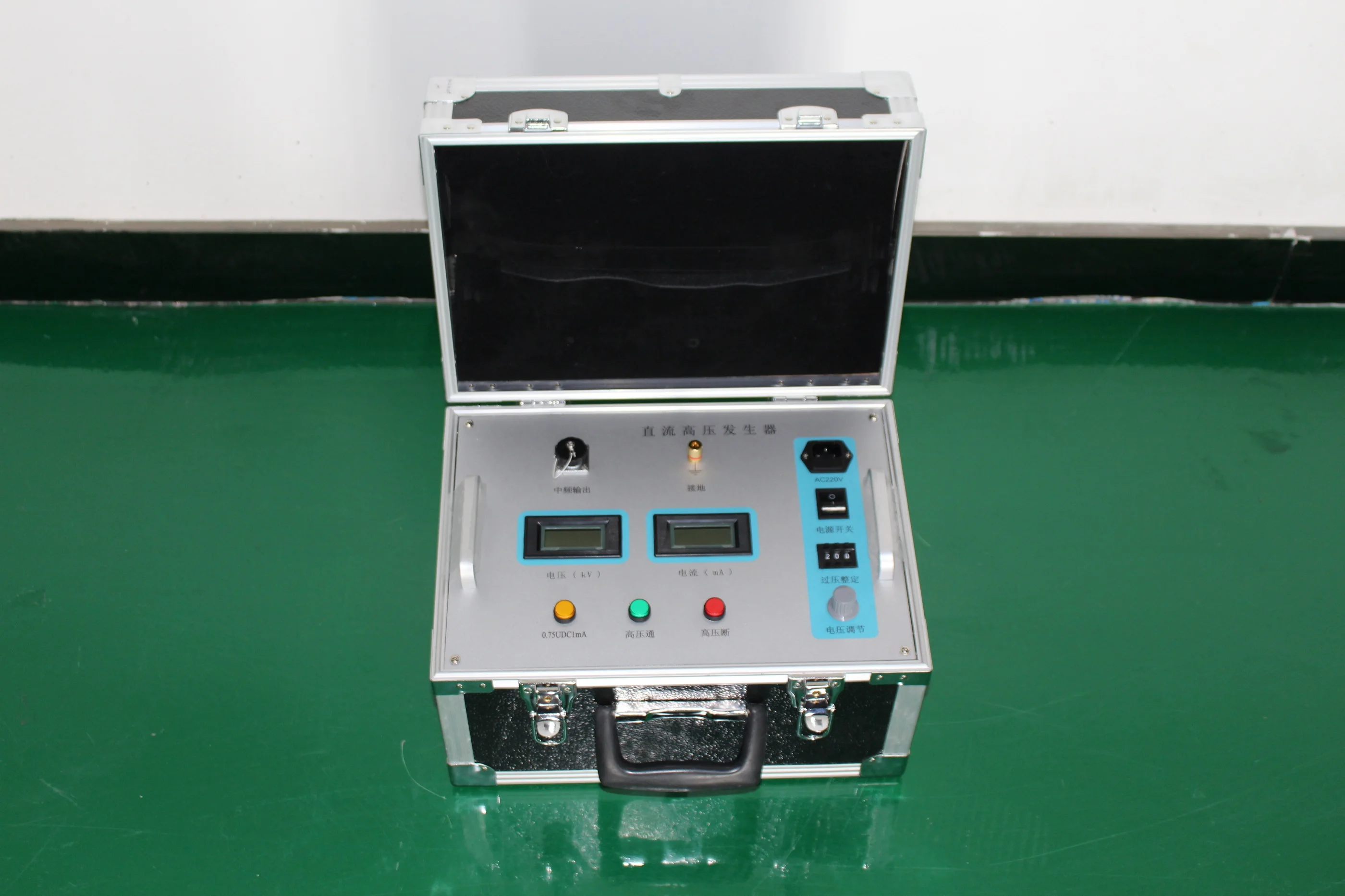

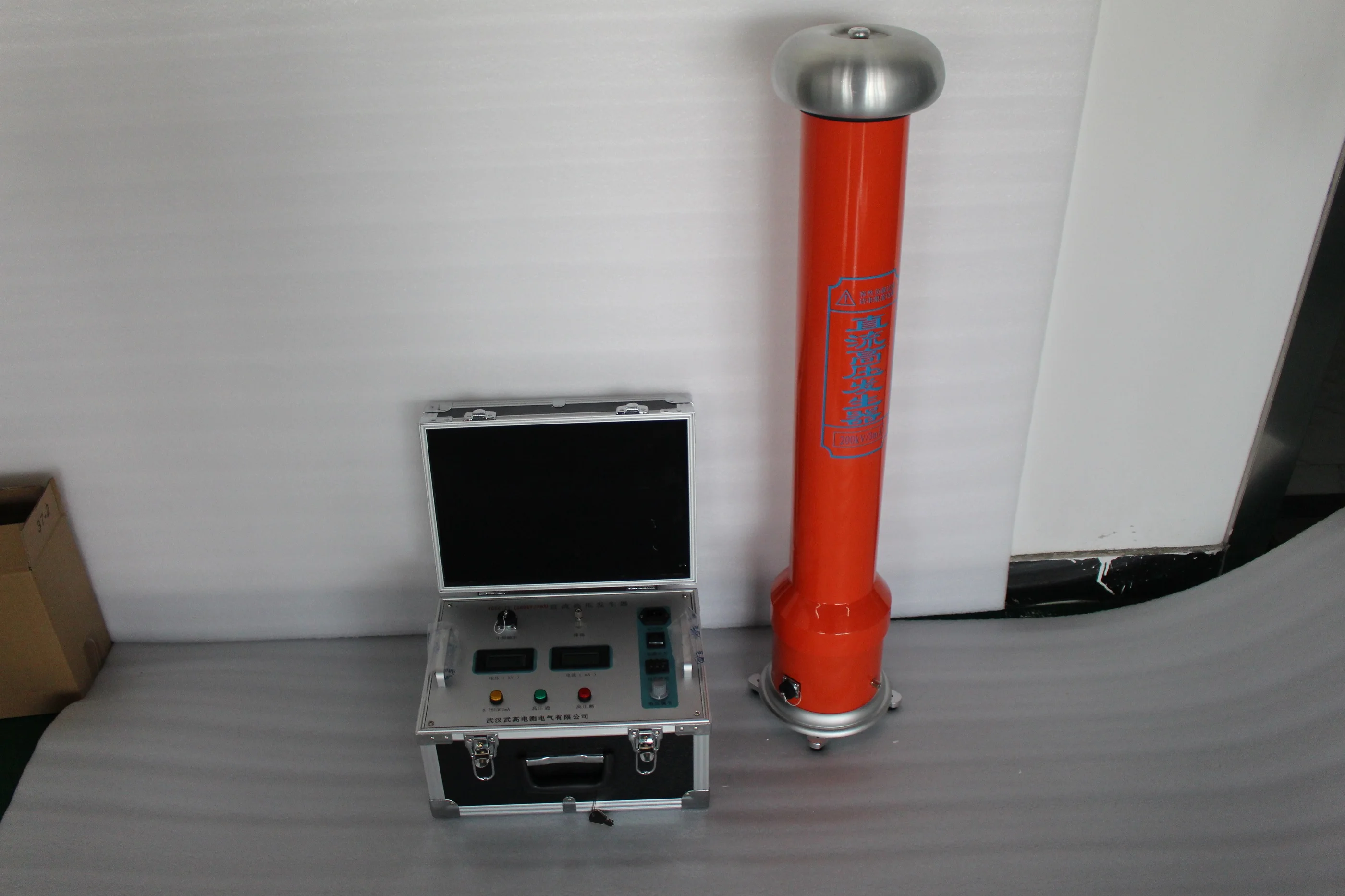

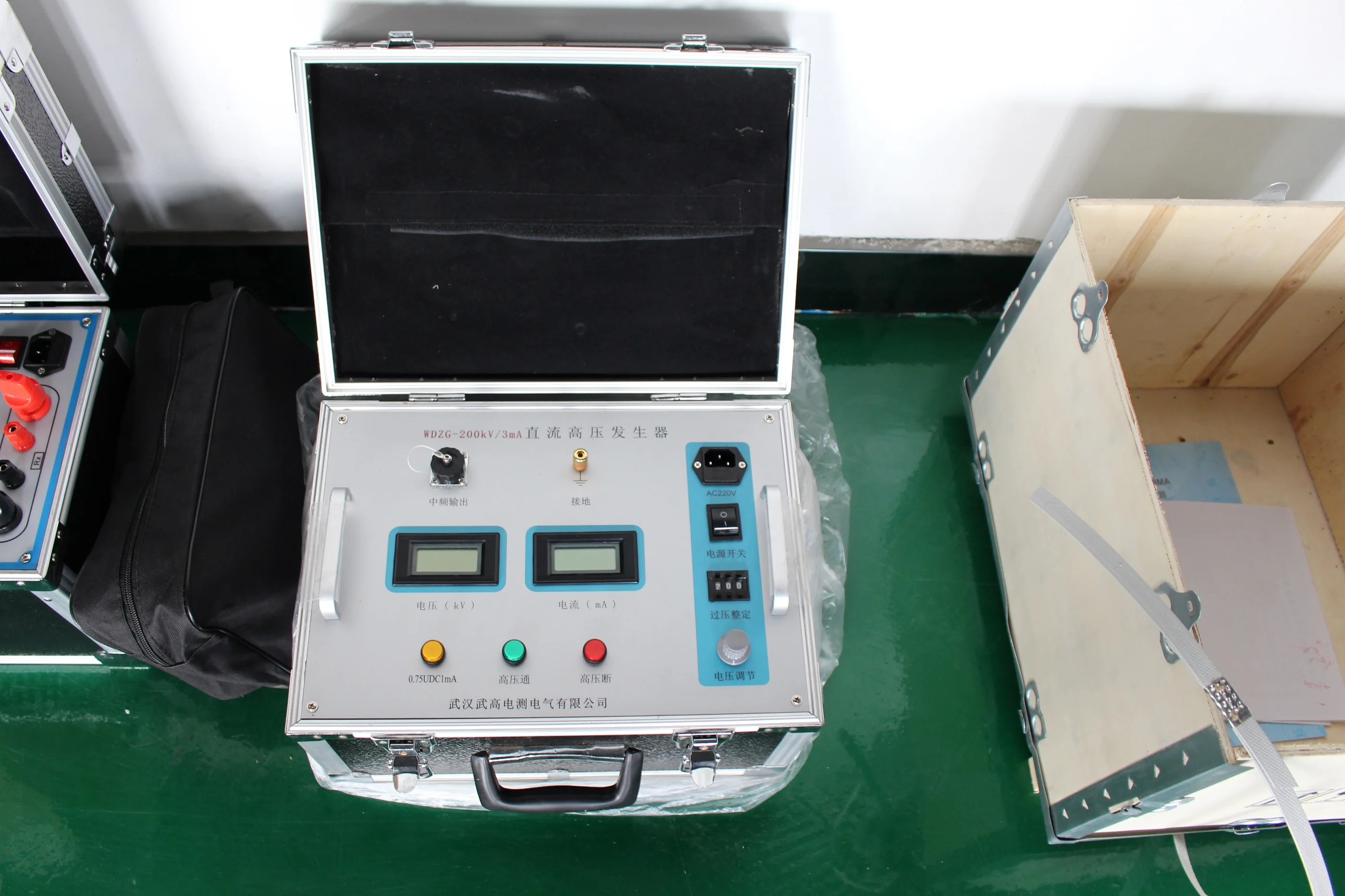

Details Images
Product Paramenters
* Main Specifications | 60/10 | 120/5 | 200/2 | 200/5 | 300/3 | 300/5 | |||||
Rated voltage (kV) | 60 | 120 | 200 | 200 | 300 | 300 | |||||
Rated current (mA) | 10 | 5 | 2 | 5 | 3 | 5 | |||||
Rated power (W) | 600 | 600 | 400 | 100 | 600 | 1500 | |||||
Chassis Weight (kg) | 4.5 | 4.5 | 5.5 | 6.5 | 5.5 | 5.5 | |||||
Pressure multiplier weight (kg) | 6.0 | 7.0 | 8.7 | 9 | 11 | 11.5 | |||||
Voltage multiplier height (mm) | 610 | 890 | 970 | 970 | 1250 | 1250 | |||||
voltage measurement accuracy | Digital display meter ±(1.5% reading ±2 words) | ||||||||||
current measurement accuracy | Digital display meter ±(1.5% reading ±2 words) | ||||||||||
* ripple ratio | ≤0.5% | ||||||||||
voltage stability | Random fluctuation, power supply voltage change ±10% ≤1% | ||||||||||
overload capacity | No-load voltage can exceed rated voltage by 10% for 10 minutes Maximum charging current is 1.25 times rated current | ||||||||||
* Power Supply | Single-phase AC 50HZ 220V±10% | ||||||||||
* Operating mode | intermittent service | ||||||||||
The maximum continuous time is 10 minutes | |||||||||||
* Operating environment | Temperature: 0 ~ 40 ℃ | ||||||||||
Relative humidity: not more than 85% at room temperature of 25℃ (no condensation) | |||||||||||
Altitude: below 1500 meters | |||||||||||
structural features | Epoxy glass reinforced plastic electrical insulation doubler | ||||||||||
Air insulation, no leakage concerns | |||||||||||
Operating box features | High precision 0.75UDC1mA single touch button (accuracy ≤2.0%) Best for zinc oxide arrester test | ||||||||||
Overvoltage protection with dial, clear at a glance | |||||||||||
Chassis double pressure placed an aluminum alloy box, the whole machine can be lifted | |||||||||||

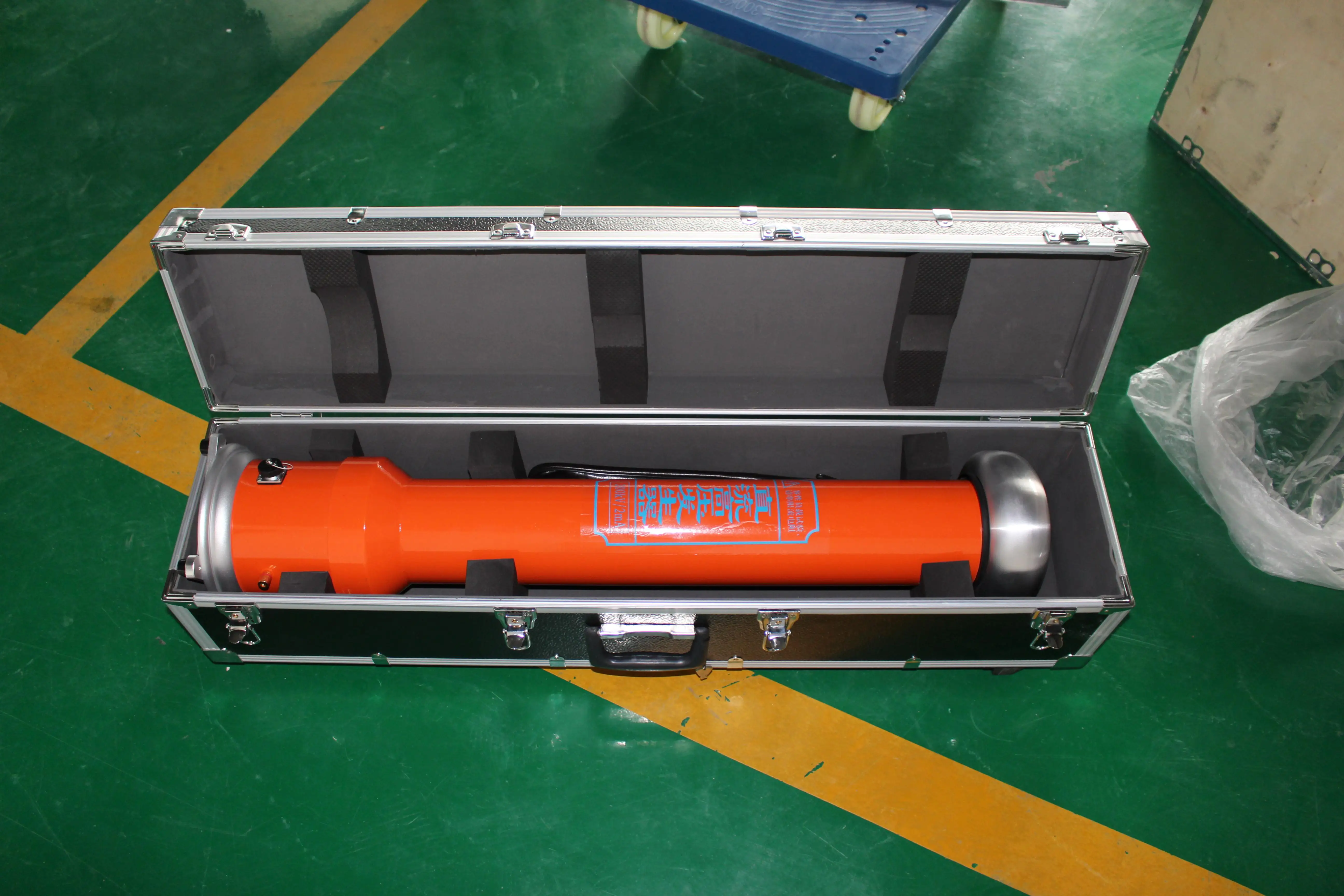

Product packaging
