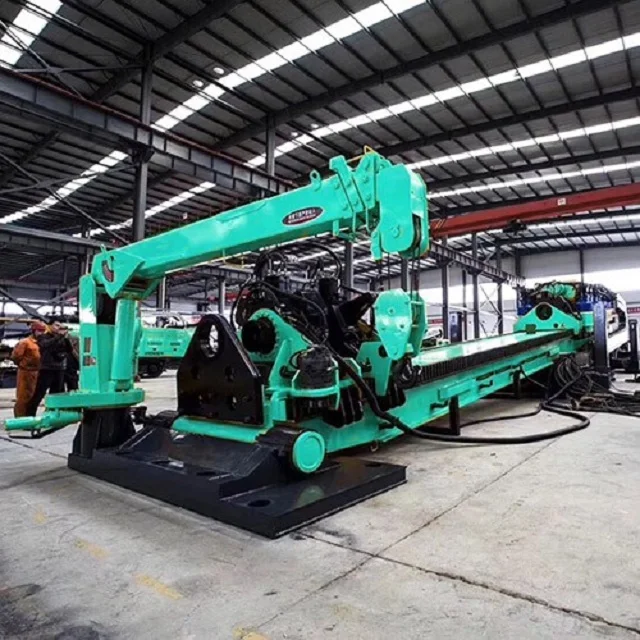

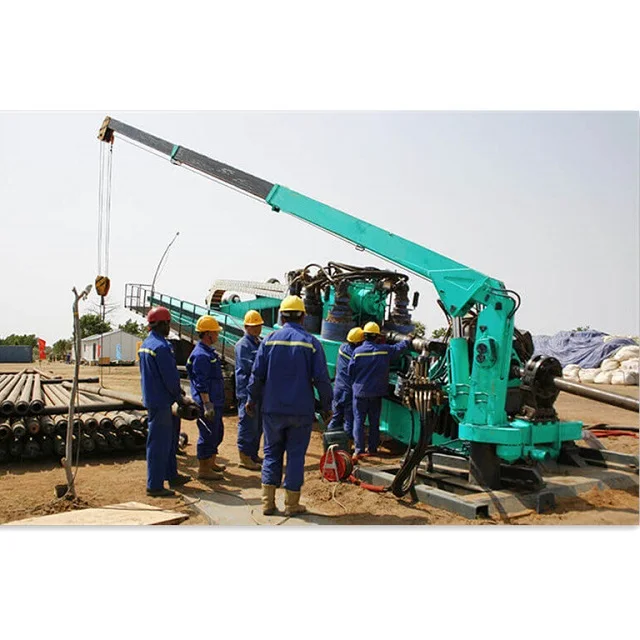

Laying Technology No-Dig Horizontal Directional Drilling HDD Rig Machine 6600kN 32m/min
Model: HFDD-6600
Cummins QSL8.9-C360| VolvoTAD1643
Rated power (kW/r/min): 2*264/2100
Maximum push-pull force (kN):6600
Technical features
1. The digital display system can directly display the main construction parameters such as rotating torque and push-pull force, which overcomes the disadvantage of conversion of pressure gauge used by traditional drilling rig, and the operation is simple;
2. Dual power system. Any engine can complete all the actions of the drilling rig. Combined with the proprietary multi working condition speed regulation technology and the multi gear control technology of rotation and push-pull, the drilling rig has a wide range of application. In the case of small aperture construction, one engine can be used to work, with less fuel consumption and low construction cost;
3. Three cylinder clamping vise, reliable clamping of drill pipe and large shackle torque; The vise floats in the whole process to facilitate the construction process of casing method.
Model: HFDD-6600
Cummins QSL8.9-C360| VolvoTAD1643
Rated power (kW/r/min): 2*264/2100
Maximum push-pull force (kN):6600
Technical features
1. The digital display system can directly display the main construction parameters such as rotating torque and push-pull force, which overcomes the disadvantage of conversion of pressure gauge used by traditional drilling rig, and the operation is simple;
2. Dual power system. Any engine can complete all the actions of the drilling rig. Combined with the proprietary multi working condition speed regulation technology and the multi gear control technology of rotation and push-pull, the drilling rig has a wide range of application. In the case of small aperture construction, one engine can be used to work, with less fuel consumption and low construction cost;
3. Three cylinder clamping vise, reliable clamping of drill pipe and large shackle torque; The vise floats in the whole process to facilitate the construction process of casing method.
Technical Data
Engine | Model | Cummins QSL8.9-C360 VolvoTAD1643 | |
Rated power | 2*410/1900 2*565/1850kW/r/min | ||
Push and pull | Maximum pushing force | 6600 kN | |
Maximum push-pull speed | 32 m/min | ||
Rotate | torque | 180000 N.m | |
Maximum speed | 90r/min | ||
Mud pump | Maximum flow | 800 L/min | |
Maximum pressure | 20 MPa | ||
Drill pipe | 168/194*9.6 mm*m | ||
Truck mounted crane | Lifting weight | 5t | |
Lifting moment | 12.5 t.m | ||
Max. penetration angle | 16° | ||
Max. back expansion diameter | 2000mm | ||
Quality | 66t | ||
Overall Dimension | 19000*3200*3600mm | ||
Optical | Split operation room | ||
Recommend Products
FAQ
1. Are you trading company or manufacturer
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2. Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3. How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.
5. What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6. How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
Generally, we can deliver the machine in 7 days.
