Huion kamvas 24 Plus 24 inches 140% sRGB lcd monitor profession pen displays drawing graphic tablets with stylus
Specifications
| Specs. | kamvas 24 (GS2401) | KAMVAS 24 PLUS (GS2402) |
| Panel Size | 23.8 inches (Diagonal) | 23.8 inches (Diagonal) |
| Resolution | 2560 x 1440(16:9)QHD | 2560 x 1440(16:9)QHD |
| LCD Type | IPS | IPS |
| Active Area | 526.85 x 296.35mm | 526.85 x 296.35mm |
| Contract Ratio | 1000:1 | 1200:1 |
| Brightness | 220 cd/m2 (Max.) | 220 cd/m2 (Max.) |
| Color Temperature | Default 500K,available 9300K | Default 500K,available 9300K |
| Resonse Time | 14ms | 14ms |
| Viewing Angle | 89°/89°(H)/89°/89°(V) (Typ.)(CR>10) | 89°/89°(H)/89°/89°(V) (Typ.)(CR>10) |
| Gamut | 85%NTSC/120% sRGB | 97%NTSC/140% sRGB |
| Display Color | 16.7M (8bit) | 16.7M (8bit) |
| Pen Technology | Battery-Free Electromagnetic Resonance | Battery-Free Electromagnetic Resonance |
| Pen Resolution | 5080LPI | 5080LPI |
| Pressure Level | 8192 levels | 8192 levels |
| Accuracy | ±0.3mm(Center) ±2mm(Corner) | ±0.3mm(Center) ±2mm(Corner) |
| Sensing Height | 10mm | 10mm |
| Report Rate | >220PPS | >220PPS |
| Tilt | ±60° | ±60° |
| Digital Pen | PW517 | PW517 |
| Input Voltage | AC 100-240V, 50/60Hz | AC 100-240V, 50/60Hz |
| Output Voltage | 19V 3A | 19V 3A |
| Video Interface | 3-in-1 USB-C, Full function USB-C | 3-in-1 USB-C, Full function USB-C |
| Dimension | 604.2 x 358 x 21~28.3mm (Without Stand) | 604.2 x 358 x 21~28.3mm (Without Stand) |
| Net Wet | 5.6KG (With Stand) | 5.6KG (With Stand) |
| Color | Dark Gray | Dark Gray |
| Adjustable Stand | 20°~80° | 20°~80° |
| Vesa Hole | 100*100mm | 100*100mm |
| OS Support | Win7 or later, macOS10.12 or later Android(USB3.1 DP1.2) | Win7 or later, macOS10.12 or later Android(USB3.1 DP1.2) |
| Surface Finish | Anti-glare matte film | Anti-glare etched glass |
| Full Lamination | NO | YES |
| Power Consumption | ≤24W | ≤24W |
| Standby Consumption | ≤0.3W | ≤0.3W |
| Working Temp. and Humidity | 0-40°C , 20-80% | 0-40°C , 20-80% |
| Storage Temp. and Humidity | -20°C~60°C, 10-90% | -20°C~60°C, 10-90% |
| What's in the box | Pen Display, Digital Pen, Adjustable Stand ST100A, 3-in-1 Cable, Power Adapter, AC Cable,Pen Holder PH05A, Pen Nibs x 10, Pen Nib Clip, Glove, Cleaning Cloth, Quick Start Guide | Pen Display, Digital Pen, Adjustable Stand ST100A, 3-in-1 Cable, USB-C to USB-C cable, Power Adapter, AC Cable,Pen Holder PH05A, Pen Nibs x 10, Pen Nib Clip, Glove, Cleaning Cloth, Quick Start Guide |
Features

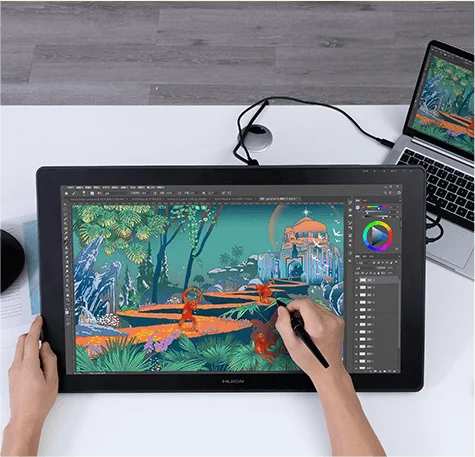

1.Grab Every Detail on QHD Screen
With the QHD (2560×1440) resolution and 23.8-inch screen, Kamvas 24 Plus present clearer and more detailed images in front of your eyes. It also provides you a larger workspace to help you immerse in your creation.
Kamvas 24 Plus adopts industry-leading Quantum Dots technology to achieve an ultra-wide color gamut of 140% sRGB. Combining with the QHD resolution and perfect surface finish, you can get an excellent visual experience.
2.Get Rid of Parallax and Glare
The anti-glare finished surface of Kamvas 24 plus will ensure that you are not disturbed by strong light during the work process, and also provide you pen-on-paper drawing experience. In addition, featuring with the full-lamination technique, the Kamvas 24 Plus can effectually minimize the parallax and show a clearer screen.
3.Select Your Preferred Connection Method

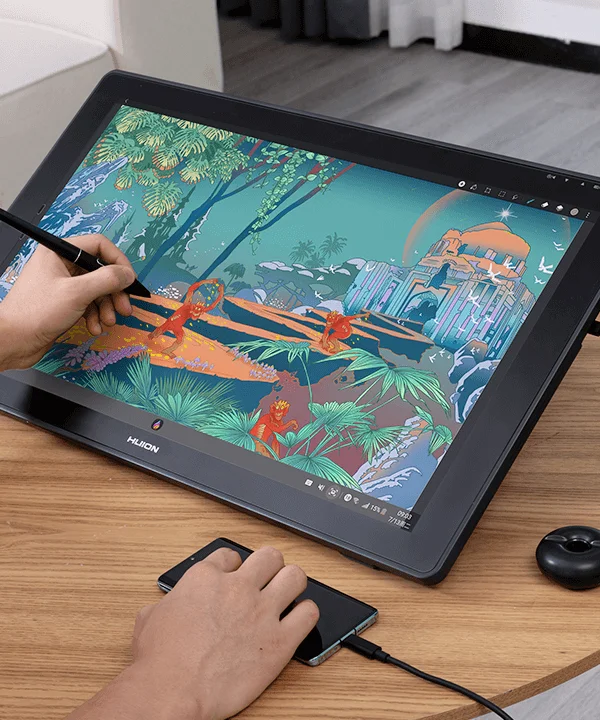

With two USB-C ports, Kamvas 24 Plus can be connected to your Mac, laptop, desktop, or Android devices in two different ways. You can choose between 3-in-1 cable connection or USB-C to USB-C cable connection depending on your device, either way can make sure your workspace is neat and clean enough.
Note:
* The USB-C to USB C cable is not included in the package of Kamvas 24.
* Please make sure the USB-C port of your devices must support USB 3.1 Gen1, DP 1.2 and above standards if you want to use the USB-C to USB-C cable for connection.
* Please connect the power adapter of 3-in-1 cable when you use USB-C to USB-C cable connect the pen display.
4.Super Practical USB Hub
Kamvas 24 Plus is equipped with a USB hub that allows you to easily connect all your peripherals without reaching far under your desk or behind your computer.
5.Stand, Strong, Stable, Sturdy

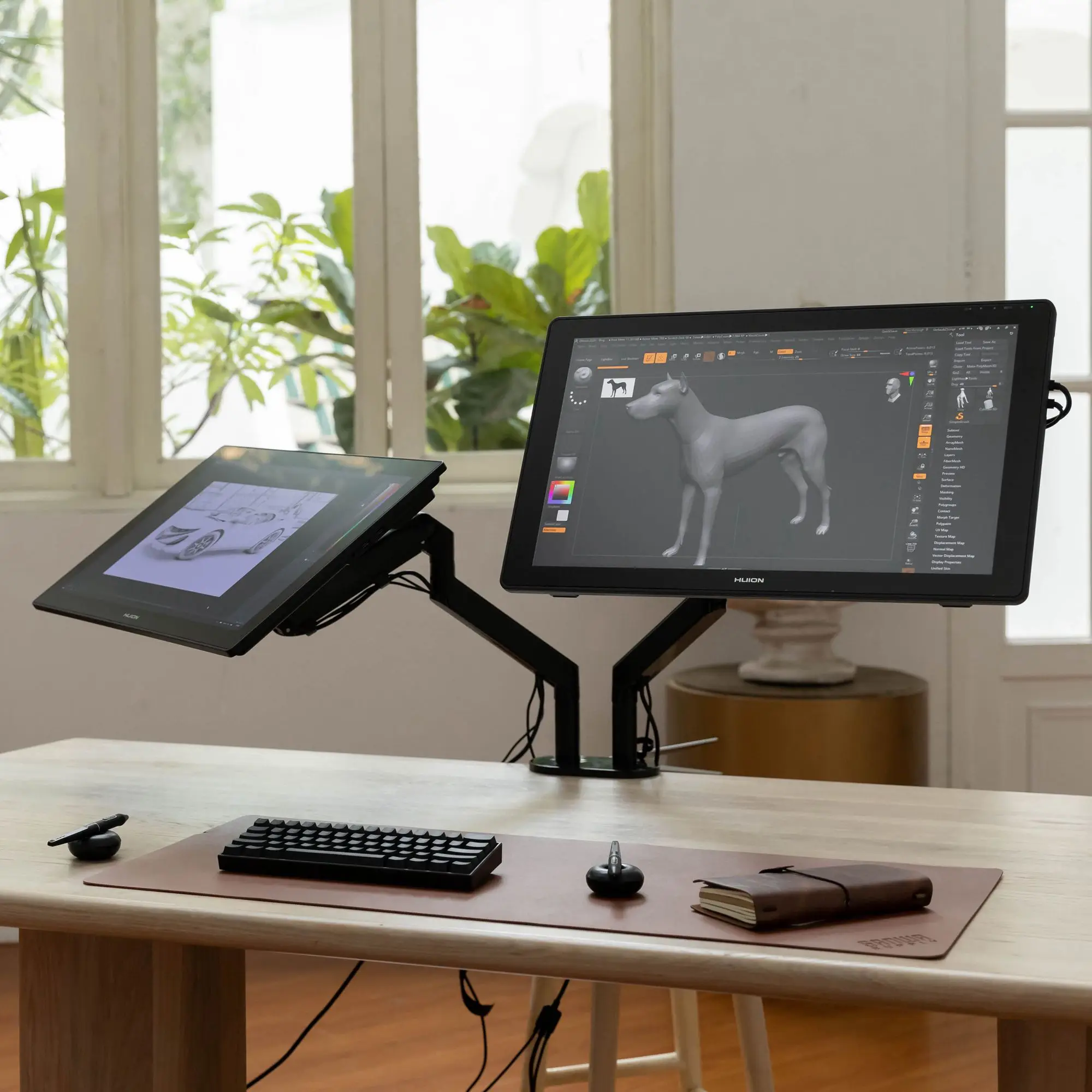

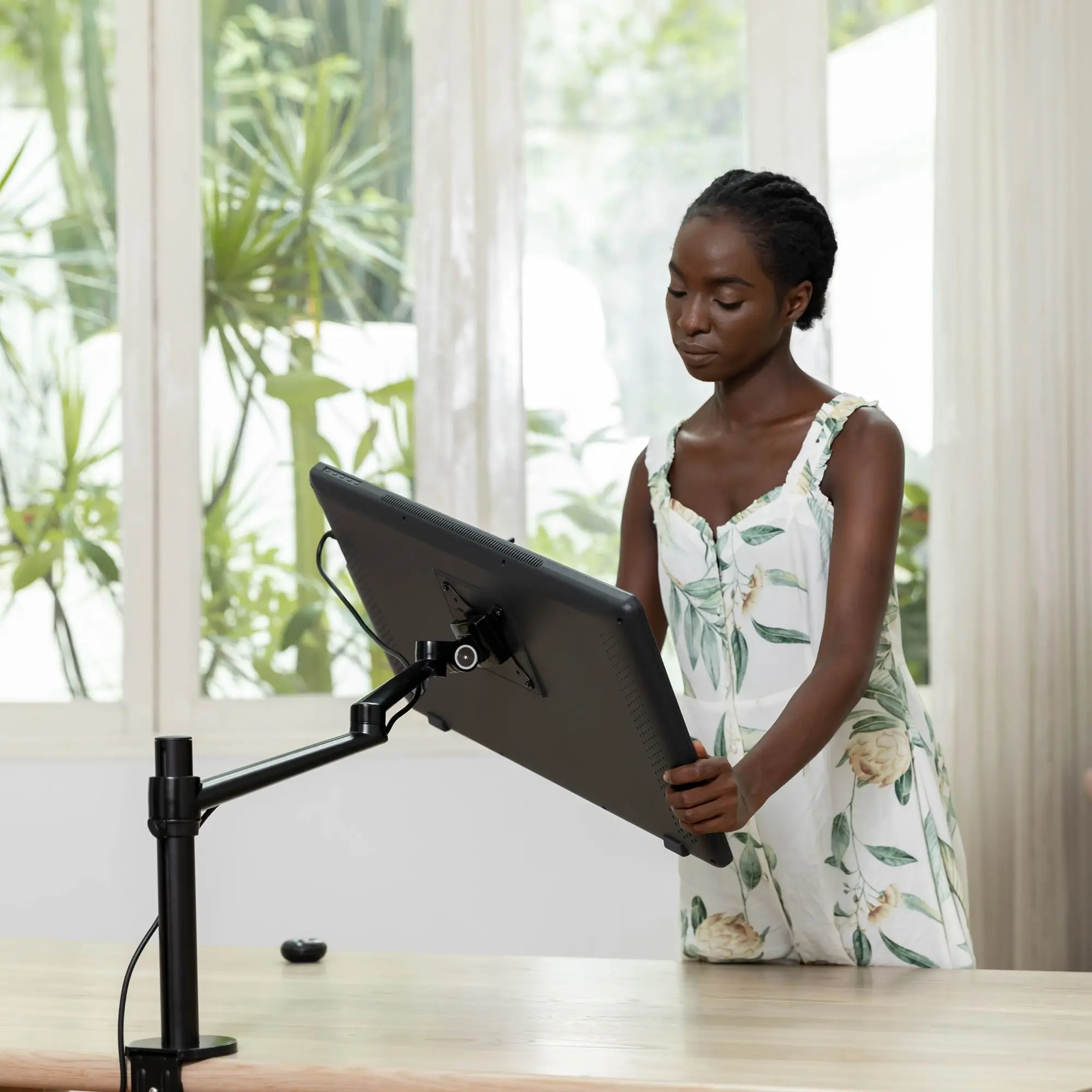

Kamvas 24 Plus comes with a 20°-80° adjustable Vesa stand ST100A in the package, so you can adjust the angle of pen display as your need. Besides, You can also use the Monitor Arm ST400/ST420 to flexibly adjust the position of the screen, which can effectively reduce the discomfort caused by long-time working
6.All the Detail is Designed for Better Use
Kamvas 24 Plus is designed with 3 vented slots for heat dissipation to keep them running at optimum temperature. Besides, they also come with anti-slip rubbers on the bottom of the display, which can prevent sliding for safe and stable working.
