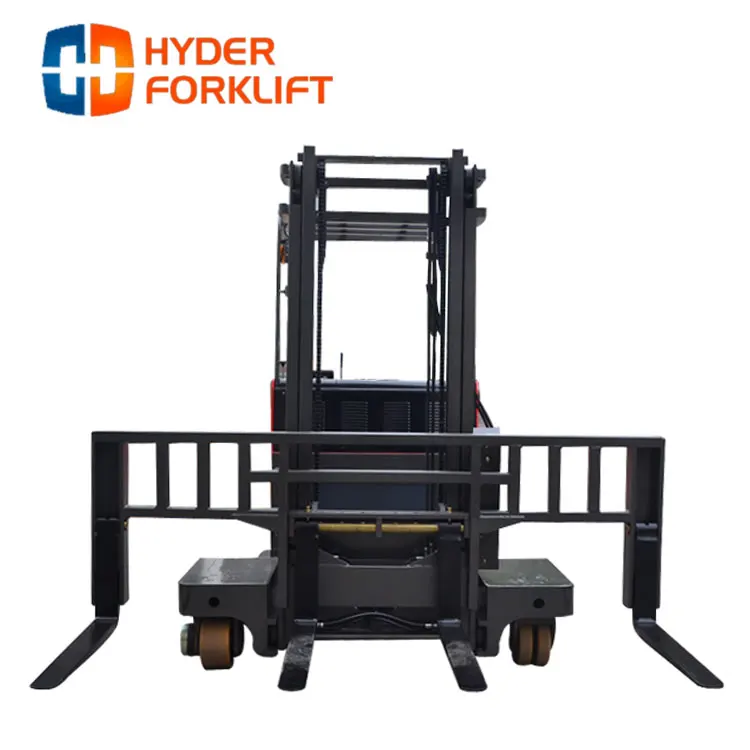

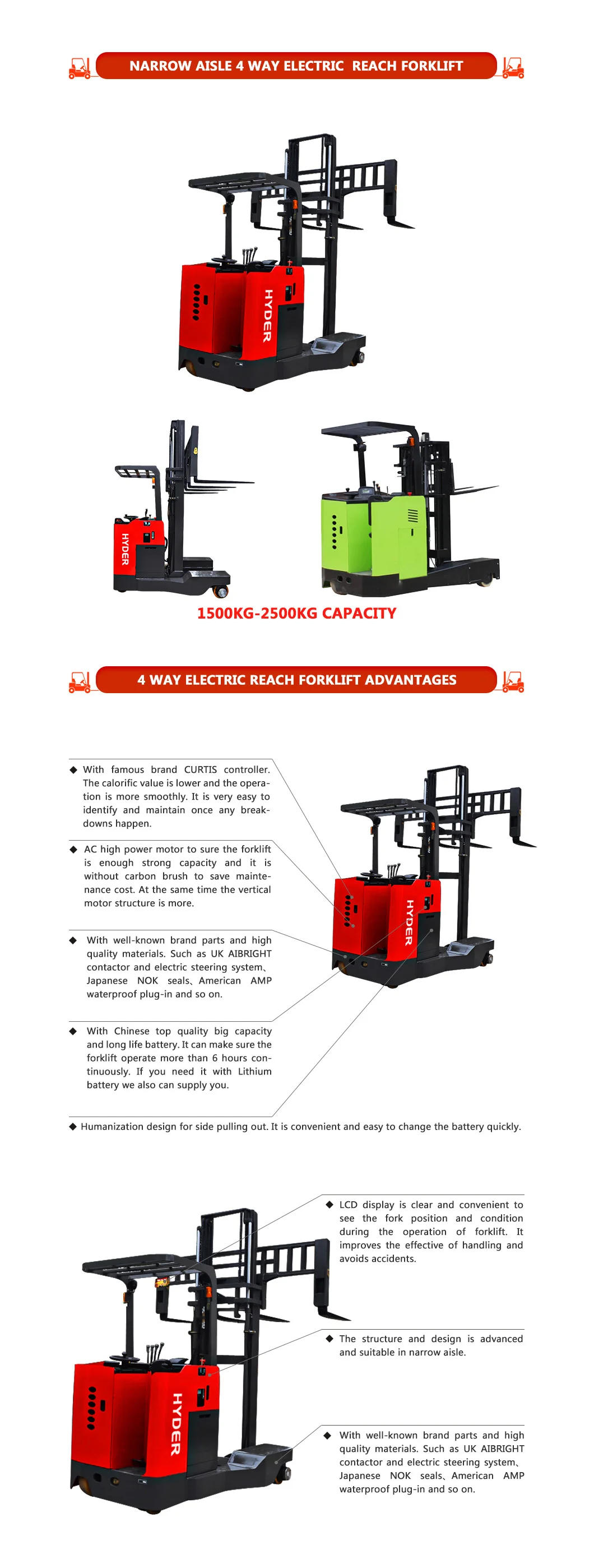

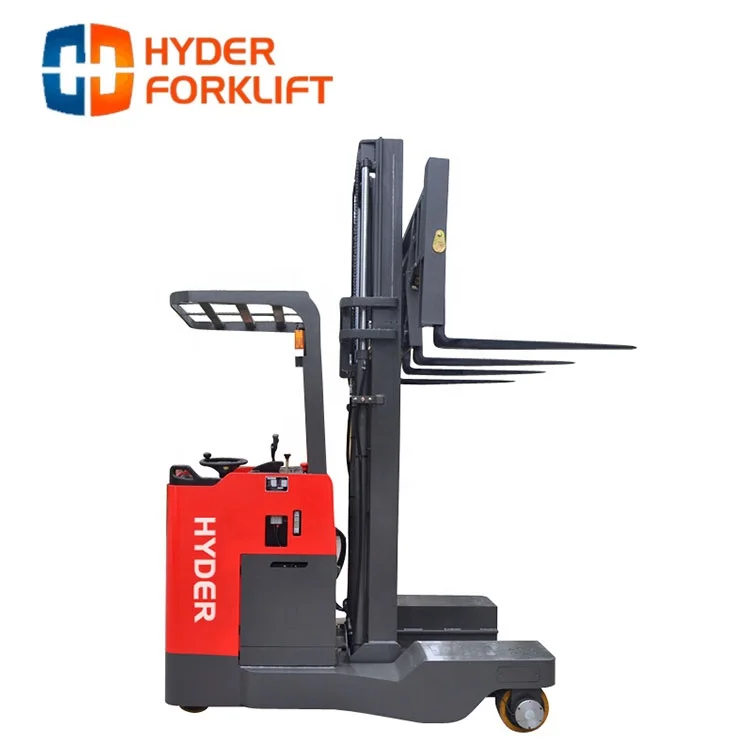

Equipment Narrow Aisle 4 Way Electric Reach Forklift 2.5t Capacity
Standard Technical Data Sheet
| Specification | |||||
| 1 | Manufacturer | HYDER | |||
| 2 | Model | HTFB15 | HTFB20 | HTFB25 | |
| 3 | Load Capacity | KG | 1500 | 2000 | 2500 |
| 4 | Operate Type | Stand-on | |||
| 5 | Max. Lifting Height | MM | 4500 | ||
| 6 | Max Travel Speed -laden/unladen | KM/H | 7.5/8.5 | ||
| 7 | Load center | MM | 500 | ||
| 8 | Fork Dimensions- L/W/T | MM | 1070*122*40 | ||
| 9 | Lifting Speed -laden/unladen | MM/S | 120/270 | ||
| 10 | Max. travel Speed | KM/H | 7.0/8.0 | ||
| 11 | Overall Length including fork | MM | 3150/2550 | ||
| 12 | Overall Width | MM | 1690 | ||
| 13 | Height-Overhead guard | MM | 2280 | ||
| 14 | Height---Mast Lowered | MM | 2100 | ||
| 15 | Max. height when fork is lifting | MM | 5416 | ||
| 16 | Turning Radius | MM | 1905 | 2000 | 3100 |
| 17 | Tilt Angle----Upward/Downward. | Degree | |||
| 18 | Fork Spread Range | MM | 260-720 | ||
| 19 | Grade ability | % | <=10 | ||
| 20 | Min Ground Clearance--mm | MM | 80 | ||
| 21 | Wheel Type | Polyurethane Solid Tyre | |||
| 22 | Driving Wheel (MM) | MM | Φ382×142 | ||
| 23 | Balance Wheel (MM) | MM | Φ180×76 | ||
| 24 | Front Wheel (MM) | MM | Φ267×114 | ||
| 25 | Battery | V/AH | 48V /400 AH | ||
| 26 | Service Brake | Electromagnetic | |||
| 27 | Parking Brake | Electromagnetic | |||
| 28 | Charger-Intelligent | 48V /55 A | |||
| 29 | Driving Motor (KW) | KW | 8.5 (AC) | ||
| 30 | Lifting Motor (KW) | KW | 8.3DC | ||
| 31 | Weight ( with battery) kg | KG | 3400 | 3500 | 4200 |
