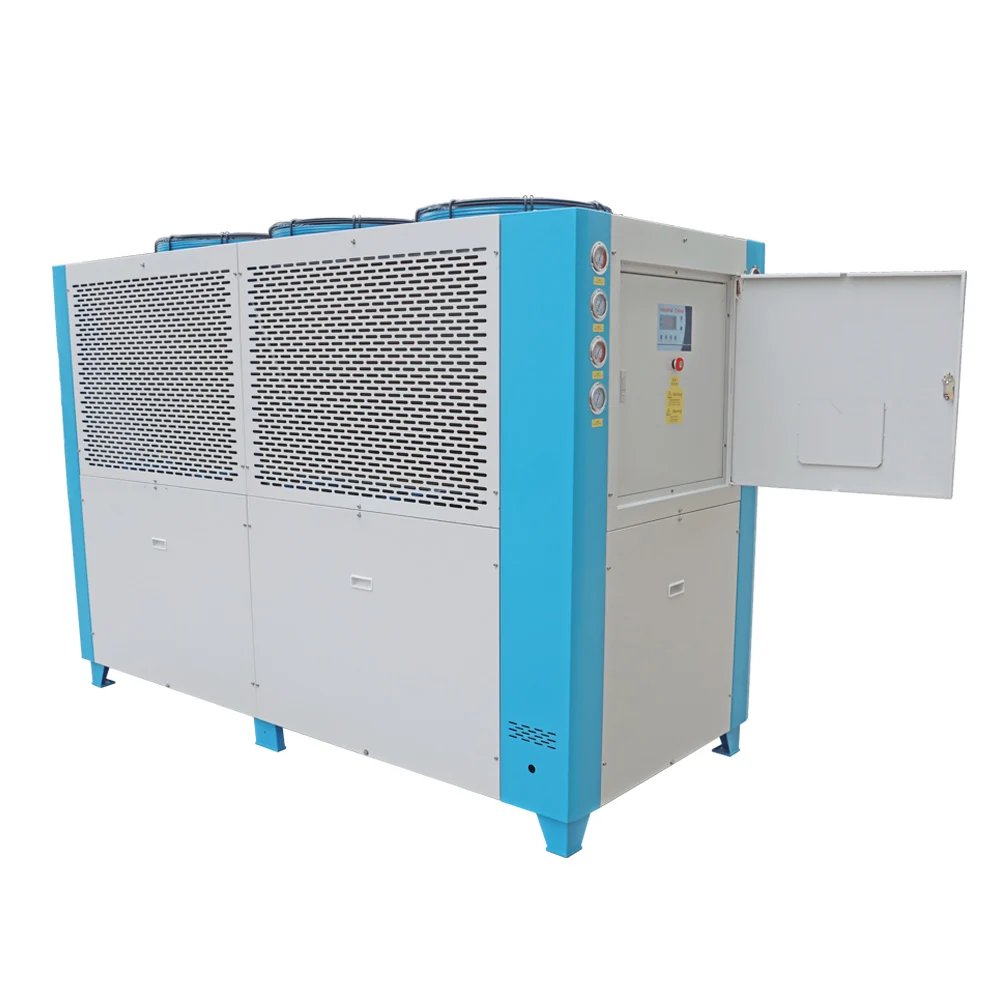

All in one Industrial Air Cooled Chiller 30HP With Buffer Tank For Injection Molding Machine
- Category: >>>
- Supplier: Dongguan Golden Refrigeration Equipment Co. Ltd.
Share on (1600368569723):
Product Overview
Description
Product Overview
All in one Industrial Air Cooled Chiller 30HP With Buffer Tank For Injection Molding Machine
1. Cooling capacity: 1HP-80HP.
2. Voltage: 220/380V-3PH-50HZ.
3. Refrigerant: R22, R407.R134, R410 optional.
4. Chilled water temperature: Air conditioner use 12/7 deg, industrial use 17/12 deg.
Also as per customer’s demand to adjust.
5. Shell and tube type evaporator and Aluminium fins type condenser.
Note: If you need air cooled chiller price, air cooled chillers, air cooled water chillers etc, our products could meet your
requirements. And Customized units are welcome like 415V/3Ph/50Hz, 220V/3Ph/60Hz, 440V/3Ph/60Hz etc.

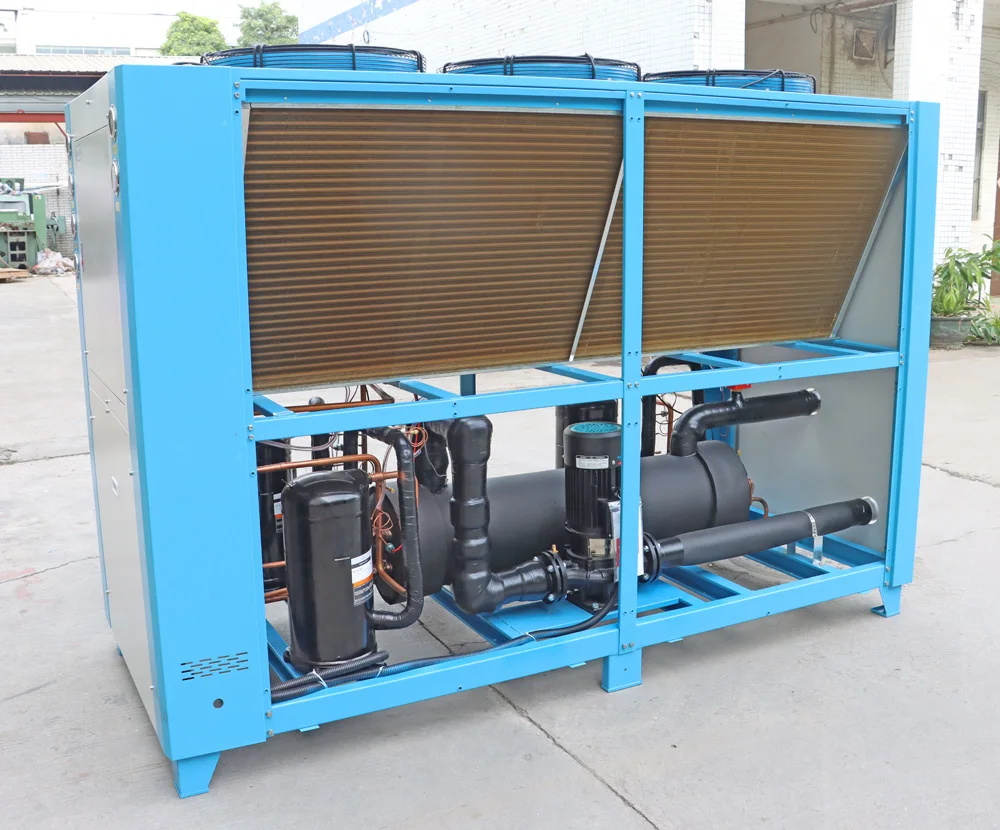

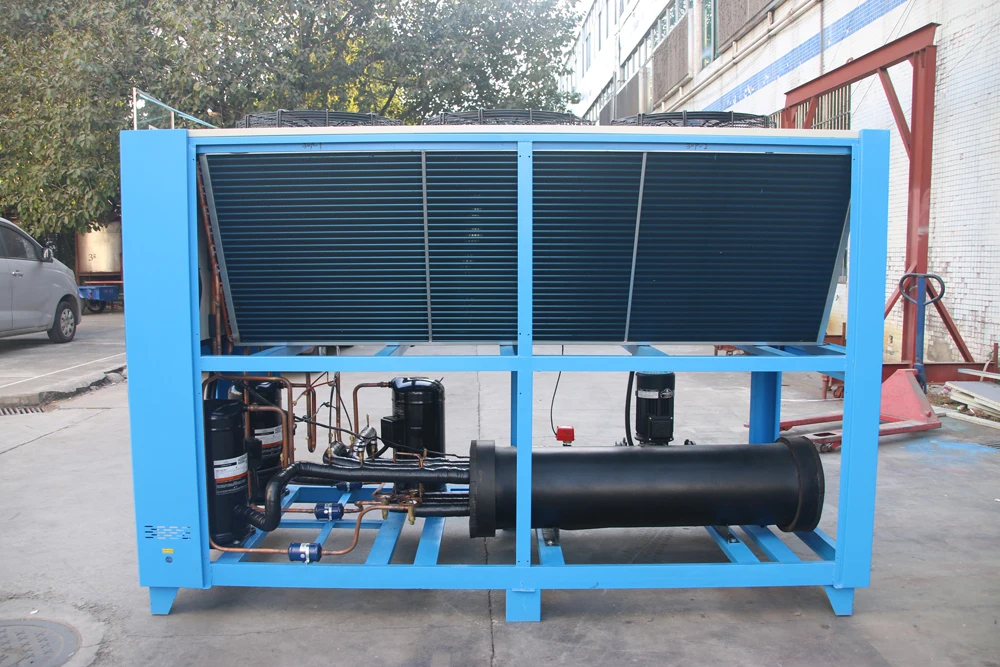

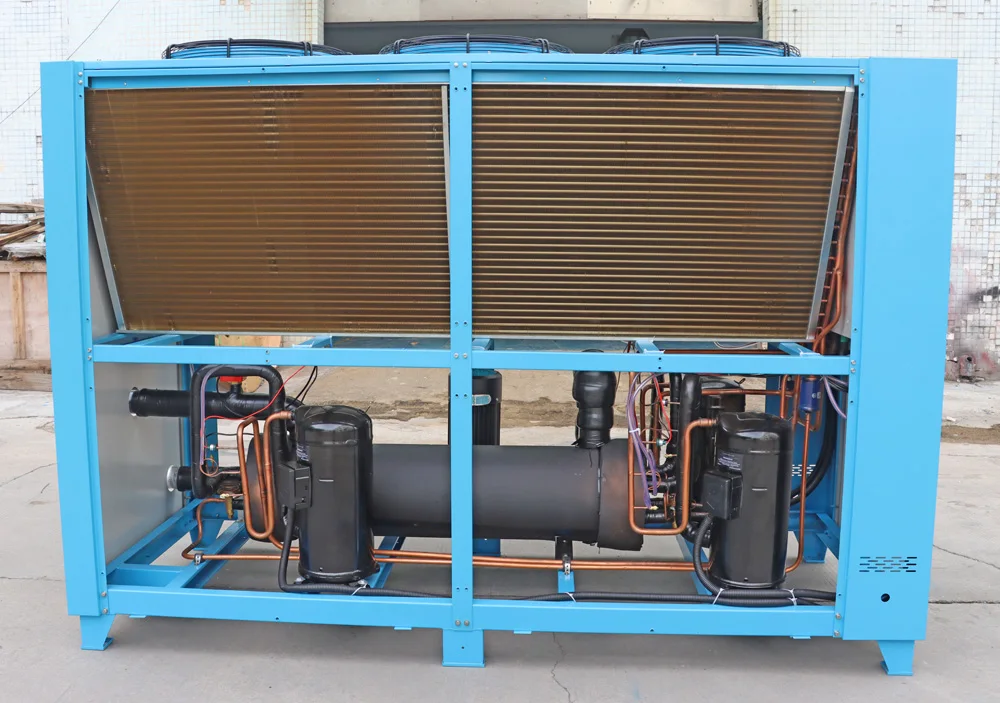

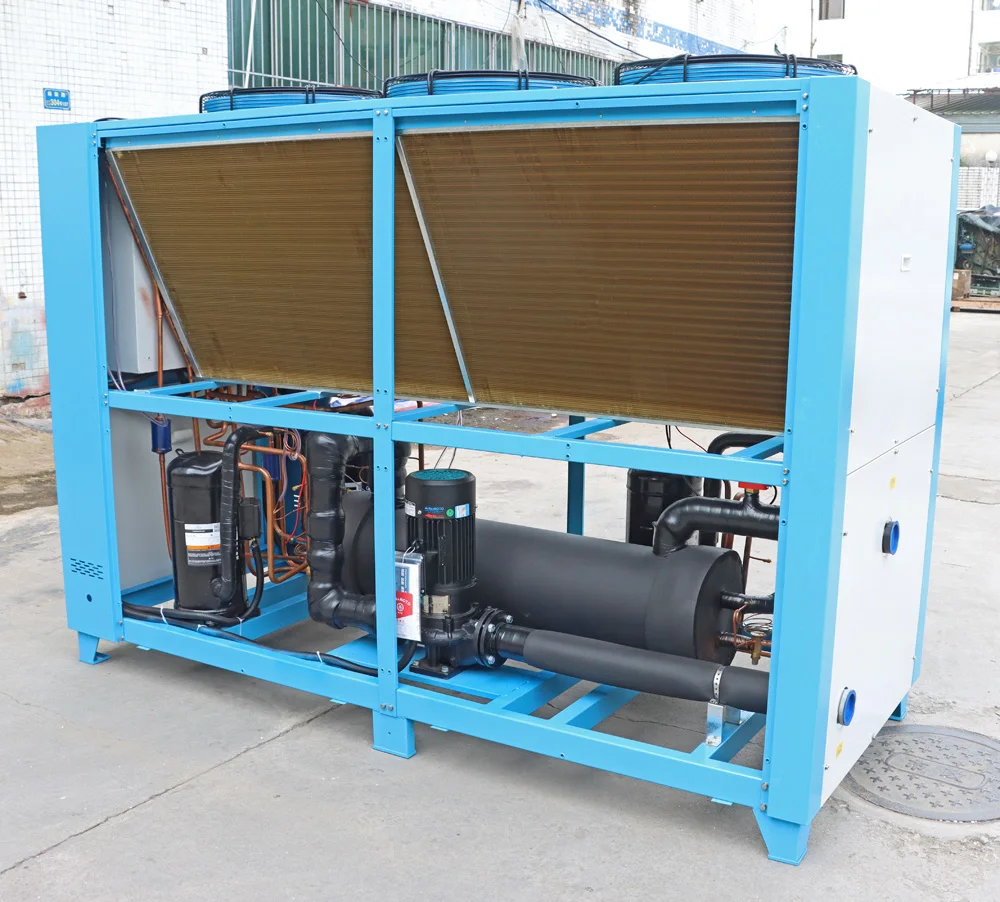

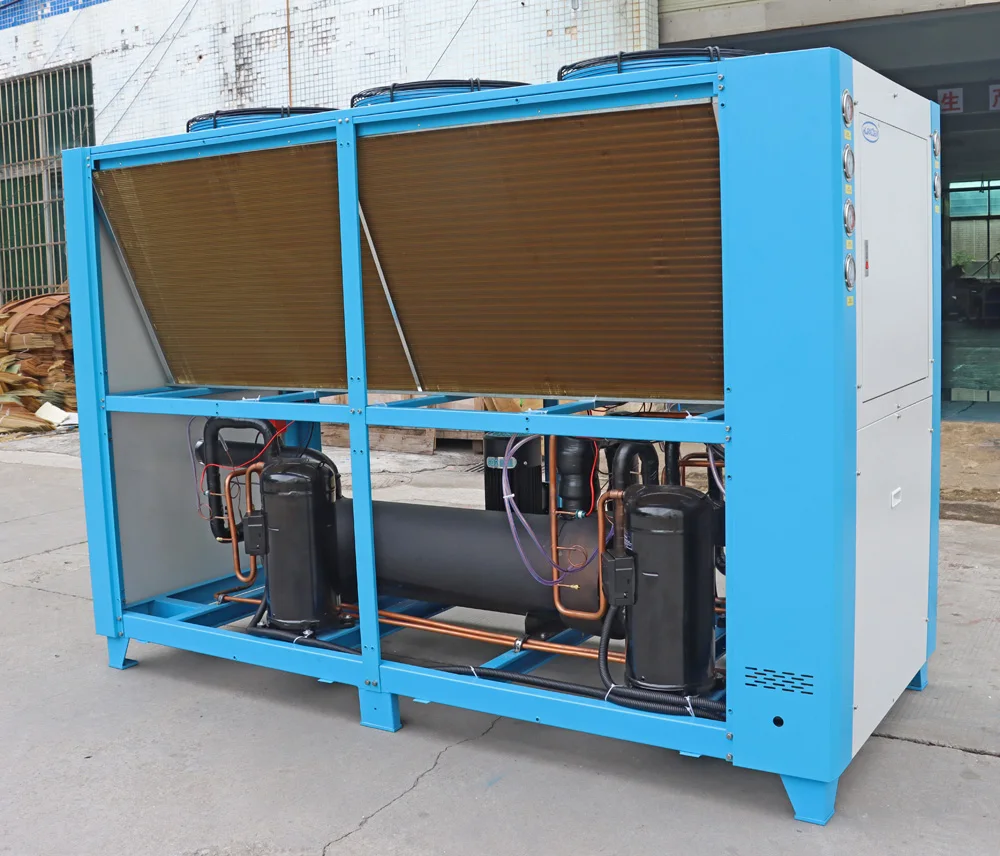

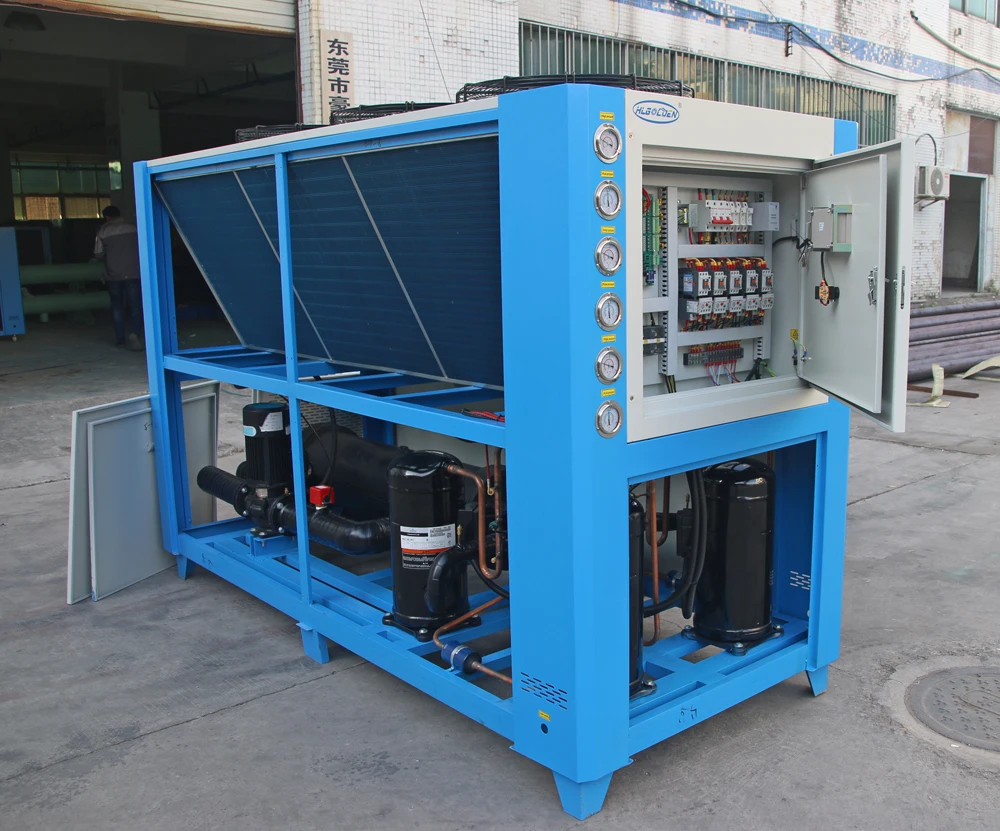

Details Images
* Simple Operation;
* Safety Protection;
* Inbuilt Chilled Water Pump;
* Stainless Steel Water Tank;
* Scroll Type Brand Compressor;
* Optional refrigerant R22 or R407C.
Remote control(Line switch) is optional.

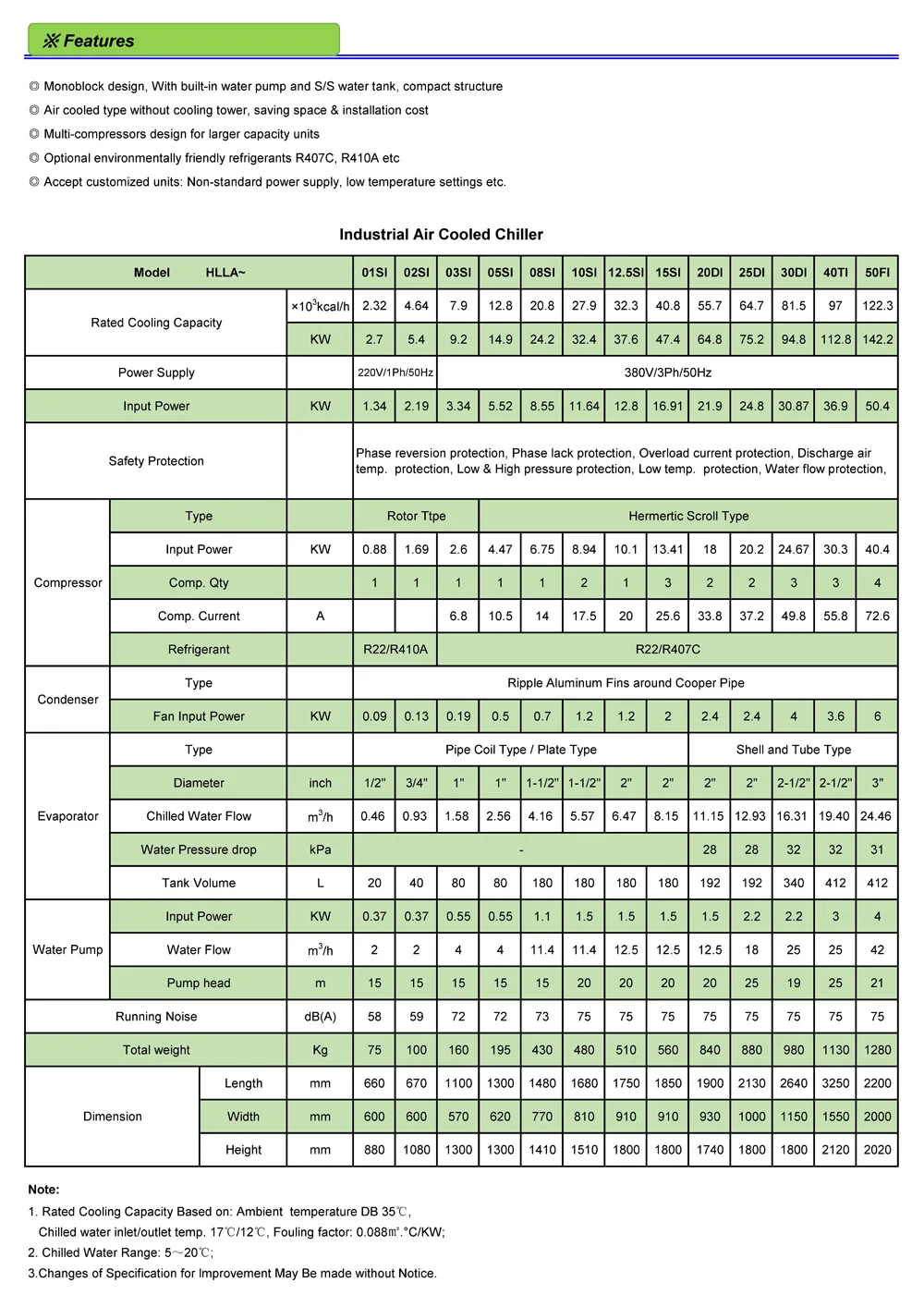

Product Paramenters

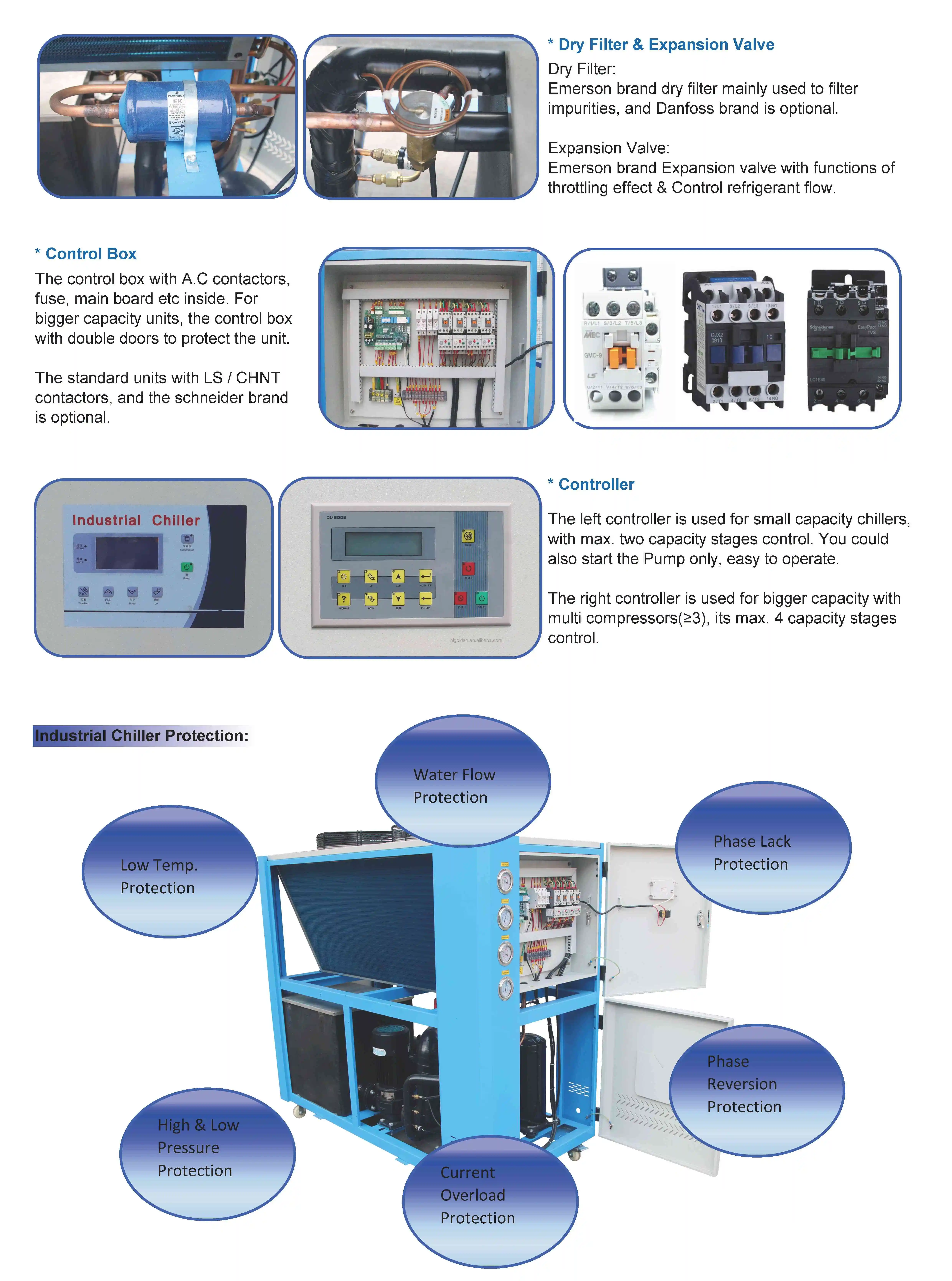

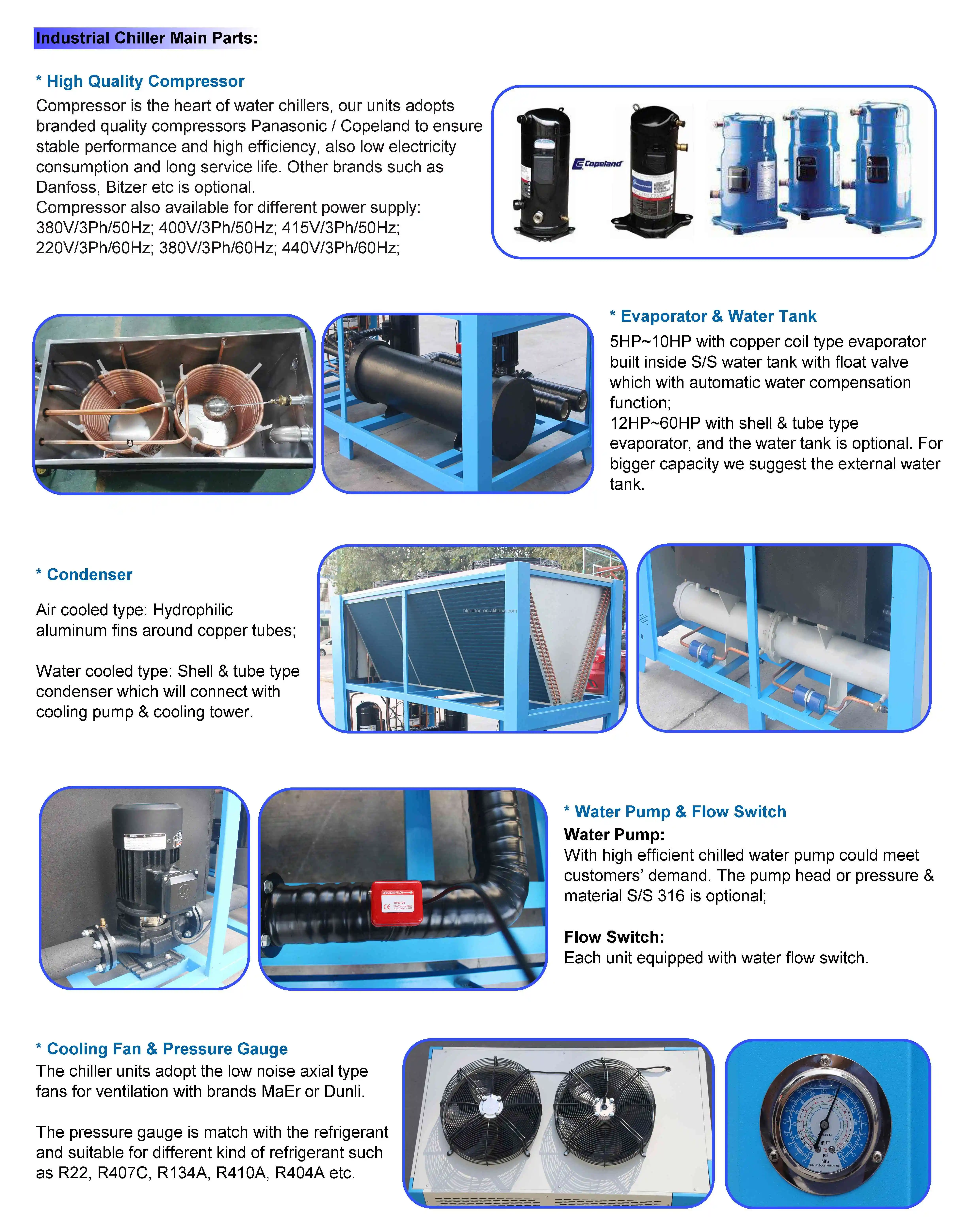

Production Configuration
Recommend Products
FAQ
Q1: What information do you need to provide in order to get a quotation?
A1: Generally, for industrial water chiller we need to know the following information in order to suggest the suitable water
chiller models and for providing the quotation.
1) Air cooled or water cooled?
2) Cooling Capacity.
3) Power Supply.
4) Refrigerant.
5) Chilled water outlet temperature.
6) Evaporator need pipe coil type or shell and tube type.
7) Order Quantity etc.
Our standard industrial scroll water chiller is 380V/3P/50Hz, refrigerant R22, chilled water outlet is 5~20Deg.
With water pump and S/S water tank, the evaporator is pipe coil type in the water tank.
Q2: Can I have a samples for testing before ordering products?
A2: Yes, you can.
We sincerely suggest that customers should have some samples of required chillers for testing because the truly performance of chillers can be fully demonstrated after testing is conducted.
Q3: What is the warranty of products?
A3: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year.
chiller models and for providing the quotation.
1) Air cooled or water cooled?
2) Cooling Capacity.
3) Power Supply.
4) Refrigerant.
5) Chilled water outlet temperature.
6) Evaporator need pipe coil type or shell and tube type.
7) Order Quantity etc.
Our standard industrial scroll water chiller is 380V/3P/50Hz, refrigerant R22, chilled water outlet is 5~20Deg.
With water pump and S/S water tank, the evaporator is pipe coil type in the water tank.
Q2: Can I have a samples for testing before ordering products?
A2: Yes, you can.
We sincerely suggest that customers should have some samples of required chillers for testing because the truly performance of chillers can be fully demonstrated after testing is conducted.
Q3: What is the warranty of products?
A3: For 1 year warranty. Free to amend and change the parts due to quality reasons in warranty year.
