6 Axis Automatic Linear Spray Paint Painting Machine for Car Parts (1600368711723)

Share on:


Price:$35,000.00
Price in USD:Details

Quantity:


Product Overview

Description

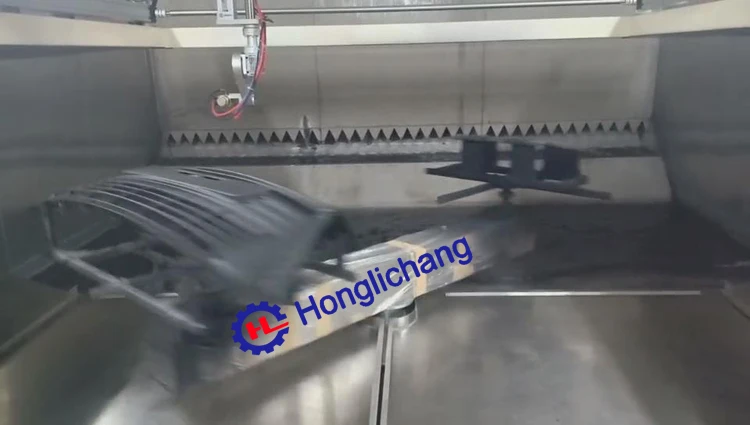

5-Axis Reciprocating Automatic Spray Booth Painting  Line for Car Parts




















































































 Type    5 Axis Automatic Reciprocating Painting Machine
 Coating     Reciprocating Painting
 Dimension     As per design/Customized
 Warranty     1 year
 Brand Name     Honglichang
 Power(W)     40~60KW
 Voltage     220V,380~440V,50~60Hz
 Weight     As per design
 Substrate     Steel,stainless steel,iron
 Booth material     PP, Stainless steel,
 Place of Origin     Shenzhen, China (Mainland)
 Process flow     Reciprocating coating
 Certification     ISO9001:2008,CE
 Operation mode     Automatic
 Successful cases     more than 500
 Maufacturing experience     more than 12 years
 Condition     New
 After-sales Service Provided     Engineers available to service machinery overseas





Product Description

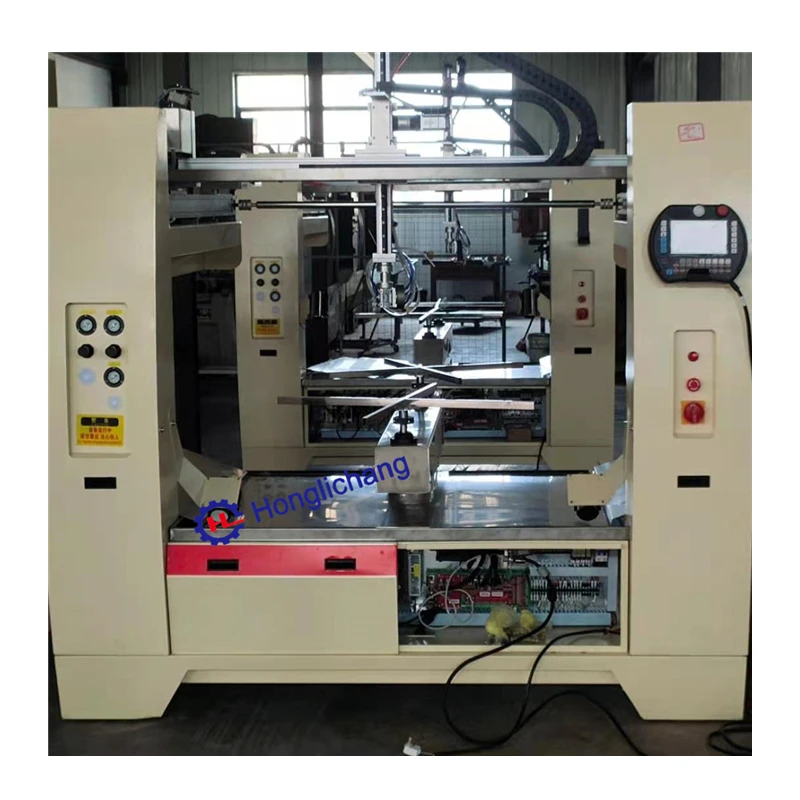

 Features of China 5 Axis Automatic Reciprocating Spray Painting Machine for Car Parts:


1. Machinery: W2300*L2100*H2300mm
2. Axis X: 1-1.5mtrs motion for slide; working speed: 1.5m/s; synchronous belt: MEGADYNE brand, Italy Make;
Servo Motor: Panasonic, ±0.5mm
3. Axis Y: 1-1.0mtrs motion for slide; working speed: 1-1.5m/s; synchronous belt: MEGADYNE brand, Italy Make;
Servo Motor: Panasonic, ±0.5mm
4. Axis Z: screw rod structure, 200W Panasonic motor, 0.3m/s, H300mm
5. Axis R: for spray gun angle change 0-90°, horzontal rotation, step motor
6. Turn Table & Tray:
6.1. 2 trays, Tray size: 600mmx600mm, weight load 5kg;
6.2. Tray Revolution: 2-4sec, graduator+chain transimission+gear motor+VFD
6.3. Tray Rotation: servo motor+gear box, 0-360° continuous rotation"
7. Structure Material: 100x100 square pipe, paint finish
8. Electrical & Pneumatic Controllers
8.1. MCCB: OMRON, with outlet for input and output
8.2. Touch Panel: Taiwan make, model 6070
8.3. Emergency Switch: Schneider
8.4. Sensor: Taiwan Yangming
8.5. Cable: China make in control panel & Germany make
8.6. Software: digital system; motion & speed adjustable
9. robot control system
11-1

-1_

e33-1

2r-1




Hot sale


hot sale 7





Company Information


20FAC


08





Packaging & Shipping


3725





FAQ





 FAQ


 Q1:Are you trading company or manufacturer?


  A1:We are 100% manufacturer,professional supplier of spray painting line for over 15   years.





Q2:How long is your delivery time?


 A2:Generally it is 40-45 workdays,it is according to the layout.





Q3:What is your terms of payment?


 A3:Multiple,we can disscuss.





 Q4:What is your Pre-sales service?


 A4: *Inquiry and consulting support.


        *Technology solution and quotation.


        *Customer visit our factory and check our production.





Q5:Where is factory? Can visit?


A5:Yes, you are most welcome.


Office: A901, Building No.2, Tianan Digital Park, Longgang, Shenzhen, China - 518172


Factory: 11, Phase-2, Butterfly Ridge Industrial Park, Heyuan, Guangdong, China - 517583





Q6:Could you provide the design for me?


  A6:Absolutely,we can.We are a manufacturer and designer.Just let me know your product informations and requirements like product sizes,pictures,material,output,field map,technological process,or price budget and so on.We will make a layout according to your requirments.
