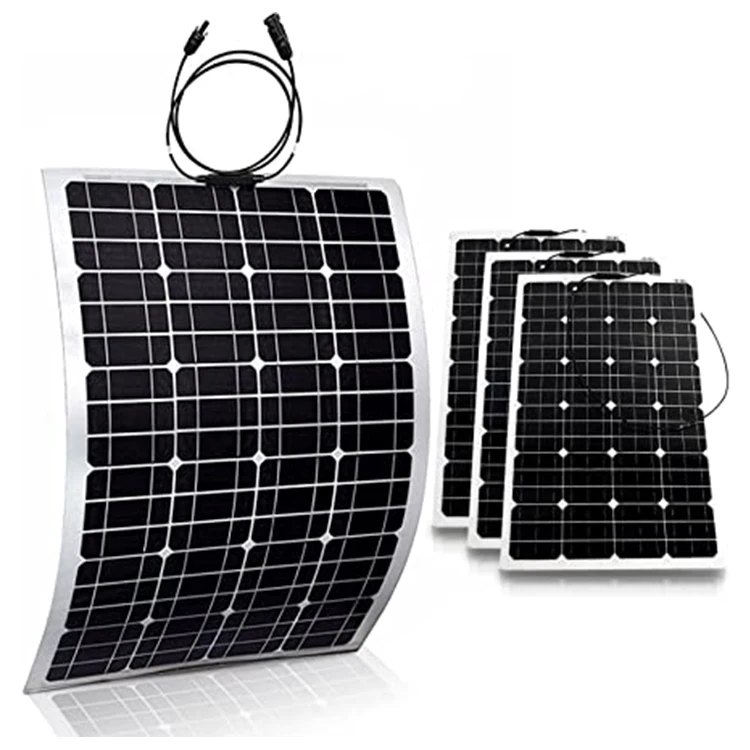

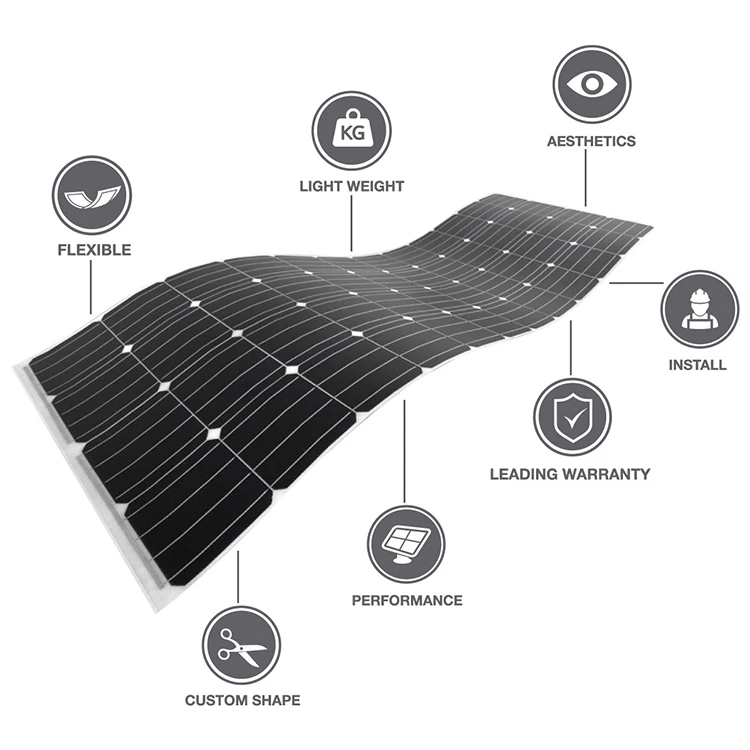

Waterproof Folding etfe 300 watt sunpower flexible solar panel
- Category: >>>
- Supplier: Yunnan Yaochuang Energy Development Co. Ltd.
Share on (1600368912802):
Product Overview
Description
Product Description

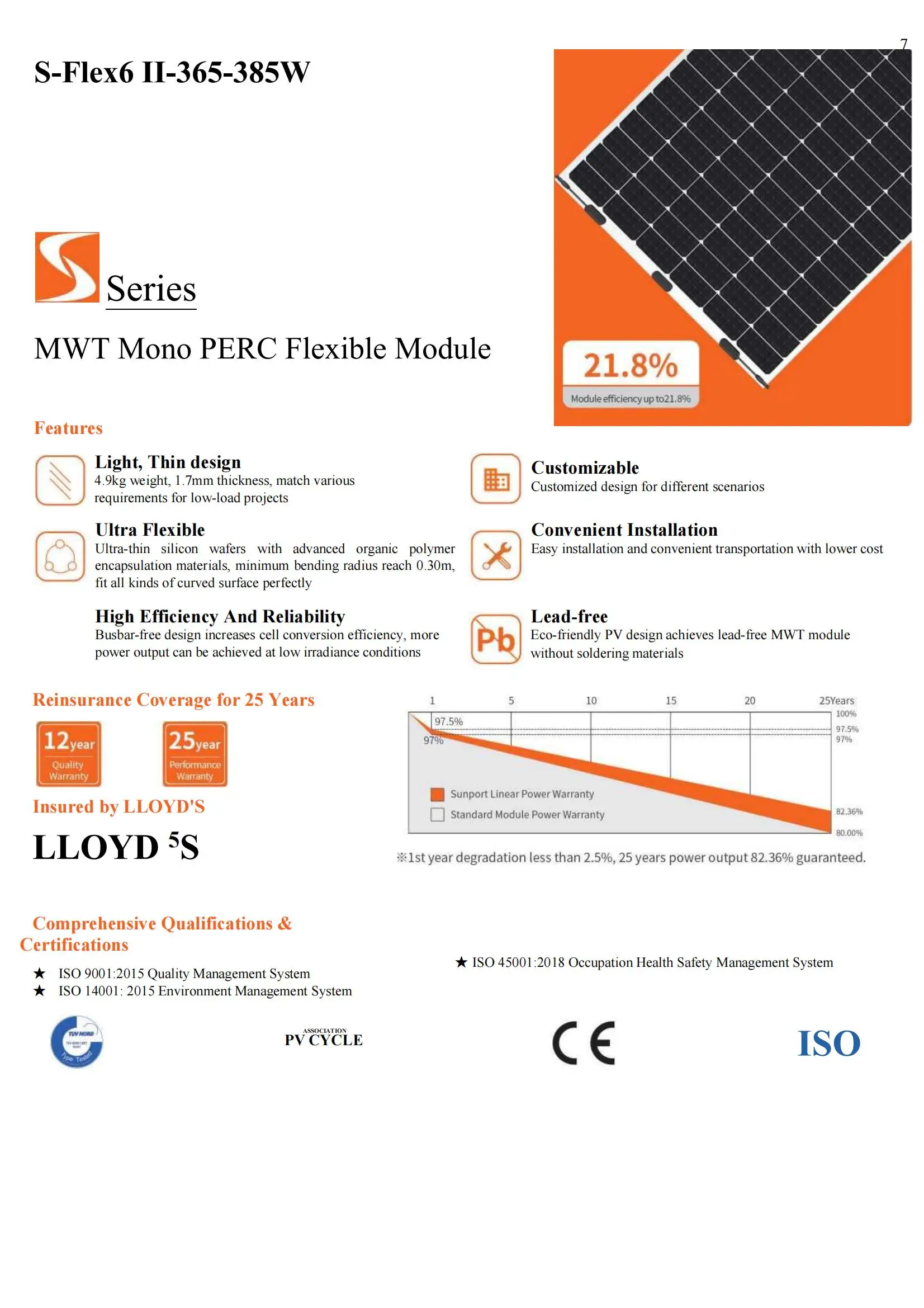

Light, Thin design
4.9kg weight, 1.7mm thickness, match various
requirements for low-load projects
4.9kg weight, 1.7mm thickness, match various
requirements for low-load projects

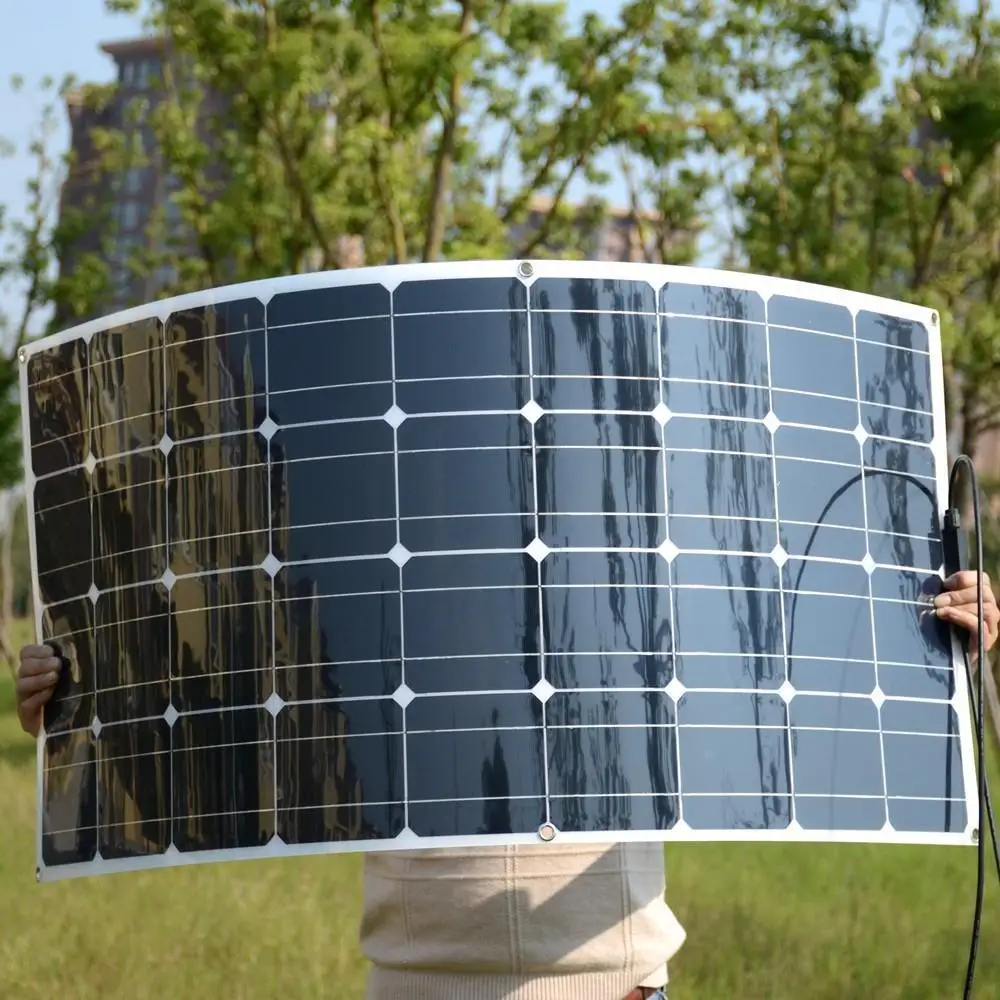

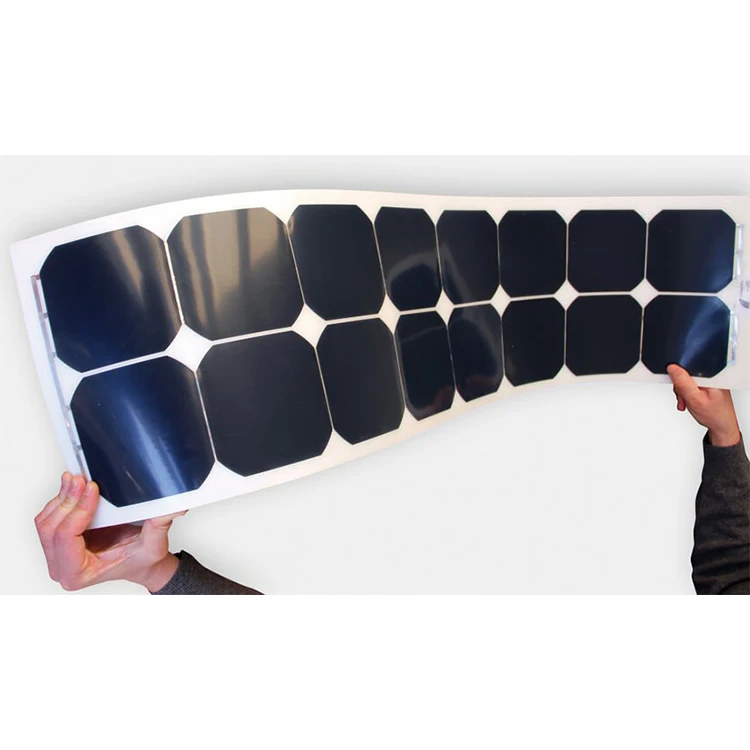

Ultra Flexible
Ultra-thin silicon wafers with advanced organic polymer
encapsulation materials, minimum bending radius reach 0.30m,
fit all kinds of curved surface perfectly
Ultra-thin silicon wafers with advanced organic polymer
encapsulation materials, minimum bending radius reach 0.30m,
fit all kinds of curved surface perfectly
High Efficiency And Reliability
Busbar-free design increases cell conversion efficiency, more
Busbar-free design increases cell conversion efficiency, more
Customizable
Customized design for different scenarios
Customized design for different scenarios
Convenient Installation
Easy installation and convenient transportation with lower cost
Easy installation and convenient transportation with lower cost
power output can be achieved at low irradiance conditions
Lead-free
Eco-friendly PV design achieves lead-free MWT module
without soldering materials
Eco-friendly PV design achieves lead-free MWT module
without soldering materials

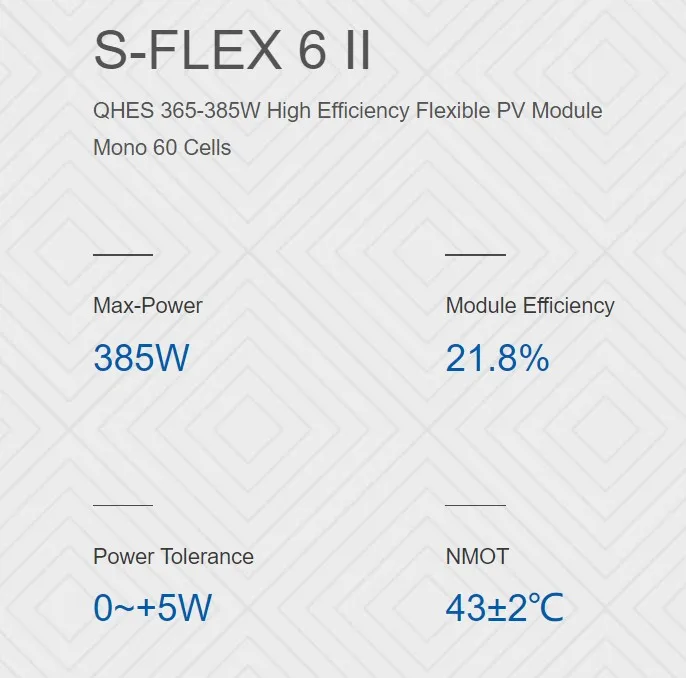

Specification
item | value |
Place of Origin | China |
Shanghai | |
Brand Name | YC |
Model Number | 300 watt flexible solar panel |
Cell size | 126(21x6) |
Type | Flexible |
Panel Dimensions | 1840mm*1040mm*1.7mm/2.5mm |
Panel Efficiency | 20.7%-21.8% |
Certificate | TUV CE |
Warranty | 25 years |
Type | etfe flexible solar panel |
Product name | new folding flexible solar panels 320w for camping boat rv travel home car |
Service | Custom made, installation guide |
Weights | 4.9kg/6.3kg |
Solar Cell Size | 126(21x6) |
Back material | Back Sheet(white) |
Encapsulant | POE |
Frame | None |
Bending radius | 0.3m |
Operating temperature range | -40°C --- +85°C |

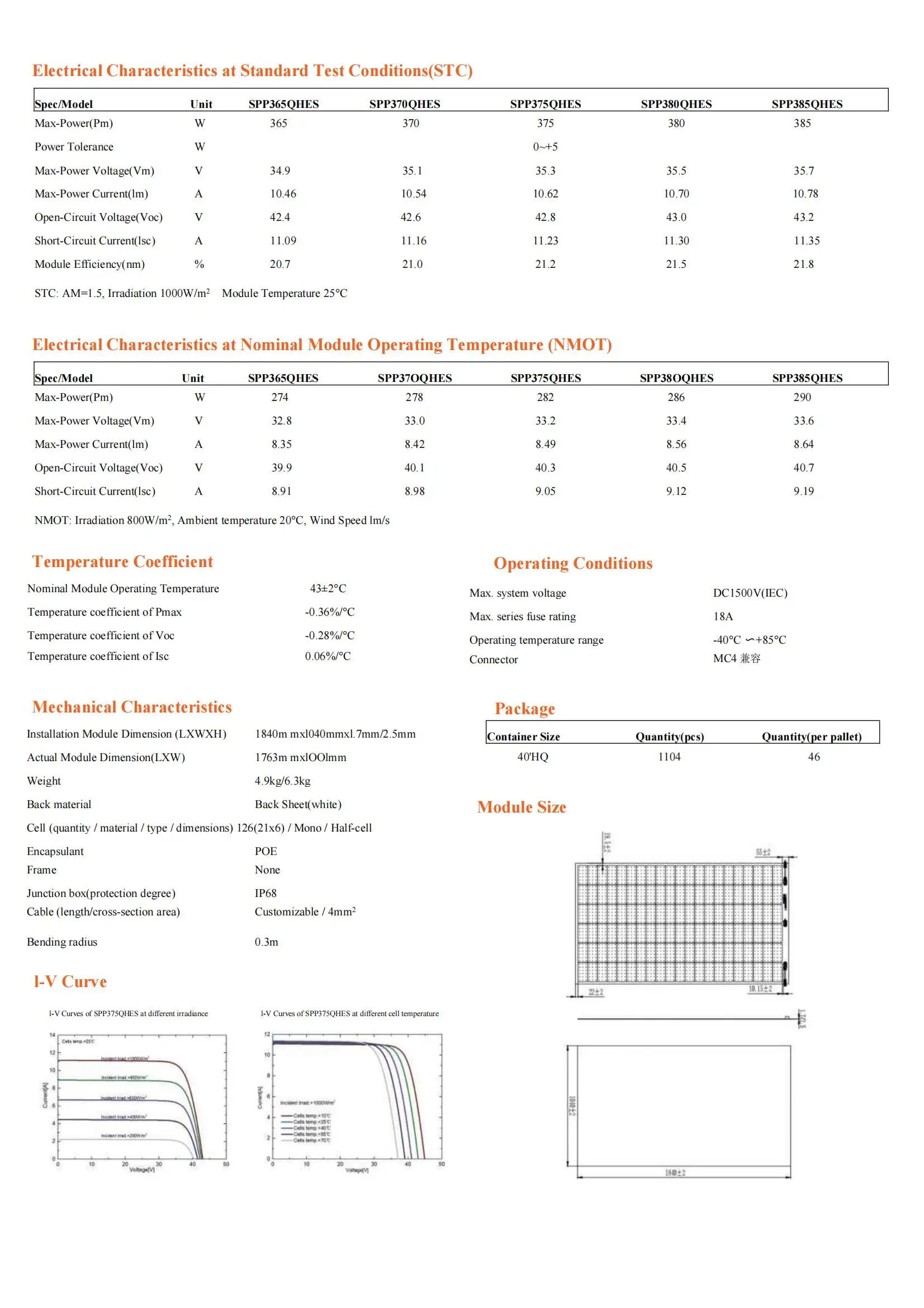

Mechanical Characteristics
Installation Module Dimension (LXWXH) | 1840mm*l040mm*l.7mm/2.5mm | ||||||||||||||||
Actual Module Dimension(LXW) | 1763mm*lOOlmm | ||||||||||||||||
Weight | 4.9kg/6.3kg | ||||||||||||||||
Back material | Back Sheet(white) | ||||||||||||||||
Cell (quantity / material / type / dimensions) | 126(21x6) / Mono / Half-cell | ||||||||||||||||
Encapsulant | POE | ||||||||||||||||
Frame | None | ||||||||||||||||
Junction box(protection degree) | IP68 | ||||||||||||||||
Cable (length/cross-section area) | Customizable / 4mm2 | ||||||||||||||||
Bending radius | 0.3m | ||||||||||||||||
