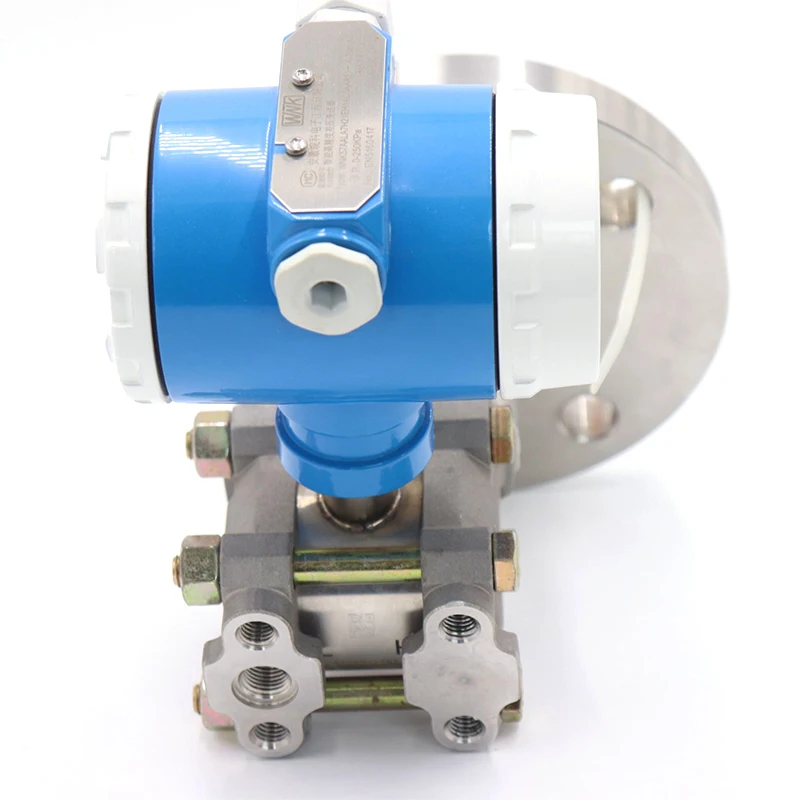

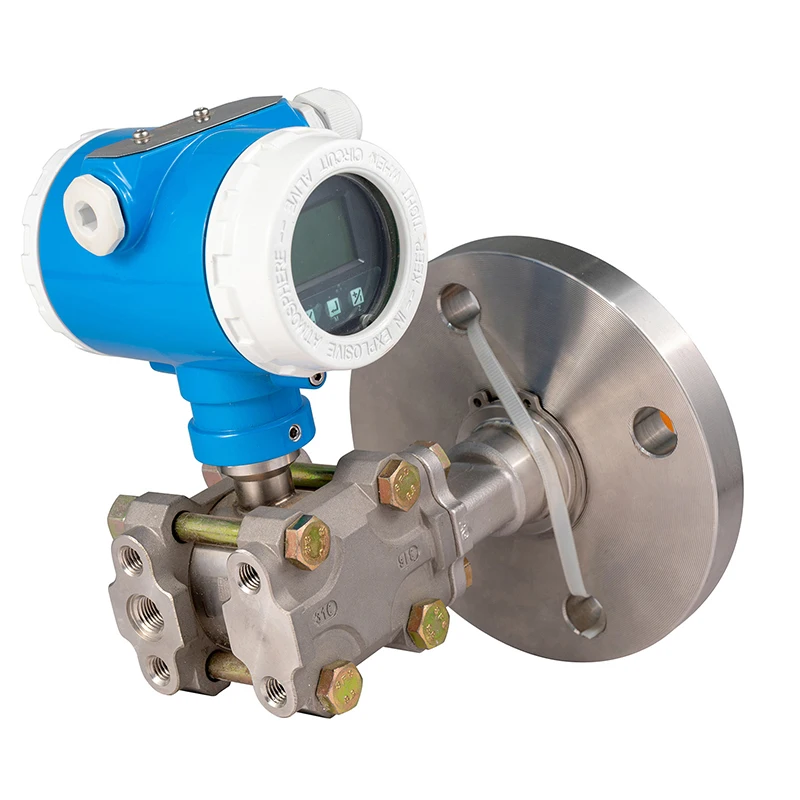

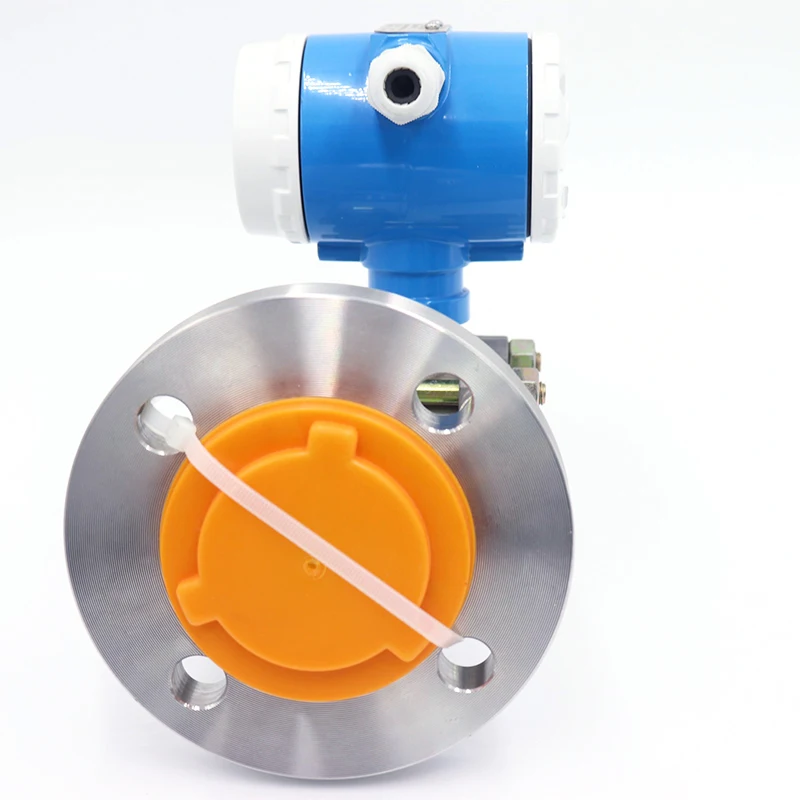

WNK 4 20mA Smart Single Flange Pressure Transmitter With Hart Display
- Category: Pressure Measuring Instruments >>>
- Supplier: Hefei Wnk Smart Technology Co. Ltd.
Share on (1600369210941):
Product Overview
Description
Products Description

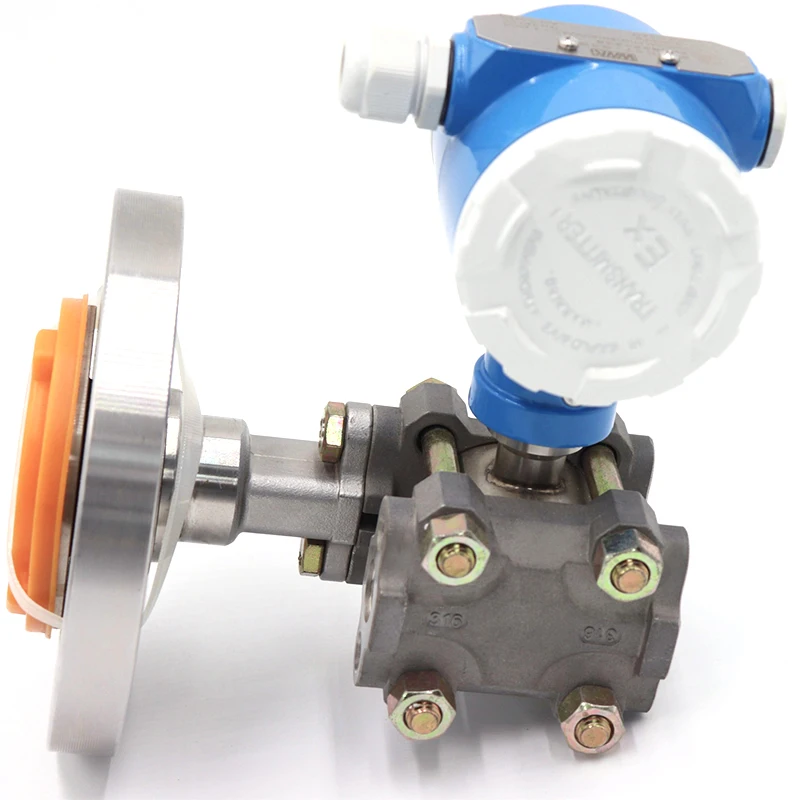

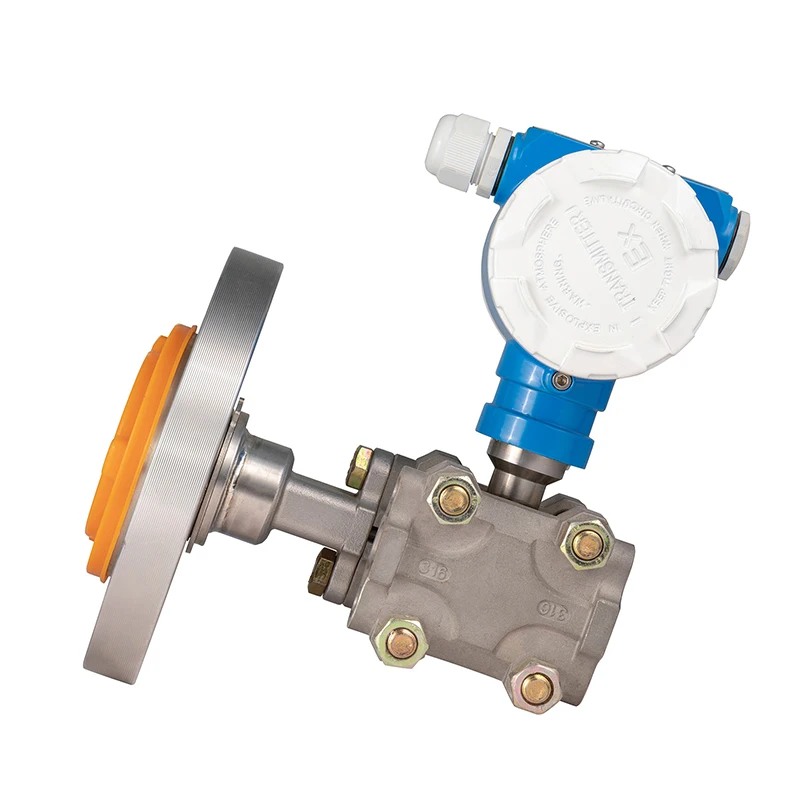

WNK 4-20mA Smart Single Flange Pressure Transmitter With Hart Display
Quick information
1. High reference accuracy up to 0.075%.
2. Long-term drift ≤±0.25%URL for 1 year.
3. Hart, PROFIBUS-PA or FF protocol for option.
4. Intrinsically safe and flameproof explosion proof
5. Range down ratio 100:1
6. Smart type for easy calibration
1. High reference accuracy up to 0.075%.
2. Long-term drift ≤±0.25%URL for 1 year.
3. Hart, PROFIBUS-PA or FF protocol for option.
4. Intrinsically safe and flameproof explosion proof
5. Range down ratio 100:1
6. Smart type for easy calibration
Product Application
High process temperatures up to 280℃ with diaphragm seals.
It can be used below particular occasiaon
1. Need to isolate the high temperature medium with transmitter
2. The measuring medium is corrosive to the transmitter
3. The measuring medium solidification or crystallization due to environmental or temperature changes
4. Suspended liquid or high viscosity medium
High process temperatures up to 280℃ with diaphragm seals.
It can be used below particular occasiaon
1. Need to isolate the high temperature medium with transmitter
2. The measuring medium is corrosive to the transmitter
3. The measuring medium solidification or crystallization due to environmental or temperature changes
4. Suspended liquid or high viscosity medium
4-20mA Hart Profibus-Pa Output Single Flange Pressure Transmitter | ||
Measured media | liquid, gas and steam | |
Pressure range | -100KPa~6MPa | |
Output signals | 4~20mA, Hart, PROFIBUS-PA for option | |
Accuracy | 0.075%, higher on request | |
Stability | ±0.25% of URL for 1 year | |
Temperature drift | ±0.0625% of URL/10ºC | |
Housing material | Aluminum14 | |
Diaphragm material | 316L, Alloy C-276, Monel, Tantalum diaphragm, 316L with PTFE coating etc for option | |
Fluid filled | Silicon oil,Vegetable oil,Inert oil ,High temperature oil etc for option | |
Mechanical connection | M20×1.5;G1/2;1/2NPT, Customization | |
Protection class | IP66/67 | |
Ex-proof | ExiaII CT4/CT6, ExidIICT6 | |
Power Supply | 10.5-55V DC 10.5-30V DC | |
Ambient temperature | -40 to 85ºC,-40 to 80ºCfor LCD header | |
Storage temperature | -45 to 85ºC,-40 to 80ºC for LCD header | |

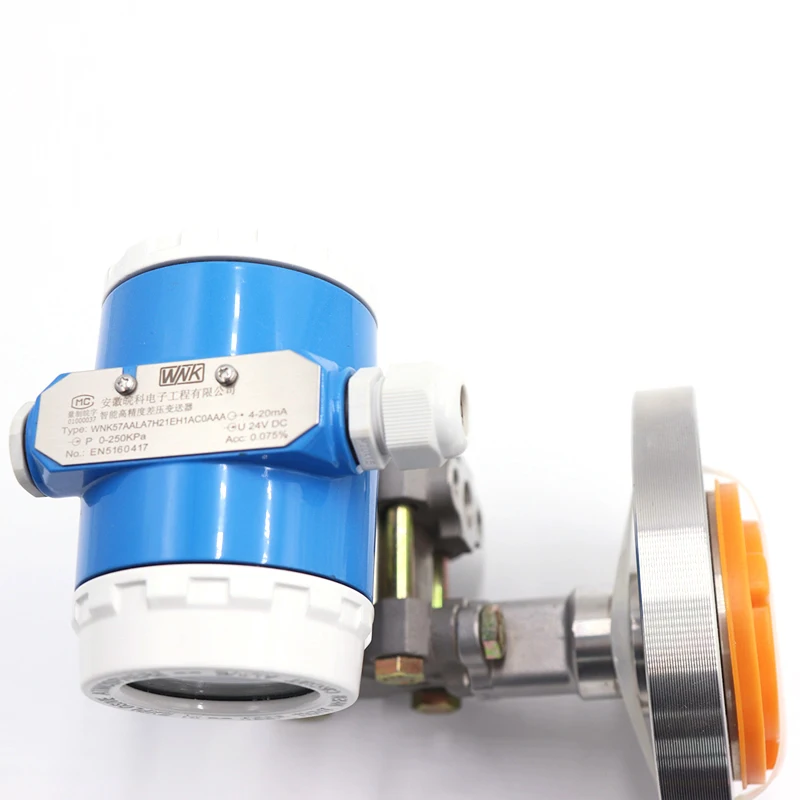

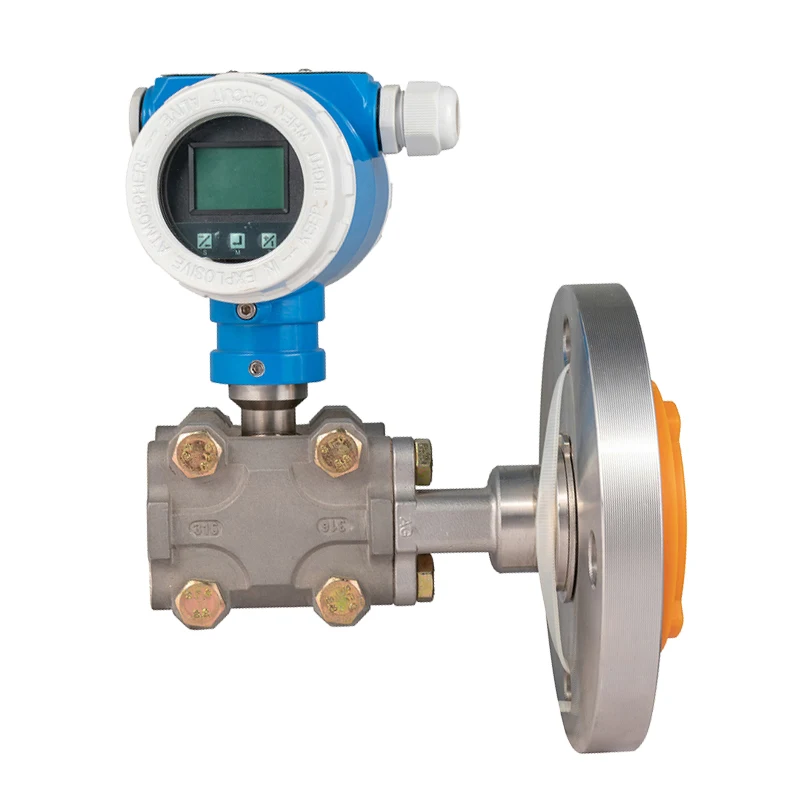

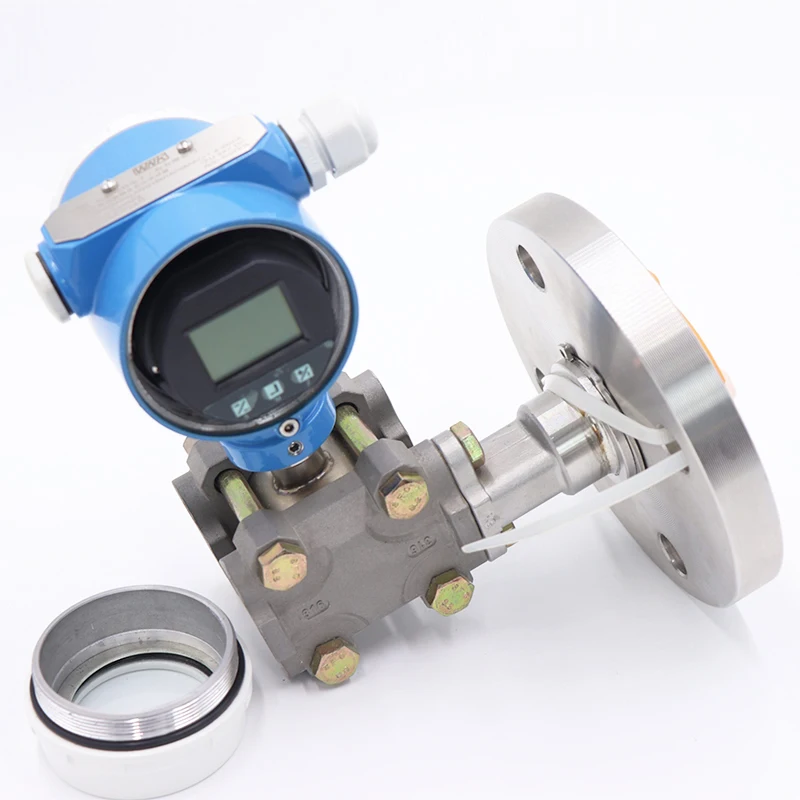

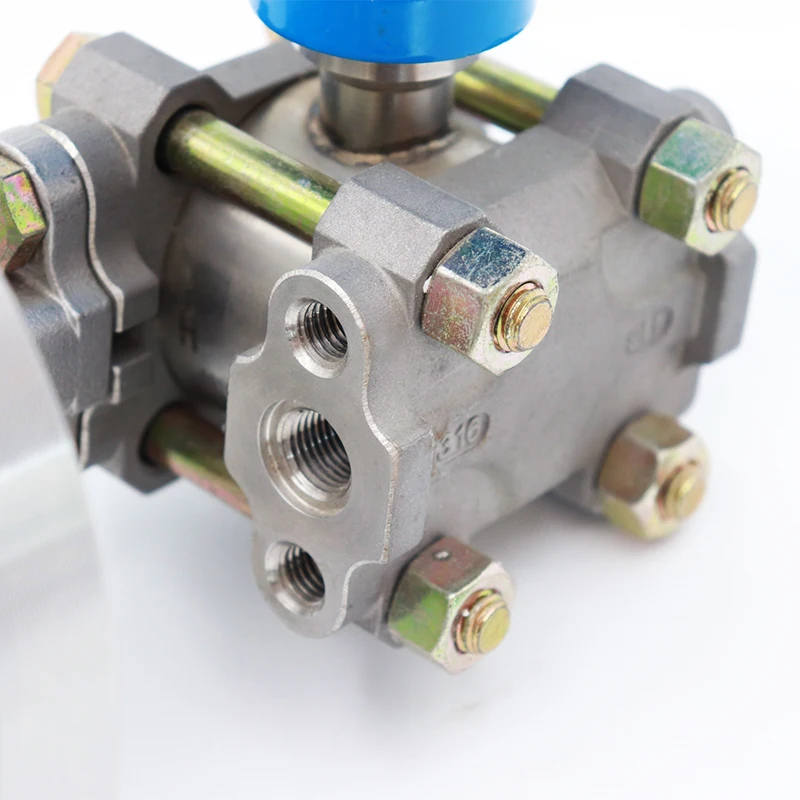

More Pictures
WNK5 series pressure transmitter is the high performance pressure transmitters provided by Anhui WNK Electronic Engineering Co.,Ltd. It transforms the physical signal of pressure, differential pressure and level etc into standard signal, by collecting cell sensor and digital processing circuit.
Our WNK5 series has the best precision and signal uniformity by applying advanced specified integrated circuit digital technology. Each set of transmitter is ambient temperature compensated in our factory, to ensure max precision and mini drift in wide working temperature range.
Our WNK5 series has the best precision and signal uniformity by applying advanced specified integrated circuit digital technology. Each set of transmitter is ambient temperature compensated in our factory, to ensure max precision and mini drift in wide working temperature range.
Hot Product
Company Profile
Certifications
Packing & Delivery
FAQ
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides calibration, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
A: We are professional pressure/level/temperature measurement manufacturer since 2004.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides calibration, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
If you have any questions, please feel free to contact Jane.
