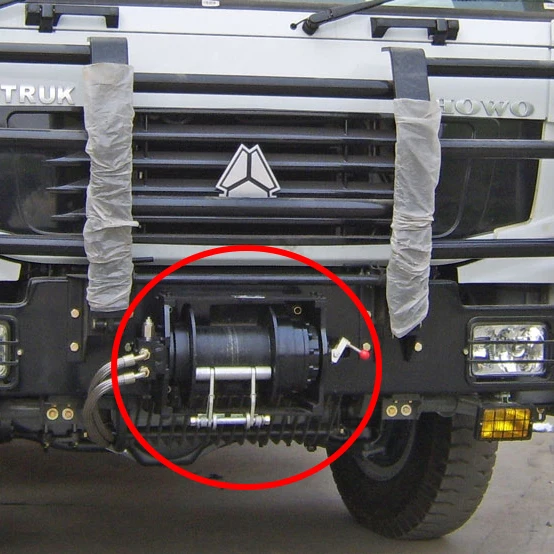

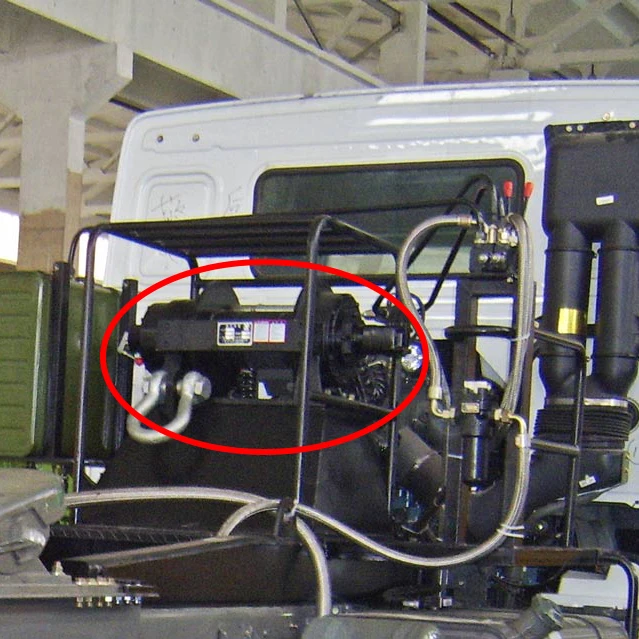

33000lb. 15T Hydraulic Motor Winch Trolley Hydraulic Winch for tractor
- Category: >>>
- Supplier: Jiangyin Zhongxin Engineering Equipment Co. Ltd.
Share on (1600369326271):
Product Overview
Description
33000lb. 15T Hydraulic Motor Winch Trolley Hydraulic Winch for tractor
Products Description

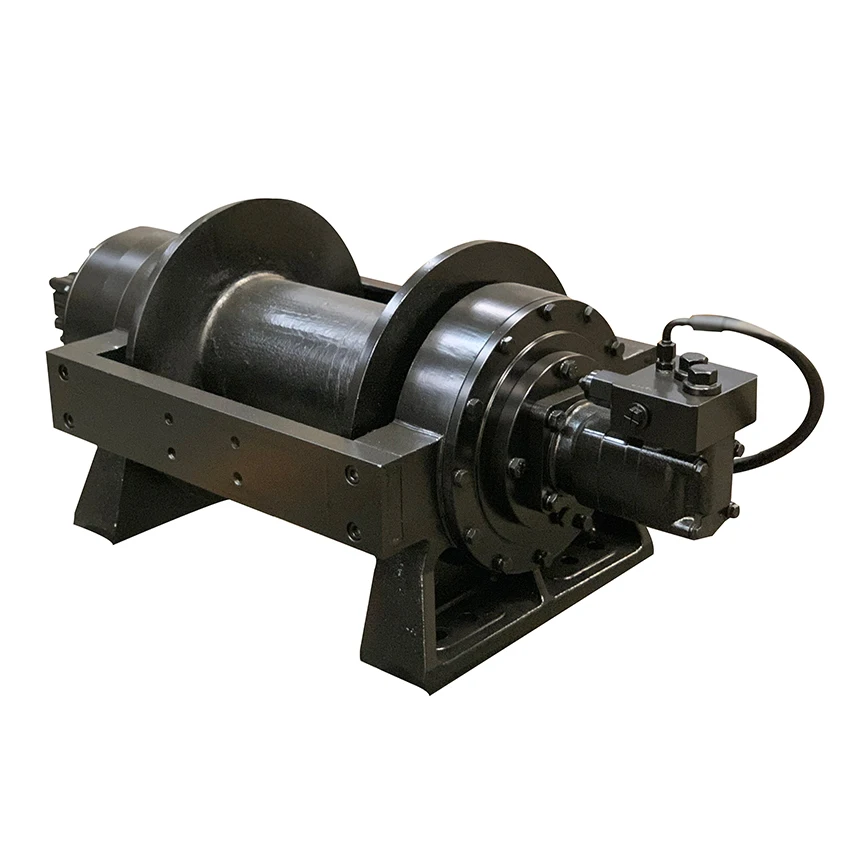

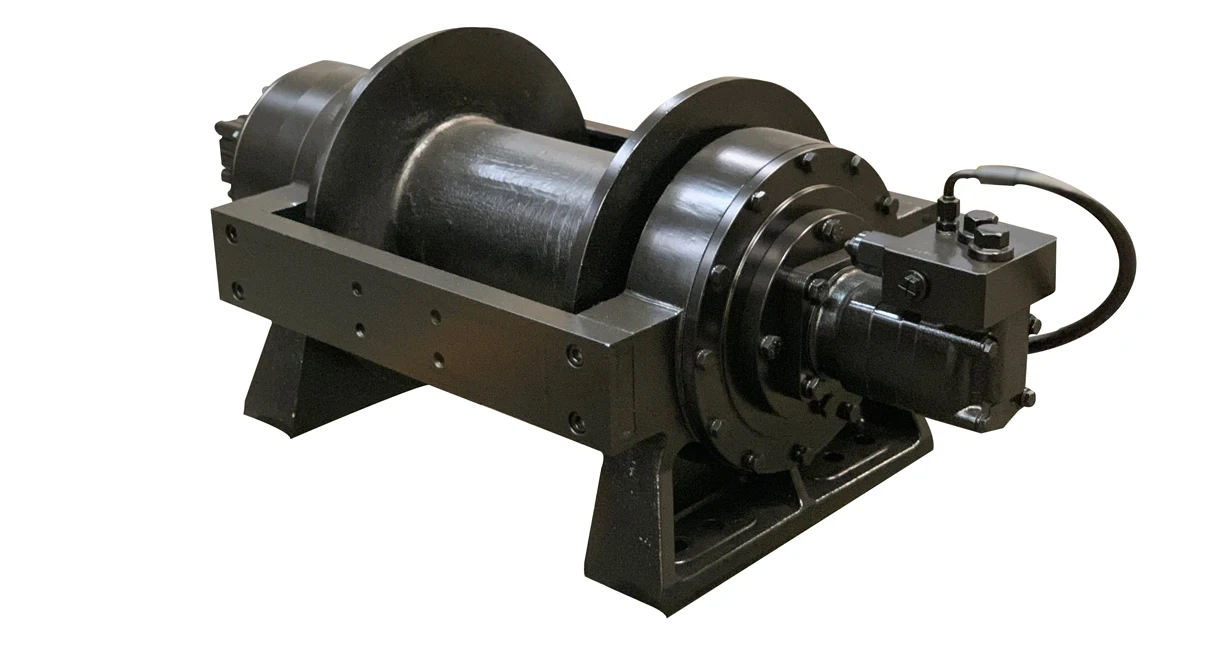

Model: YJP150 Hydraulic Winch
Consists: 2-stage planetary gear reducer, drum, arrester, hydraulic motor etc.
Optional parts: wire rope, hooking, manual clutch etc.
Features: Large pulling capacity for heavy goods. With free spooling function, high efficiency and safety. Hydraulic winch save valuable time when it comes to recovering vehicles or removing obstacles.

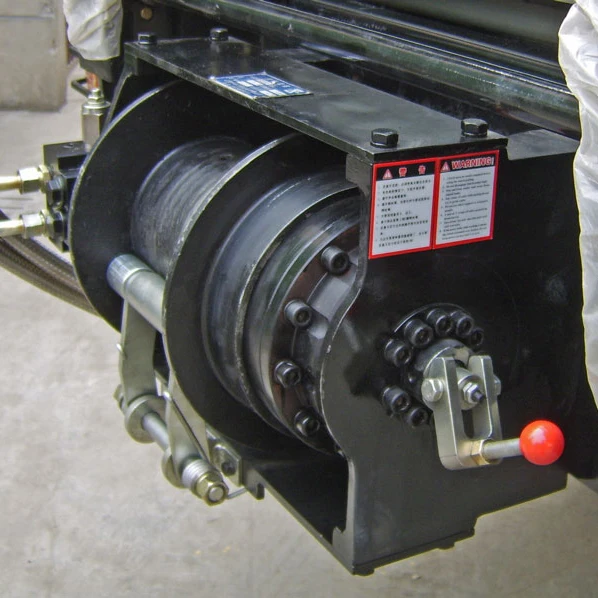

Details Images
User-friendly operation
The compact design of ZHONGXIN winches allow flexible integration into different vehicles.
Simplified and user-optimized operation.
Maximum security
Constant pulling force and rope speed.
Quality inspection before shipment guarantees reliability and safety in winch use.
Long lifespan
Long product life and minimal maintenance effort.
1 year warranty; 24-hours after-sales service.
Technical Paramenters
Rated line pull (1st layer) | KN/ kgs / lbs | 147 / 15000 / 33000 |
Line speed (1st layer) | m/min | 6 |
Response pressure of brake | MPa / Bar | <2.5 / 25 |
Oil pressure | MPa / Bar | 16 / 160 |
Oil flow | L/min | 110 |
Drum diameter *Bottom diameter *Length (internal) | mm | 400*210*340 |
Drum capacity | m | 55 |
Suggested high-intensity wire rope diameter | mm | Φ22 |
Net weight | Kg | 285 |

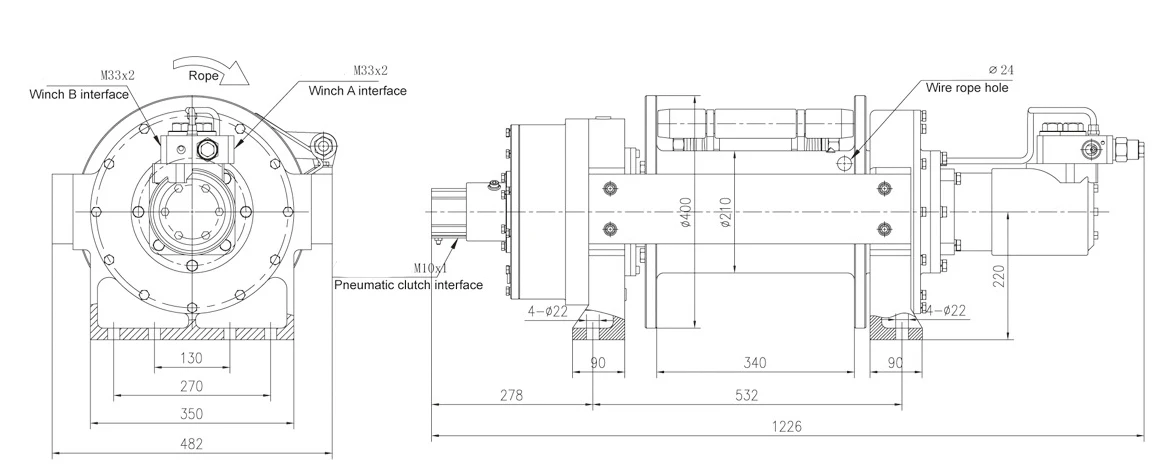

Product Structural Drawing
Application
Hydraulic Winch for pulling and lifting
We can customize various spec as your request.

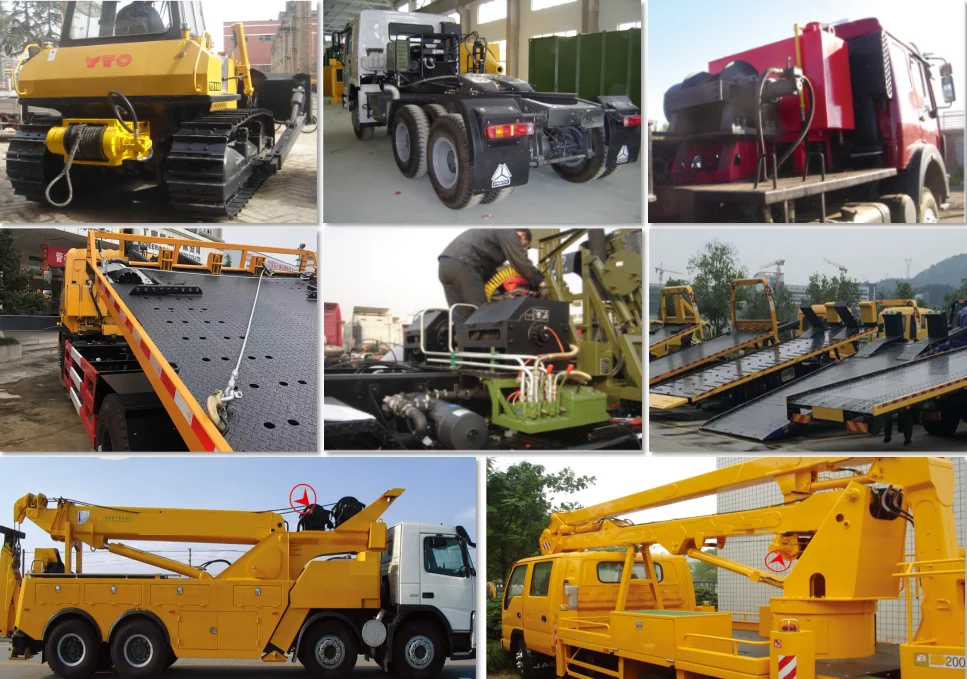

Ideal for use in a variety of engineering equipment, such as tow truck, trailer, tractor, Bulldozer, Crawler truck, recovery vehicles, rescue, Drilling Rig, cranes and wrecker etc.
Ideal for use in a variety of engineering equipment, such as tow truck, trailer, tractor, Bulldozer, Crawler truck, recovery vehicles, rescue, Drilling Rig, cranes and wrecker etc.
Product packaging
Packing Details:
1. Standard wooden case or carton box
2. Safety for long-distance transportation
3. All of the productions will be inspected carefully before delivery
2. Safety for long-distance transportation
3. All of the productions will be inspected carefully before delivery
Delivery Details:
1. Conventional product in stock: send in 3~7 days after payment.
2. Customized product: send in 7~20 days.
3. Door to door / air / sea transportation are all available.
2. Customized product: send in 7~20 days.
3. Door to door / air / sea transportation are all available.
Company profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory, established in 1998.
Q: What is your terms of payment?
A: T/T 30% in advance, 70% see the B/L copy.
100% Irrevocable LC
Q: What is your terms of delivery?
A: FOB, CFR ,CIF, DDU or as your requirement
Q:Do you supply customized service?
A: Sure! We are manufacturer, and we have our own engineer group. They can work out customized design according to your special
requirement.
Q: How about your delivery time?
A: Generally it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on your purchase
quantity.
Q: How about package?
A: Wooden box conforming to export standards.
Q:What information should I provide to you before you could recommend a suitable winch and quote for me?
A: 1. Intended application of the winch (including working condition)
2. Line pull (KN / kgs / lbs)
3. Line speed (m/min)
4. Drum capacity/rope length (m)
5. Rope diameter(if have)
6. Oil pressure and oil flow (if have)
7. Other special requirements
We will always be your service, welcome for your enquiry!
A: We are factory, established in 1998.
Q: What is your terms of payment?
A: T/T 30% in advance, 70% see the B/L copy.
100% Irrevocable LC
Q: What is your terms of delivery?
A: FOB, CFR ,CIF, DDU or as your requirement
Q:Do you supply customized service?
A: Sure! We are manufacturer, and we have our own engineer group. They can work out customized design according to your special
requirement.
Q: How about your delivery time?
A: Generally it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on your purchase
quantity.
Q: How about package?
A: Wooden box conforming to export standards.
Q:What information should I provide to you before you could recommend a suitable winch and quote for me?
A: 1. Intended application of the winch (including working condition)
2. Line pull (KN / kgs / lbs)
3. Line speed (m/min)
4. Drum capacity/rope length (m)
5. Rope diameter(if have)
6. Oil pressure and oil flow (if have)
7. Other special requirements
We will always be your service, welcome for your enquiry!
