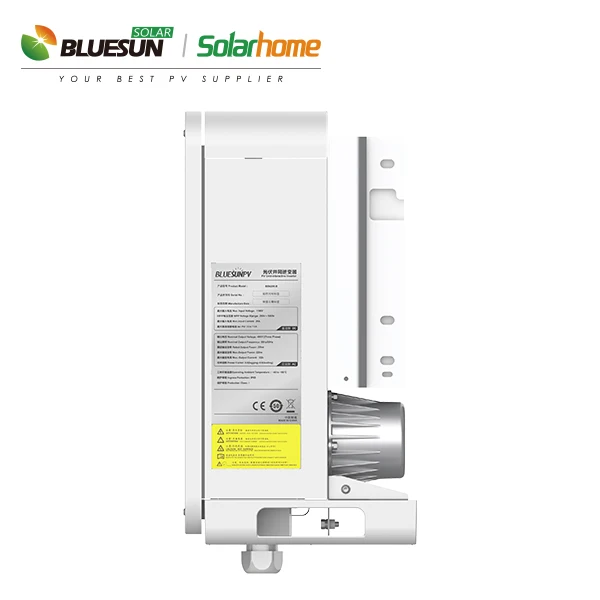

Pv Solar Grid Tie 12000w 15000 Watt 20000watt 50000watt Inverter 3phase 380v On Grid Solar System
- Category: >>>
- Supplier: SOLAR WORLD CO. LTD
Share on (1600369459387):
Product Overview
Description
Products Description
Features
*High Power
Max DC voltage 1100v, max power 10/15/20/25/30/33kw
*High Efficiency
Max efficiency 98.80%
*High Reliability
Double channels MPPT
*Compact Structure
Easy for installation and maintenance
*High Efficiency
Max efficiency 98.80%
*High Reliability
Double channels MPPT
*Compact Structure
Easy for installation and maintenance

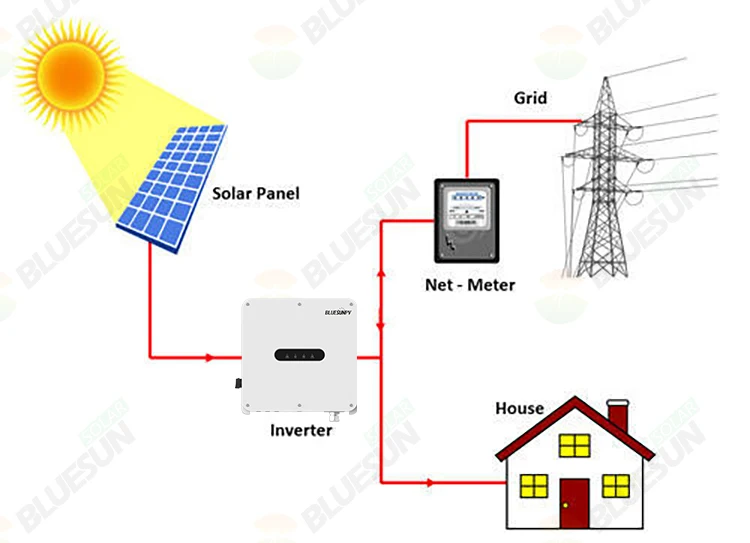

Provide clear and green energy ,Photovoltaic power generation, save electricity costs

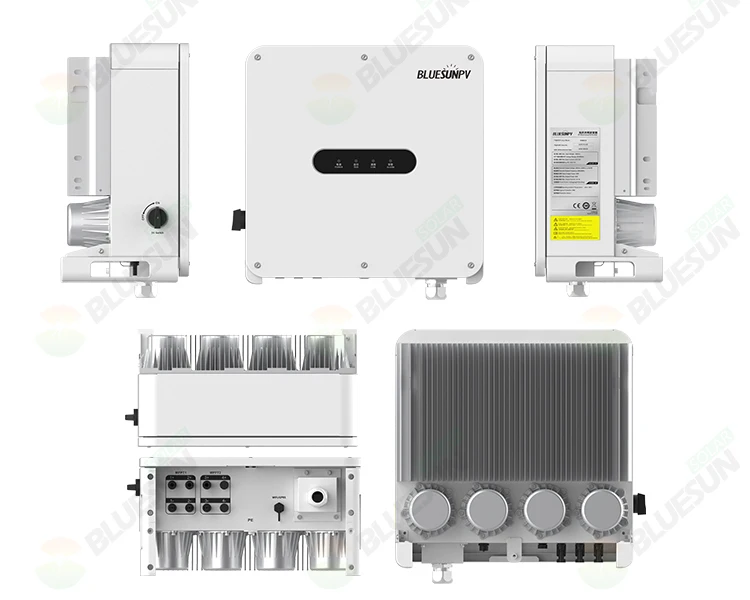

Details Images
Product Paramenters

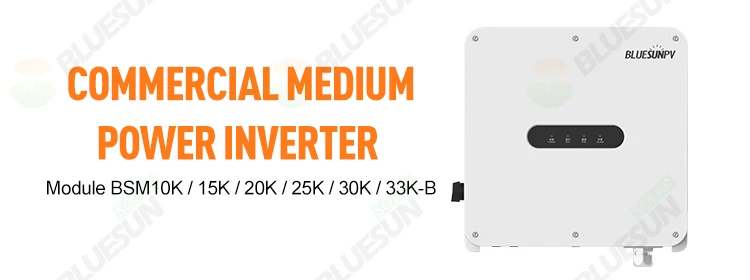

Model | BSM10K-B | BSM15K-B | BSM20K-B | BSM25K-B | BSM30K-B | BSM33K-B | ||||||
DC Input | Max. DC Voltage | 1100V | ||||||||||
MPPT Voltage Range | 250V- 1000V | |||||||||||
Max. Input Current of Each MPPT | 13A | 26A/13A | 26A | 39A | ||||||||
Number of DC Inputs | 2 | 3 | 4 | 6 | ||||||||
MPPT Number | 2 | |||||||||||
AC Output | Rated Output Power | 10kW | 15kW | 20kW | 25kW | 30kW | 33kW | |||||
Max. Active Power (cos0s1) | 11kw | 16.5kW | 22KW | 27.5kW | 33kW | 36.3kW | ||||||
Rated Output Voltage | 400V (Three Phase) | |||||||||||
Operating Voltage Range | 400V±20% | |||||||||||
Rated Output Current | 14A | 22A | 29A | 36A | 43.3A | 47.6A | ||||||
Max. Output Current | 16A | 24A | 32A | 39.7A | 47.6A | |||||||
Rated Grid Frequency | 50 Hz/60Hz | |||||||||||
Powr Factor | 0.8(Leading) ~0.8(Lagging) | |||||||||||
THD | <3% | |||||||||||
System Parameter | Max. Efficiency | 98.60% | 98.61% | 98.63% | 98.94% | 99.00% | 98.80% | |||||
European Efficiency | 98.30% | 98.26% | 98.50% | 98.26% | ||||||||
Protection Level | IP65 | |||||||||||
Operating Temperature Range | -40℃~+60℃ | |||||||||||
Cooling System | Natural Cooling | Smart Air Cooled | ||||||||||
Standby Power Consumption | <1W | |||||||||||
Topology Structure | Transformerless | |||||||||||
Operating Altitude | 5000m (Derating above 4000m) | |||||||||||
Display | LED Indicator+ APP | |||||||||||
Communication | RS485 / WiFi / GPRS | |||||||||||
Certification | IEC62109, IEC61000, IEC62116, IEC61727, EN50549, CQC, CGC | |||||||||||

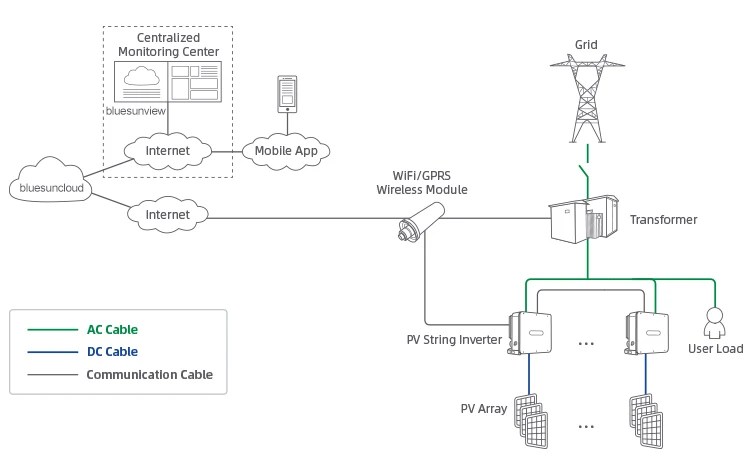

Monitoring Equipment
High precision& intelligent detection
1. Communication RS485/wifi/GPRS2. Support mobile phone APP connection, monitoring and parameter settings
3. Cooperation with cloud platform and can check the inverter status
3. Cooperation with cloud platform and can check the inverter status

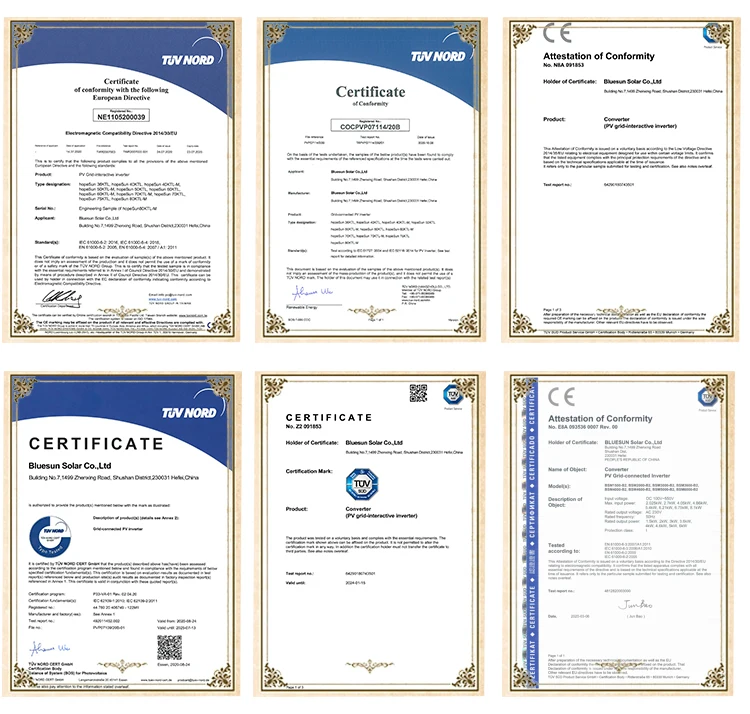

Certifications
Company Profile
March 2020, in Dubai
Feb 2019, in Japan
Sep 2019, in Mexico
May 2019, in Germany

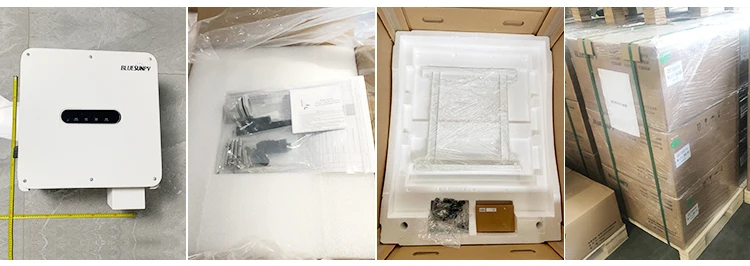

Packing & Delivery
Project
12MW Dalian Roof-top PV project in China
Ukraine 15MW solar plant
CNNC 2.8MW PV project in Weihai, China
Roof-top PV project in Anhui Province, China
String photovoltaic project in Shandong Province, China
50 KW String inverter project in China
China 500 KW solar project
