Conveyor Magnetic Separator Separator Removal Separation Removing Iron Magnetic Roller Separator
Iron remover is a kind of equipment that can generate strong magnetic attraction. It can remove ferromagnetic impurities mixed in materials, so as to ensure the safe and normal operation of crushers, grinders and other mechanical equipment in the conveying system. At the same time, it can effectively prevent the accident of cracking the conveying belt due to large and long iron parts
Product Paramenters
Conveyor Magnetic Separator Separator Removal Separation Removing Iron Magnetic Roller Separator
According to its iron unloading mode, it can be divided into manual iron unloading, automatic iron unloading and program-controlled iron unloading. Due to different application occasions and magnetic circuit structure, various series of products have been formed.
Parameter | Bandwidth | Hang high | Thickness | Strength | Power | Belt | system | Kg |
Project | mm | h=mm | ≤mm | ≥mT | ≤KW | Speed | ||
≤m/s | ||||||||
RCYD(C)-5 | 500 | 150 | 80 | 60 | 1.5 | 4.5 | continuous | 750 |
RCYD(C)-6 | 600 | 175 | 120 | 60 | 1.5 | 920 | ||
RCYD(C)-6.5 | 650 | 200 | 150 | 70 | 2.2 | 1200 | ||
RCYD(C)-8 | 800 | 250 | 200 | 70 | 2.2 | 1400 | ||
RCYD(C)-10 | 1000 | 300 | 250 | 70 | 3 | 2120 | ||
RCYD(C)-12 | 1200 | 350 | 300 | 70 | 4 | 3350 | ||
RCYD(C)-14 | 1400 | 400 | 350 | 70 | 4 | 4450 | ||
RCYD(C)-16 | 1600 | 450 | 400 | 70 | 5.5 | 6200 | ||
RCYD(C)-18 | 1800 | 500 | 450 | 72 | 7.5 | 8100 | ||
RCYD(C)-20 | 2000 | 550 | 500 | 72 | 11 | 9700 |

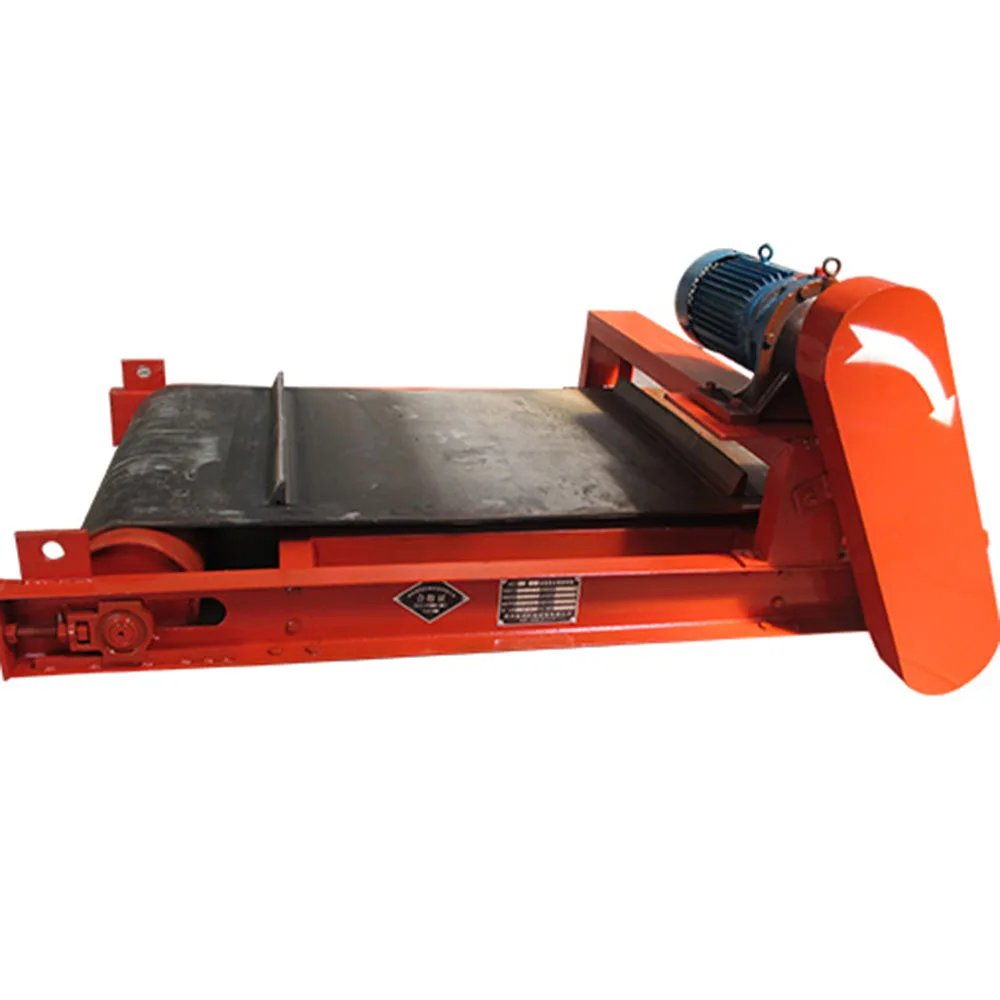

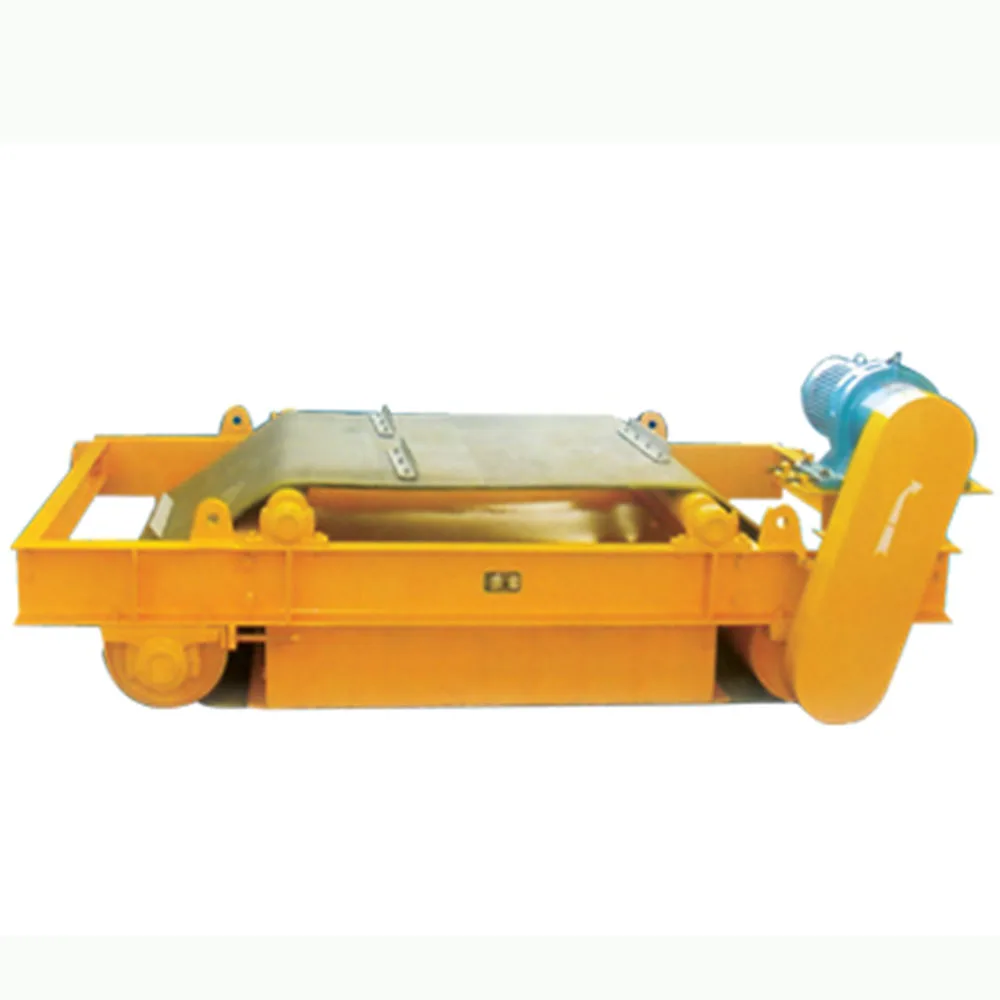

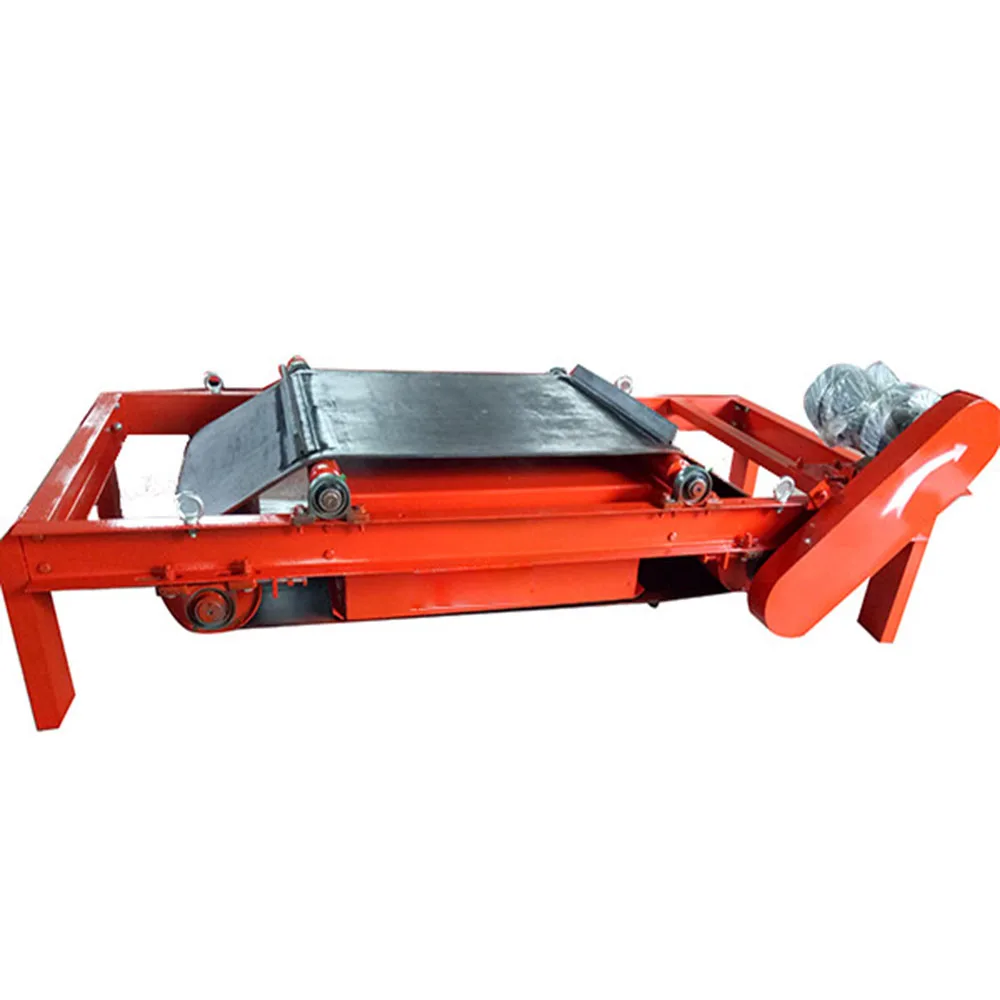

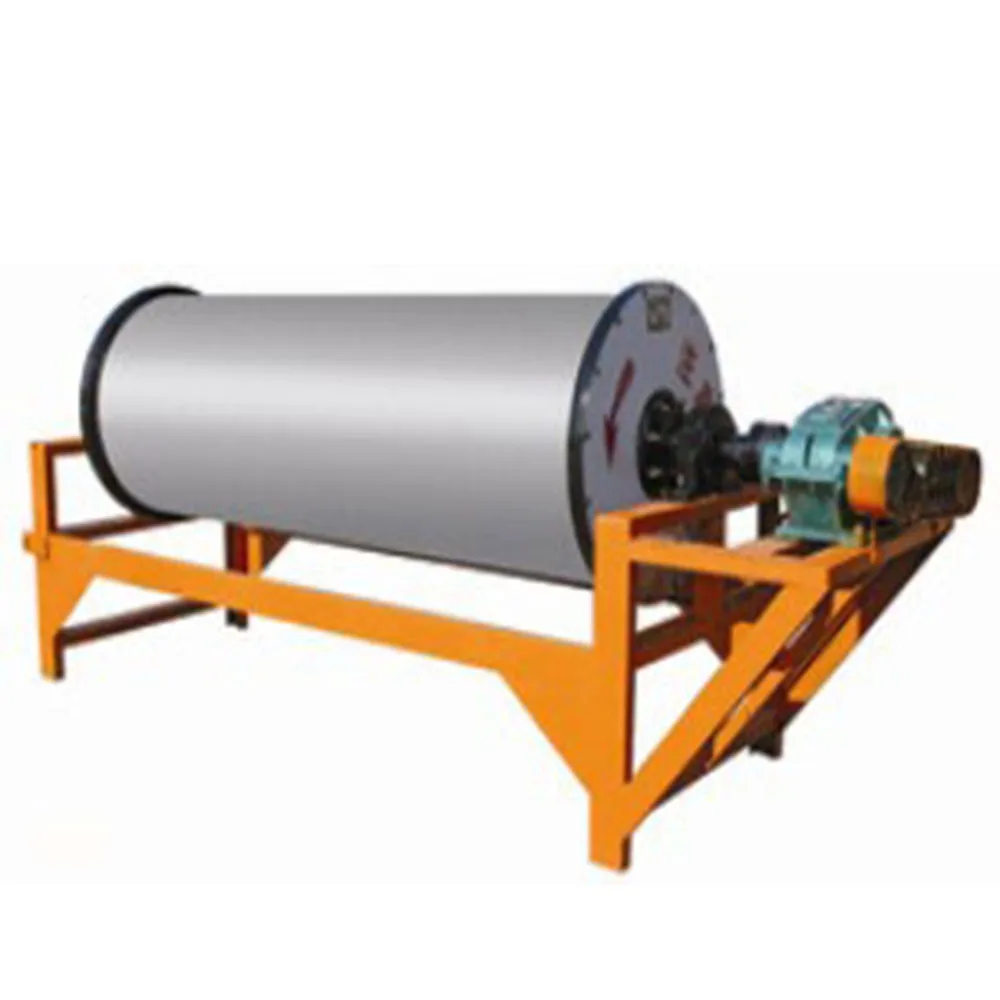

Details Images
Conveyor Magnetic Separator Separator Removal Separation Removing Iron Magnetic Roller Separator
