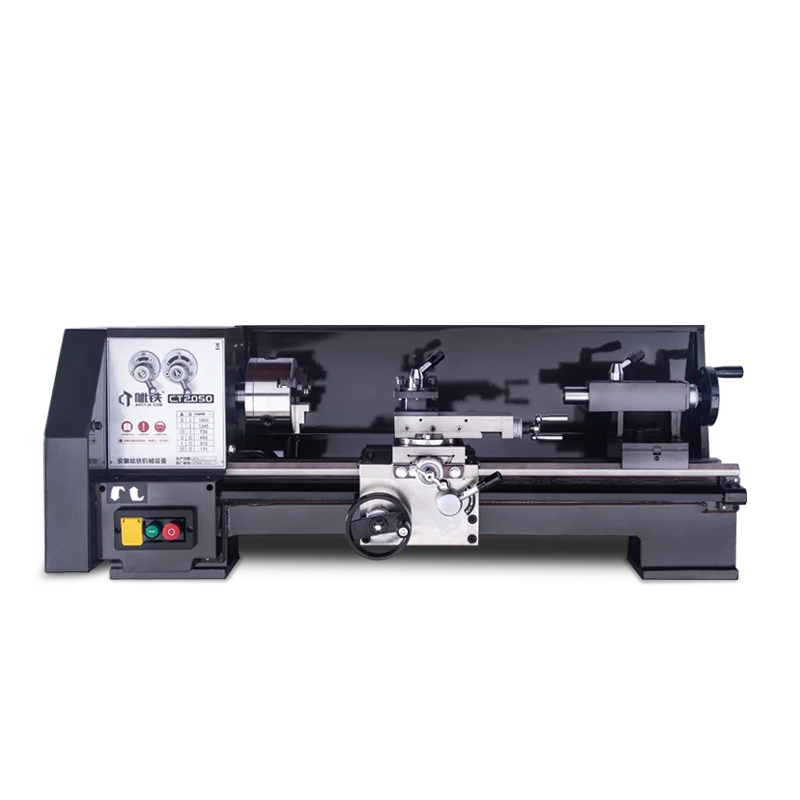

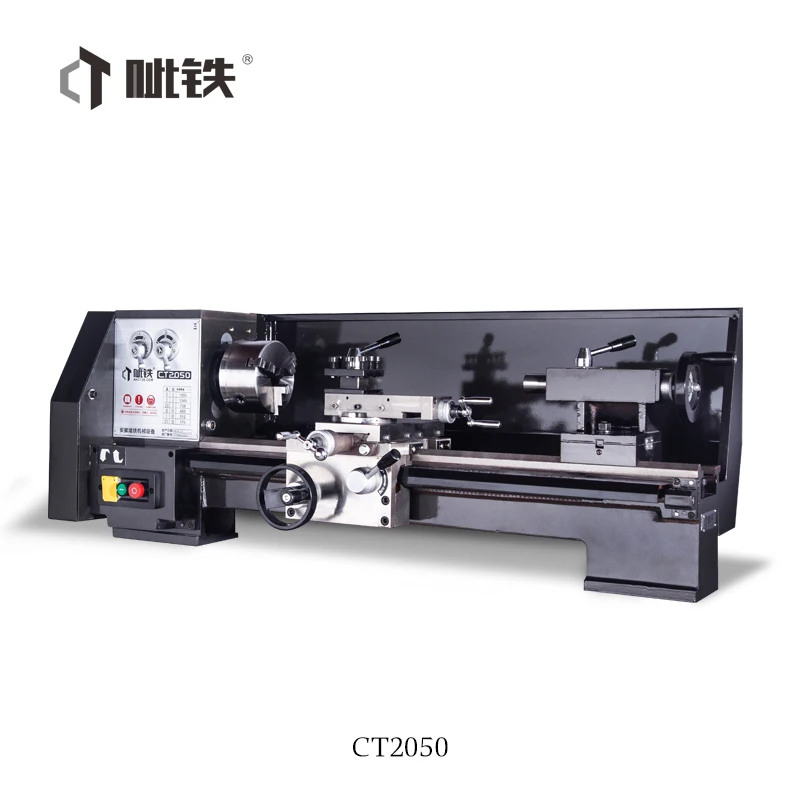

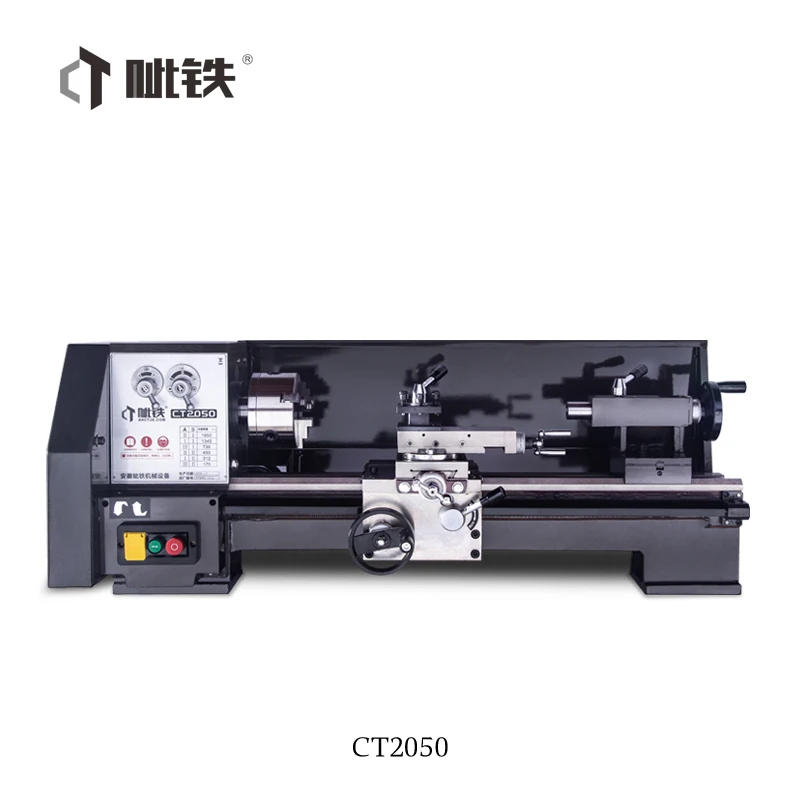

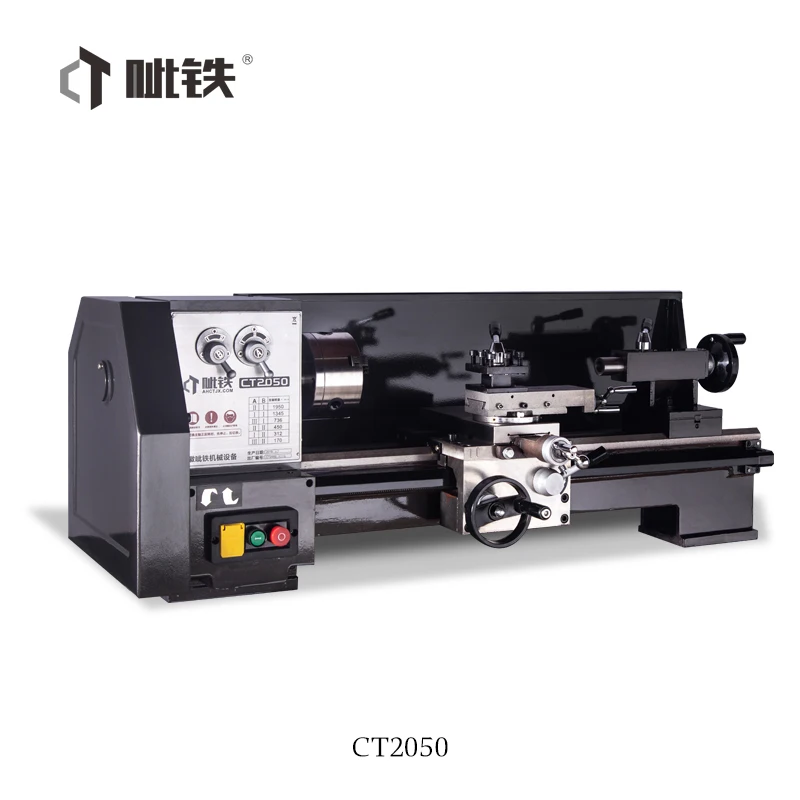

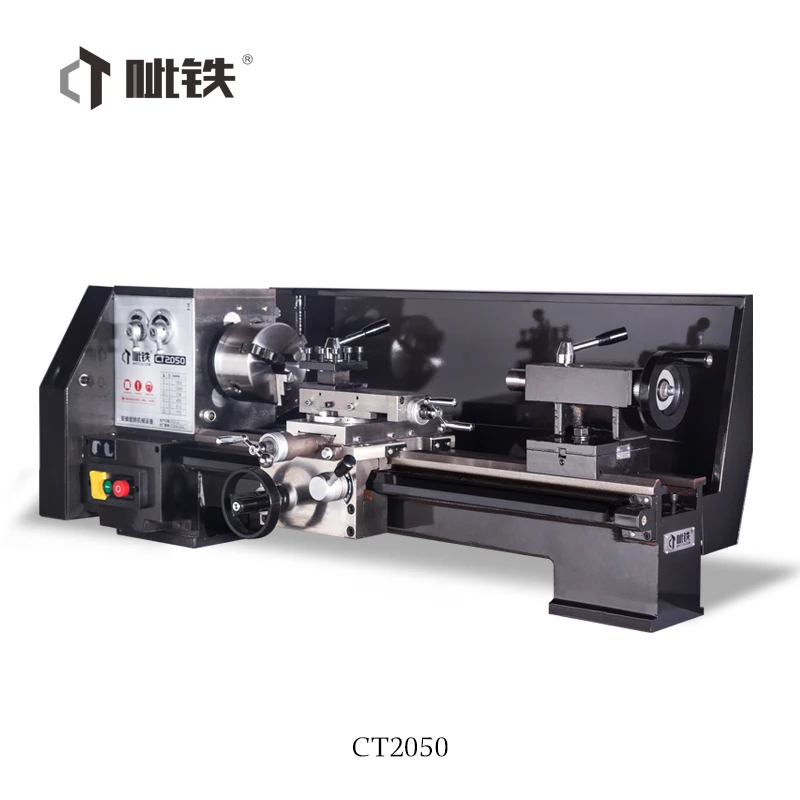

Conventional Lathe Machine Manual Center Lathe Manual Machine Manual Lathe CT2050
- Category: >>>
- Supplier: Anhui Citie Technology Co. Ltd.
Share on (1600369814244):
Product Overview
Description
| Maximum turning diameter bed | 220mm |
| Maximum turning diameter of middle carriage | 115mm |
| Two top distance | 550mm |
| Maximum processing length | 520mm |

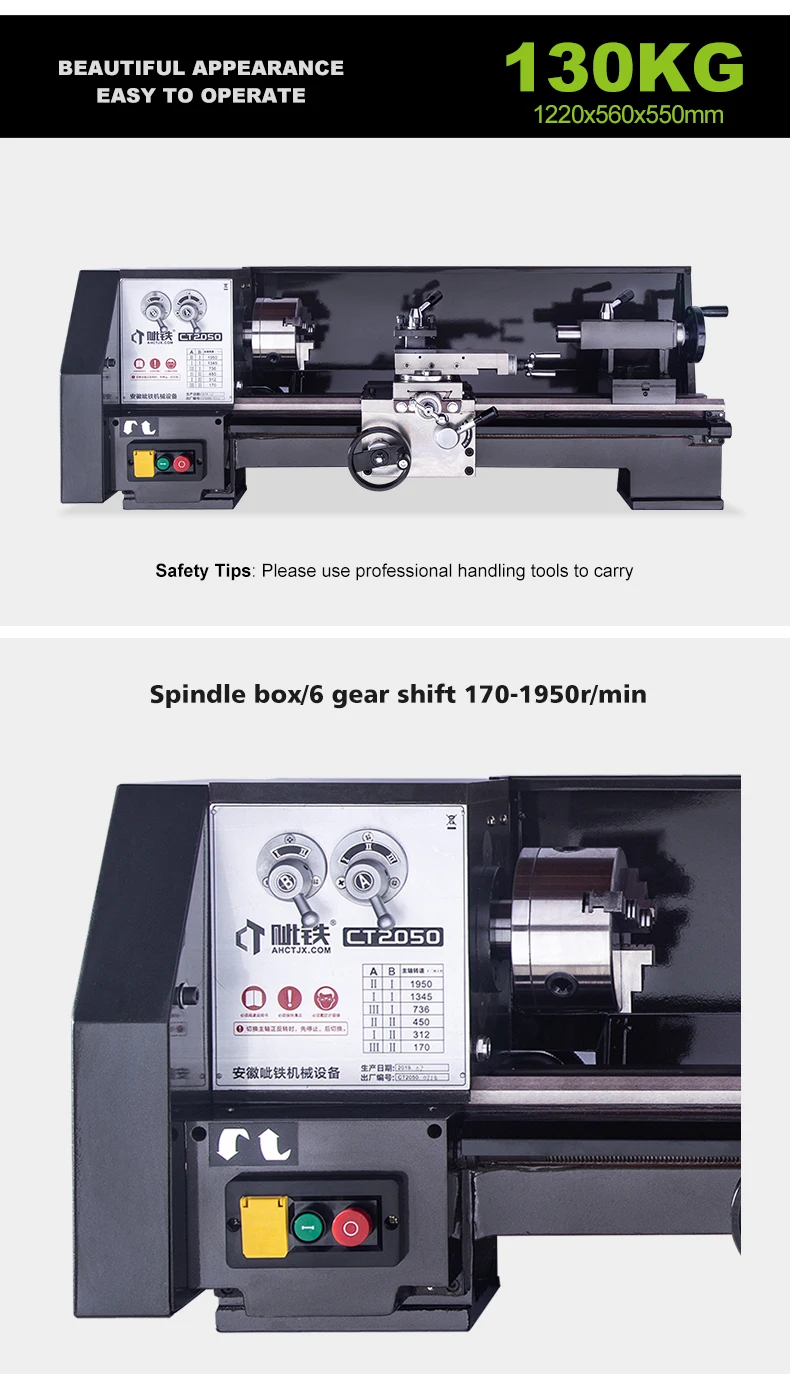

| Spindle speed range/Grade | 170-1950rpm/6 |
| Taper of spindle bore | MT3 |
| Chuck specifications | 125mm |
| Spindle bore | 20mm |
| Tailstock quill travel | 50mm |
| Taper of tailstock quill | MT2 |
| Swing over cross slide | 520mm |
| Cross slide travel | 105mm |
| Top slide travel | 70mm |
| Maximum rotation angle of small tool post | ±45° |

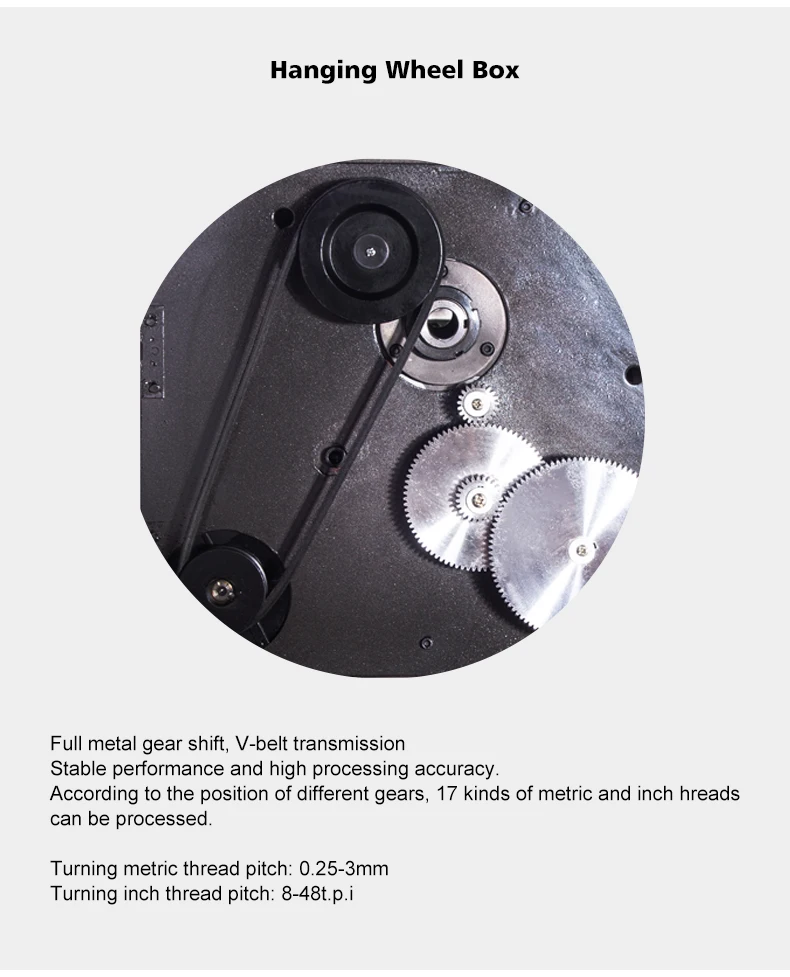

| Range of metric threads/Grade | 0.25-3mm/17kinds |
| Range of inch threads/Grade | 8-48T.P.I/17kinds |
| Motor | 220v/550w 50HZ |
| N.W./G.W. | 130/150KG |
| Machine size | 1100×400×400mm |
