2018 PP PE plastic recycle machine
US $20000-$40000

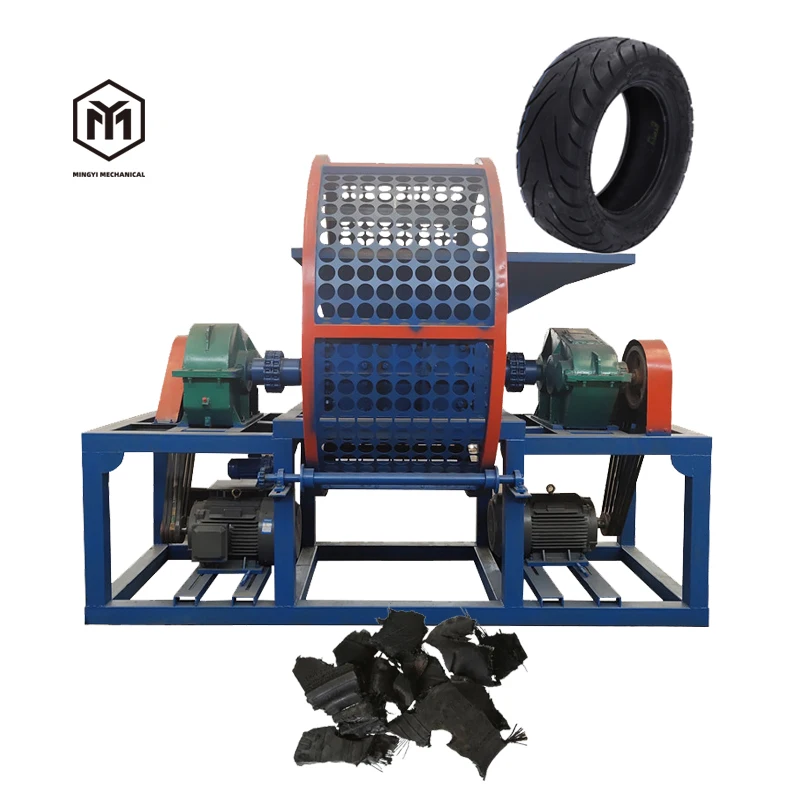

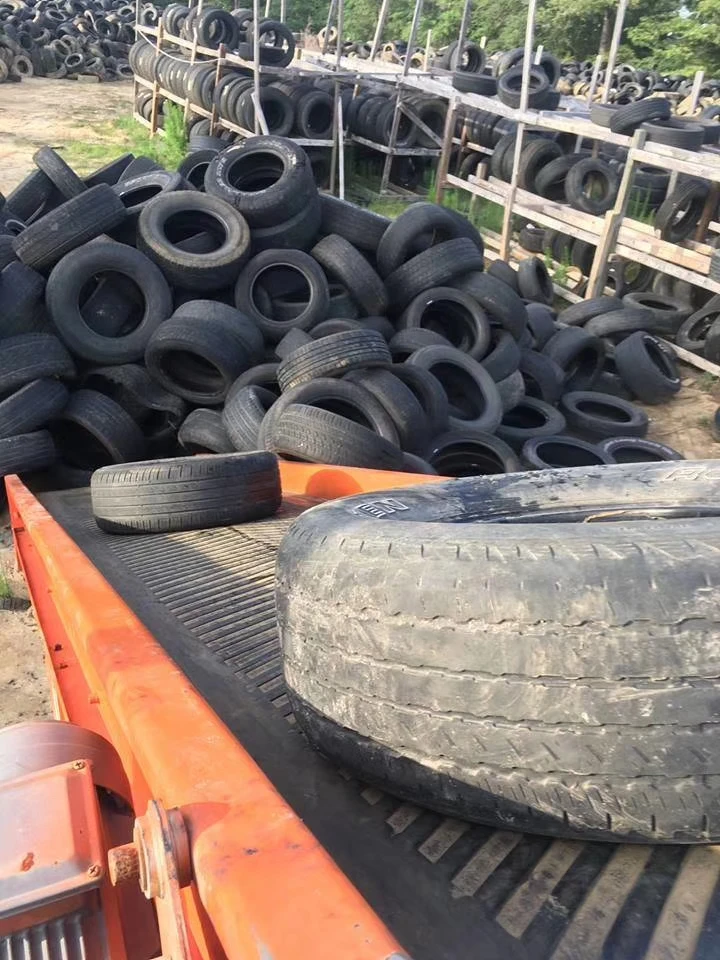

Двухвальный резиновый измельчитель для измельчения отработанных шин
- Category: Rubber Recycling Machinery >>>
- Supplier: Nanjing,Mingyi,Mechanical,Blade,Co.,Ltd
Share on:
Product Overview
Description

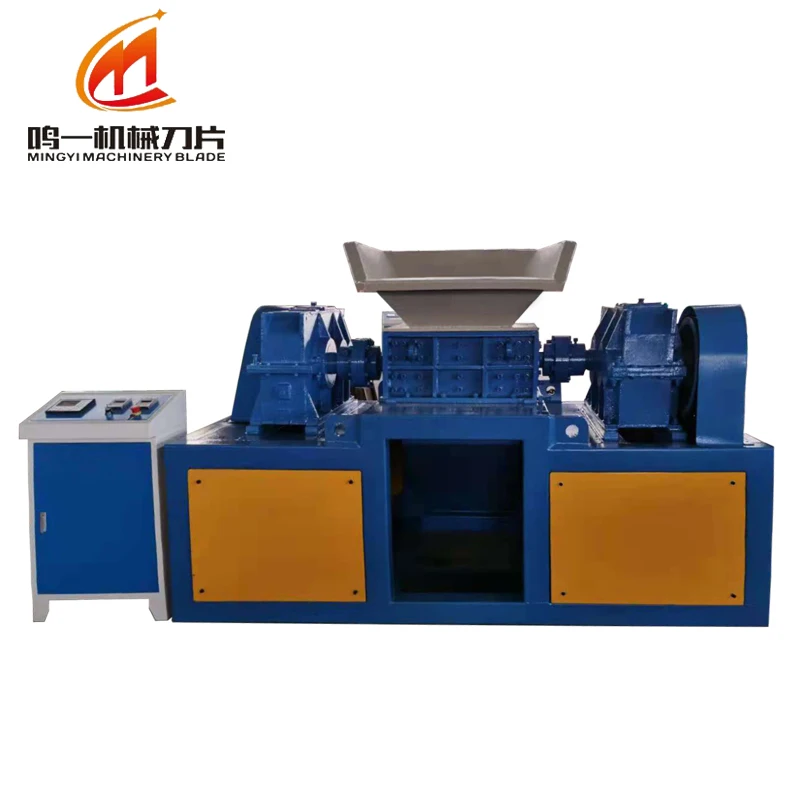

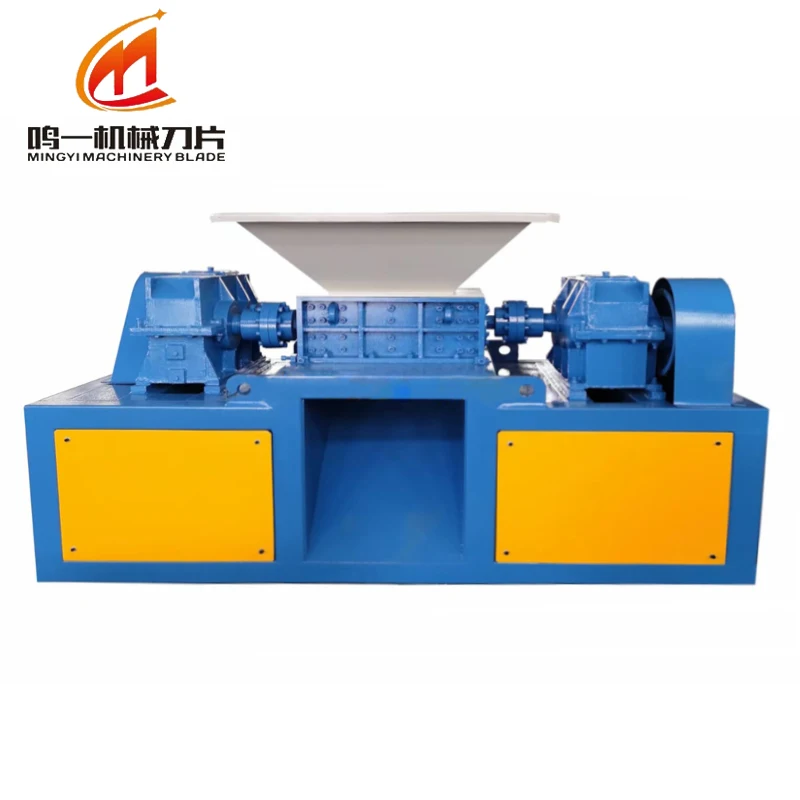

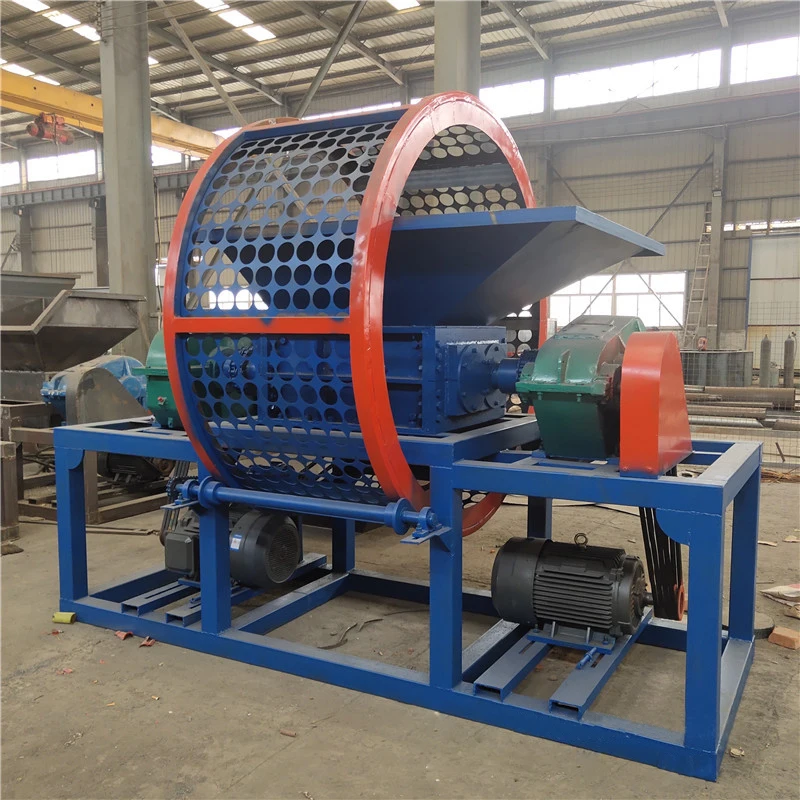

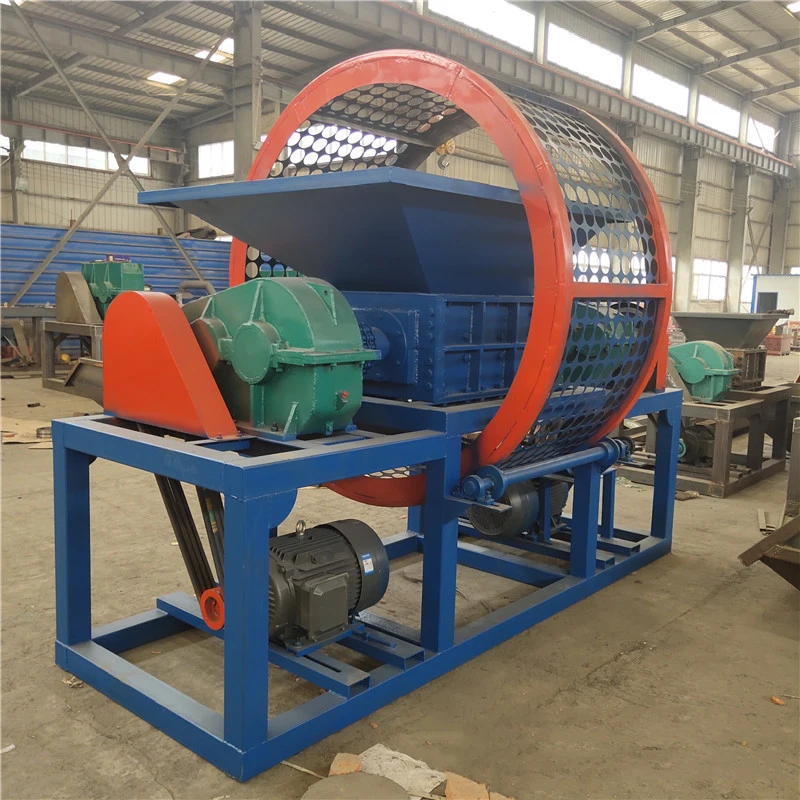

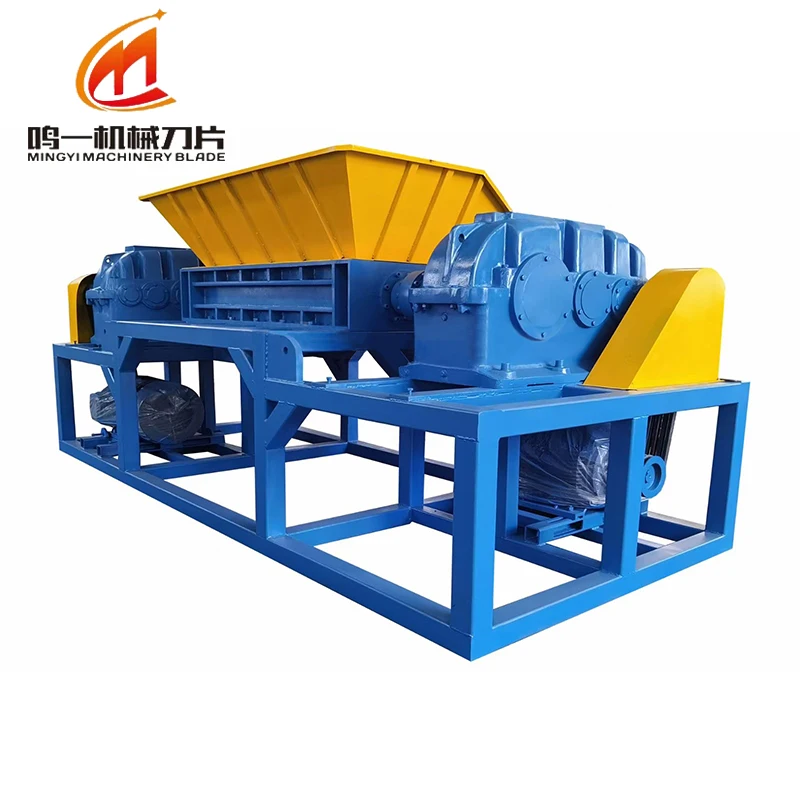

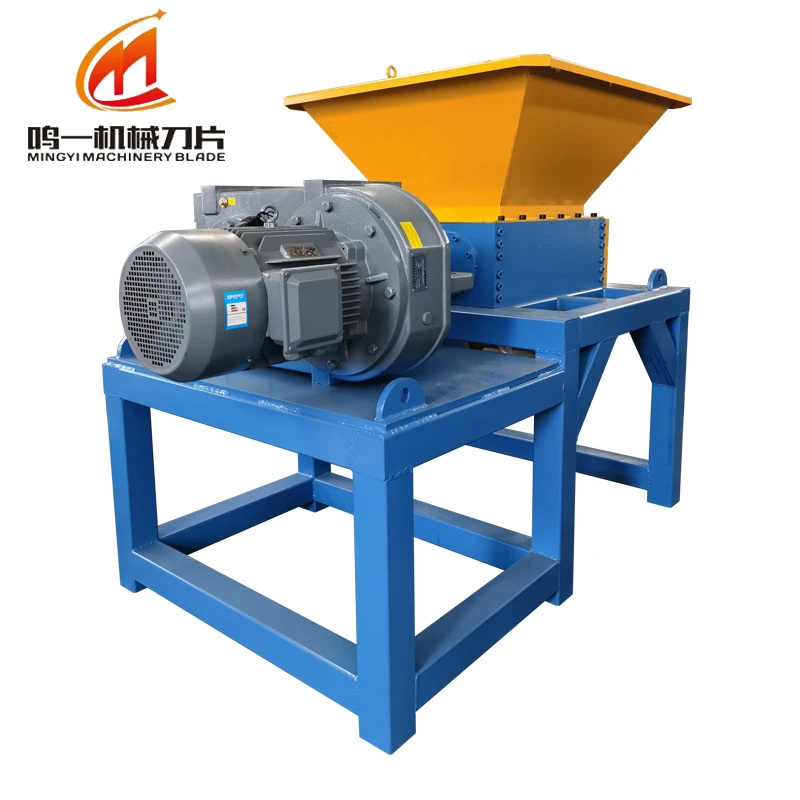

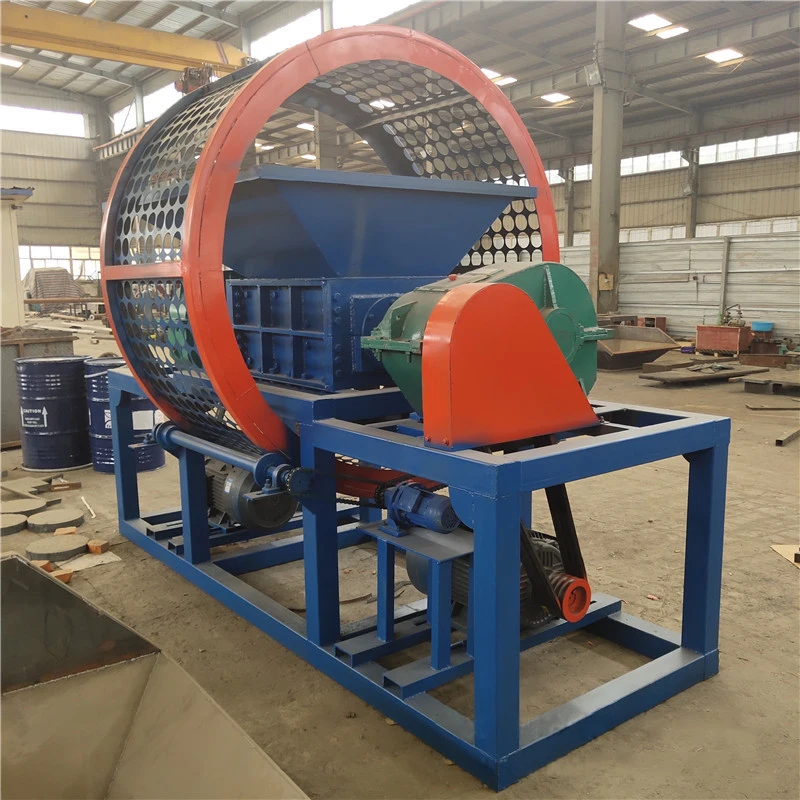

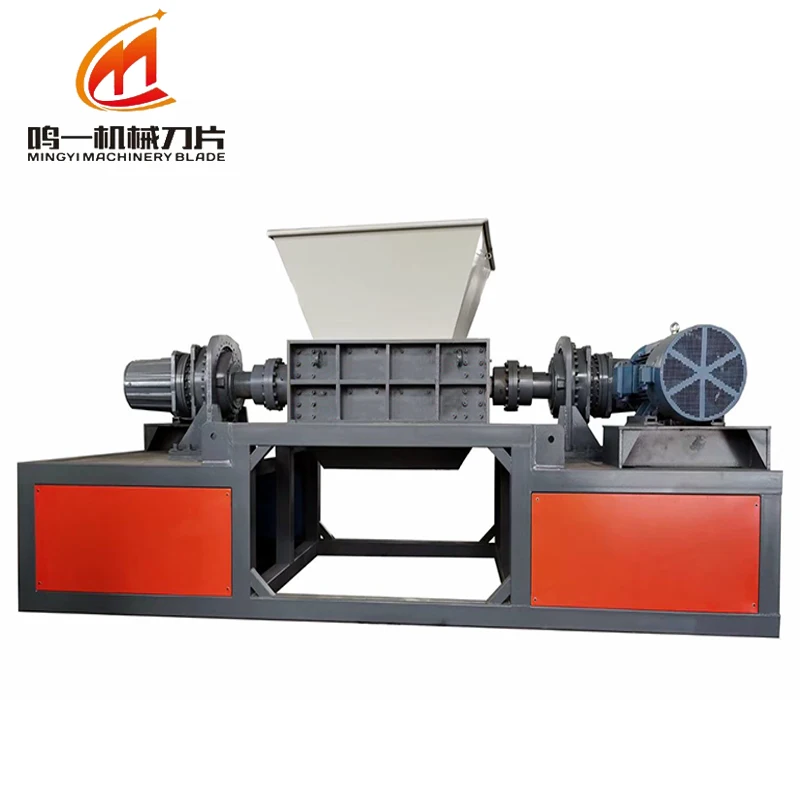

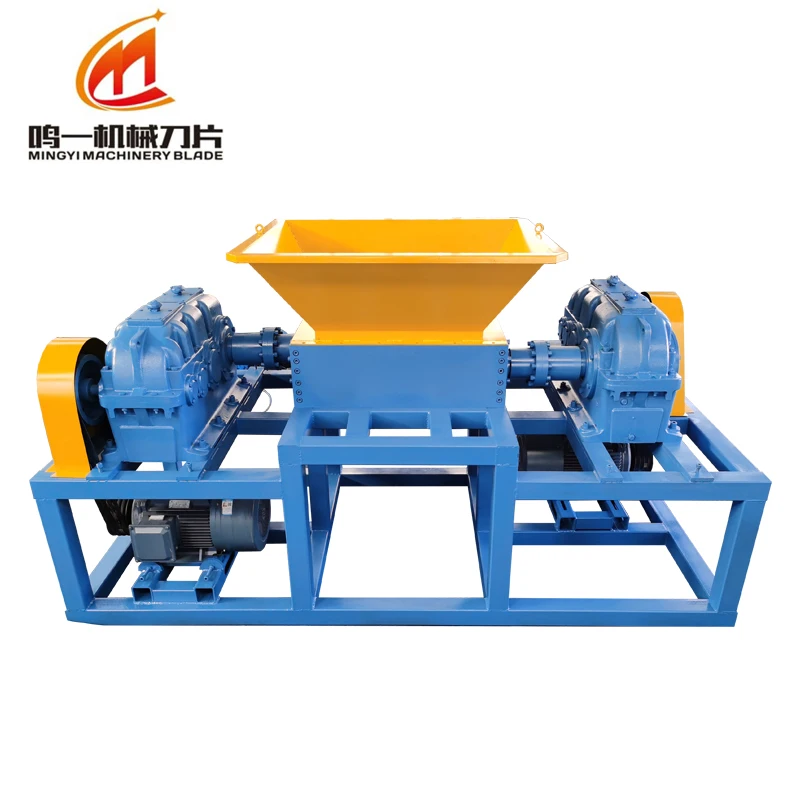

Double shaft shredder machine
This mingyi double shaft shredder/shredding machine adopted advanced technologies, this kind of machine it is mainly used for shredding soft plastic such as PP/PE/HDPE film, plastic bag, woven bag or Non-woven bag, Jumbo bags and so on. with low noise and energy consumption, the blade easy changeable. The customer can choose the satisfied model according to the size of the waste products and the capacity you want to get.
Type | Specification | Power | Speed | No.of blade | Intel size |
KW | r/min | mm | |||
MY-500 | φ200*10 | 7.5KW | 16-24 | 40 | 500*420 |
φ200*20 | 7.5KW | 20 | 500*470 | ||
MY-600 | φ200*10 | 15KW | 18-25 | 48 | 620*470 |
φ200*20 | 15KW | 24 | 620*560 | ||
MY-800 | φ200*20 | 15KW*2 | 18-25 | 32 | 820*470 |
φ200*30 | 30KW*2 | 18 | 790*670 | ||
MY-1000 | φ300*25 | 30KW*2 | 18-25 | 32 | 980*560 |
φ300*30 | 30KW*2 | 27 | 980*750 | ||
φ300*40 | 45KW*2 | 20 | 1010*840 | ||
MY-1200 | φ400*30 | 55KW*2 | 18-25 | 38 | 1190*840 |
φ400*40 | 55KW*2 | 28 | 1220*920 | ||
MY-1500 | φ400*30 | 75KW*2 | 18-25 | 48 | 1520*750 |
φ400*40 | 75KW*2 | 36 | 1520*920 | ||
φ400*50 | 75KW*2 | 28 | 1520*1000 | ||
MY-2000 | φ530*50 | 90KW*2 | 18-30 | 38 | 1980*1220 |
φ600*60 | 90KW*2 | 31 | 2020*1450 |
Note: The above is a reference value. The specific situation depends on the material to be processed, and the processing capacity will be different for different materials. We will design a suitable model according to your needs.

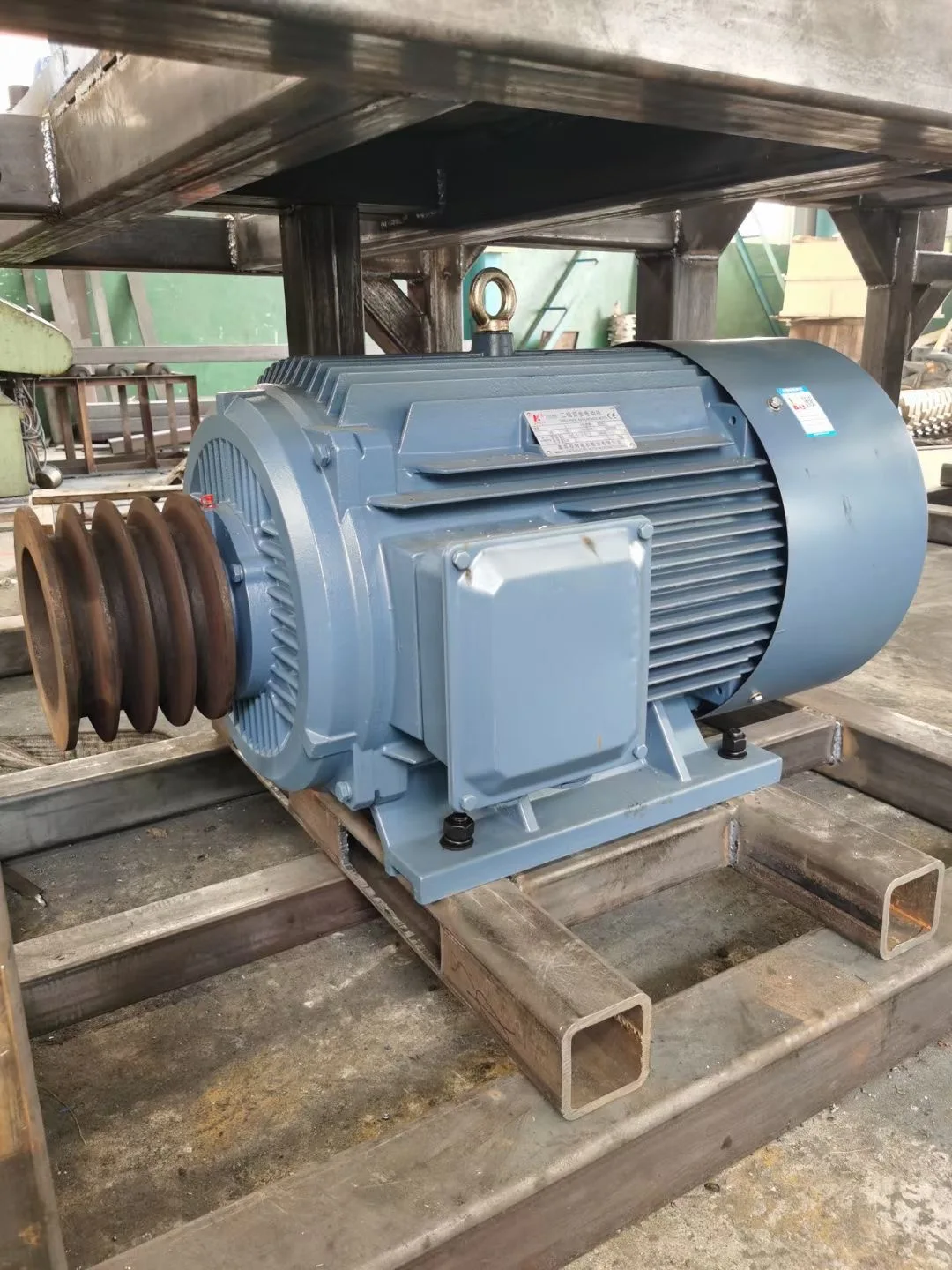

Shredder motor
Shredder machine adopt full copper core motor, reduce energy consumption and have a longer service life
Driving part
The transmission parts are connected by couplings to reduce vibration and protect the main shaft and reducer without loss force

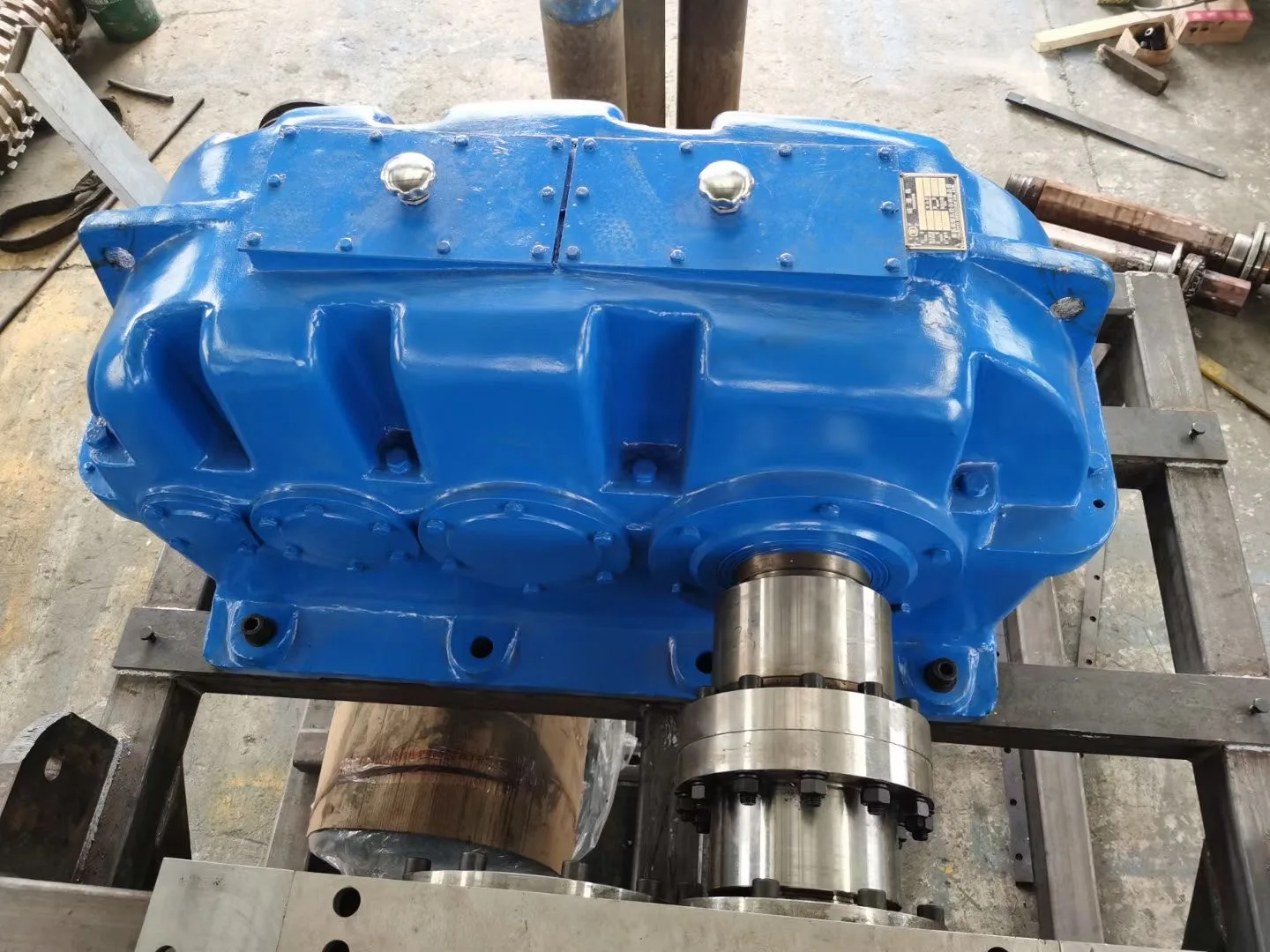

Gearbox
The gearbox is welded by steel plate, with high precision, good contact, low noise and long service life

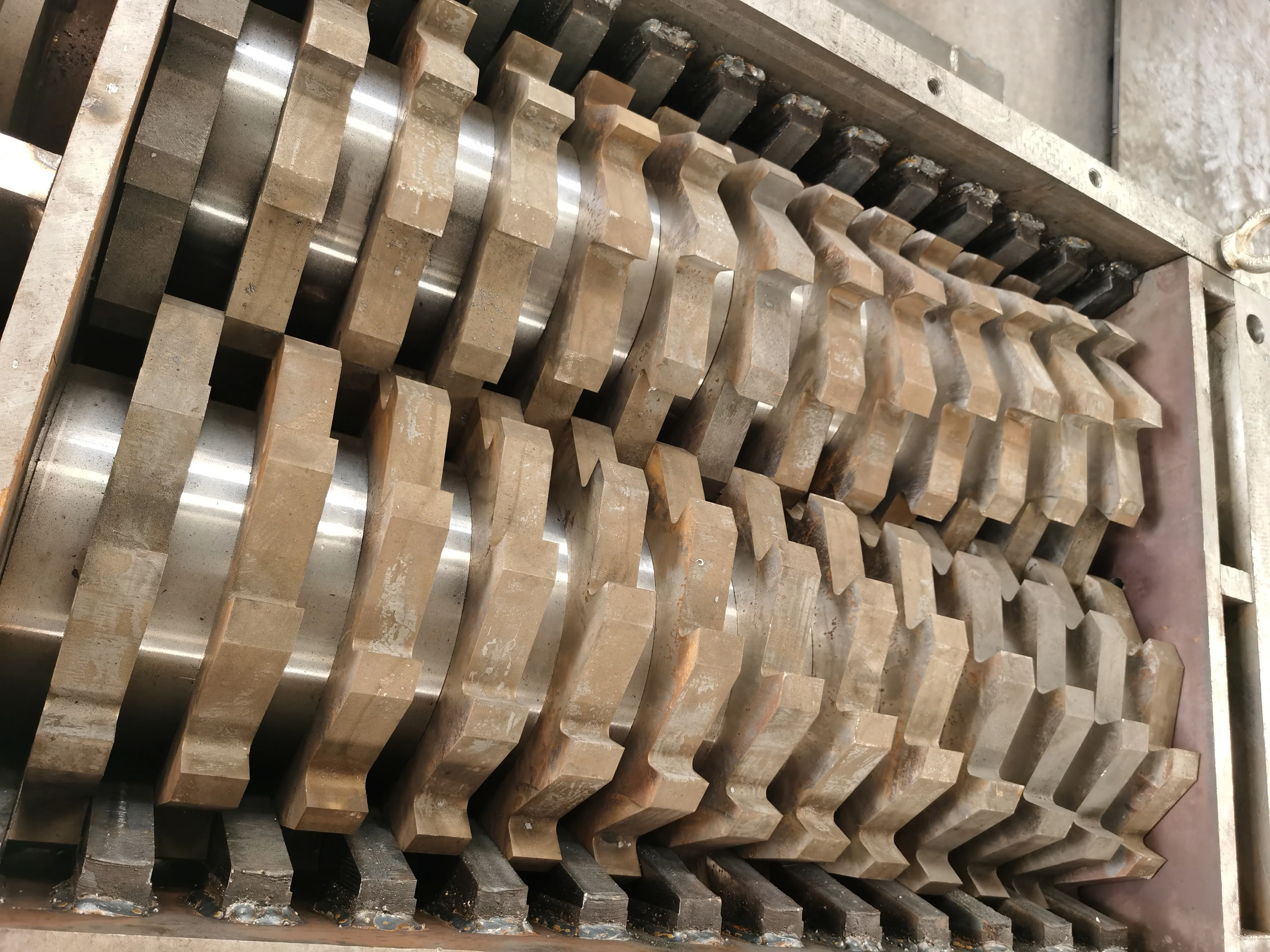

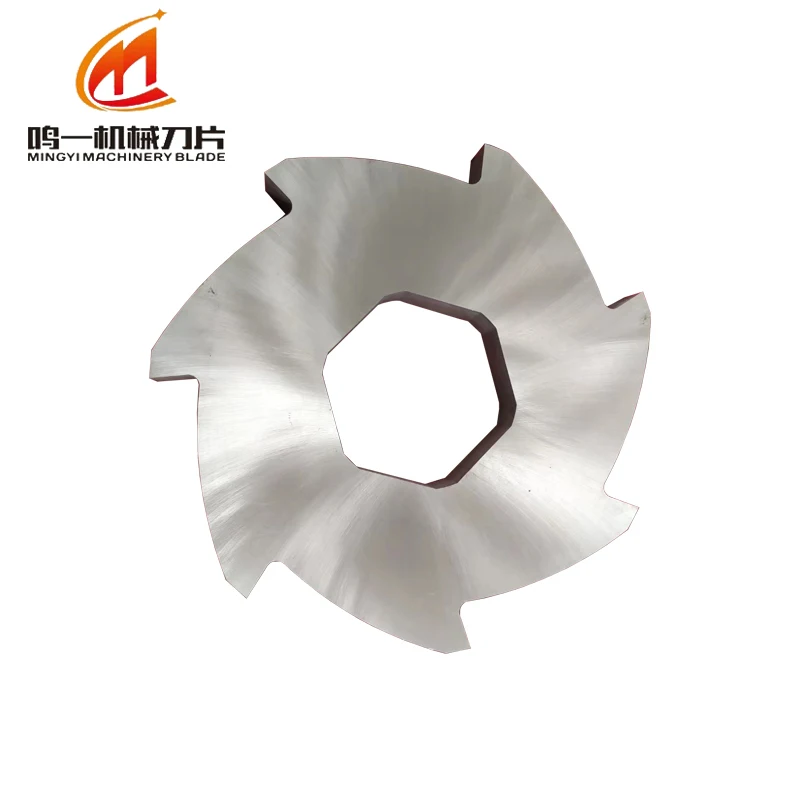

Shredder blade
The shredder blade is forged, annealed, heat-treated, tempered for heat preservation, wire cutting, and fine grinding
Nanjing mingyi machinery blade Co., Ltd is located at the junction of Jiangsu and Anhui provinces and 20 kilometers away from Nanjing Lukou Airport. The company is an enterprise specializing in the production of industrial blades and CNC molds. We rely on years of experience in professional knife making and mold making, and provide knifes and molds that meet the requirements of customers according to their different needs. Widely used in printing, papermaking, carton, forestry, metallurgy, rubber, plastics, food, textile, electrical appliances, light industry and other punching and shearing industries.
Material guarantee: In order to ensure product quality, the company has medium carbon steel, high carbon steel, alloy steel, tool steel, high speed steel, tungsten steel for customer demand order, and the spectrometer is used to detect whether the material is correct.
Hardness guarantee: Only by mastering the heat treatment by oneself can the tool reach its best effect and highlight the soul of the tool, and heat treatment is the professional field of the company, so as to ensure the stability of quality.
Material guarantee: In order to ensure product quality, the company has medium carbon steel, high carbon steel, alloy steel, tool steel, high speed steel, tungsten steel for customer demand order, and the spectrometer is used to detect whether the material is correct.
Hardness guarantee: Only by mastering the heat treatment by oneself can the tool reach its best effect and highlight the soul of the tool, and heat treatment is the professional field of the company, so as to ensure the stability of quality.
Mingyi machinery blade CO.,LTD

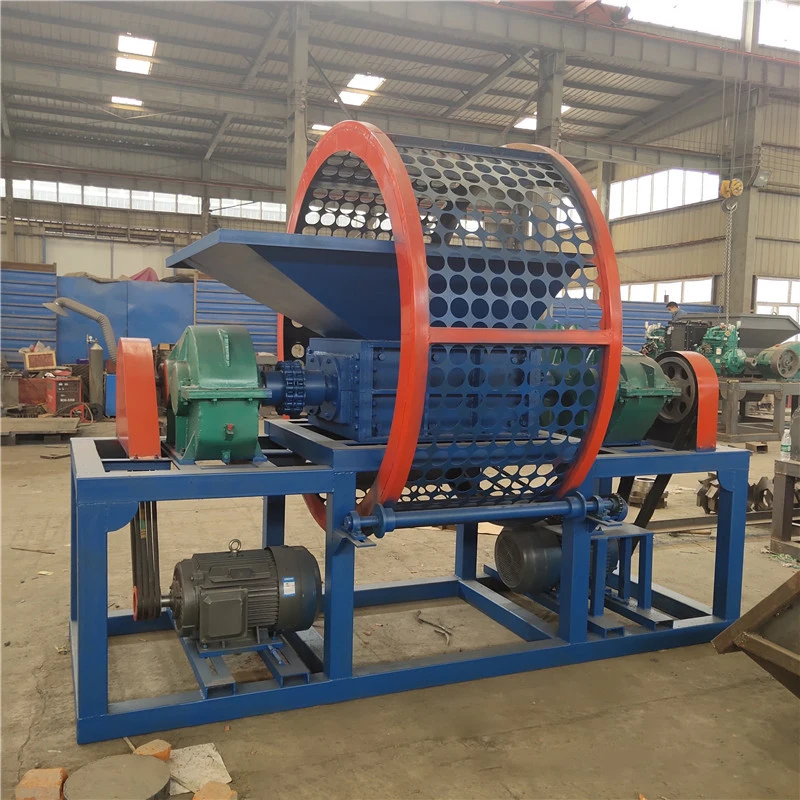

Shredder machine display area
Shredder blade production workshop
A:Are you manufacture or trading company?
We are professional manufacture with more than 10 years experience in this field.
A:Can you customize carbdie tools?
We can manufacture tools from standard end mills to special tools according to your needs.
A:Can I get samples before my order?
We provide free samples to every customer, but, we need to freight collect .Or freight prepaid.
A:what kind of payment torment we can use?
Payment terms we can accept as follows: T/T, Western Union. For small amount, usually we accept 100% T/T, and buyer bear bank charges .If pay for big order, 30%-50% in advance before produce.
A:What is the delivery time if I place my order?
It depends on the complexity of the Blade, or the quantity you ordered .If It is our standard project, We will only need 5-7
working days to send out your goods.
If you have an urgent deadline, we'll see what we can do.
working days to send out your goods.
If you have an urgent deadline, we'll see what we can do.
A:Can I Put My Logo On The Product?
Yes, you can .Your Logo Can Be Put on the Product by Mould Punching, Laser Making, and Silk-Screen etc.
