NSR Greenhouse Single Span Blackout Hemp Light Deprivation Greenhouse For Hemp
- Category: >>>
- Supplier: Shandong New Silk Road Greenhouse Engineering Co. Ltd.
Share on (1600370201233):
Product Overview
Description
Products Description

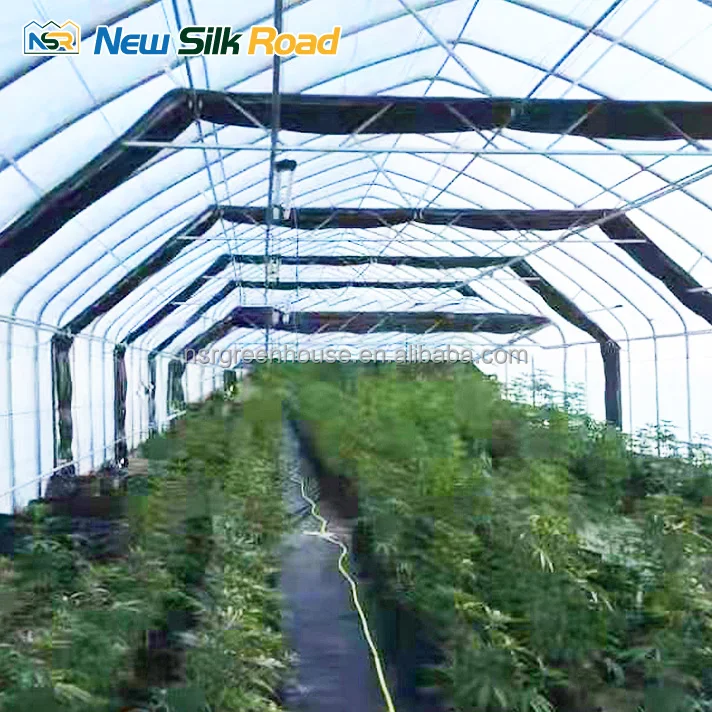

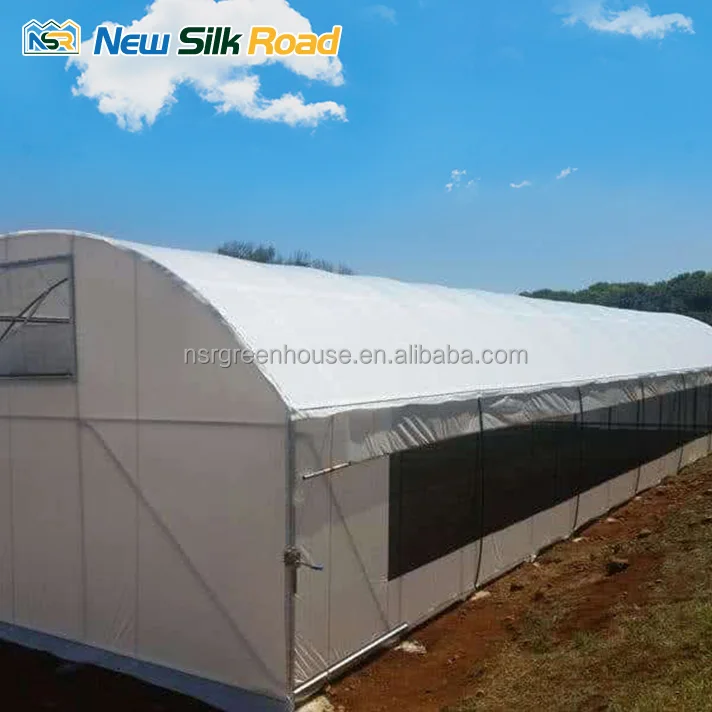

NSR GREENHOUSE - Single Span Single Arch Light Deprivation Blackout Film Greenhouse
* The greenhouse is specially designed for growing medical Hemp and can also be used for growing mushrooms.

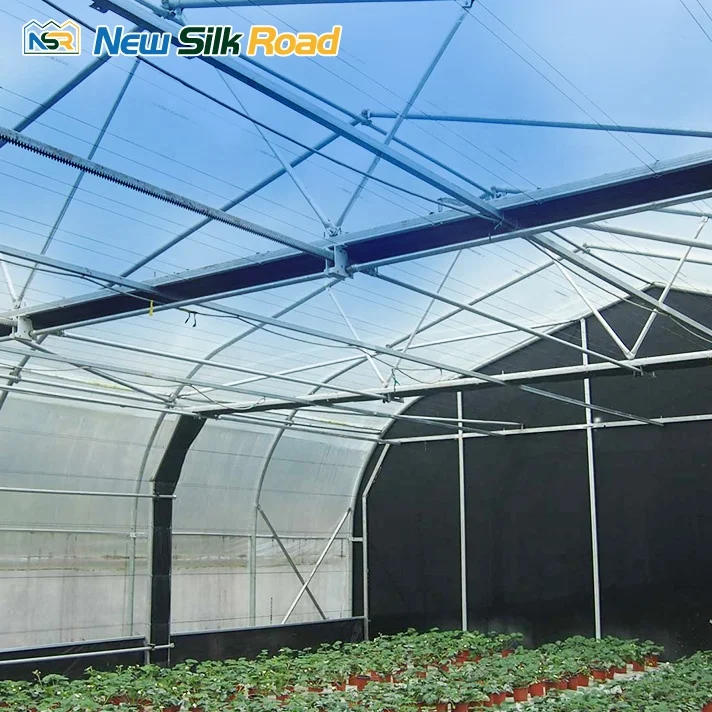

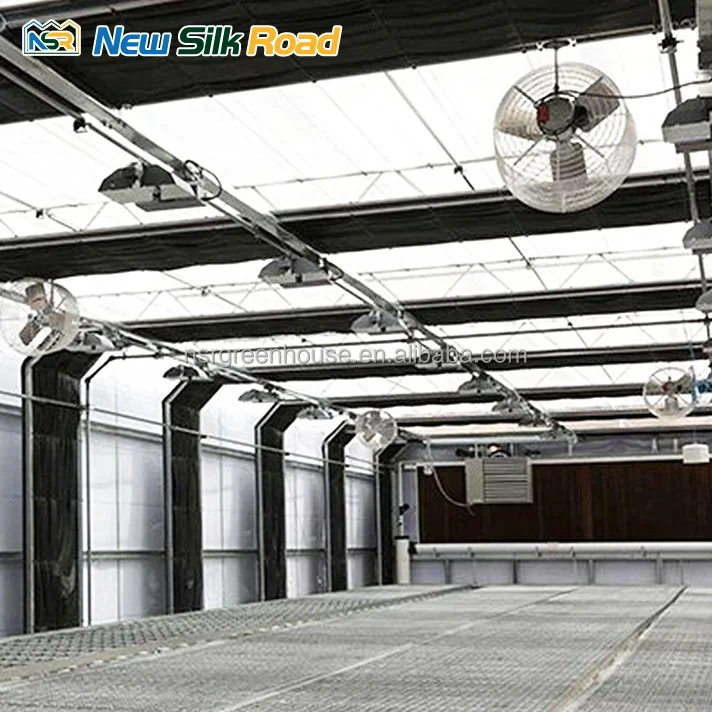

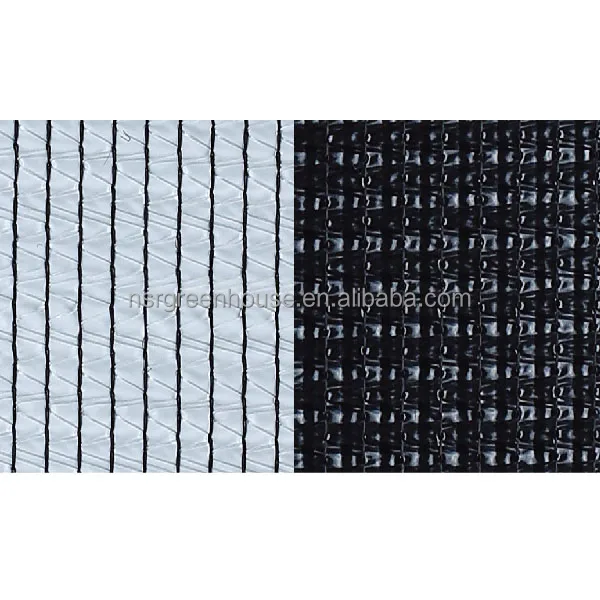

* The surface of the greenhouse is covered with a layer of transparent plastic film, and there is an automatic Blackout system inside, which covers three layers of full shading nets.
* In order to save costs, it is also possible to cover only one or more layers of black and white plastic film on the outermost layer, and no shading net is installed inside.

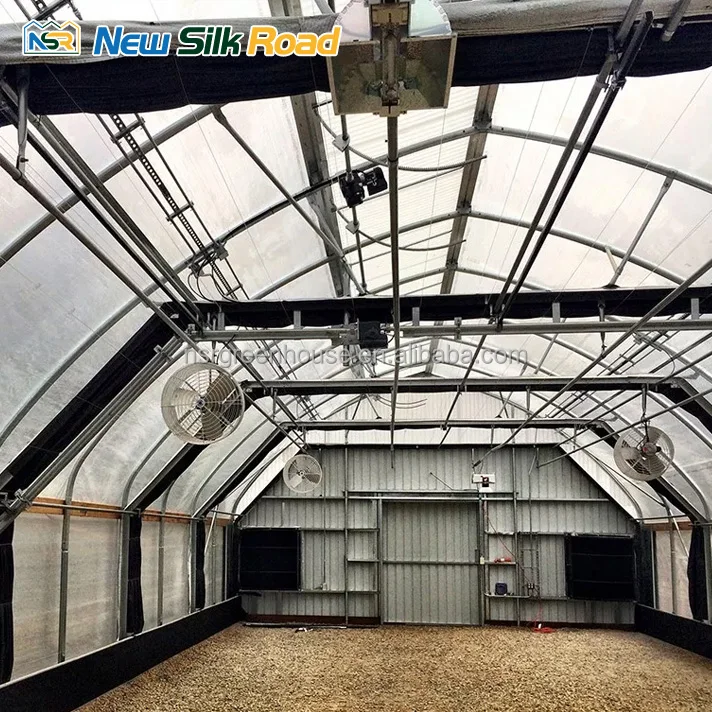

* Ventilation windows can be installed on the top and around the greenhouse, and equipped with a cooling system and a circulation fan. The cooling system is equipped with a light trap device.
* The surface of the greenhouse is covered with a layer of transparent plastic film, and there is an automatic Blackout system inside, which covers three layers of full shading nets.
* In order to save costs, it is also possible to cover only one or more layers of black and white plastic film on the outermost layer, and no shading net is installed inside.
* Ventilation windows can be installed on the top and around the greenhouse, and equipped with a cooling system and a circulation fan. The cooling system is equipped with a light trap device.
Product Name | Single Span Single Arch Light Deprivation Blackout Film Greenhouse |
Span | 6m/8m/9.6m/10m/12m/Customized |
Length | 20m/50m/100m/Customized |
Shoulder Height | 1.5m-1.8m / 2m/Customized |
Roof Height | 3.5m-5m / Customized |
Wind Load | 80-130 KM/H |
Snow Load | 0.5 KN/M2 |
Max Rain Quantity | 140mm/h |
Product Advantages | One-Stop Service; MOQ: 1 SET; Can Be Transported Door To Door. |
Greenhouse system description

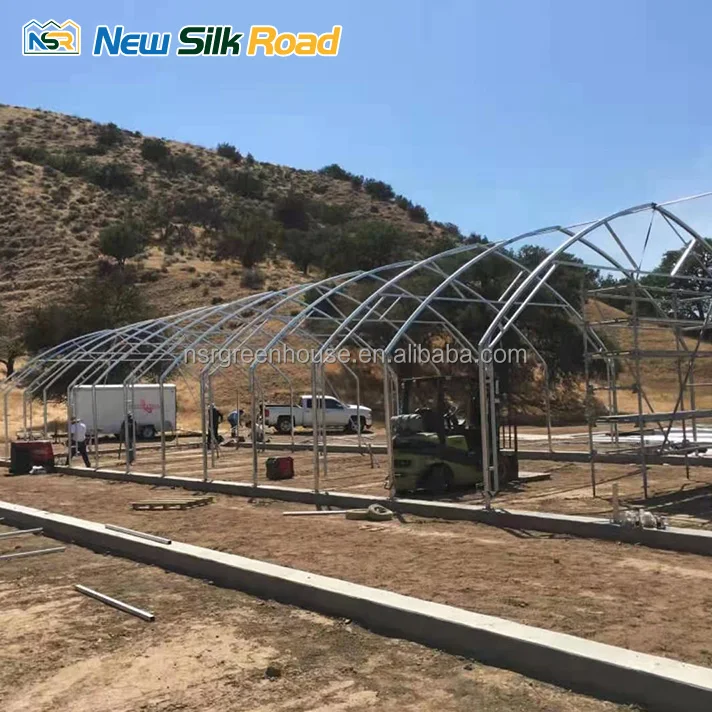

Greenhouse Frame
1. The design of single span and single arch frame, the outer layer of arch frame, there is a set of automatic Blackout structure inside;
2. According to the climate of the area, you can choose whether to use embedded parts.
3. The steel materials used in the frame structure and connecting parts of the greenhouse are all hot-dip galvanized;
4. The greenhouse frame structure design complies with the Chinese national standard "GB50017-2003 Steel Structure Design Code";
5. The steel used in the greenhouse complies with the Chinese national standard "GB700-88 Carbon Structural Steel Standard";
2. According to the climate of the area, you can choose whether to use embedded parts.
3. The steel materials used in the frame structure and connecting parts of the greenhouse are all hot-dip galvanized;
4. The greenhouse frame structure design complies with the Chinese national standard "GB50017-2003 Steel Structure Design Code";
5. The steel used in the greenhouse complies with the Chinese national standard "GB700-88 Carbon Structural Steel Standard";
Film type | PE/PO |
Film color | Colorless/light blue/custom |
Film thickness | 0.1mm/0.12mm/0.15mm/0.18mm /0.2mm/Customized |
Service life | 3 years/5 years/Customized |
Film effect | Anti-ultraviolet, Anti-fog, Anti-aging. |
Film type | Black And White Film/Panda Film |
Film thickness | 0.1mm/0.12mm/0.15mm/0.18mm/0.2mm/Customized |
Service life | 3 years/5 years/Customized |
Transmittance | Opaque |
Material | 100% virgin LDPE/LLDPE/EVA/PE with UV treated |
Features | Tear resistance,UV resistant,anti-age,dustproof,heat preservation |
Hardness | Soft |
Greenhouse Ventilation System

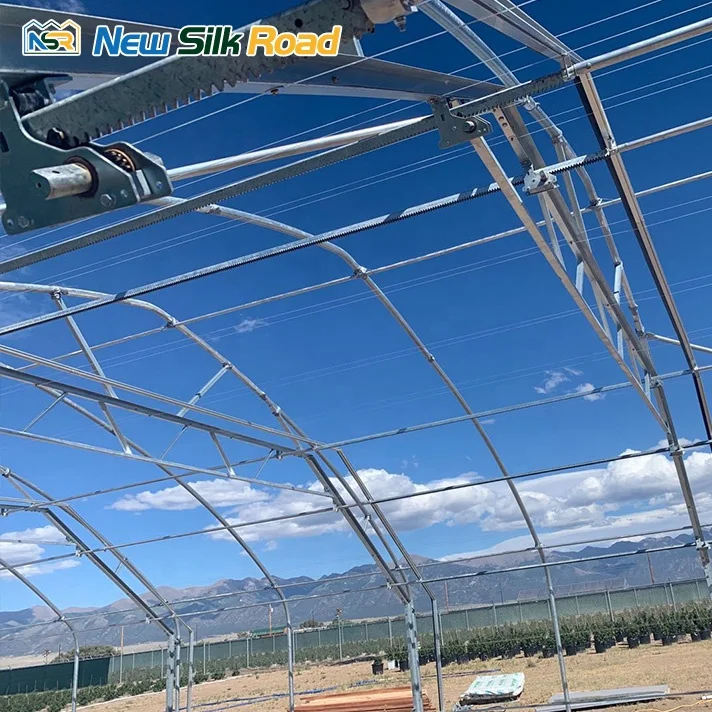

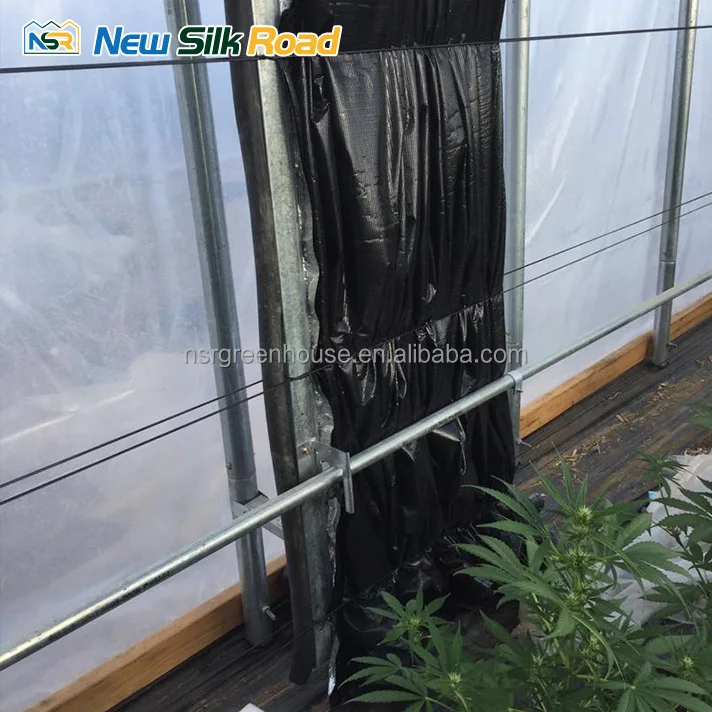

Greenhouse Blackout System
Greenhouse Light Deprivation System
Light Deprivation System
*Two or more fan covers can be placed on one side of the greenhouse according to the actual situation.
*Size can be customized
Cooling Fan Hood
*Galvanized sheet outer frame;
*The inner core is made of injection-molded, non-glare PVC material to isolate the sun.
*The inner core is made of injection-molded, non-glare PVC material to isolate the sun.
Cooling Pad Hood
*Aluminum alloy or galvanized sheet frame;
*The inner core can be made of kraft paper or plastic. The kraft paper is used for about 5 years, and the plastic is used for at least 10 years.
*The size can be customized.
*The inner core can be made of kraft paper or plastic. The kraft paper is used for about 5 years, and the plastic is used for at least 10 years.
*The size can be customized.
Greenhouse heating system
Electric Heaters
1. Output power: 3-45KW; 2580-38700 kcal/h;
2. Output air volume: 210-2400 m³/h;
2. Output air volume: 210-2400 m³/h;
Fuel Heater
1. Output power: 20-81KW; 17200-69600 kcal/h;
2. Output air volume: 1550-3300 m³/h;
3. Continuous working time: 17-12 h;
4. Fuel consumption: 1.67-6.8 kg/h;
5. Mailbox capacity: 36-105 L;
2. Output air volume: 1550-3300 m³/h;
3. Continuous working time: 17-12 h;
4. Fuel consumption: 1.67-6.8 kg/h;
5. Mailbox capacity: 36-105 L;
Gas Heater
1. Output power: 18-103KW; 15500-88600 kcal/h;
2. Output air volume: 1000-3260 m³/h;
2. Output air volume: 1000-3260 m³/h;
Greenhouse cooling system
Cooling Fan
1. The cooling fan is a negative pressure fan, which can exhaust the air in the greenhouse, thereby taking away the heat in the greenhouse.
2. Products of different specifications can be selected according to different greenhouse lengths. Commonly used specifications are 1380*1380mm, 1000*1000mm, etc.
2. Products of different specifications can be selected according to different greenhouse lengths. Commonly used specifications are 1380*1380mm, 1000*1000mm, etc.

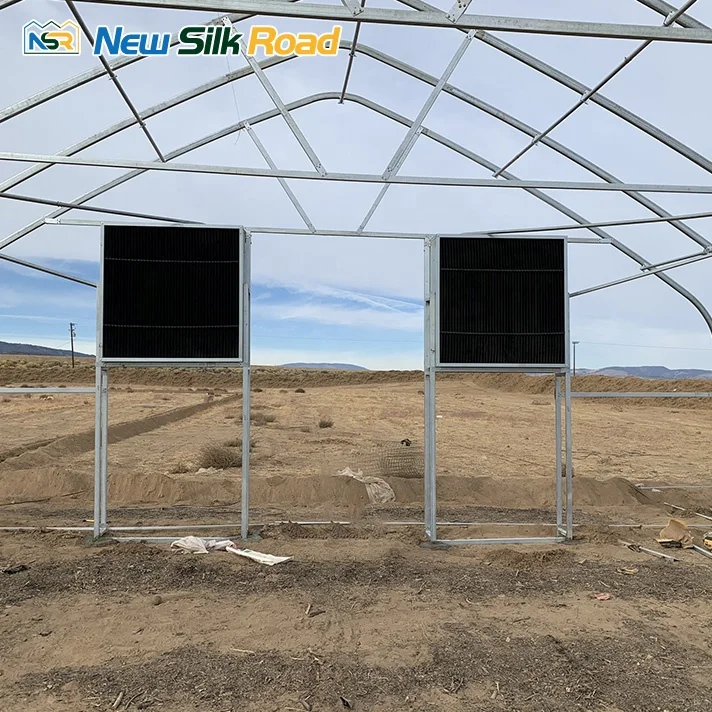

Cooling Pad
1. The air enters the greenhouse through the Cooling Pad, which plays the role of cooling, humidifying, and air dust removal.
2. The commonly used heights are 1.5 meters and 2 meters, and the thickness is usually 10cm and 15cm.
2. The commonly used heights are 1.5 meters and 2 meters, and the thickness is usually 10cm and 15cm.

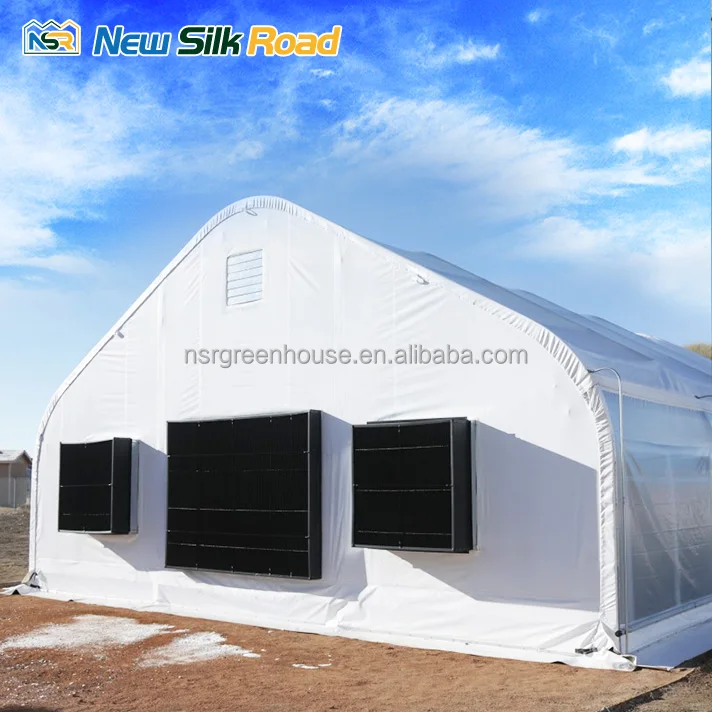

Greenhouse Cooling System
1. Through the combination of Cooling fan and Cooling pad, the temperature in the greenhouse can be reduced by more than ten degrees. Combined with the circulation fan and sunshade system, it will have a better cooling effect.
2. In addition, there are high-pressure spray cooling systems and air-conditioning cooling systems.
2. In addition, there are high-pressure spray cooling systems and air-conditioning cooling systems.
FAQ
Q1: Are you a trading company or a manufacturer?
Answer: We are the manufacturer. Our factory produces the main structure of the greenhouse. The equipment of each system in the greenhouse is purchased from the best professional factory in China. We will do our best in every detail.
Q2: How to get a quotation for the greenhouse?
A: Could you please tell me your specific requirements, such as how much greenhouse area is needed? What will be grown in the greenhouse? Do you need a hydroponic system? We provide the corresponding quotation according to your request.
Q3: How should I choose a greenhouse system?
A: Please tell us the location of the greenhouse project, we will make our own suggestions based on the local climate, and then we will communicate the details.
Q4: Do you provide turnkey projects? What should we do if we do not assemble the greenhouse after purchase?
A: We are temporarily unable to provide turnkey projects, only greenhouse materials. But we have professional after-sales service engineers who will provide you with detailed greenhouse drawings. You can communicate with him from time to time. If necessary, we can also send engineers to your country to guide the installation of greenhouses.
Q5: Can you provide samples? Is it free or extra?
A: We can provide some samples for free, such as steel pipes, coverings, connectors, etc. The equipment in the greenhouse cannot provide free samples. We can mail it to you for free.
Answer: We are the manufacturer. Our factory produces the main structure of the greenhouse. The equipment of each system in the greenhouse is purchased from the best professional factory in China. We will do our best in every detail.
Q2: How to get a quotation for the greenhouse?
A: Could you please tell me your specific requirements, such as how much greenhouse area is needed? What will be grown in the greenhouse? Do you need a hydroponic system? We provide the corresponding quotation according to your request.
Q3: How should I choose a greenhouse system?
A: Please tell us the location of the greenhouse project, we will make our own suggestions based on the local climate, and then we will communicate the details.
Q4: Do you provide turnkey projects? What should we do if we do not assemble the greenhouse after purchase?
A: We are temporarily unable to provide turnkey projects, only greenhouse materials. But we have professional after-sales service engineers who will provide you with detailed greenhouse drawings. You can communicate with him from time to time. If necessary, we can also send engineers to your country to guide the installation of greenhouses.
Q5: Can you provide samples? Is it free or extra?
A: We can provide some samples for free, such as steel pipes, coverings, connectors, etc. The equipment in the greenhouse cannot provide free samples. We can mail it to you for free.
