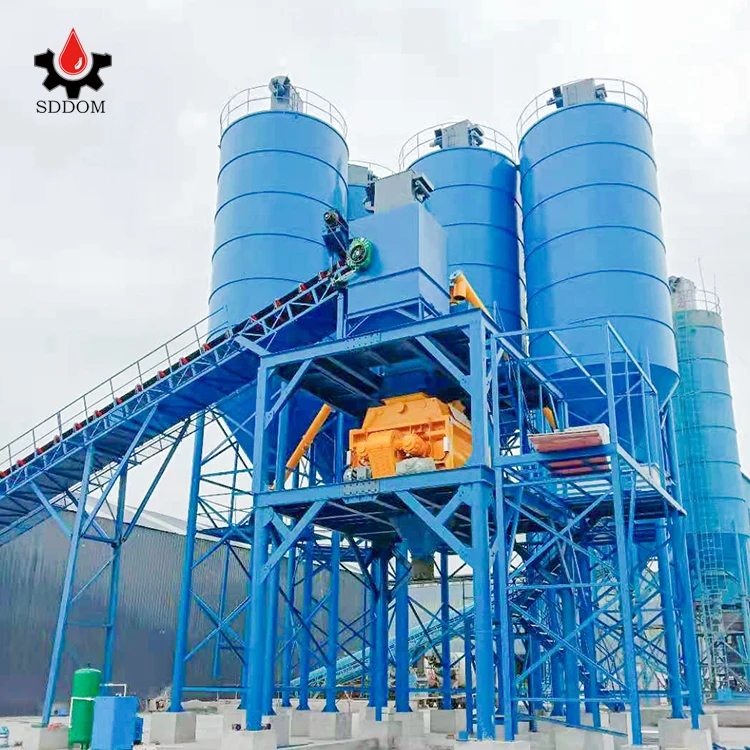

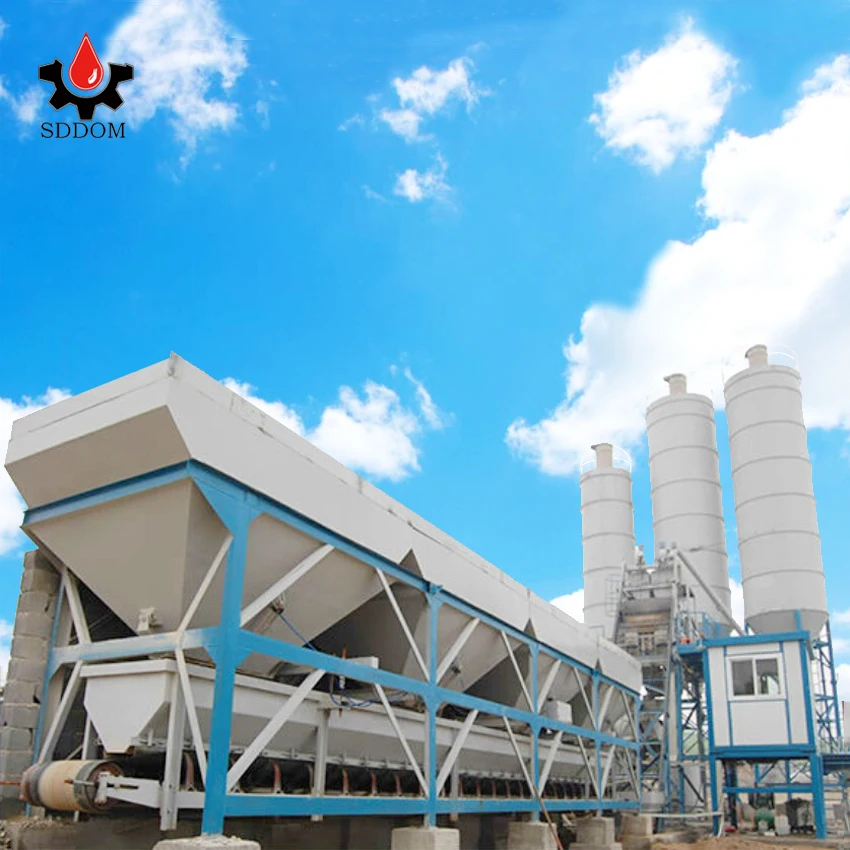

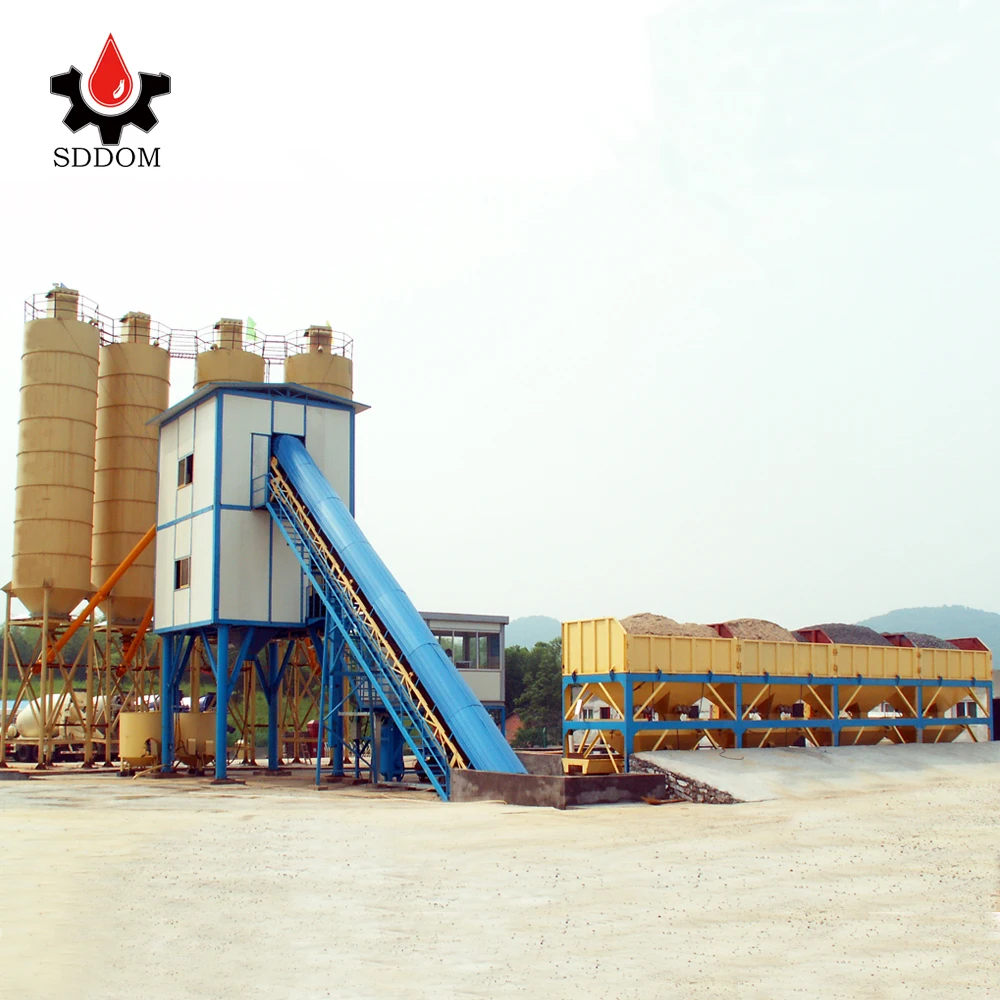

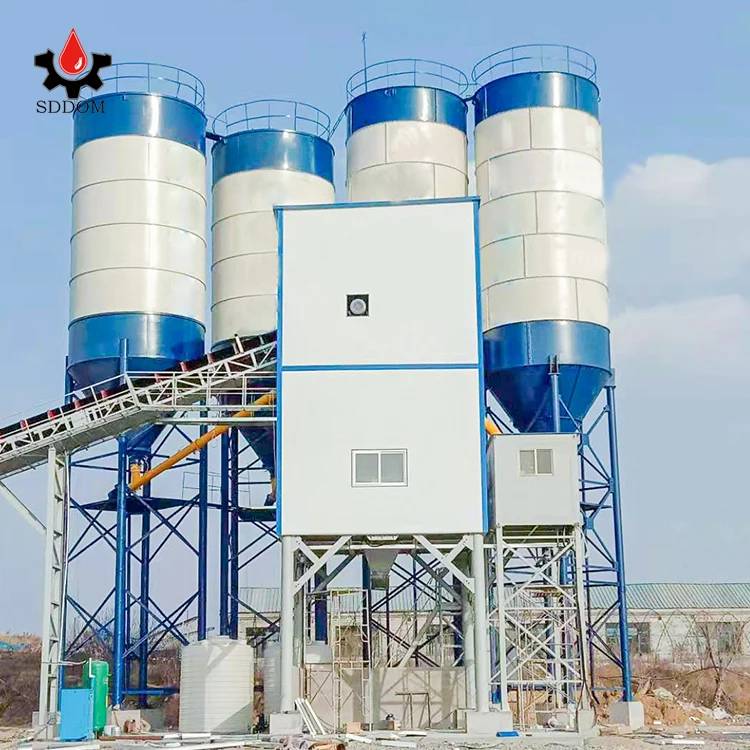

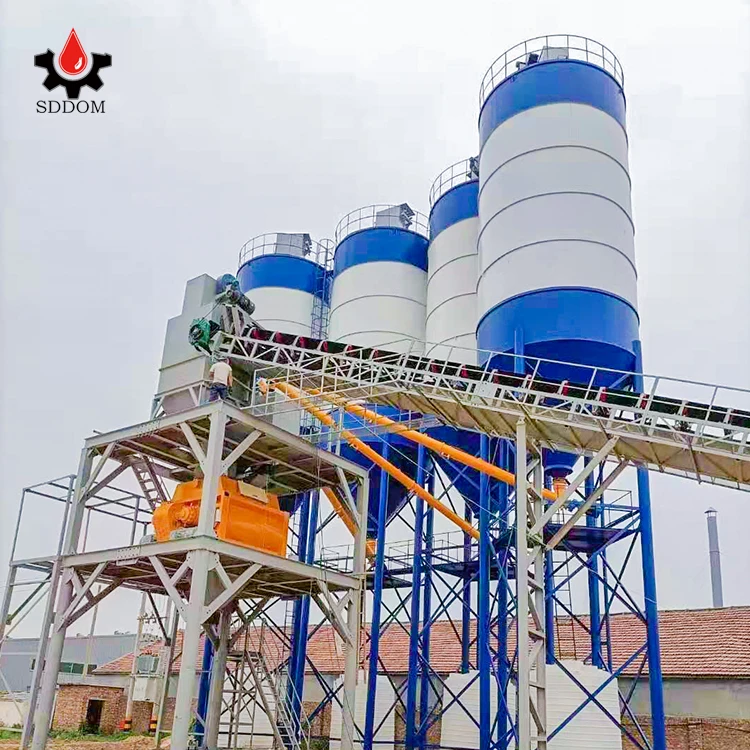

fixed mixing plant Advanced electrical ready mixed mini 50m3/h concrete batching plant mobile stabilized soil mixing plant
- Category: >>>
- Supplier: Shandong Dom Machinery Equipment Co. Limited
Share on (1600370218596):
Product Overview
Description
fixed mixing plant Advanced electrical ready mixed mini 50m3/h concrete batching plant mobile stabilized soil mixing plant
fixed mixing plant Advanced electrical ready mixed mini 50m3/h concrete batching plant mobile stabilized soil mixing plant
Specification
Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2500 | 3000 |
Charging Capacity(L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 4000 | 4800 |
Maximum Productivity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 150 | 180 |
Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | belt conveyor | Skip Hopper | belt conveyor | belt conveyor | belt conveyor | belt conveyor |
Standard Discharging Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
Number of Species of Aggregate | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 |
Maximum Aggregate Size(mm) | ≤60mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤120mm | ≤150mm | ≤180mm |
Cement/Powder Silo Capacity(set) | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100T or 200T | 4×200T | 4×200T |
Mixing Cycle Time(s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
Total Installed Capacity(kw) | 60 | 78.5 | 111 | 145 | 110 | 198.06 | 210 | 230 | 288 |
Main products
Mobile Concrete Batching Plant
Container cement Silo
Stackable Cement Silo
Planetary Mixer
Twin Shafts Mixer
Mobile Cement Silo
Bolted Cement Silo HZS type Batching Plant Big Bag Cement silo
FAQ
Q: Are you factory or a trading company?A: We are factory and a professional manufacture of concrete batching plant and cement silos.
Q: What's your advantage?
A: We are a young and active thinking group, we can design and also can advise special design according the clients detail
requirements.
Q: How about your producr quality?
A: We are a factory that only do export, we must keep the high quality product to reduce the after-sale service cost.
Q: Do you supply training and after-sale service?
A: Yes,we will supply installation and training on site and also we have a professional service team that can solve all the
problems as fast as possible.
Q: How about your price?
A: We will promise that you will get what you pay.
Q: Do you have CE certificate for your concrete batching plant / cement silo?
A: Yes, we have. Both are our patent products, certificated by CE.
