Product Overview

Description

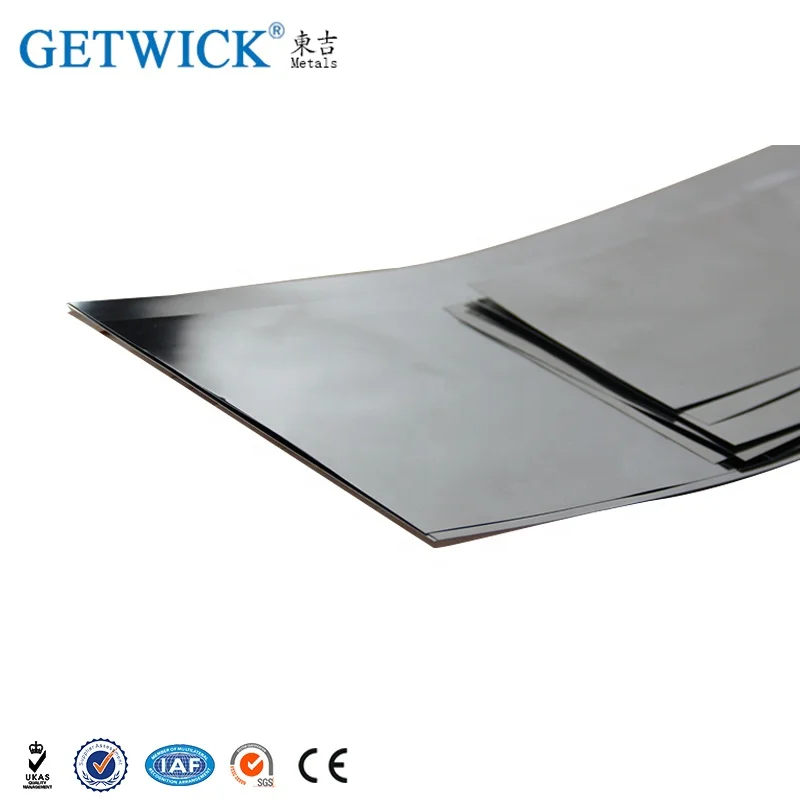

Tungsten Sheet plates used in the vacuum furnace as heat shield

Item: Tungsten Sheet plates used in the vacuum furnace as heat shield

Materials: W1,W2,WAl1,WAl2

Purity: 99.95%

Density: 19.35g/cm³

Melting Point: 3410℃

Normal specification we can provide:

Tungsten Plate/Sheet /Foil
Thickness(min) mm	Width(max) mm	Length(max) mm
0.05	150	500
0.06~0.09	250	500
0.1	300	500
0.12	320	550
0.15	350	600
0.2~0.6	400	600
0.7~0.9	400	800
1~2	450	800
2~10	450	600
10~15	450	500
15~25	300	500

Feature:

tungsten is the highest melting point of all metals.

low coefficient of thermal expansion.

very high level of dimensional stability.



Main Comp.W≥99.95
Other Content≤	Fe	0.0026	Al	0.0006	Si	0.001
	Ca	0.001	Ni	0.0009	O	0.0018
	Cu	0.0005	N	0.0015	Pb	0.0001
	Sn	0.0001	Sb	0.001	As	0.001
	Cd	0.0001	Mg	0.0006	C	0.002
	Bi	0.0001	Mo	0.003

Application

For producing electric light source parts and electric vacuum components

For producing heating elements and refractory parts in high temperature furnaces

Used as electrodes in the field of rare earth metal industry

Used in military of some aspects

For medical aspects

Be used to make decorations and etc.



Q:Are you manufacturer?

A:Yes.We have been in manufacturing this product for 10 years

Q:Can You Produce According Our Design/Drawing?

A:Yes, of course.Besides tungsten, molybdenum sheets, plates, wire, bars, we also offer our customer machined products according their drawing.If necessary, we can also offer you OEM/ODM parts.

Q:How About Your After-Sale Service?

A:We're expected to establish long-terms cooperation relationship.If any questions or problems during our cooperation, we will solve together with you in the first time.we will offer you qualified goods for replacement (no quality problem in past 12 years)
