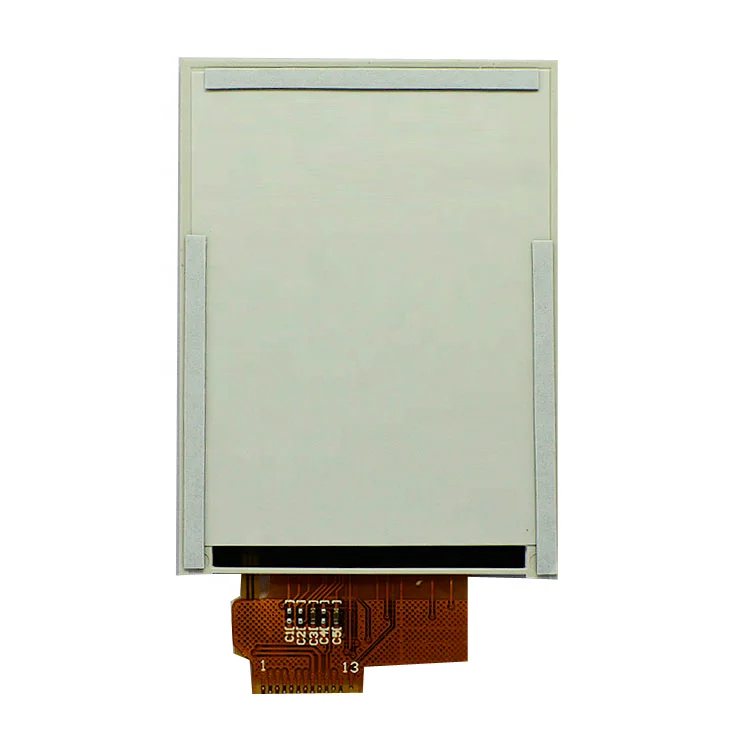

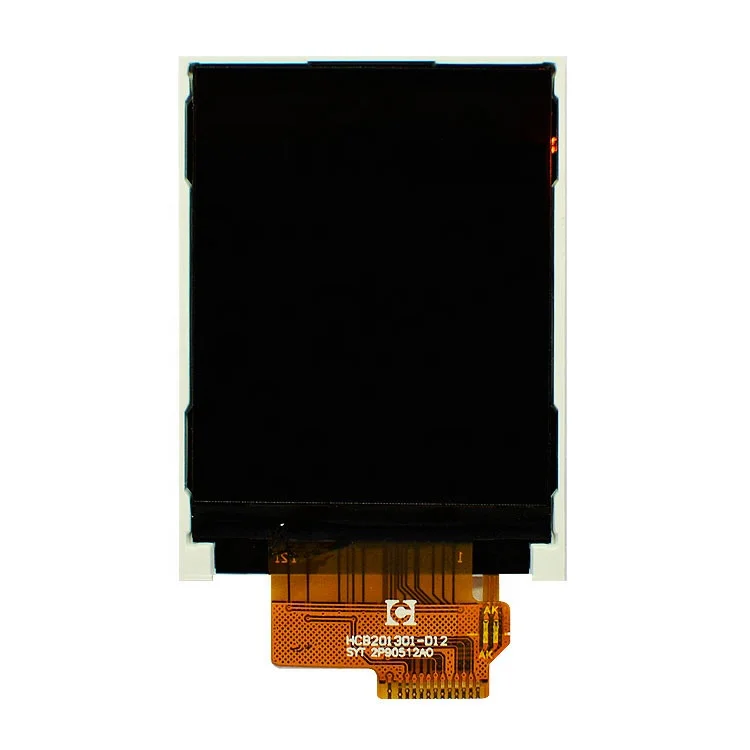

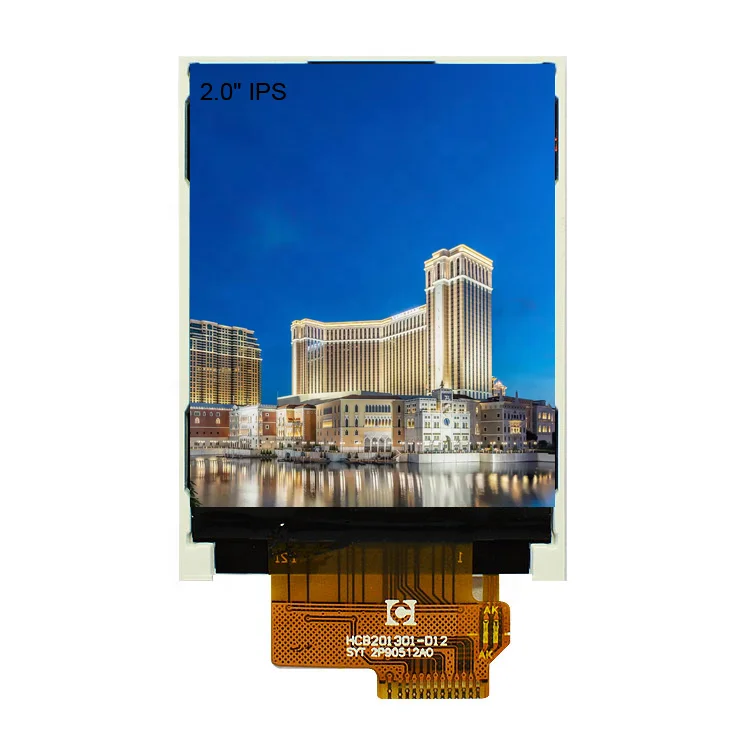

HongXian free View Angle Medical 2.0 inch 240*320 LCD TFT Manufacturer Transmissive lcd IPS Panel TFT LCD Module Screen
- Category: >>>
- Supplier: Shenzhen Hong Xian Wei Ye Technology Limited
Share on (1600370400706):
Product Overview
Description
Product Description
Specification
Item | Value |
Type | LCD Module |
Display Size | 2.0 inch |
Supplier Type | Manufacturer |
Place of Origin | China |
Guangdong | |
Brand Name | HongXian |
Size | 2.0TFT inch |
Outline Dimension | 34.70(W)* 47.95(H) * 2.20(T) mm |
LCD Active Area | 36.60* 40.80 mm |
Number Of Dots | 240 * RGB * 320 pixel |
LCD Type | a-Si TFT |
Viewing Direction | ALL |
Driver IC | ILI9340X |
Interface Type | SPI |
Backlight Type | 4 LEDs |
Brightness | 230-250 Cd/m2 |

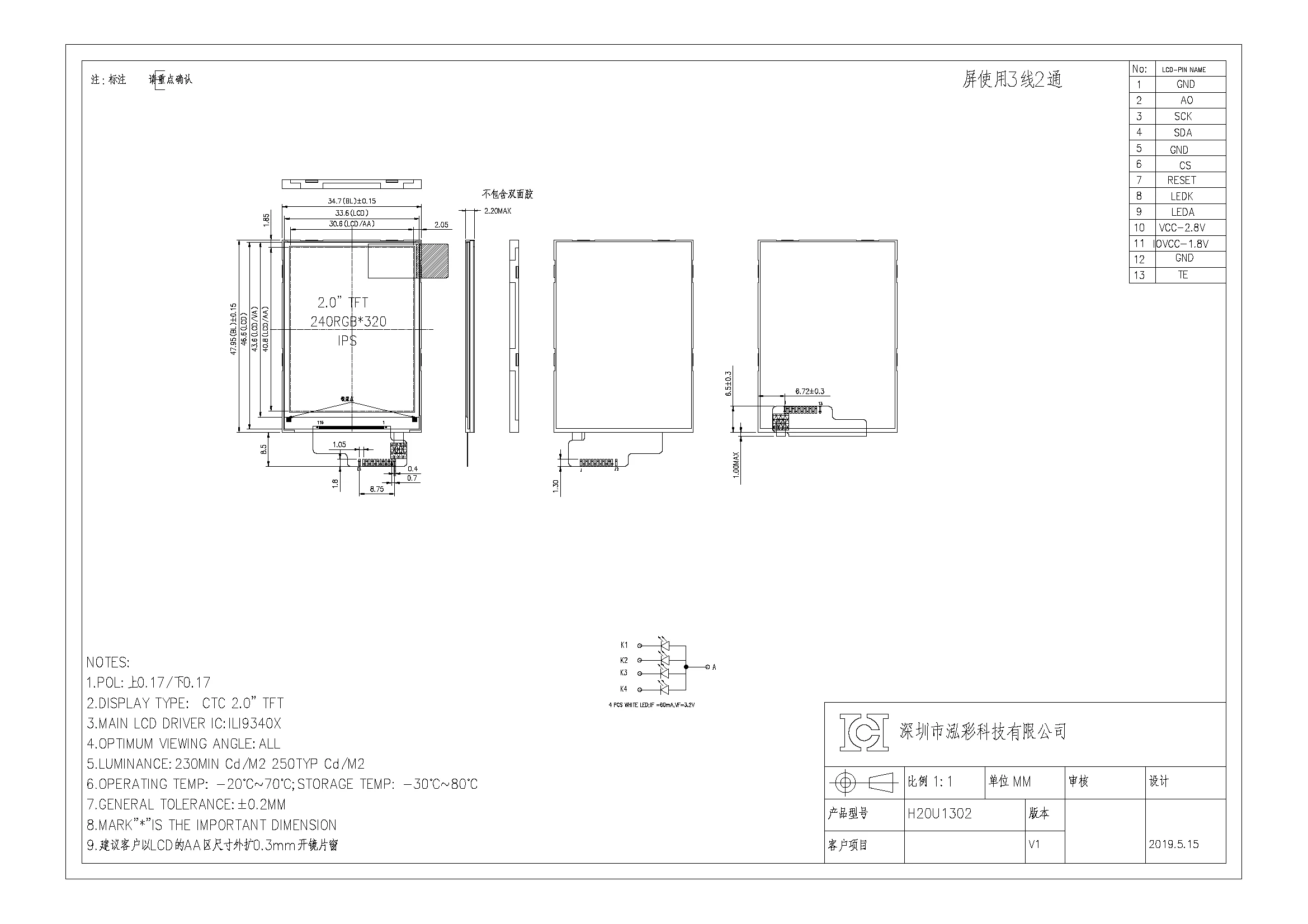

Mechanical drawing
Packing & Delivery
This product adopts formal packaging, and there are different packaging specifications for products of different sizes. The 4.3-inch product is packed in a box of 200 pieces. Packages delivered have triple protections. Each module comes with a standard foam box, and all modules would be placed in order inside the corrugated carton. Besides, each package would be packed in sturdy wooden case, and the cases must be nailed. We ship our products in strong packing just to ensure good condition on arrival.
Company Profile
Hong Xian Display Technology Limited established in the year 2014 is located at Bao'an District Shenzhen China. We focus on TFT LCD module production and R&D. The main sizes of TFT LCD modules we are offering are: 1.44", 1.77", 2.0", 2.2", 2.4", 2.8", 3.0", 3.2", 3.5", 4.3", 5.0", 7.0", 8.0", 9.0" and 10.1". Including normal light display and high light back light display. Our products are widely used for , Security product, household appliances, Instrument and meter,military products,automobile instruments, finger print machine,mobile phone, video door phone, GPS navigator, CVR, Anti-dazzle rear-view mirror and so on. Besides the nice cooperation with some wellknown trading agent in China domestic market, we also exported to clients in such countries and regions as Europe, North America, Eastern Asia, Australia, the Philippines, Singapore, India, Turkey, South Africa, Israel and so on. We also welcome OEM and ODM orders.
We can provide customized TFT LCD module according to customer's requirements. We can amend FPC, PIN assignment and driver IC and so on. The pixel can be maximum 1024*600. The width between 2 PINS can be minimum 10 um. The driving voltage is normally 3~5V, we can make higher or lower voltage. The operation temperature can be maximum from -40 Centidegree to 90 Centidegree . The view angle can be from 6 o'clock to IPS.
We warmly welcome new and old customers from all over the world to contact us for future business relationships and mutual success!
Production Process
Certifications
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(25.00%),Eastern Asia(18.00%),Western Europe(15.00%),South America(10.00%),Southeast Asia(10.00%),Domestic Market(8.00%),Mid East(5.00%),Oceania(3.00%),Africa(1.00%),SouthAsia(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Central America(1.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
TFT LCD,TFT LCD Touch Panel,Customized TFT LCD,Touch Screen,Display Module
4. why should you buy from us not from other suppliers?
1.Hong Xian Display has the first-class automatic TFT LCD production line and the specialized management and R&D team. 2.The main sizes of TFT LCD modules offering are range from 1.44 inch to 10.1 inch. 3.Avaiable for customized LCD meet all your needs.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Japanese,Korean
