High Output SJ180 EVA Plastic Underwater Pelleting Machine
High Output SJ180 EVA Plastic Underwater Pelleting Machine
High Output SJ180 EVA Plastic Underwater Pelleting Machine
High Output SJ180 EVA Plastic Underwater Pelleting Machine
High Output SJ180 EVA Plastic Underwater Pelleting Machine
High Output SJ180 EVA Plastic Underwater Pelleting Machine
High Output SJ180 EVA Plastic Underwater Pelleting Machine

High Output SJ180 EVA Plastic Underwater Pelleting Machine

Share on (1600370409147):


Price:$180,000.00

Quantity:


Product Overview

Description



Product Description


This granule line is specialized for making EVA granules. The cooling method is different from air cooling one. When with the same specification kneader and mixing mill, they form a complete assembly line, which consists of plasticizing, extrusion, granulizing, cooling, filtration and packing. We have make some special designs to avoid EVA changing to forming.

This granule line is stable in operation with high efficiency and the granules of which is widely used as EVA shoe materials and in other industries.



The whole production line:

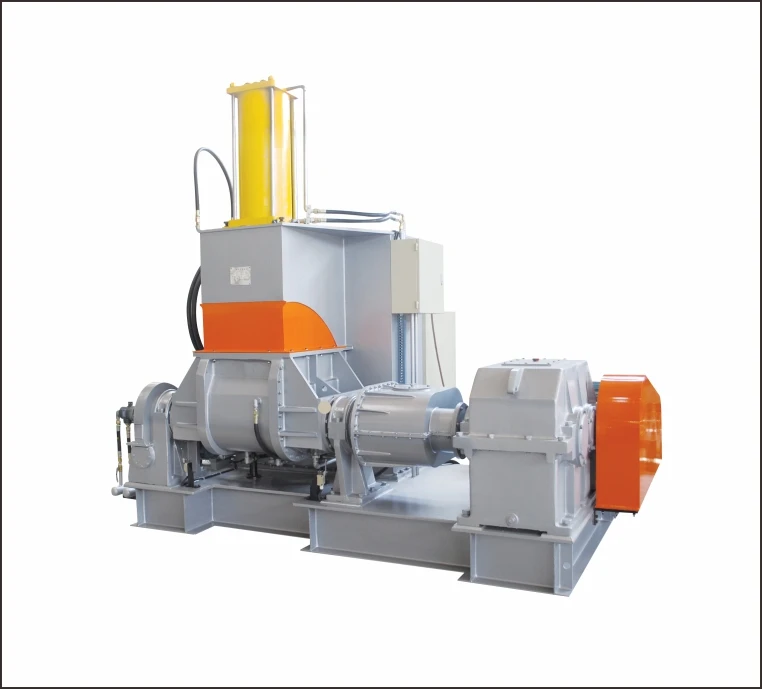

(Kneader) – Bucket Conveyor – (Mixing Mill) – Extruder Mainframe – Under Water Cutting System – Speedy Spin-Dryer –Cooling Conveyor – Mixing Machine – Final Product



Technical Parameter


                                                 SJΦ180 EVA Under Water Cutting Granule Line
No.
Item
Description
Specification
1

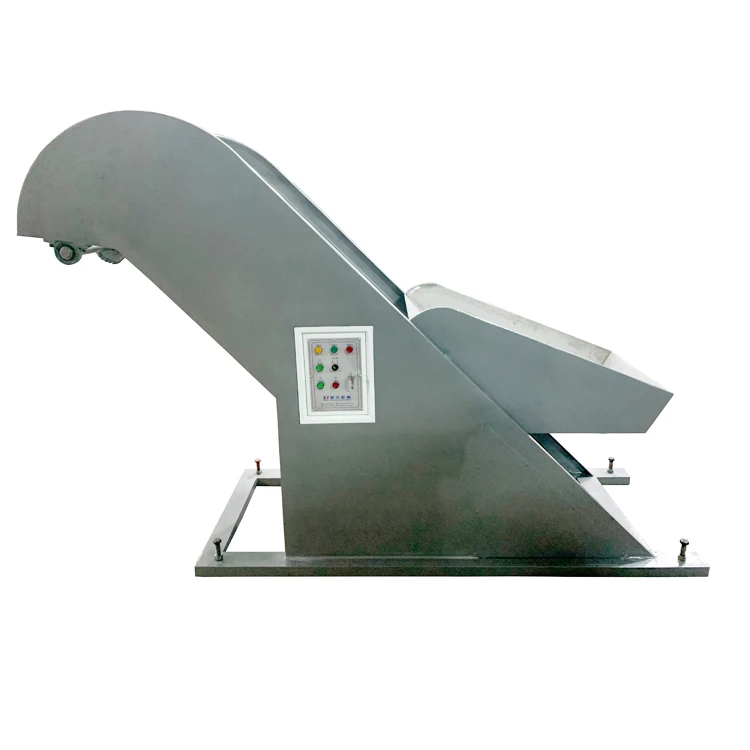

Bucket conveyer
Material
Stainless
Motor Power
1.5kw
Bucket dimension
700*600*300mm
2

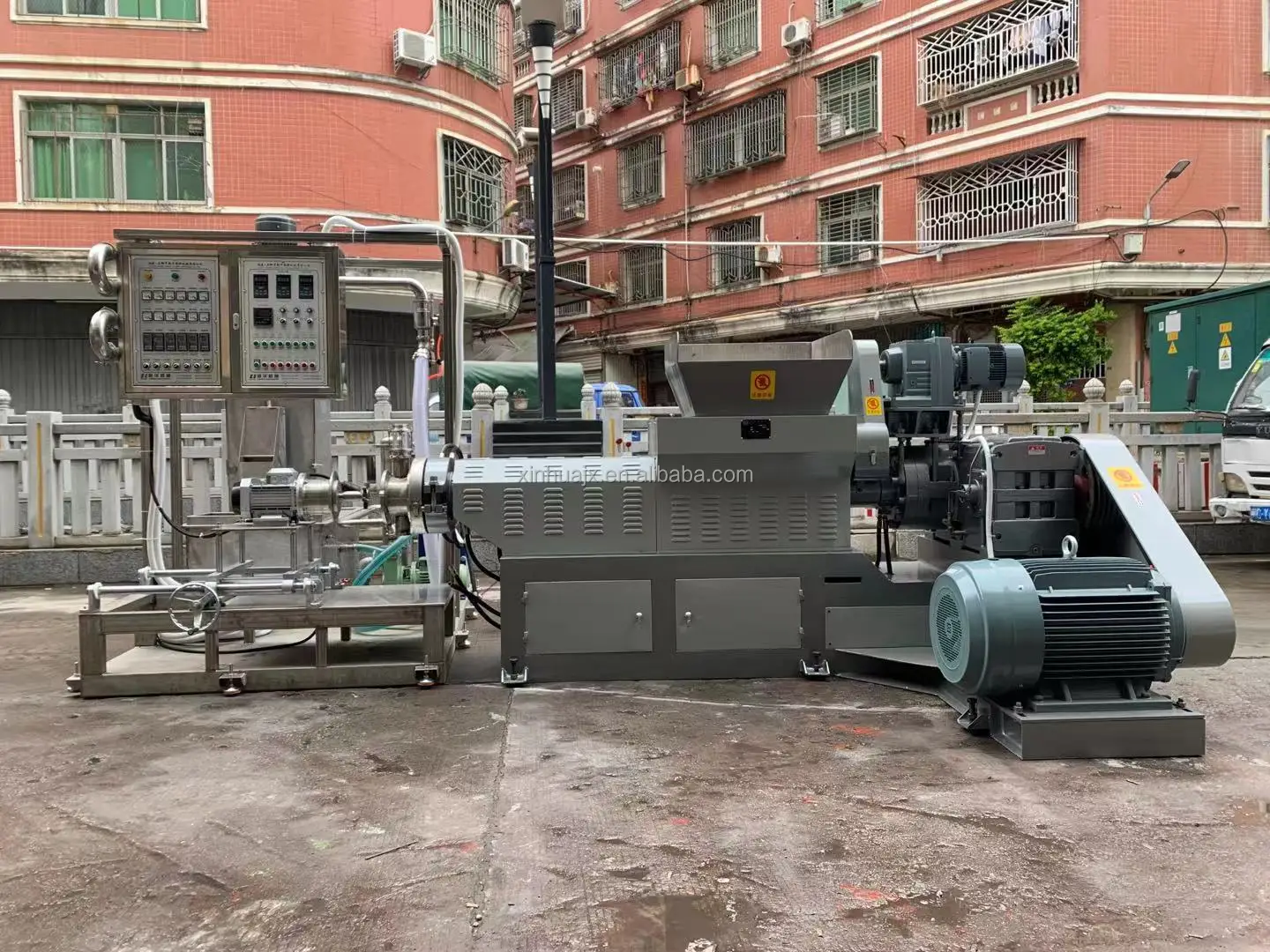

Main extruder
Screw  dia
Φ180mm
Screw Speed
0-50r/min
Main motor power
90kw-6(all with inverter)
Vice motor power
11kw-4(all with inverter)
Cutter motor power
4.0-2kw
Heat power
18kw
Gear box
oil bath lubrication,hardened gear reducer
Cutting system
under water cutting
Auto thermo control
5 zones
Screw/barrel material
38CrMoAIA
Barrel cooling system
water cooling
Granule diameter
3-5mm
Overall dimension (L*W*H)
5500*2000*1800mm
Weight
3200kg
3

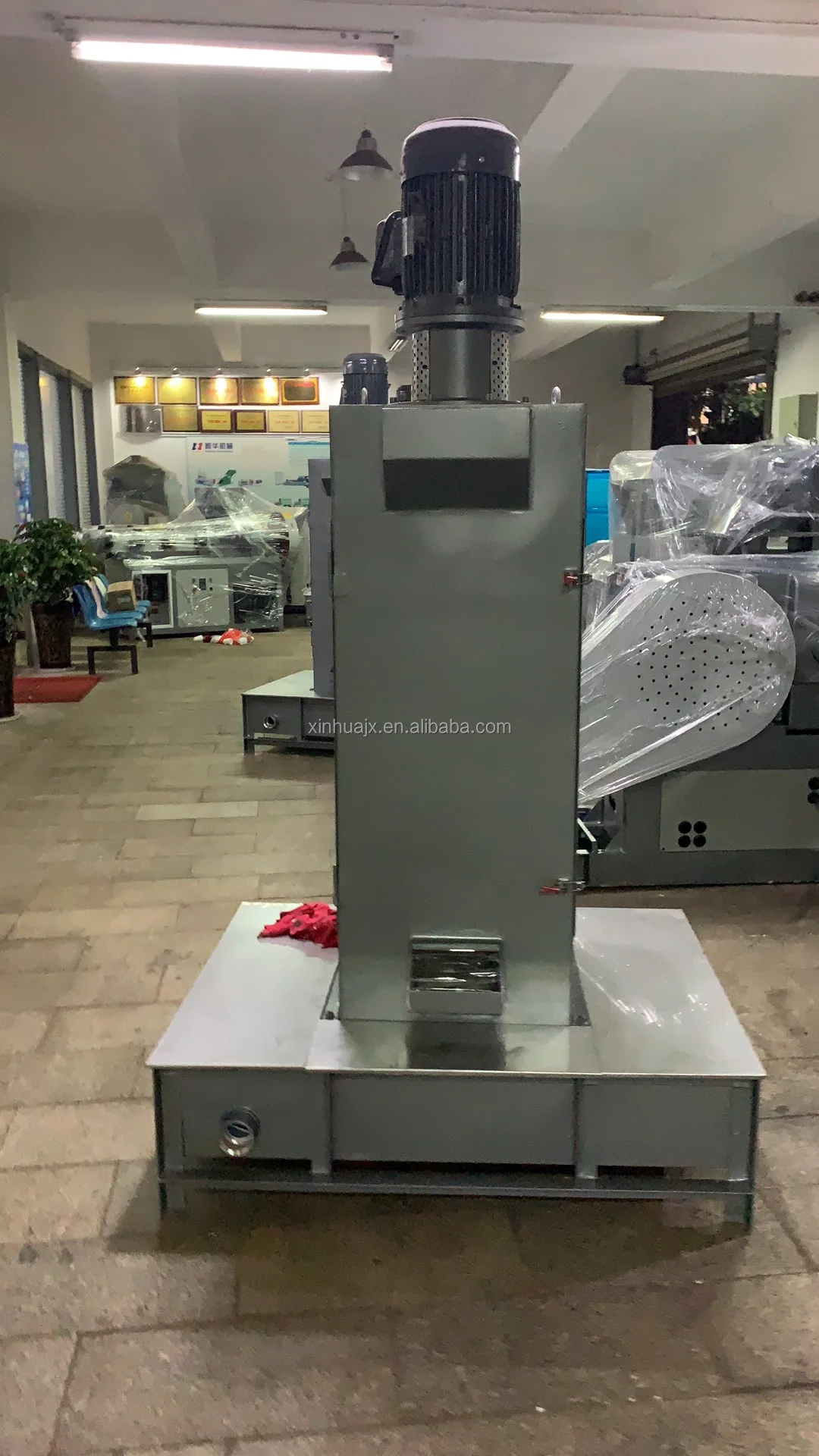

Speedy spin-drier
Model
SSD-1
Motor Power
7.5kw
Movement speed
1440r/min
Overall dimensions(L*W*H)
1320*1060*2410mm
4

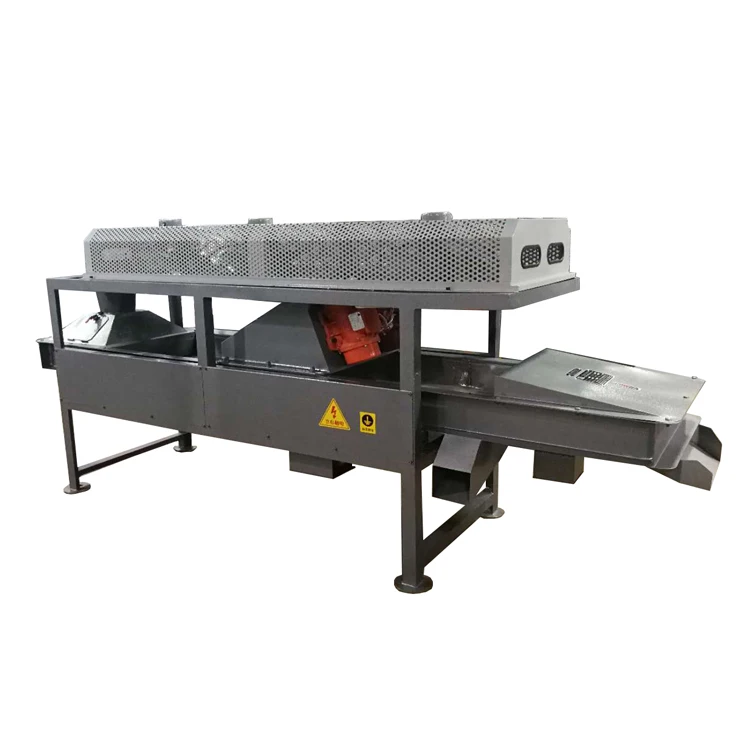

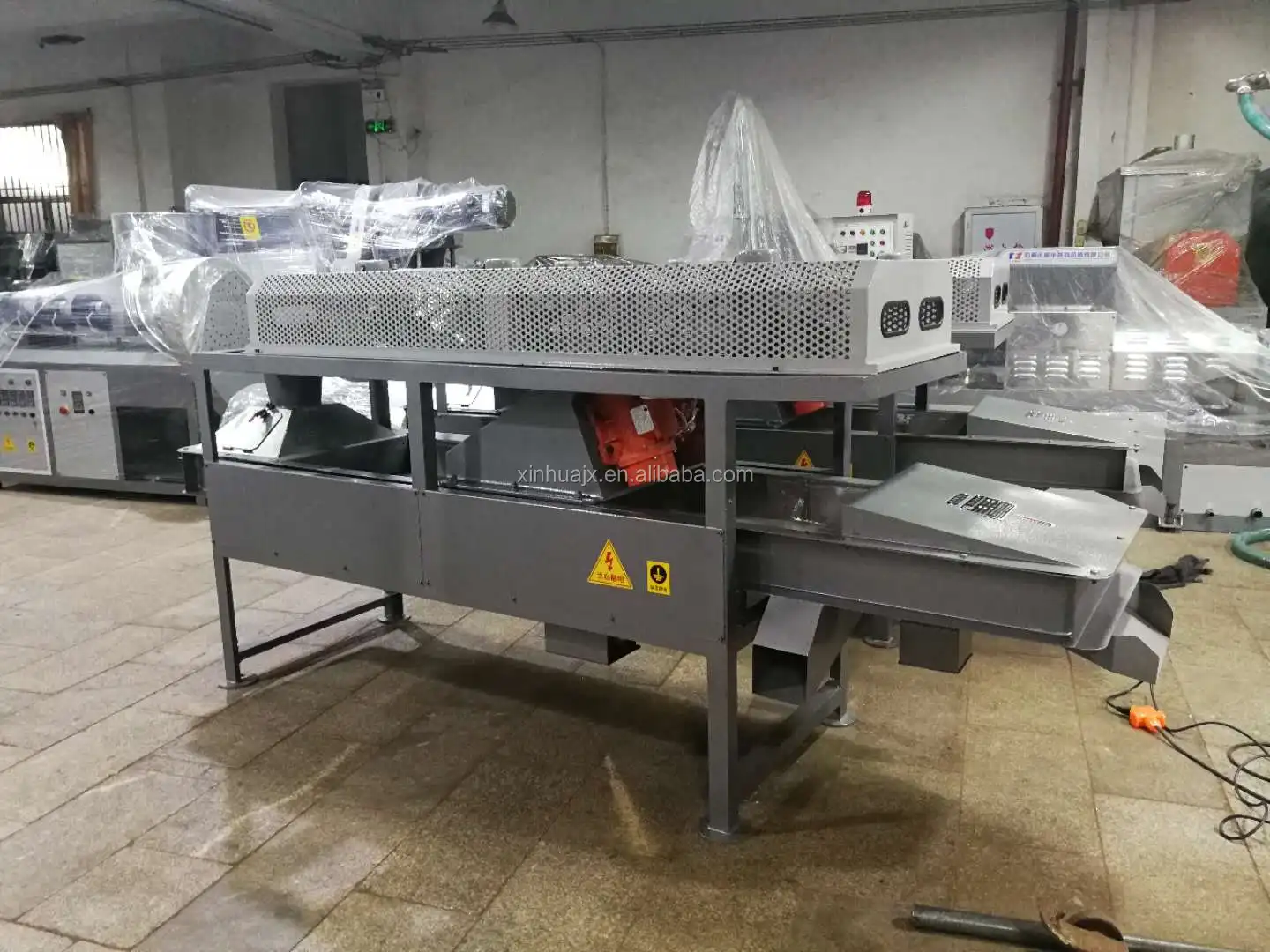

Cooling conveyer
Length and width
4200*610mm
Thermal Design Power
4.5kw
Excitation power
0.8kw
Material
Stainless
5

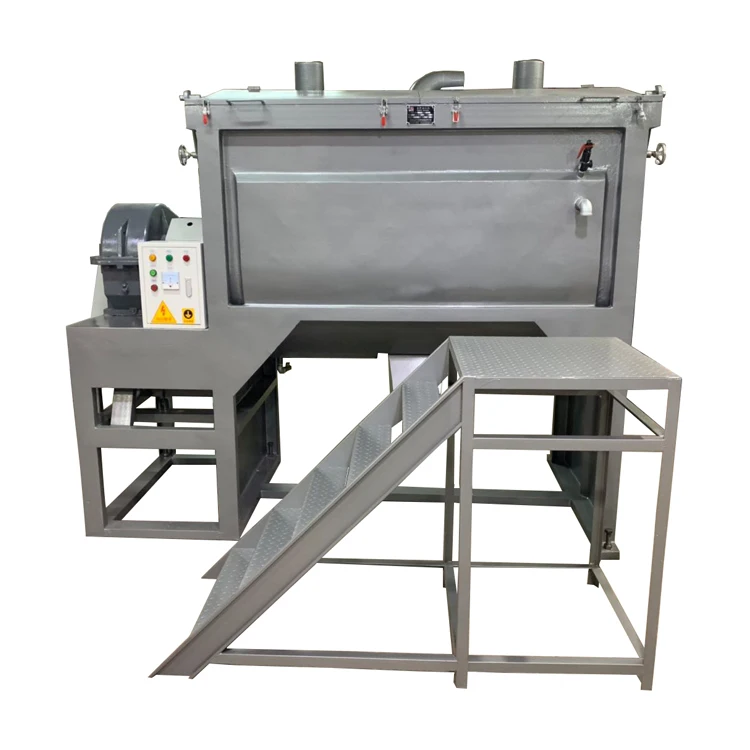

Blender
Capacity
1000L
Spindle speed
10r/min
Motor power
11-4kw
6
Air machine
Motor power
5.5kw
Screw speed
2880r/min

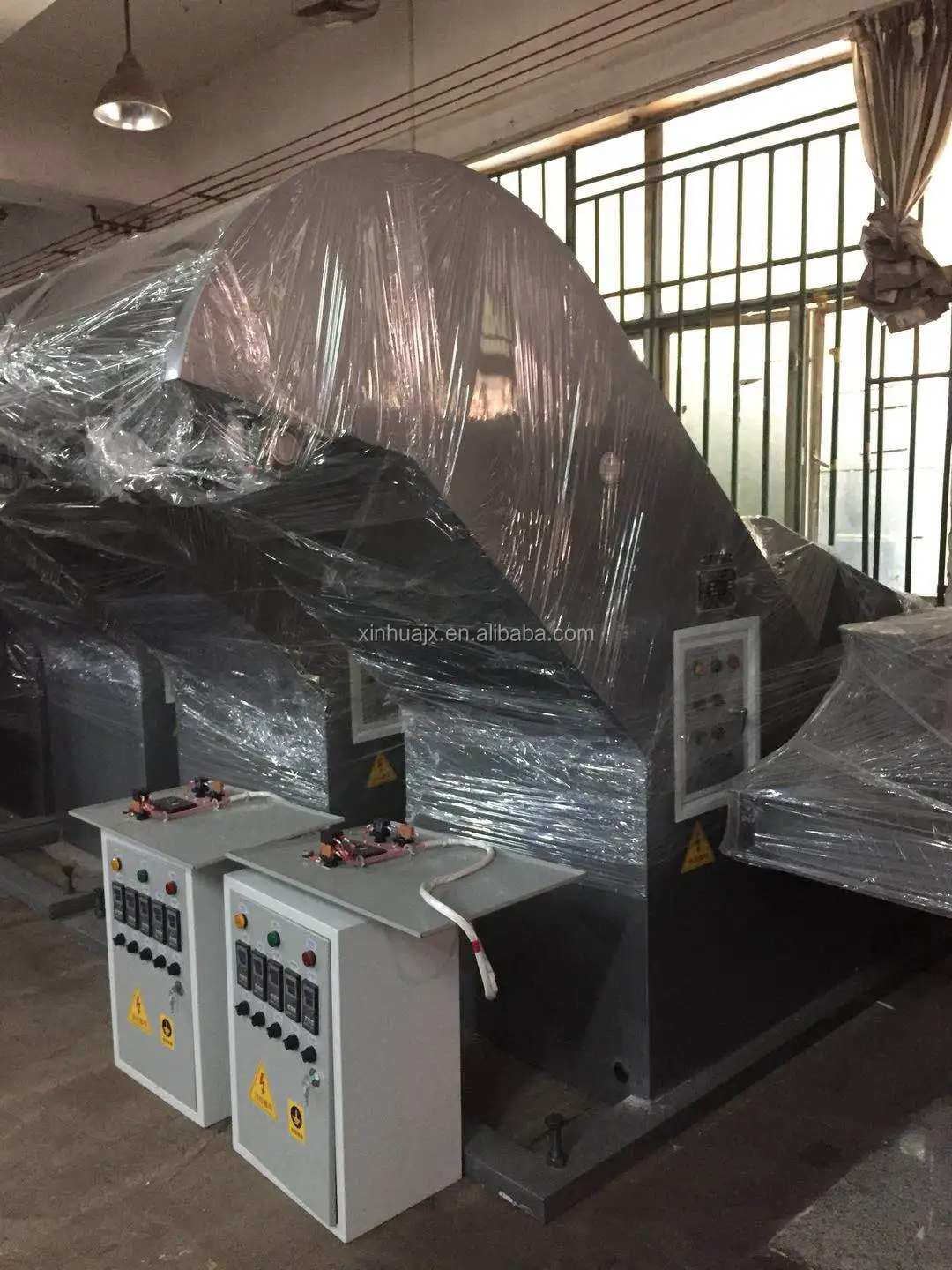

Product Show








Packing & Delivery


Packaging
Size
40HQ
Weight
8.6T



Packaging Details

For the full container, it's usually nude packing. (with pe film)

Wooden packing is also acceptable.
