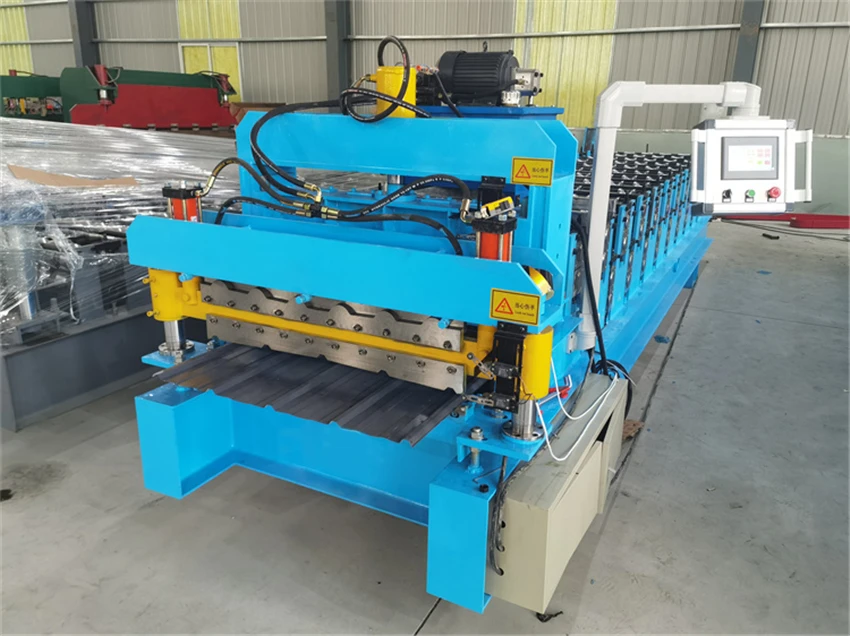

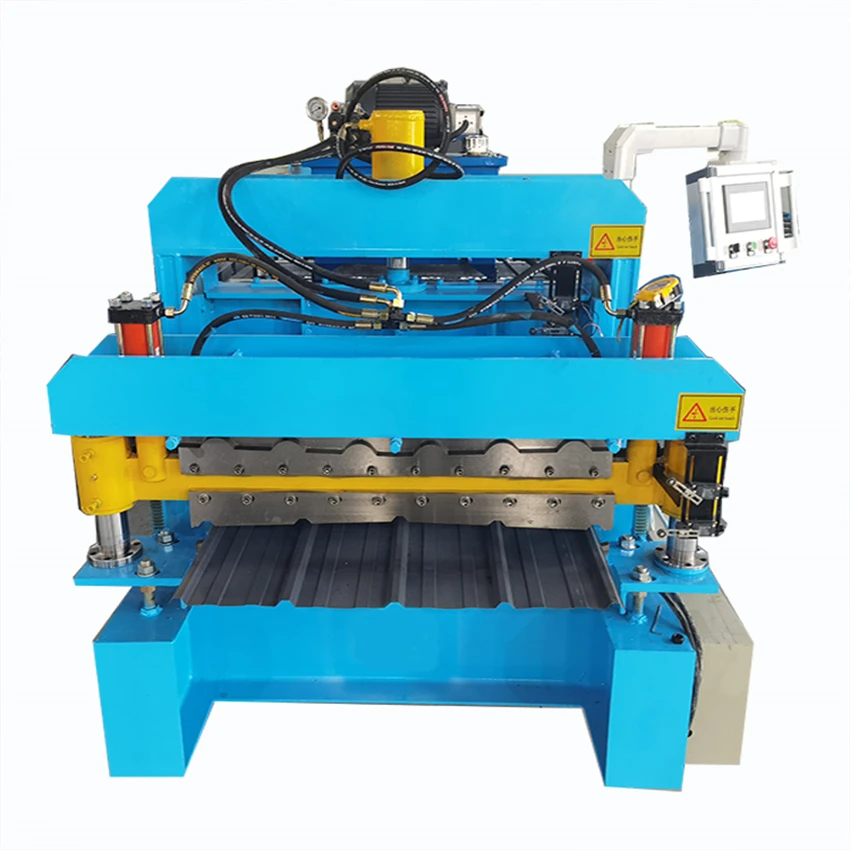

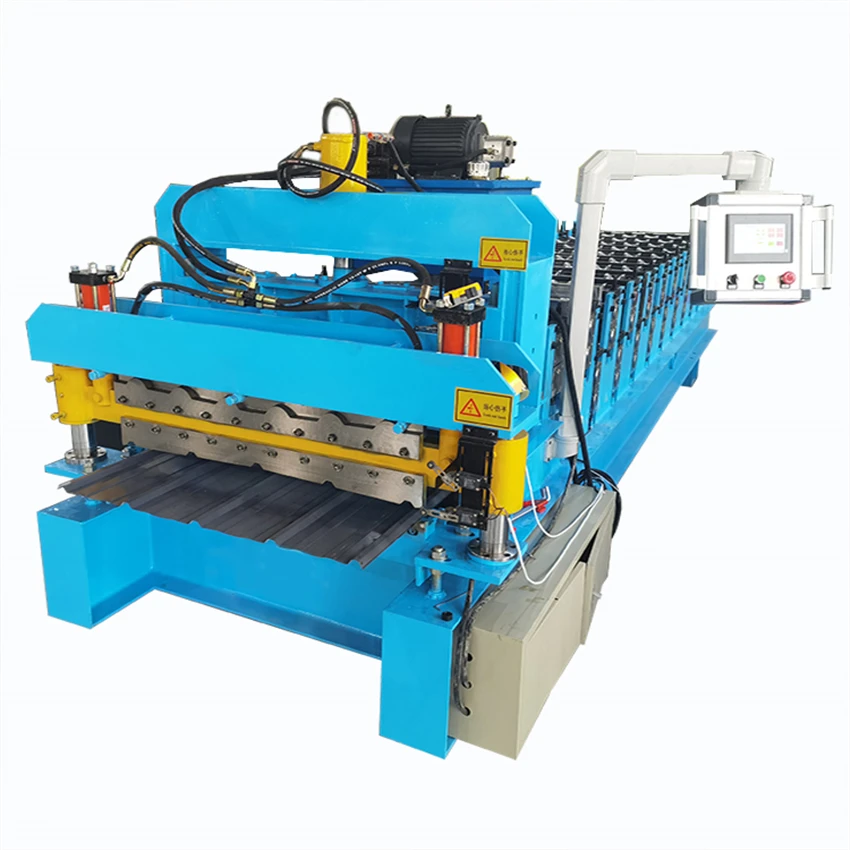

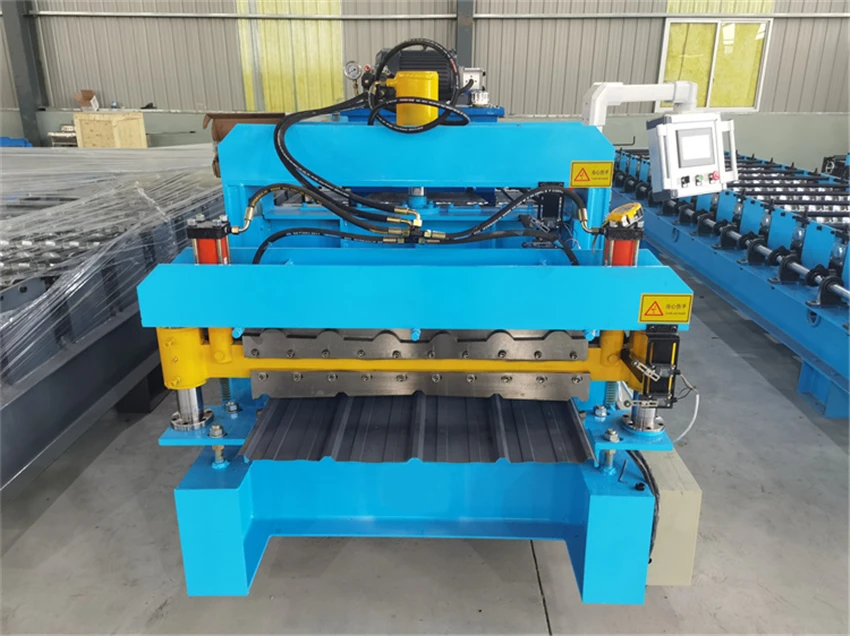

WDL factory sale color steel tile cold roll making machine tool for roofing panel
- Category: >>>
- Supplier: Henan Wadley Cnc Machinery Co. Ltd.
Share on (1600370440759):
Product Overview
Description
Product Description

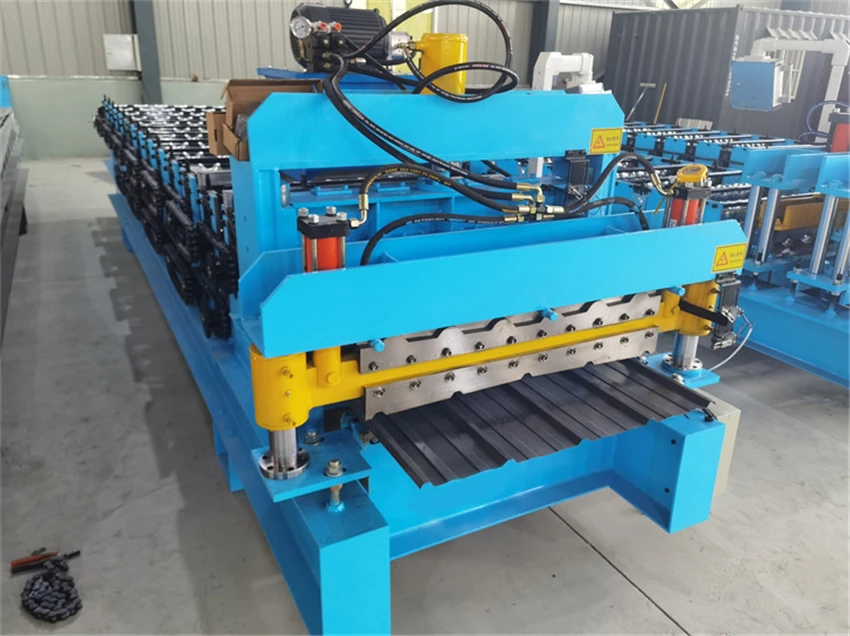

Metal roofing tile making machine is a machine composed of unwinding, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint patterns, high strength, and durability. It is widely used in industrial civil buildings, such as factory buildings, warehouses, stadiums, exhibition Pavilions, theaters and other rooms and walls.
Details design of tile making machine:
If you confirmed need this tile making machine, you can also make order from us, and we will confirmed design with you before production.
Roll forming machine technical parameter:
Dimensions (L* W* H) | 6000mm ×1400mm ×1300mm |
Maximum speed of machine | 8-12 meters per minute |
Forming color steel plate thickness | 0.2-0.8mm |
Roller shaft diameter | 70mm |
Operation system | CNC computer operation panel |
The unit includes | forming machine, hydraulic station, discharging rack, forming shears and control box |
Machine weight | about 3.0 tons |
Transmission mode | 1 inch chain drive |
Forming row number | 840 tile type 11 row, 900 tile type 9 row |
Power host | 3kw |
Distribution | The whole machine is controlled by industrial computer PLC |
Equipment chassis | 300H steel; vertical plate thickness is 14mm |
Maximum error | Since the device is fully computer controlled, the maximum length error is ±1mm |
Details Images
Tile making machine Logo and Color.
Tile making machine Logo, we can customized for your own company's title, so that you can sell in your local, and more convenient for you have your own brand name.
Tile making machine Color, we can also customized for you, whatever color, blue, red, yellow, green... we all can satisfied to
you.
Tile making machine Color, we can also customized for you, whatever color, blue, red, yellow, green... we all can satisfied to
you.

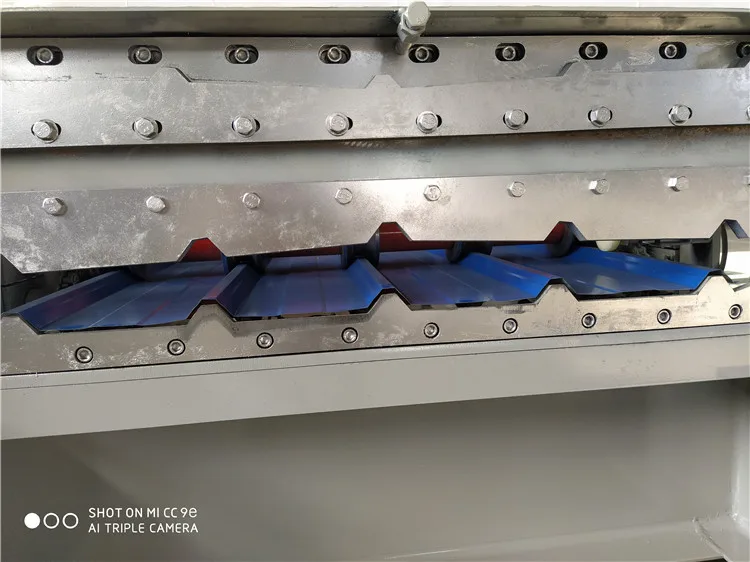

Tile making machine Blade.
Tile making machine Blade using GR12 to making. The design all could be customized, you just share with us is ok.

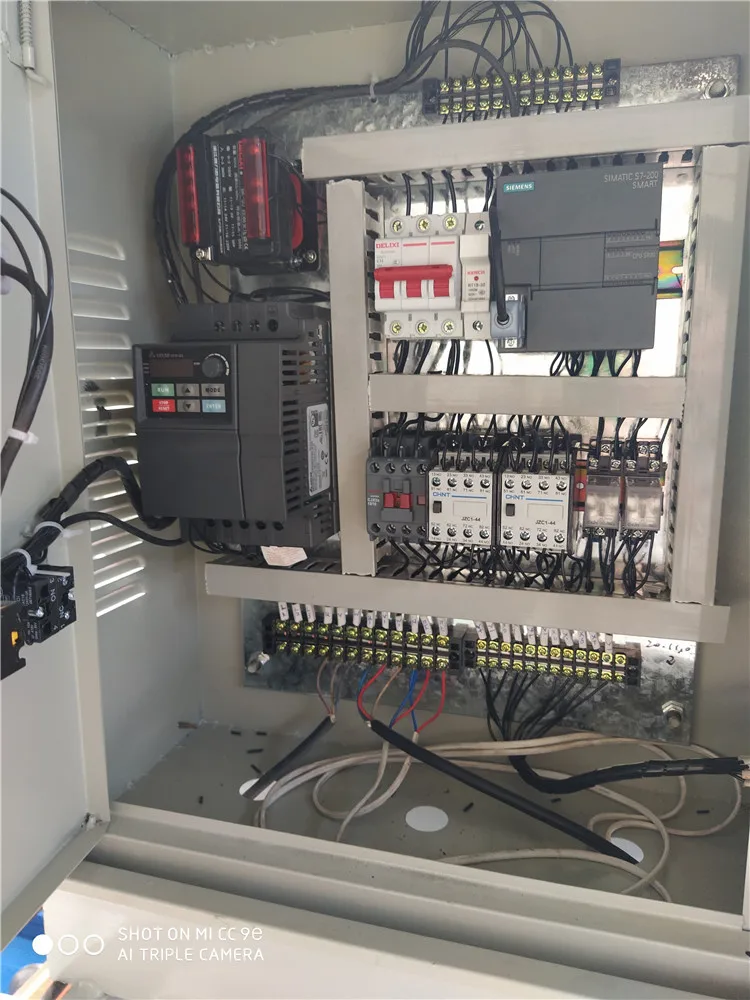

Tile making machine PLC.
Tile making machine PLC is very convenient to using, and settle. You can see the Tile making machine PLC inner line is very thickness, which make sure the machine works more better.
About the PLC brand, if you need famous brand, you can also share us, so that we can make that ahead for you.
About the PLC brand, if you need famous brand, you can also share us, so that we can make that ahead for you.

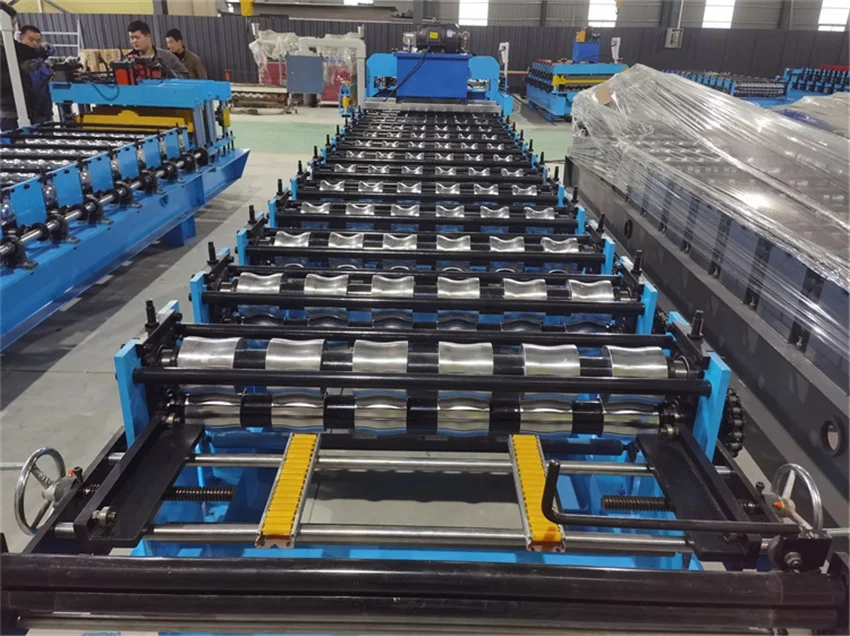

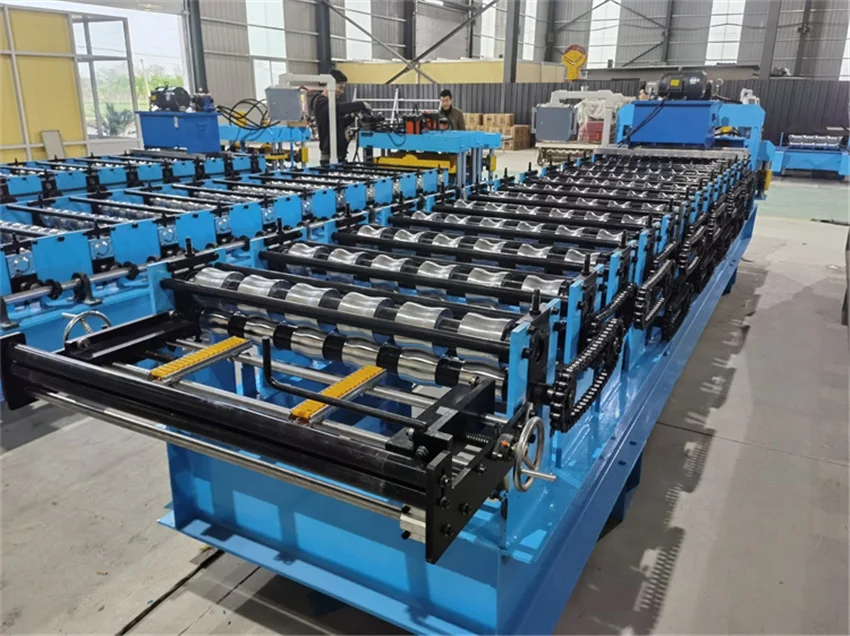

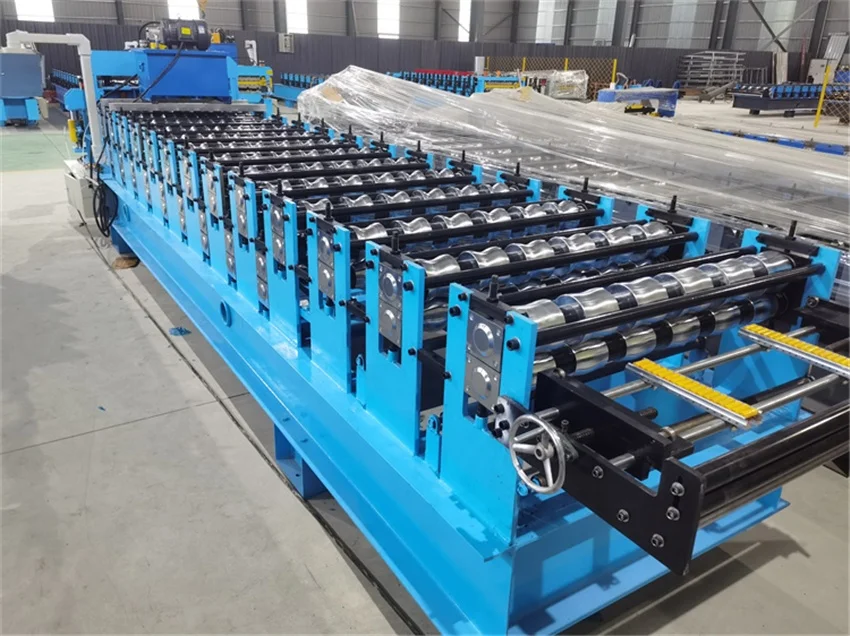

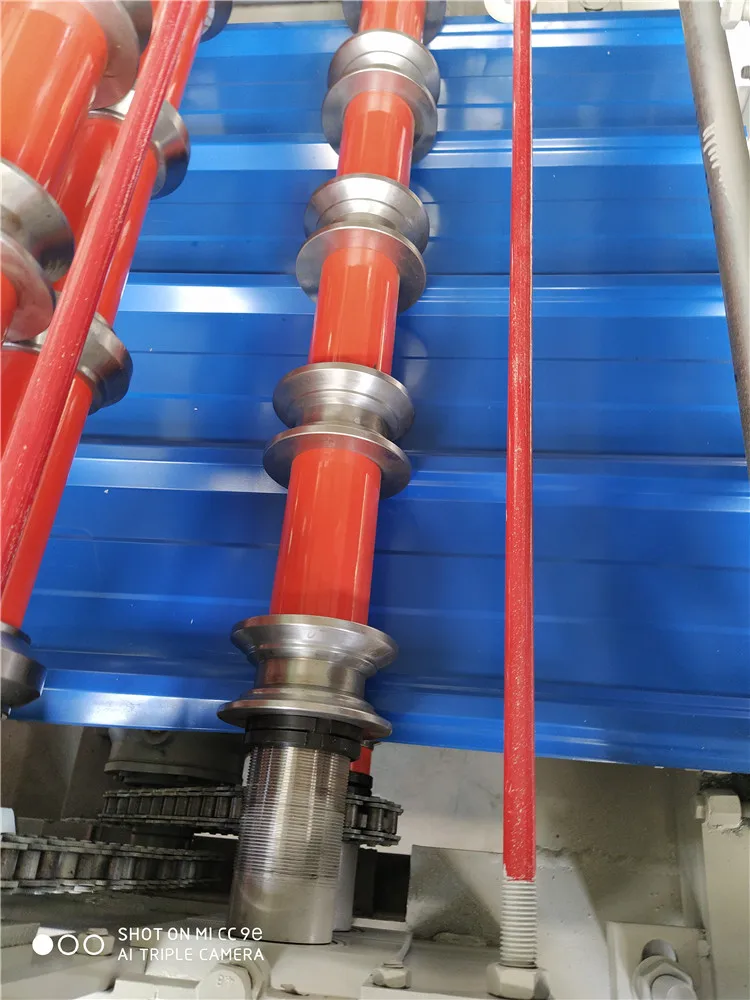

Tile making machine finished panel and wheels.
You can see the machine finished wheels and panel, after the machine finished, usually we will take these details pic to you, so that we can make sure all your machine is in good conditions.
Machine Advantages
Tile making machine Details Advantages:
1. More beautiful outlook, and color of machine. The inner using 300H frame, which can make sure machine more favorable for the machine using for long time.
2. We can customized all your demands for you, such as voltage, color, logo, inner wheels, frame, Plc...
3. We have been export machine to many countries, and familiar to many countries demands and market, which can give you more favorable suggestions. And more easy for you import the machine.
Specification
Item | Value |
Applicable Industries | Building Material Shops, Construction works |
Local Service Location | none |
Showroom Location | none |
Condition | New |
Type | Tile Forming Machine |
Key Selling Points | Easy to Operate |
Rolling thinckness | 0.3-0.8mm |
Feeding width | 1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm, Other |
Name | Roofing Sheet Roll Forming Machine |
Usage | Steel Construction |
Cutting blade material | Cr 12 High Grade Steel |
Roller material | 45#steel Chrome Plated |
Color | Client's Request |
Dia. Of Cutting Blade | 180-200)*20mm |
Keywords | Colored Steel Roof Making Machine |
Application | Building Construction |
Plc | Automatic Forming |
Cutting type | Hydraulic Cutting |
Packing & Delivery

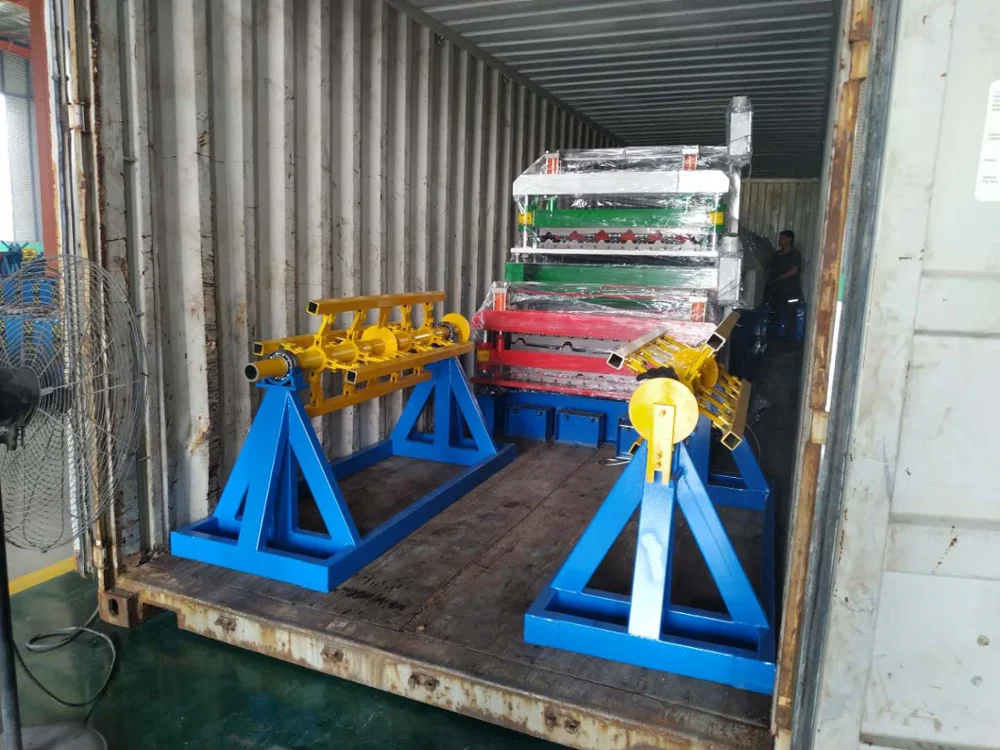

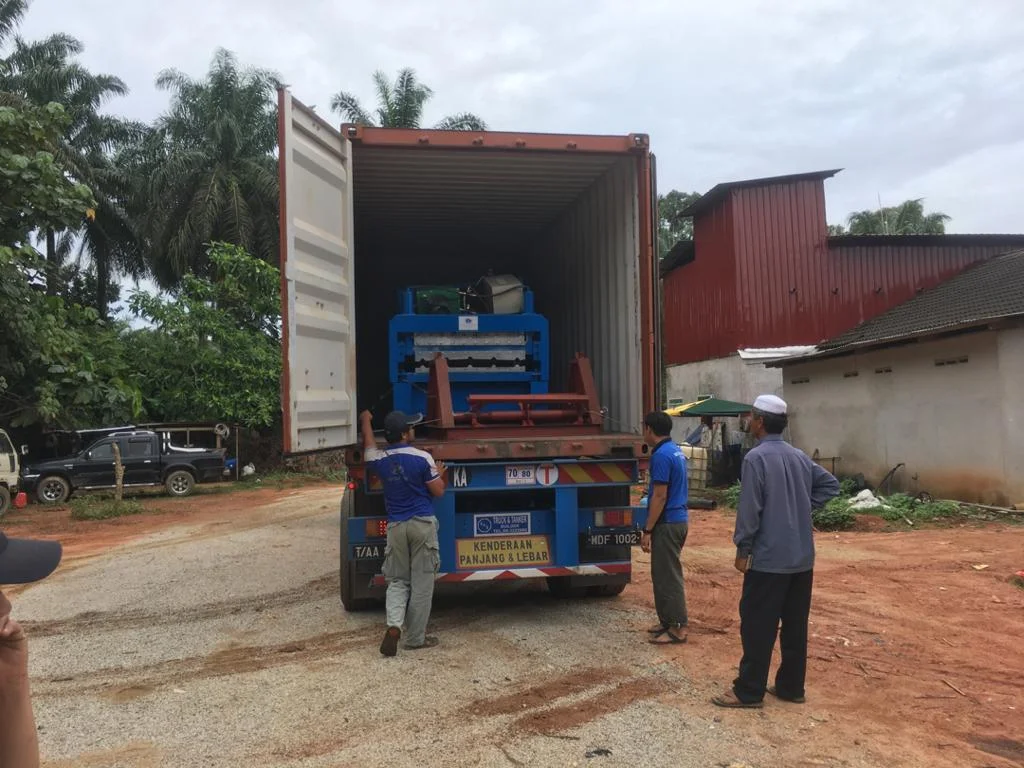

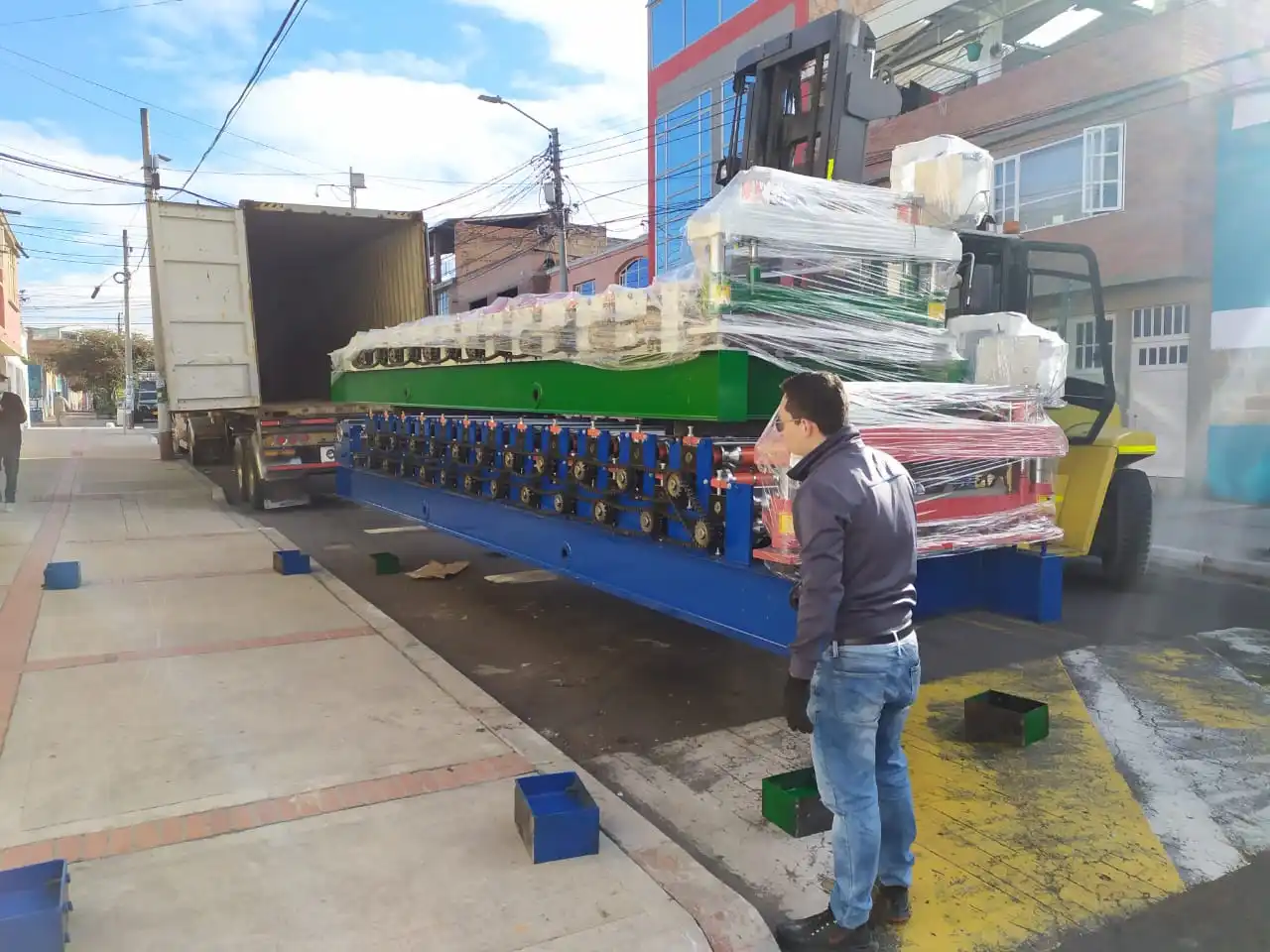

Roll forming machine shipping and packing：
roll forming machine is very large, usually we shipped by sea, 20GP 40GP, which could save more shipping cost to you, and also protect your machine more better. roll forming machine produce time about: 20-25 days.
Warranty of roll forming machine: 12 months, during one year, if there any questions, freely contact us..
roll forming machine is very large, usually we shipped by sea, 20GP 40GP, which could save more shipping cost to you, and also protect your machine more better. roll forming machine produce time about: 20-25 days.
Warranty of roll forming machine: 12 months, during one year, if there any questions, freely contact us..

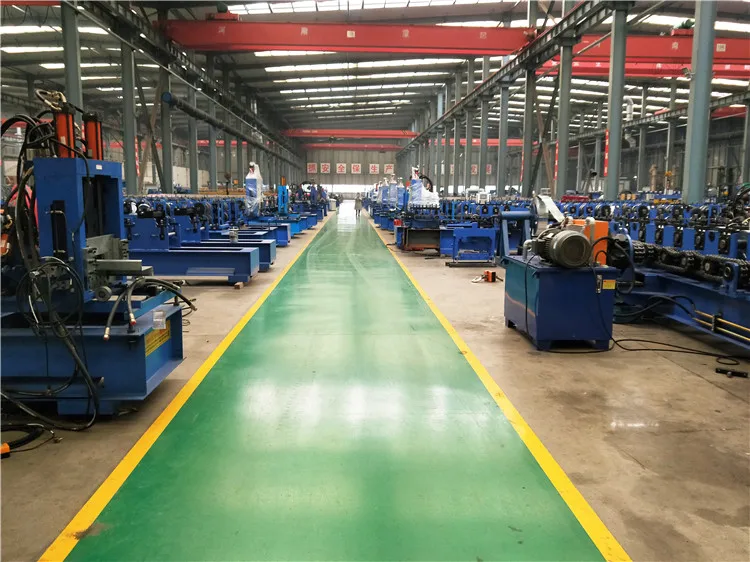

Company Profile
FAQ
Q1. What are the main key points for selecting right machines?
A1: Whole structure, Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for CNC machine tools?
A2: Yes, most of machine tools need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A3: We can provide the technical offer with FOB, CFR, CIF, Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE, TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
Q2. Can you provide OEM service for CNC machine tools?
A2: Yes, most of machine tools need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A3: We can provide the technical offer with FOB, CFR, CIF, Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE, TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
