Electric city bus 8.5m 10.5m 12m low floor bus brazilian ev motor city bus

Share on (1600370509876):


Price:$73,000.00 - $76,000.00

Quantity:


Product Overview

Description



Product Description

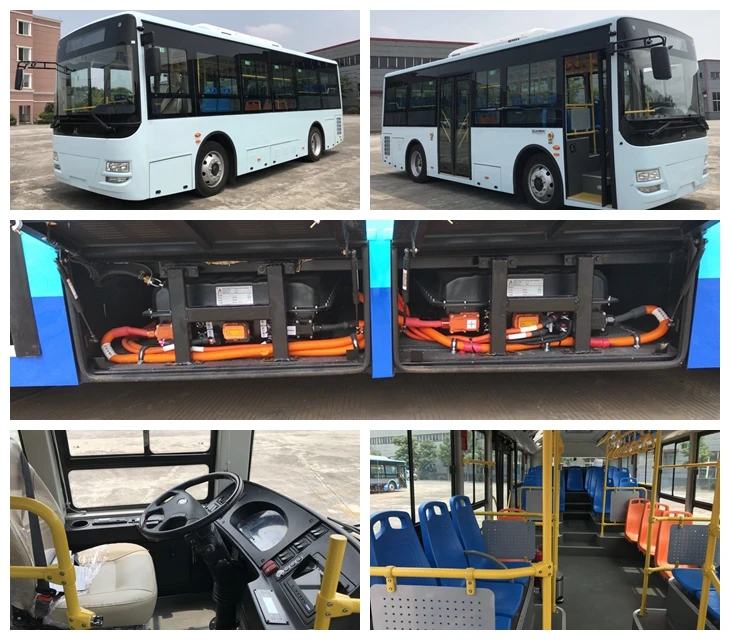

8.5 m all.jpg











































































































































Overall specificationOverall width (mm)2430
Overall height (mm)3198
Wheelbase (mm)4250
 Front/rear overhang (mm)1911/2368
Front/rear wheel tread (mm)1970/1805
Approach/departure angle10/12
Max. GVW (kg)13300
Min. Turning diameter (m)11
Min. Ground clearance (mm)230
Max. Gradeability (%)20
Max. Speed (km/h)69
Seat32+1
Max. Passenger capacity80
Driving specificationElectric motor controllerControlling modeTurning Torque
Model No.CU5044J9
Main motorModel No.TM5035J9
Driving batteryDriving sourceBAK Battery Co., Ltd,
The temary lithium battery
Capacity127.5kwh  (144Wh,463.7V/275Ah)
TypePermanent magnet synchronous motor
Peak power (kw)196KW /2800rpm/2000N.m
Chassis SpecificationChassis modeltwo step
Chassis brandDongfeng
SuspensionLeaf spring : front3/rear4
Front axleDongfeng Dana 4.5T
Rear axleDongfeng Dana 8.5T
Driving shaftEnhanced driving shaft
BrakingFront disc / rear drum
ABSYes
Adjustable armAutomatic ,Chinese brand
Tire255/70R22.5-16PR
Storage batteryDC/DC+12V/150AH x2   DC/DC+12V/150AH x2 maintenance-free storage battery







Company Information







Customer Visit


Client visit 05

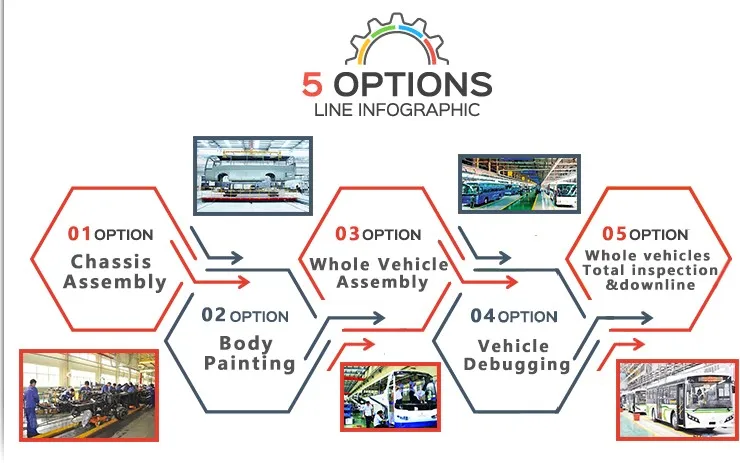

Work Flow


.jpg





Packaging & Shipping







FAQ


1.What is the warranty?


You can enjoy technical support by phone or email forever.We will provide a prompt solution.We also offer the most convenient and efficient spare parts support with competitive price.


2.What is the delivery time?


The delivery time is usually within 35 workdays after we received your prepayment.


3.Do you provide customized service?


Yes, we offer customized service as you need for the performance,including special requirements.


4.What is the payment method?


TT 30% as deposit, balance before shipment by TT or L/C at sight.


5.Why us?


We guarantee professional one-stop service,competitive price with high performance.
