WDZL 203 automatic transformer insulation oil tension tester transformer oil tester
- Category: >>>
- Supplier: Wuhan Wugao Electric Measurement Co. Ltd.
Share on (1600370567618):
Product Overview
Description
Product Overview

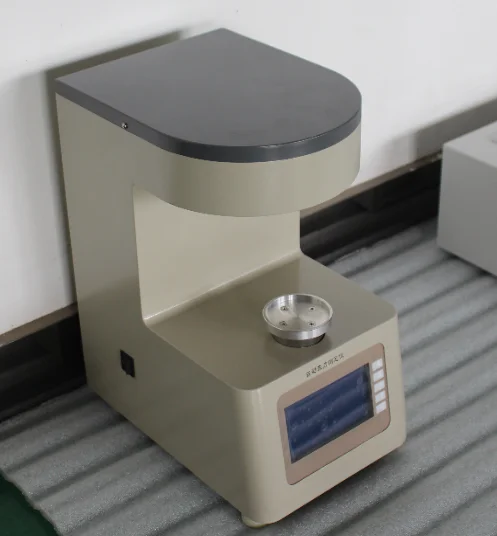

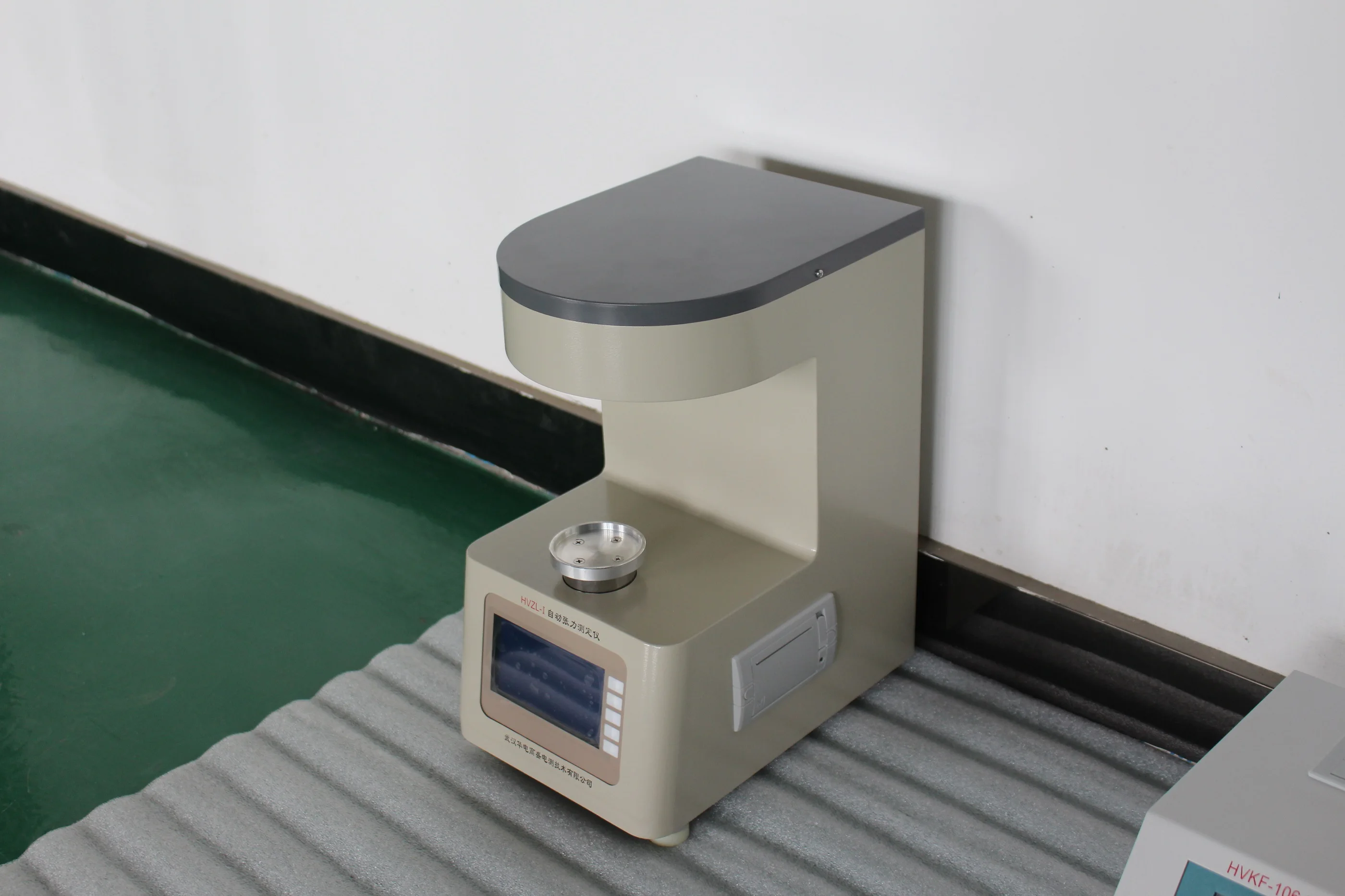

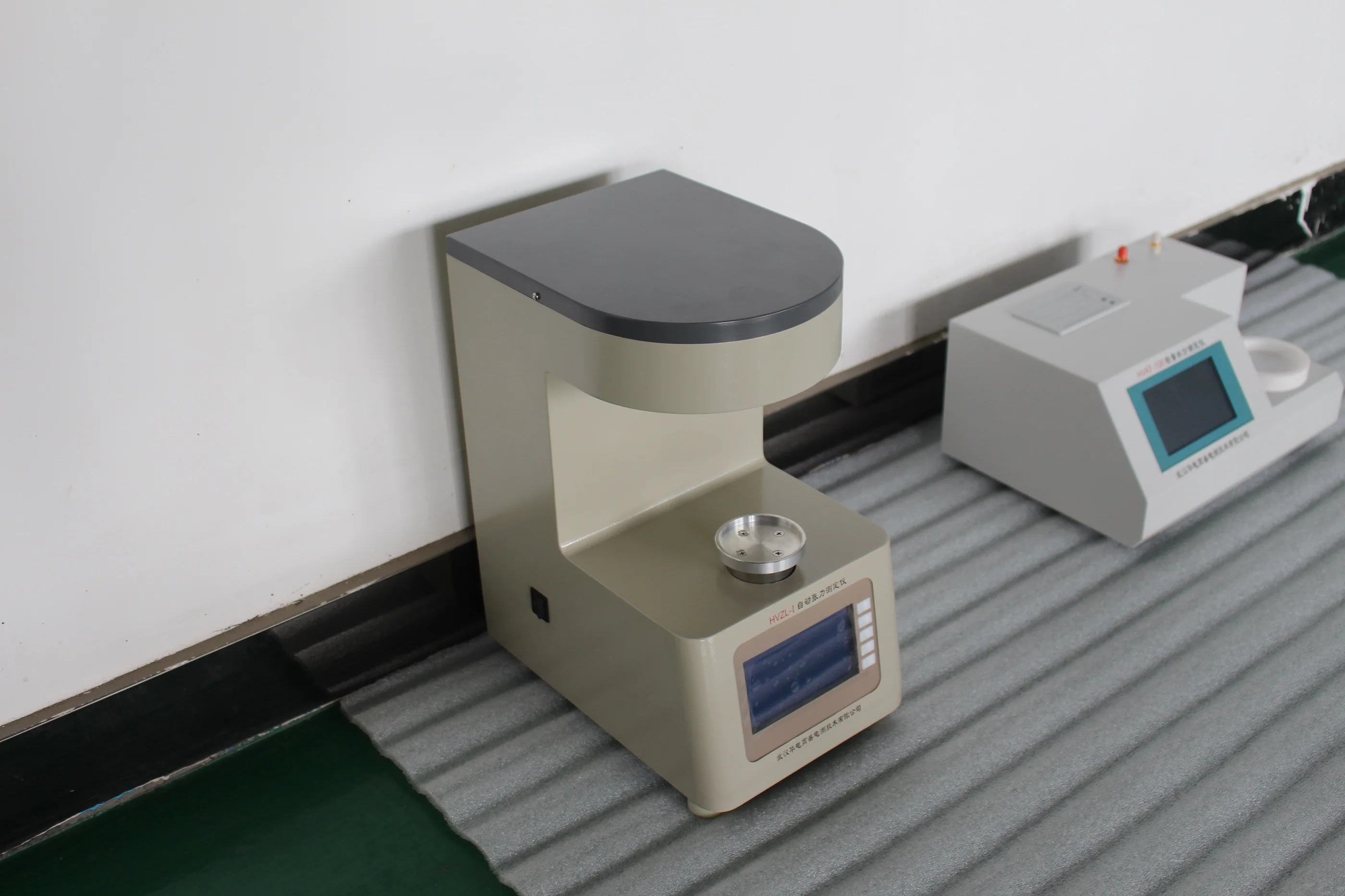

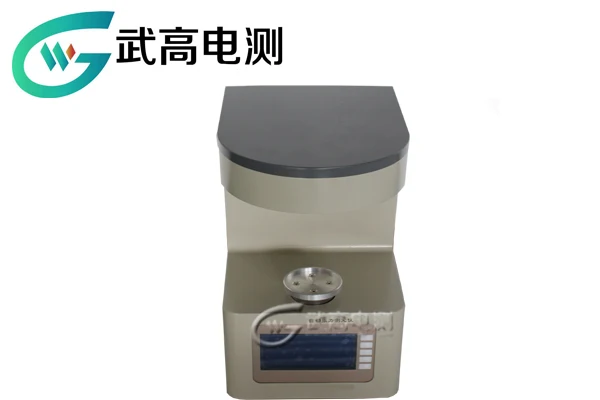

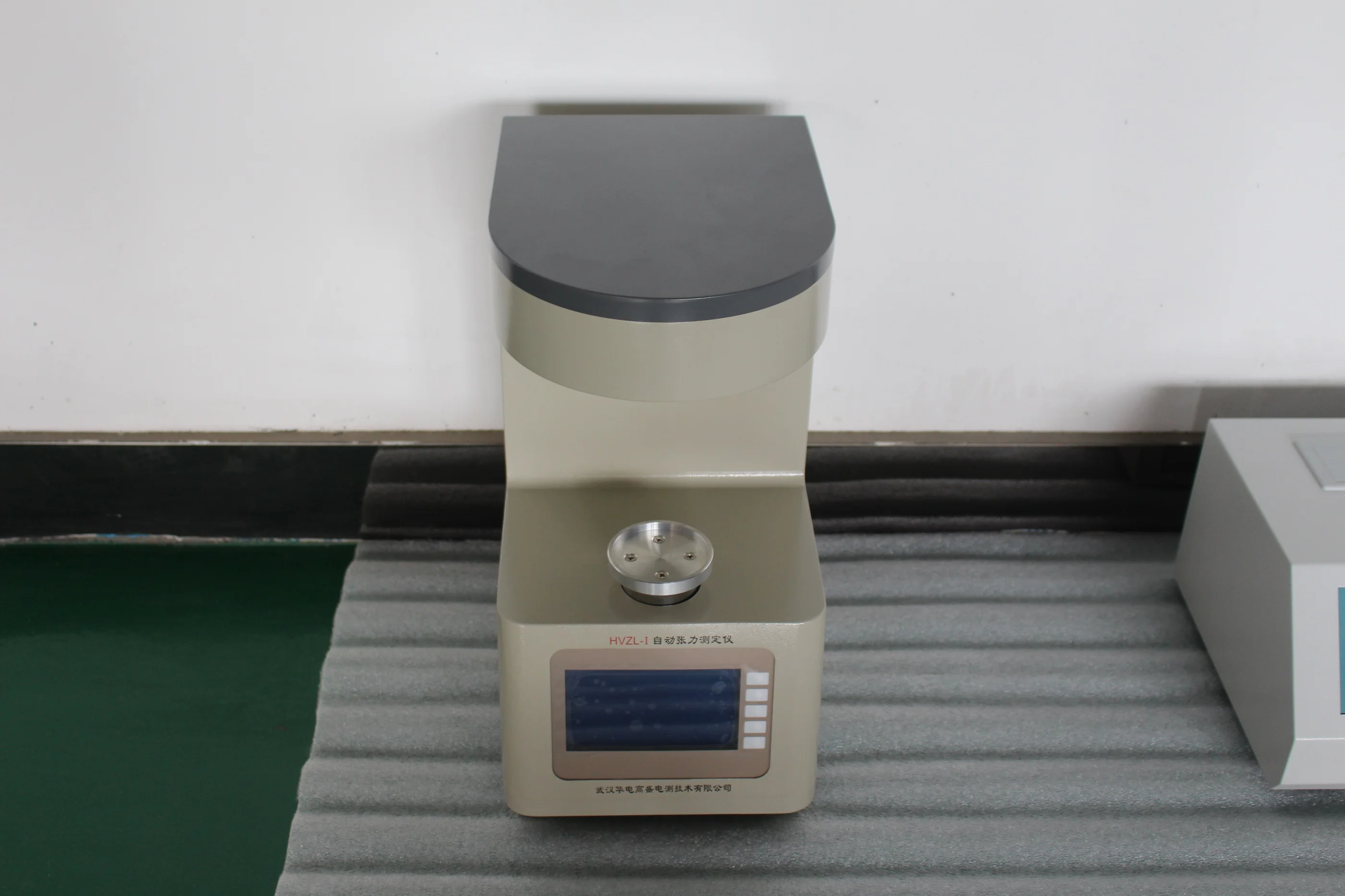

WDZL203 automatic tension tester
WDZL-203 automatic tension tester based on the ring method (platinum ring method), measuring the surface tension of various liquids (liquid-gas interface) and liquid interface tension (liquid-liquid interface). This method is widely used for its
advantages of simple operation and high precision. Widely used in electric power, petroleum, chemical, pharmaceutical, food, teaching and other industries.
advantages of simple operation and high precision. Widely used in electric power, petroleum, chemical, pharmaceutical, food, teaching and other industries.
Products Description
1. The original fast response electromagnetic force balance sensor is used to improve the measurement accuracy and linearity;
2. Instrument calibration only needs to be calibrated one point, which solves the problem that the previous generation of sensors need multi-point calibration. The zero potentiometer and full range potentiometer are removed;
3. Real-time display of equivalent tension value, current weight (can be used as electronic balance weighing);
4. Integrated temperature detection circuit, automatic temperature compensation for test results;
5. 240×128 dot matrix LCD, no identification button, with screen protection function;
6. A maximum of 255 time-marked historical records can be stored.
7. Built-in high-speed thermal micro printer, beautiful printing, fast, with offline printing function;
8. Equipped with standard RC232 interface, can be connected with the computer, easy to process test data;
9. Can realize full Chinese/English interface display;
2. Instrument calibration only needs to be calibrated one point, which solves the problem that the previous generation of sensors need multi-point calibration. The zero potentiometer and full range potentiometer are removed;
3. Real-time display of equivalent tension value, current weight (can be used as electronic balance weighing);
4. Integrated temperature detection circuit, automatic temperature compensation for test results;
5. 240×128 dot matrix LCD, no identification button, with screen protection function;
6. A maximum of 255 time-marked historical records can be stored.
7. Built-in high-speed thermal micro printer, beautiful printing, fast, with offline printing function;
8. Equipped with standard RC232 interface, can be connected with the computer, easy to process test data;
9. Can realize full Chinese/English interface display;
Details Images
Product Paramenters
* Measuring range | 0-200mN/m |
* Accuracy | 0.1% reading ± 0.1Mn /m |
* Resolution | 0.1mN/m |
* sensitivity | 0.1mN/m |
* power supply | AC220V±20% 50HZ±10% |
* Max Power Dissipation | 20W |
* Temperature range | 10 ~ 30℃(typical value 25℃) |
Applicable ambient humidity | ≤85% RH |
Dimension | 200×300×330(mm) |
Weight | 6kg |
