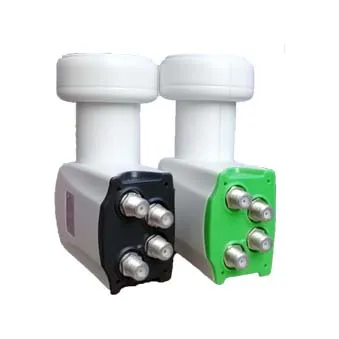

lnb unicable oem QUAD lnb universal digital hd tv signal receive
- Category: >>>
- Supplier: Shenzhen Baerbert Industrial Co. Ltd.
Share on (1600370609443):
Product Overview
Description
Product Description
Specification
Input Frequency Range | Low Band:10.70~11.70GHz |
High Band:11.70~12.75GHz | |
Output Frequency Range | Low Band:950~1950MHz |
High Band:1100~2150MHz | |
L.O. Frequency | Low Band:9.75GHz |
High Band:10.60GHz | |
L.O. Frequency Stability | ±1.0MHz (Max.)@+25℃ |
±2.0 MHz (Max.)@-30℃~+70℃ | |
L.O. Phase Noise | -60dBc/Hz@1KHz |
-80dBc/Hz@10KHz | |
-100dBc/Hz@100KHz | |
Conversion Gain | 60dB(Typ.) |
Noise Figure | 0.3dB(Typ.) |
Gain Flatness | ±0.5dB/26MHz |
Cross POL. Isolation | 25dB(Typ.) |
Image Rejection | 40dB(Min.) |
Output VSWR | 2.0:1(Max.) |
P1dB | 0dBm (Min.) |
DC Current Consumption | 80mA(Typ.) |
Low/High Band Switching | Low Band:0Hz |
High Band:22KHz±4KHz | |
POL. Switching Voltage | 10.5~14.0V @Vertical |
16.0~20.0V @Horizontal | |
Relative Humidity | 0%~95% |
Operating Temperature | -30℃~+70℃ |
Connector Type | 75Ω Female Connector |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FAQ
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with many years of manufacturing experience
Q:How to order?
A: Contact our salesperson(below sent inquiry or right instant message or Chat Tools )
Q:Do you offer samples for testing?
A:We can offer free samples, but freight cost would be customers side.
Q:What’s your MOQ?
A:3000 pieces.
Q:How long a sample order takes?How about bulk order?
A:Sample order: normally within one week,
Bulk order:usually takes 20 days according to quantities.
Q:How do you ship the goods and how long does it take to arrive?
A:We usually ship the goods by sea/air and the arrival time depends on the distance.
Q:What is your payment terms?
A:T/T 30% deposit, 70% before shipping or other payment method.
Q:Do you provide OEM service?
A:Yes, we can do it according to your actual needs.
