Hot sales 2021 China supplier mini vans CHERY YOYO 1.2 Liter 7 9 Seats 2WD min van mini bus
- Category: >>>
- Supplier: Jinan Shine International Trade Co. Ltd.
Share on (1600370665459):
Product Overview
Description
Product Display
Chery Karry YOYO Q22L 9 seats Mini Van parameter configuration table | ||
Material No. | ||
Model | 舒适 Comfort | |
Dimensions and weight | ||
Length × width × height (mm) | 4430×1626×1930 | |
Wheelbase (mm) | 2800 | |
Track (front/rear) (mm) | 1360/1380 | |
Minimum ground clearance （Full load）(mm) | 155 | |
Minimum turning radius (m) | 5.25 | |
Curb weight (kg) | 1300 | |
Tire specification | 175/65 R14 86T | |
Number of seats （including driver seat） | 9 | |
Powertrain | ||
Engine model | ACTECO-SQR472WB | |
Engine type | Horizontal four cylinder in-line, DOHC 16V ,electronic multi-point injection gasoline engine | |
Engine dispalcement (cc) | 1173 | |
Maximum power (kw/rpm) | 59/6000 | |
Maximum torque (N.m/rpm) | 106 /3500～4500 | |
Compression ratio | 10:01 | |
Maximum speed (km/h) | 130 | |
Transmission type | 5MT | |
Fuel tank capacity (L) | 40 | |
Emissions level | EURO V 欧四 | |
Final Gear Ratio | 4.778 | |
Brake, suspension and wheel drive | ||
Type of brake system (front/rear) | Front disc brake and rear drum brake | |
Type of brake system (front/rear) | Front suspension: McPherson independent suspension, a cylindrical coil spring ;dual-acting tube damper; Rear suspension: leaf spring dependent suspension, dual-acting tube damper | |
Type of brake system (front/rear) | MR | |
Safety | ||
Body | Semi-integral body with full metal | |
Steering | Adjustable and collapsible、energy-absorbing steering column | |
Safety belts | Front row two sets of 3-point seat belts with retractor pretensioner,Middle row two 3-point seatbelts and one 2-point seatbelt,Third row two 3-point seatbelts and one 2-point seatbelt,Fouth row two 3-point seatbelts and one 2-point seatbelt | |
Airbags | Double front airbags | |
Active safety system | ABS+EBD | |
Cruise Control System | Cruise Control System | |

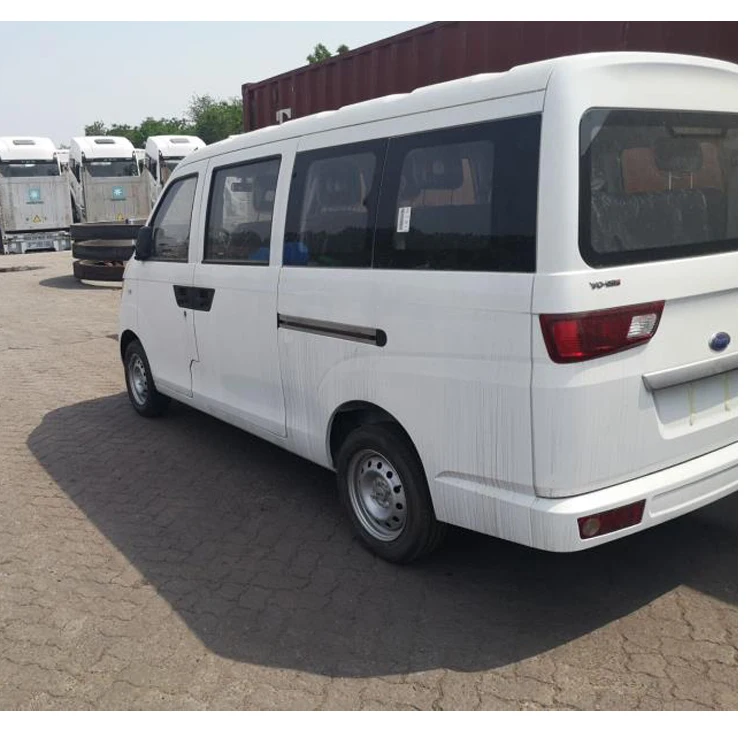

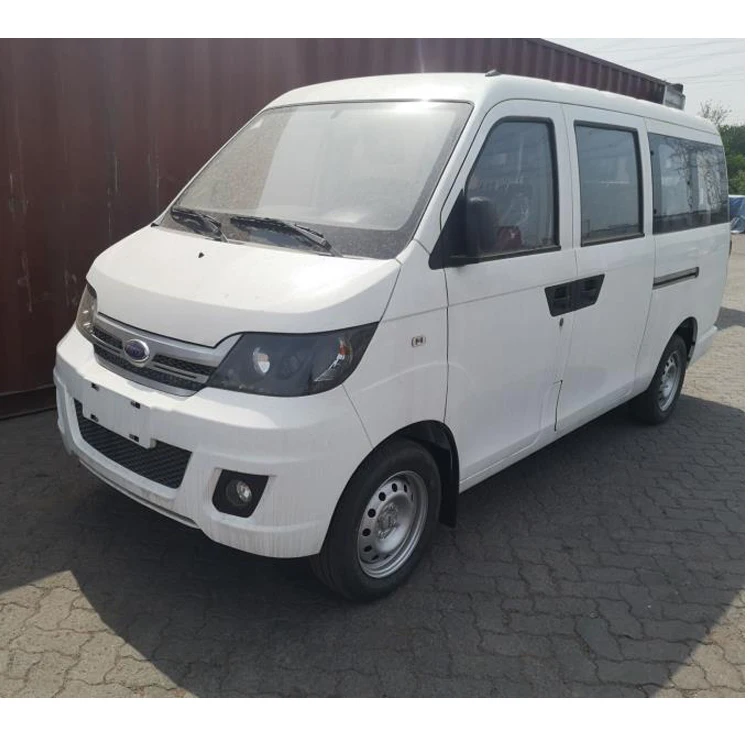

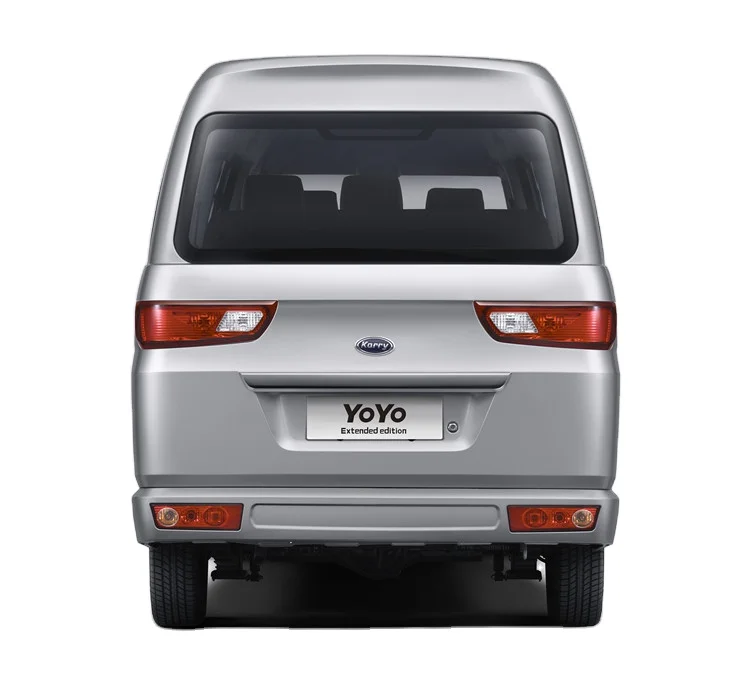

Chery Karry YOYO Q22L 9 seats Mini Van
Detail Display
4 processes for passenger car
The intelligent robots are applied for the 4 manufacturing processes of the vehicle, namely stamping, welding, painting and final assembly, and for the final assembly, the full-automatic flexible production line is applied to create an intelligent, flexible and digital factory, well guaranteeing the quality of products..
Lots of space，
Comfortable riding environment
Comfortable riding environment

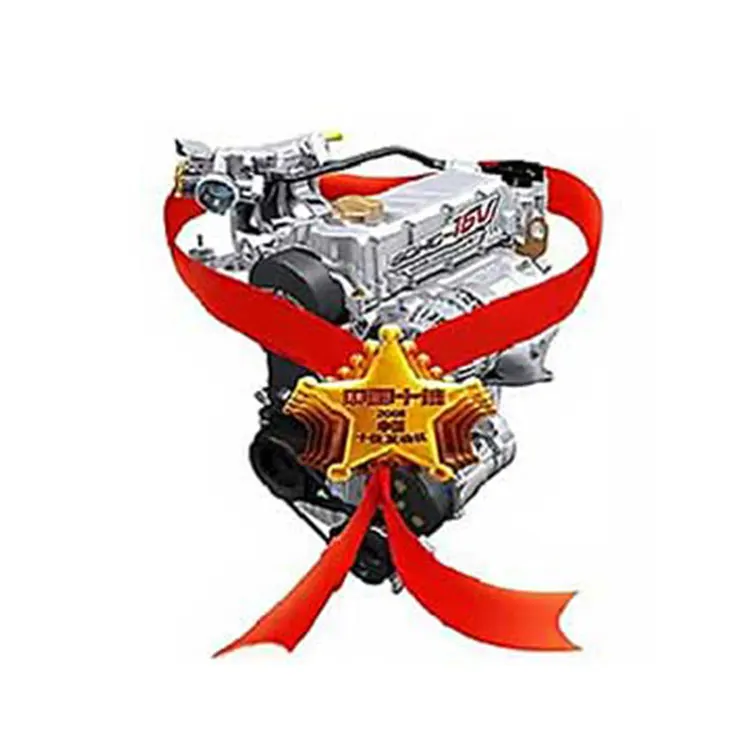

Superlong-warranty engine
The Chery ACTECO engine is provided with a superlong warranty period, safe and reliable
Standard 2 front airbags
The vehicle comes standard with 2 front airbags, greatly improving the riding safety of occupants.
Product details
ABS for preventing wheel locking and tail drift
Such function features accurate control, well guaranteeing the driving safety as the vehicle is always under the your monitoring
Cage-type body
The cage-type body consists of side wall, roof cross beam, front bumper, front door anti-collision bar, front door reinforcement plate, sliding door anti-collision bar, sliding door reinforcement plate, framework side beam and framework cross beam.
Product Parameters
1. Body colors are optional: Chery White, Nasdaq Silver; 1. Body Colors: white, Silver 2. The whole car reflects the KARRY logo 2. KARRY logo
Product name | China Mini 4*2 Van/cargo/box Truck |
Engine | horizontal 4cylinders DOHC, 16V,multipoint electric fuel injection |
Number of seats | 9 |
Related Products
Company Information
Chery Holding Group was established on October 20, 2010, located in Wuhu Economic and Technological Development Zone, Anhui, China. Based on the auto industry, Chery Holding makes full use of the system advantages and brand effect, integrates all kinds of social resources, and promotes diversified development steadily.
The subordinate investment industry incudes various business segments, including the cars, auto parts production and R&D, shipbuilding, financial investment, service trade, etc. covering about 80 countries and regions across the world. At present, the company has over 48000 employees and more than 120 billion Yuan of total assets.
Driven by innovation and with the pursuit of excellence, Chery Holding is determined to be a leader in each of its field and become an influential and trustworthy group brand.
The subordinate investment industry incudes various business segments, including the cars, auto parts production and R&D, shipbuilding, financial investment, service trade, etc. covering about 80 countries and regions across the world. At present, the company has over 48000 employees and more than 120 billion Yuan of total assets.
Driven by innovation and with the pursuit of excellence, Chery Holding is determined to be a leader in each of its field and become an influential and trustworthy group brand.
Certifications
production line
Customer visit

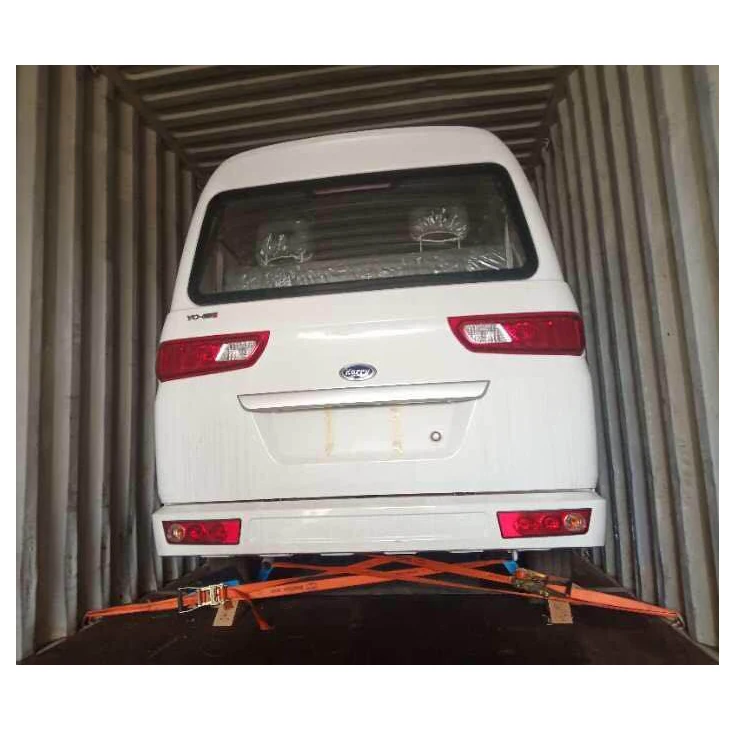

Shipping &transportation
June 2018
The first Philippines order of Karry auto were shipped successfully
February 2018
The first 240 sets of SKD parts shipped to Algeria.
June 6, 2018
The first Myanmar order of Karry auto were shipped successfully.
May 2020
Comoros orders will be shipped.
2020-05-08
Recently, Chery Commercial Vehicle Pakistan CKD Equipment Delivery Ceremony took place in Chaohu, Anhui Province.
Packing Plan Diagram Display
Leadship Care & Company Culture
FAQ
1. Which countries do we export to?
Asia: Vietnam, Thailand,India, Indonesia, Malaysia, Philippines, brunei,Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belgium, Spain, Portugal, Czech republic, Switzerland, Bulgaria etc.
South America: Brazil, Colombia, Peru, Chile, Paraguay, Argentina, etc.
Norhth America:The United States, Canada, Mexico, el Salvador, costa rica, panama ect.
Africa: Algeria, Egypt, Ethiopia, Senegal, South Africa, Rwanda ect.
2. Can you customize and design as the clients' requirement?
We will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients.
3. What logistics ways we can work for delivery?
1) For most Europe, South America and Africa etc. countries we can go by container or Roro through ocean freight.
2) For neighborhood countries of China, such as Russia, Vietnam, Kazakhstan, Uzbekistan etc. we can delivery by road or railway.
3) For light spare parts in urgent requirement, we can send it by international courier service, such as DHL, TNT, EMS or other air transportation.
4. What's the payment terms do you accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight.
5.Which INCOTERMS 2010 we can work?
As a professional experienced supplier, we can handle all INCOTERMS 2010 terms, and we normally work on FOB, CFR, CIF, DAP, FCA, EXW etc.
6.Delivery date:
If clients need normal products, we will deliver the products within 25days. If clients need customerized products, the delivery date depend on the requirements
Asia: Vietnam, Thailand,India, Indonesia, Malaysia, Philippines, brunei,Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belgium, Spain, Portugal, Czech republic, Switzerland, Bulgaria etc.
South America: Brazil, Colombia, Peru, Chile, Paraguay, Argentina, etc.
Norhth America:The United States, Canada, Mexico, el Salvador, costa rica, panama ect.
Africa: Algeria, Egypt, Ethiopia, Senegal, South Africa, Rwanda ect.
2. Can you customize and design as the clients' requirement?
We will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients.
3. What logistics ways we can work for delivery?
1) For most Europe, South America and Africa etc. countries we can go by container or Roro through ocean freight.
2) For neighborhood countries of China, such as Russia, Vietnam, Kazakhstan, Uzbekistan etc. we can delivery by road or railway.
3) For light spare parts in urgent requirement, we can send it by international courier service, such as DHL, TNT, EMS or other air transportation.
4. What's the payment terms do you accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight.
5.Which INCOTERMS 2010 we can work?
As a professional experienced supplier, we can handle all INCOTERMS 2010 terms, and we normally work on FOB, CFR, CIF, DAP, FCA, EXW etc.
6.Delivery date:
If clients need normal products, we will deliver the products within 25days. If clients need customerized products, the delivery date depend on the requirements
