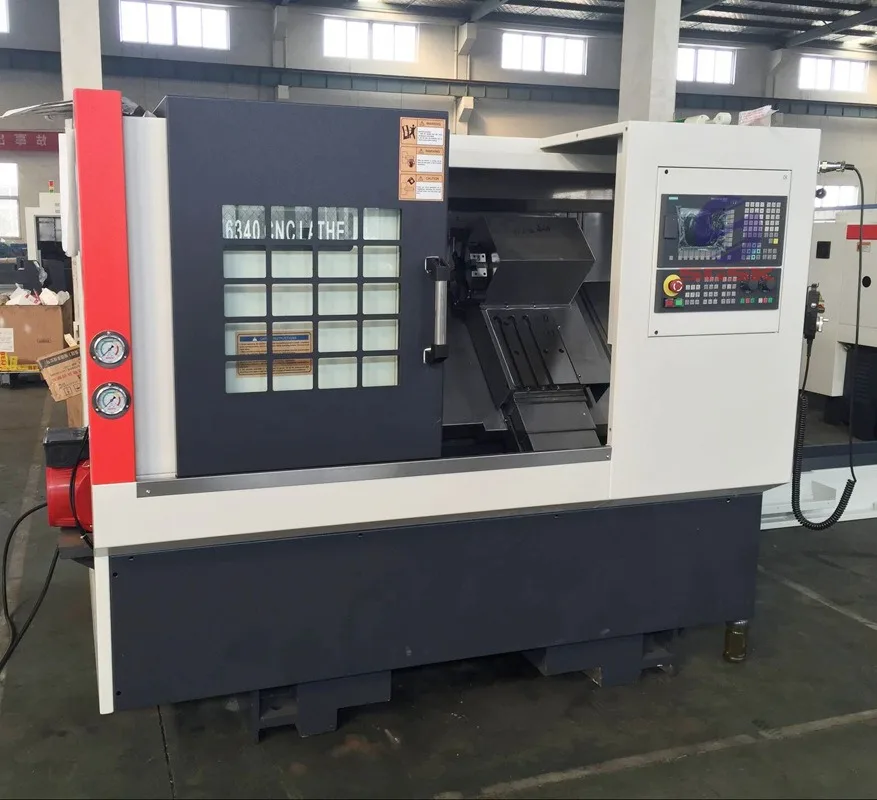

2021 Cnc Lathe Turning Center Slant Bed 10 Inch Hollow Hydraulic Chuck 5axis Cnc Metal cutting Milling Machine Slant Bed Lathe

Units

TCK50A

Swing over bed

mm

500

Swing over cross slide

mm

190

Distance between centers

mm

370

Spindle bore

mm

65

Bar capacity

mm

45

Spindle nose type

-

A2-6

Spindle speed steps

-

Stepless

Spindle speed range

rpm

3500

Turret/tool post

-

Hydraulic turret

Tool size

mm

25x25

X axis travel

mm

240

Z axis travel

mm

400

X axis rapid traverse

mm/min

18000

Z axis rapid traverse

mm/min

18000

Main spindle motor

kW

11

Tailstock quill diameter

mm

70

Tailstock quill taper

-

MT4

Tailstock quill travel

mm

80

Tailstock travel

mm

200

Guide rail type

-

Slant bed linear rail

Machine weight

kg

2900

Overall dimension

mm

2500x1700x1750
