Silicon Gauge 700 Bar Pressure Sensor for Air Gas Liquid Water Monitoring (1600370717007)

Share on:


Price:$28.00 - $36.00
Price in USD:Details

Quantity:


Product Overview

Description



Products Show

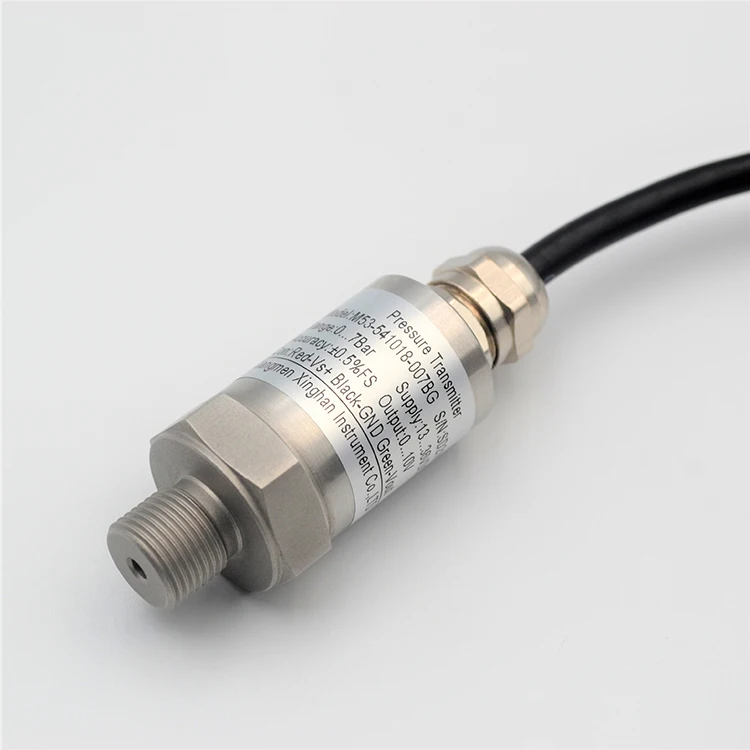

Silicon Gauge 700 Bar Machinery Pressure Sensor for Air Gas Liquid Water Hydraulic Monitoring

1. No leakage, the integrated pressure chamber without O-ring, a whole structure of metal design
2. Wide temperature range, range of working temperature from -40℃ to 125℃
3. High overload, proof pressure rated as 2-3X while burst pressure as 3-5X
4. Interference-resistance, German sophisticated circuit design, capability of withstanding radio frequency interference and electromagnetic interference


Product Paramenters




Model number
M5300
Range
0~7 Bar~700 Bar, customerized
Output
4-20mA / 0-10V / 0-5V / 1-5V / 0.5-4.5V
Customized support
OEM, ODM
Thread
M20*1.5 / G 1/4 / Customerized
Accuracy
±0.5%FS、±0.25%FS
Electrical connection
Hirschman / Direct cable / M12 / Packard connector
Power supply
13~36V DC / 5V DC


Dimensions




Optional Choice for Electrical Connection




Why Choose Us






M5000 series of Pressure Transmitters, based on Micro-fused Glass Strain Sensor, work in industrial and resident application.
M5000 series of Pressure Transmitters have the edge of low-cost, strong stability, high accuracy, high overload and impact resistance .
1. They are applied with imported sensitive components and special digital compensation amplifier circuit, greatly preventing electromagnetic interference.
2. They are designed as an integrated structure without O-ring, avoiding potential leakage problems.
3. Housing uses SS304 material as outer protection and is welded with the help of continuous laser welding technology to ensure secure capability.




Manufacturing Technique




Our engineering team consists of people full of designing and R&D experience, coupled with a comprehensive independent development and testing process, so as to ensure each product reaching to the standard of high stability, accuracy and versatility when applied in practice.
M5000 Series of Pressure Transmitters, on the basis of Micro-fused Strain Gauge Pressure Sensors, are configured with sophisticated processing technology and stringent standard of quality-testing.
To ensure each product work smoothly and steadily, please kindly contact us if questioning on design and capability of products. Appropriate solution will be provided ASAP.


Transportation




Company Profile




JXI ( Jiangmen Xinghan Instrument Co., Ltd. ) is a high-tech enterprise, integrating technology, R & D, manufacturing, sales and service of sensor and transmitters. Our goal is to provide customized design and manufacturing services associated with pressure, force, displacement sensors and transmitters for our customers.
Our domestic markets are located in more than 30 provinces in China. At present for better services, our company has expanded to more than 1000㎡ of production and office space, equipped with advanced testing, calibration and production equipment etc.
We also maintain tight cooperation and business dealings with many well-known enterprises abroad and our products are widely used in aerospace, hydraulic equipment, air conditioning and refrigeration, water supply and other fields.
Our company is co founded by technologists with more than 15 years of sensor development experience. MSG (Micro-Fused Strain Gauge) is one of our core technology platforms. We grasp the core technology of the whole production process of MSG pressure sensor, and transform the technical advantages into efficient technical service and stable product quality.
We adhere to the quality first, service-oriented spirit, and our professional technical team is to timely provide customers with customized product application, professional technical support, first-class product integrated service and supporting solution according to their actual needs.






FAQ




1. What's the order process?
1)Inquiry---provide us with all clear requirements (specification of products, total QTY and package details).
2) Quotation---official quotation from with all clear specifications from our professional team.
3) Marking Sample --- confirm all quotation details and the final sample.
4) Production---mass production.
5) Shipping---by sea or by air.

2. What terms of payment you use?
As for the payment terms, it depends on the total amount.

3. How do you ship the products?
By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .

4. What is the average delivery time?
Sample usually takes about 10-20 days, depending on product type.
Bulk order usually takes about 35 days.

5. How would I get a price list for a wholesaler ?
Please e-mail us or contact our customer services, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
