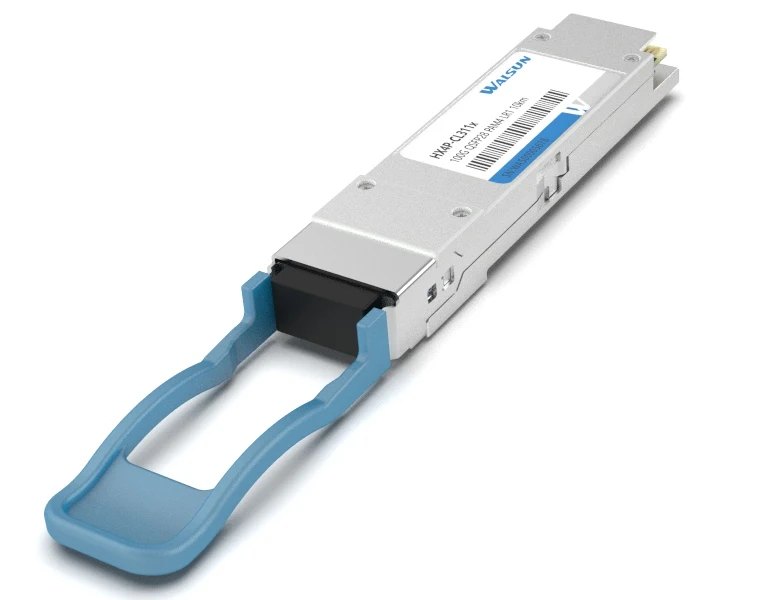

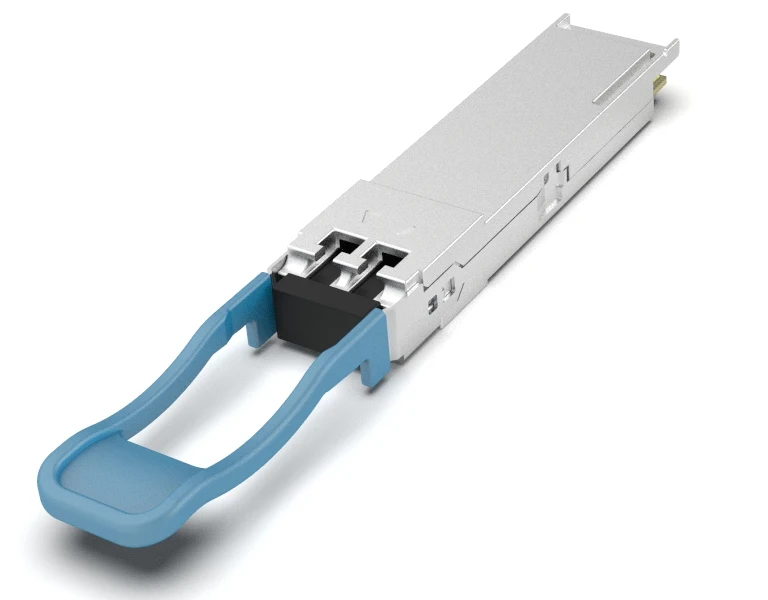

[1.25 400G all series optical module] 100G QSFP28 PAM4 LR1 1310nm 10km DDM LC for industrial optical module
[1.25-400G all series optical module] 100G QSFP28 PAM4 LR1 1310nm 10km DDM LC for industrial optical module
[1.25-400G all series optical module] 100G QSFP28 PAM4 LR1 1310nm 10km DDM LC for industrial optical module
[1.25-400G all series optical module] 100G QSFP28 PAM4 LR1 1310nm 10km DDM LC for industrial optical module
[1.25-400G all series optical module] 100G QSFP28 PAM4 LR1 1310nm 10km DDM LC for industrial optical module
[1.25-400G all series optical module] 100G QSFP28 PAM4 LR1 1310nm 10km DDM LC for industrial optical module

[1.25 400G all series optical module] 100G QSFP28 PAM4 LR1 1310nm 10km DDM LC for industrial optical module

Share on (1600370730908):


Price:$210.00 - $220.00

Quantity:


Product Overview

Description







Product Features
Compliant with QSFP28 MSA with LC connector
Supports 103.1Gb/s aggregate bit rate
4x25G electrical interface (OIF CEI-28G-VSR) Duplex LC optical receptacle
Support Digital Diagnostic capabilities interface
No external reference clock
RoHS-10 compliant and lead-free
Single +3.3V power supply
Maximum power consumption 3.5W
All-metal housing for superior EMI performance
Case operating temperature : -40°C to +85°C




Product Number
Data Rate（Gb/s）
Wavelength（nm）
Reach（km）
LD
Tx Power（dBm）
PD
Rx Sens（dBm）
Temperature（℃）
HX4P-CL311C
100
1310
10
EML
-4.3～4.5
PIN
< -10.6
-40~85










To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.




1. Can the price be negotiable?
Re: Yes, best price for you and depend on quantity.
2.what is the lead time?
Re: For standard products,we keep enough stock, shipping out in 1-3 days after PO confirmation.For big quantity and special products,Please check lead time with our sales representative.
