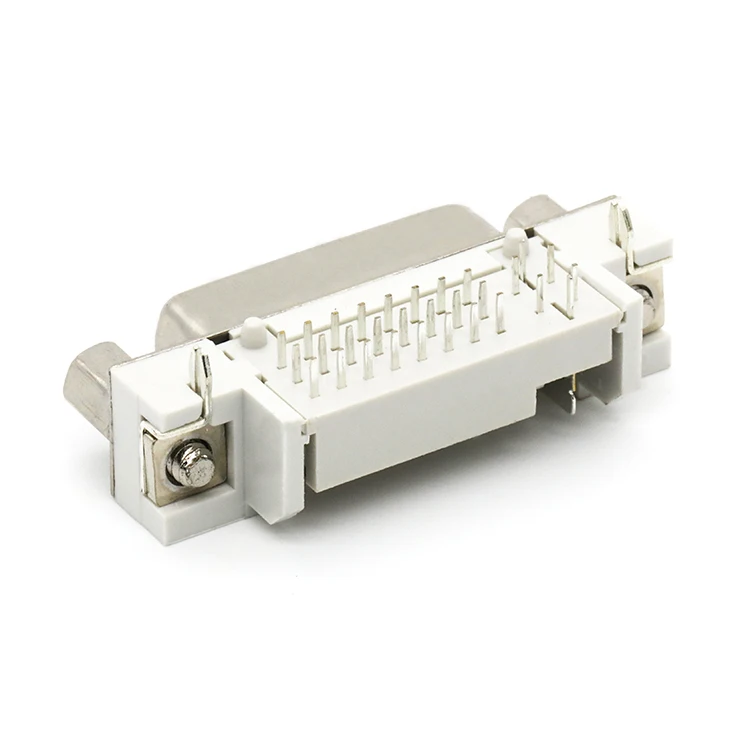

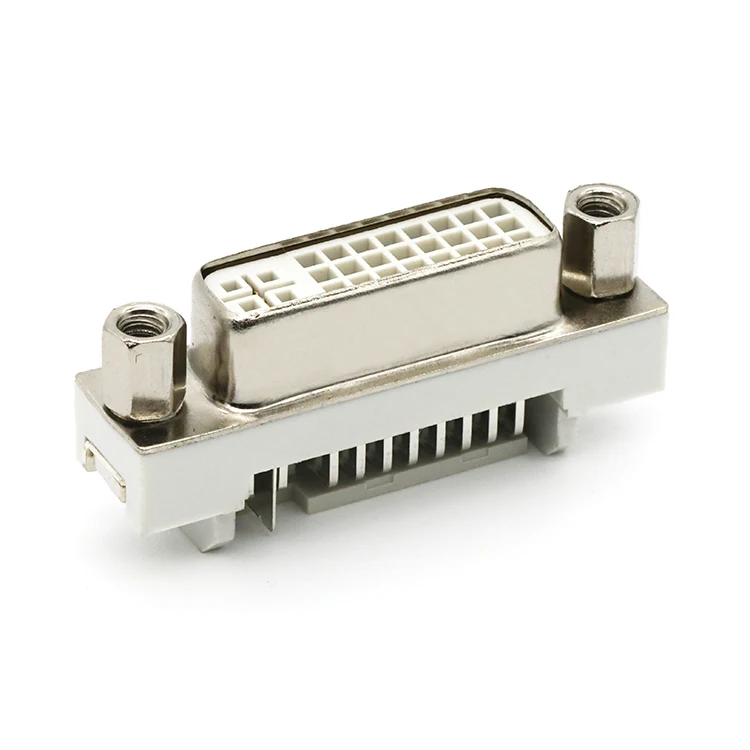

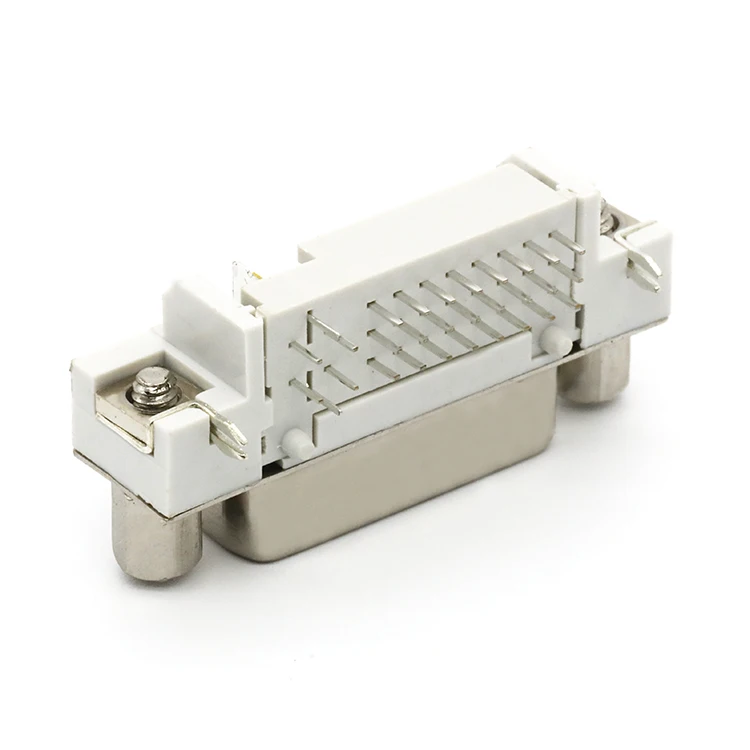

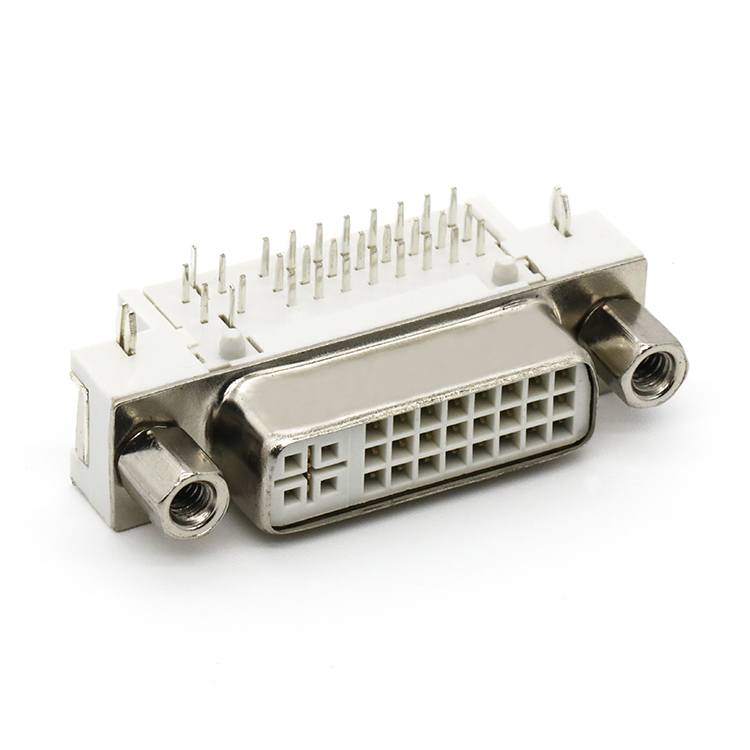

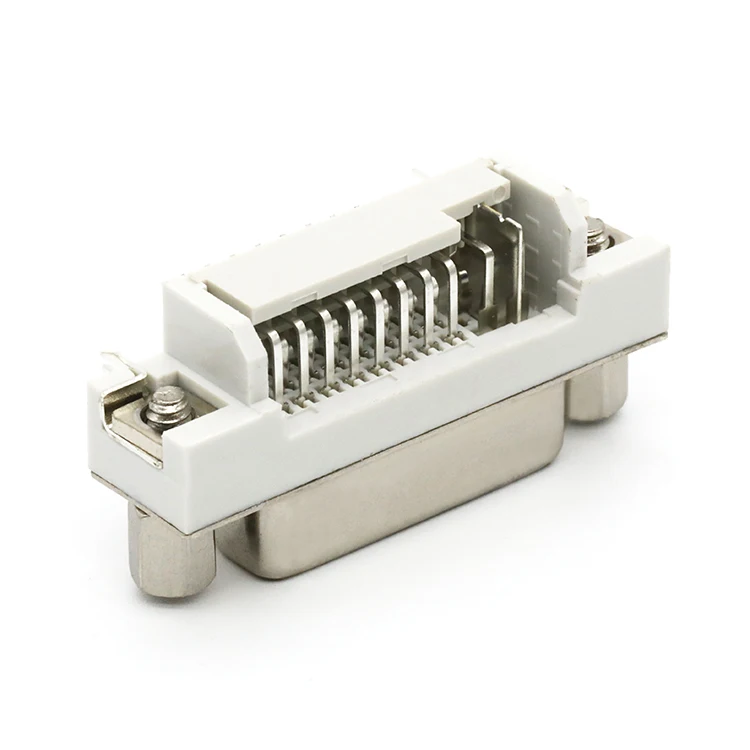

29Pin Right Angle DVI Female 24 5Pin Connector DVI Right Angle Connector
29Pin Right Angle DVI Female 24+5Pin Connector DVI Right Angle Connector
29Pin Right Angle DVI Female 24+5Pin Connector DVI Right Angle Connector
29Pin Right Angle DVI Female 24+5Pin Connector DVI Right Angle Connector
29Pin Right Angle DVI Female 24+5Pin Connector DVI Right Angle Connector
29Pin Right Angle DVI Female 24+5Pin Connector DVI Right Angle Connector
29Pin Right Angle DVI Female 24+5Pin Connector DVI Right Angle Connector

29Pin Right Angle DVI Female 24 5Pin Connector DVI Right Angle Connector

Share on (1600370738508):


Price:$0.31 - $0.32

Quantity:


Product Overview

Description





























































Insulator


PBT 94V-0,White


Shell


SPCC T=0.50


Current Rating


1.5A


Dielectric Withstand Voltage


40V


Contact Resistance


30 MILIOHMS MAX


Insulation Resistance


1000 MEGOHMS MIN


Operating Temperature


-20 °c ~ 85 °c


Mating Force


3.57 Kgf Max


Unmating Force


1.0 Kgf Min


Durability


3000 Cycles


Certification


ISO9001,ROHS,SGS


Packaging


Tray Package


SPQ


50PCS/Tray

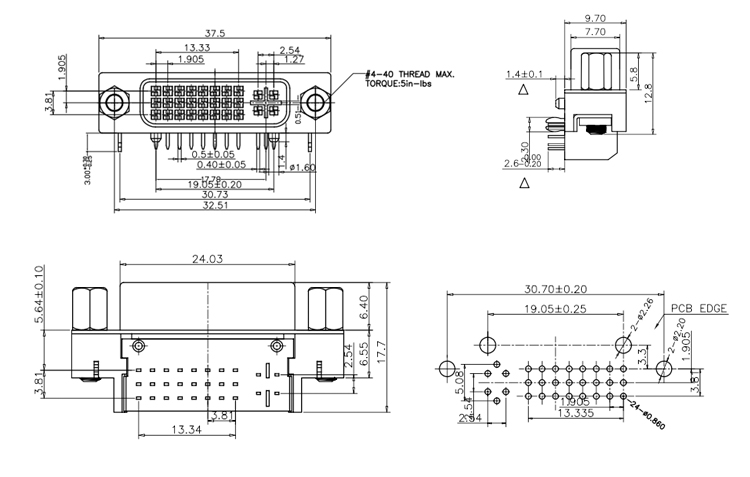

Contact me to get PDF and 3D Drawing.





Email: bella(at)bestcreate-elec.com
Skype: belle.wu3340
Tel/Whatsapp:0086-13712299763













































29Pin Right Angle DVI Female Connector for Video Audio Display29Pin Right Angle DVI Female Connector for Video Audio Display29Pin Right Angle DVI Female Connector for Video Audio Display29Pin Right Angle DVI Female Connector for Video Audio Display29Pin Right Angle DVI Female Connector for Video Audio Display
