Product Overview
Description
Product Overview

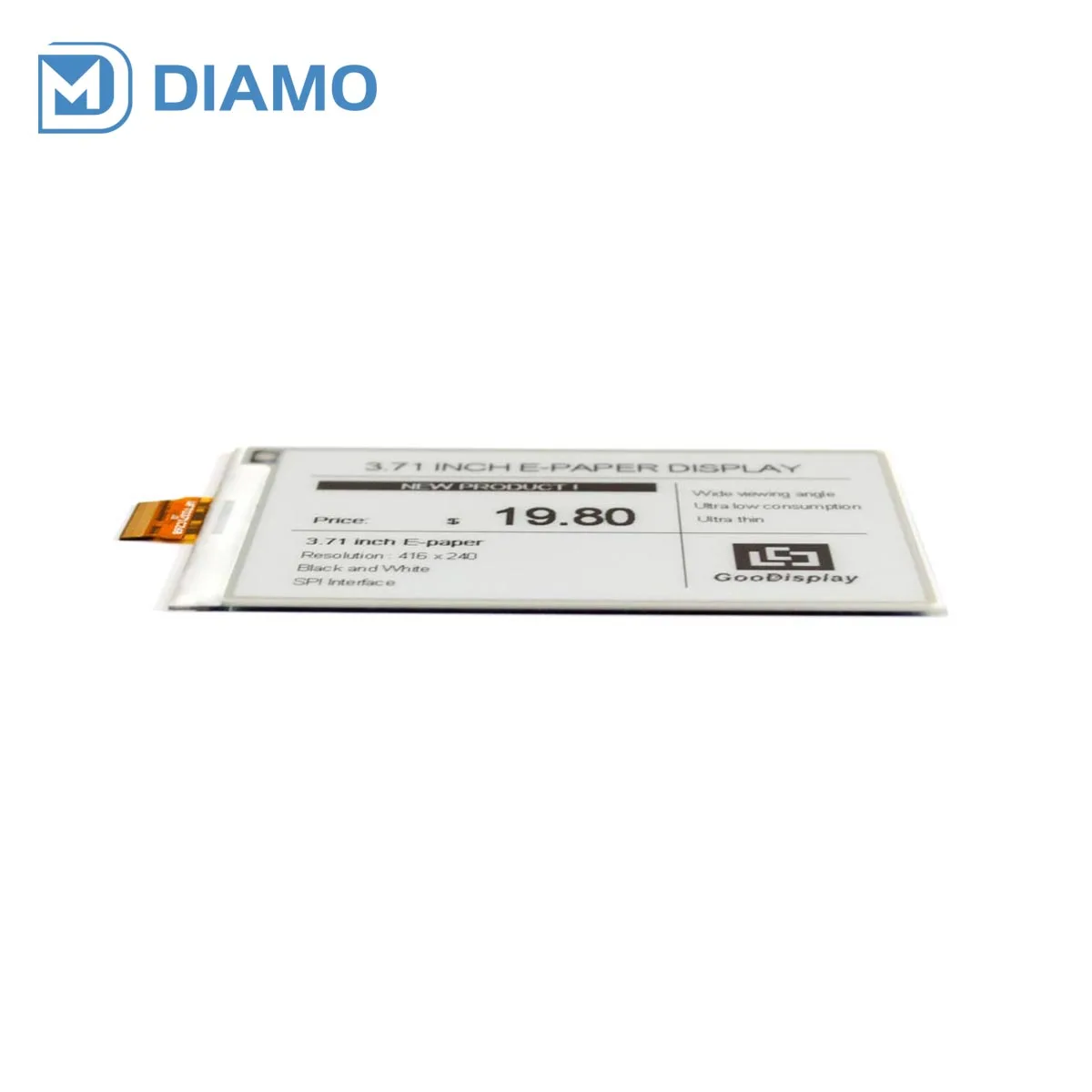

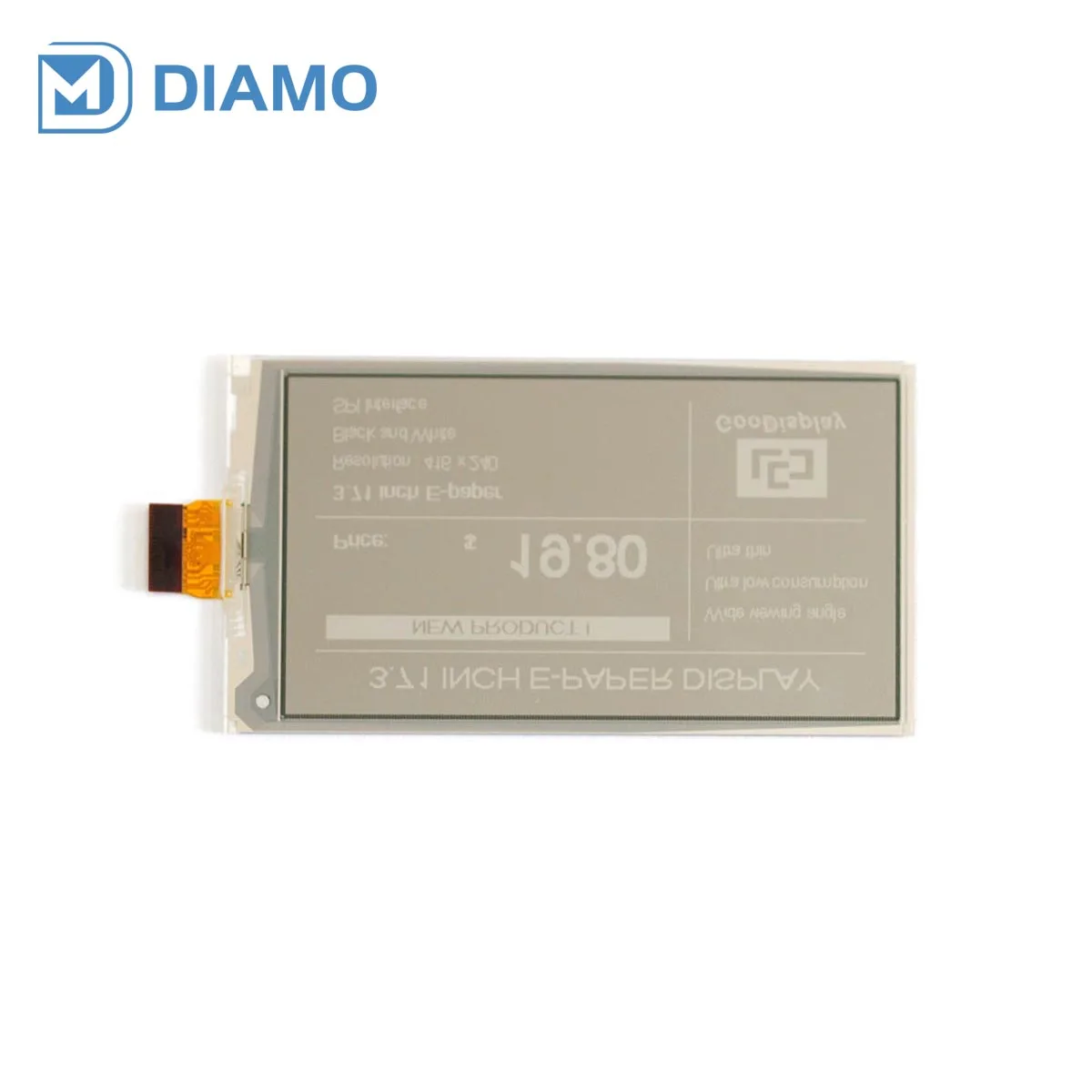

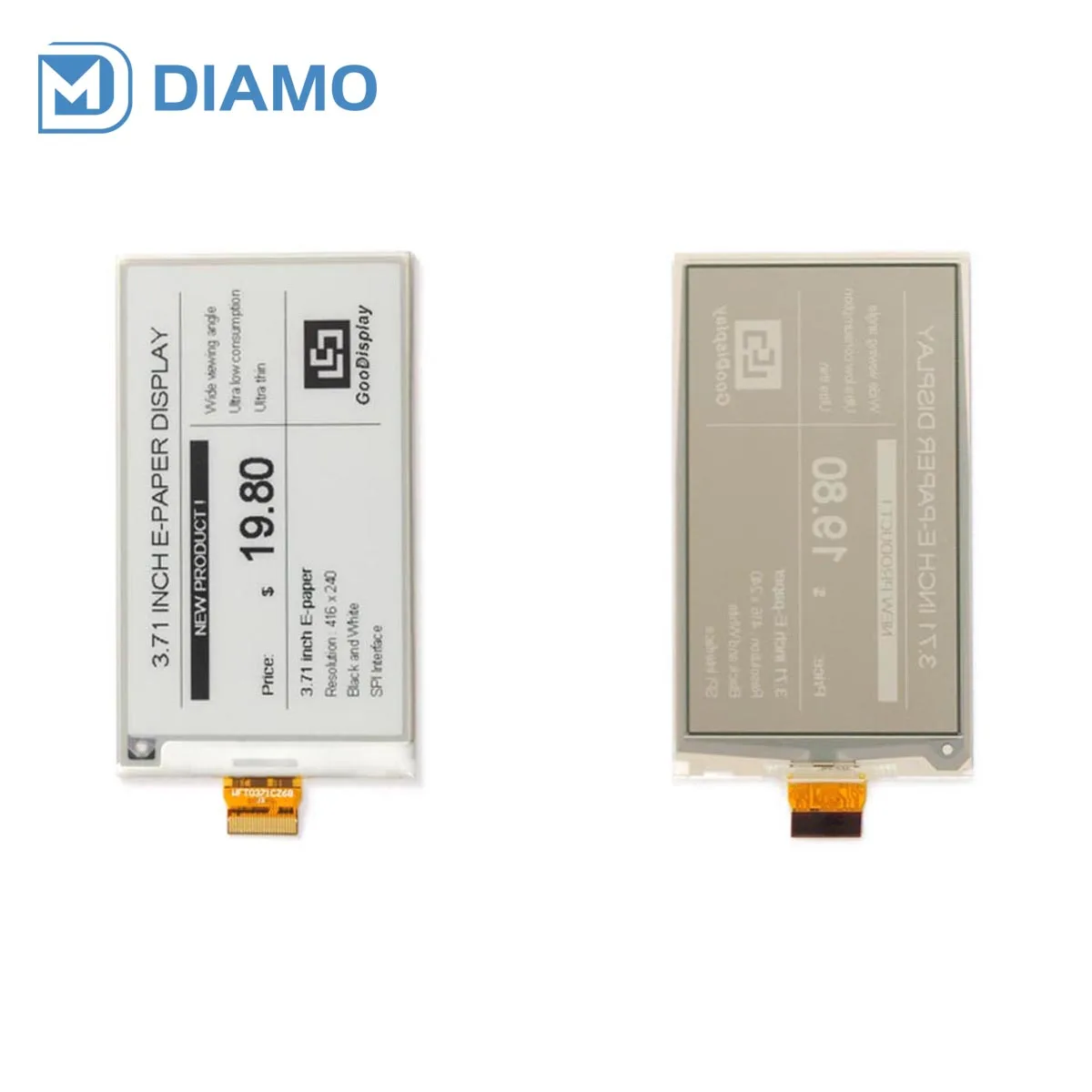

3.7 inch e-ink display 4 grayscale GDEW0371W7
3.71 inch small e-ink display with 416x240 resolution, SPI interface, black and white. Support 4 Grayscale. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW0371W7 is perfect for low power devices powered by solar or batteries.
We could provide Touch screen and other accessories for you.
Related datasheet and documents will be offered after you getting your products.
♦416 x 240 resolution
♦Support 4 Grayscale
♦Touch screen is available
♦SPI interface
♦Support 4 Grayscale
♦Touch screen is available
♦SPI interface
♦I2C Signal Master Interface to read external temperature sensor.

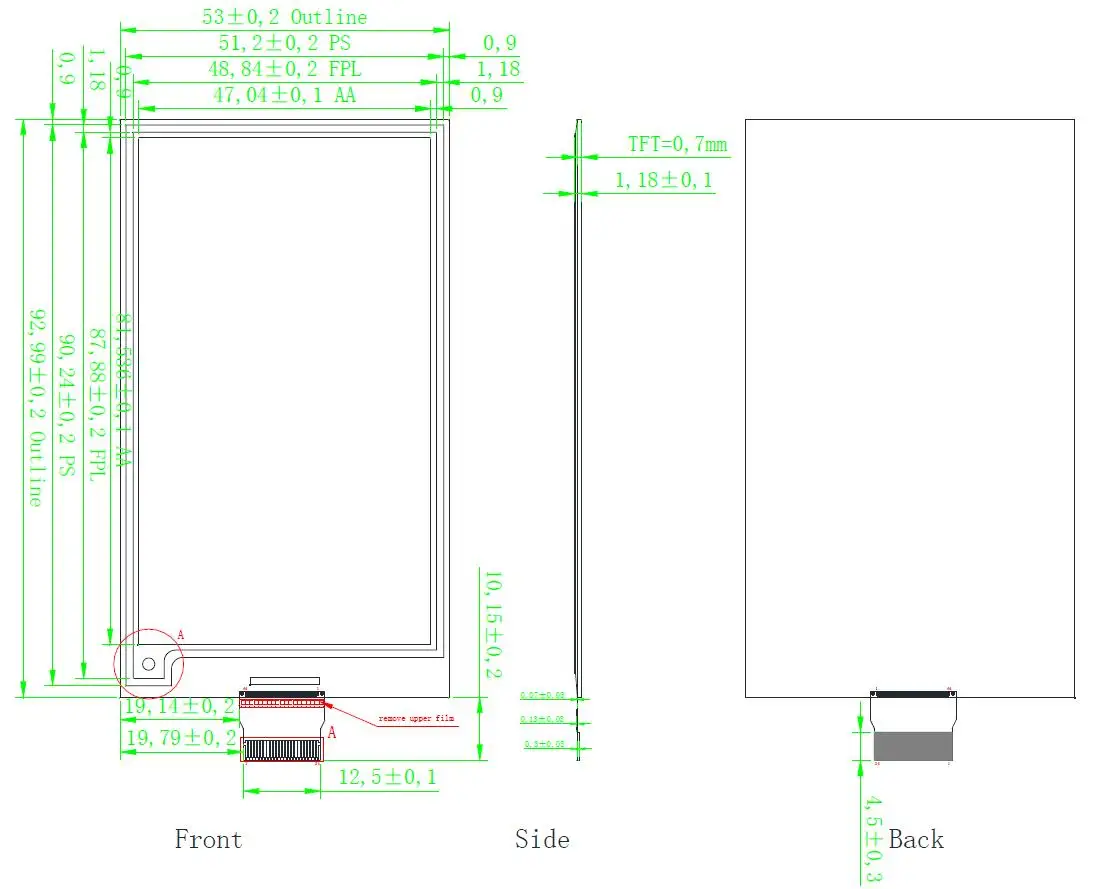

Front elevation
Side elevation
Back elevation
PRODUCT SPECIFICATIONS
PART NUMBER | GDEW0371W7 |
TYPE | Dot Matrix |
IC | UC8171 |
RESOLUTION | 416x240 |
OUTLINE SIZE(mm) | 92.99x53x1.18 |
ACTIVE SIZE(mm) | 81.536x47.04 |
PIXEL PITCH(mm) | 0.196x0.196 |
OPERATING TEMP. | 0℃~50℃ |
STORAGE TEMP. | -25℃~70℃ |
CONNECTOR | 24 Pin FPC |
MAX GRAYSCALE | 4 |
COLOR | Black,White |
INTERFACE | SPI |
FULL REFRESH(s) | 3 |
POWER CONSUMPTION OF THE REFRESH(mW) | 26.4 |
STANDBY POWER CONSUMPTION (mW) | 0.09 |
TOUCH SCREEN | Optional |
Drawing / Structure
PRODUCT CONFIGURATION
2.13 inch e-paper display GDEW0213T5D * 1
24 Pin FPC * 1
