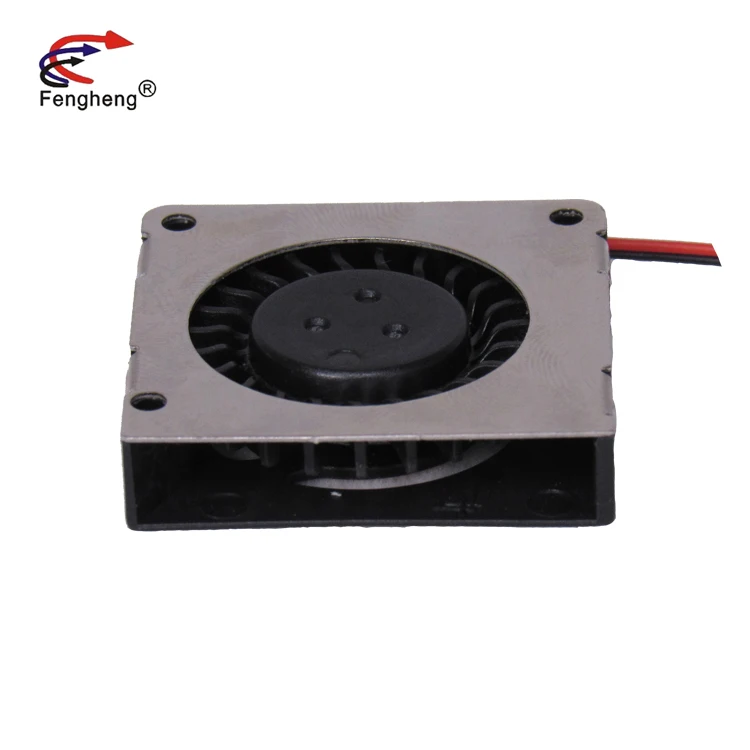

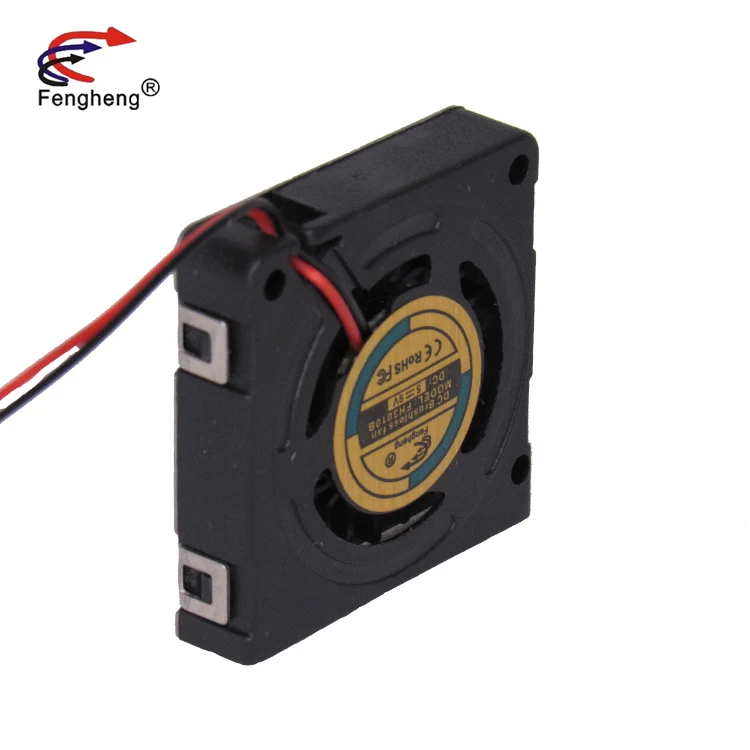

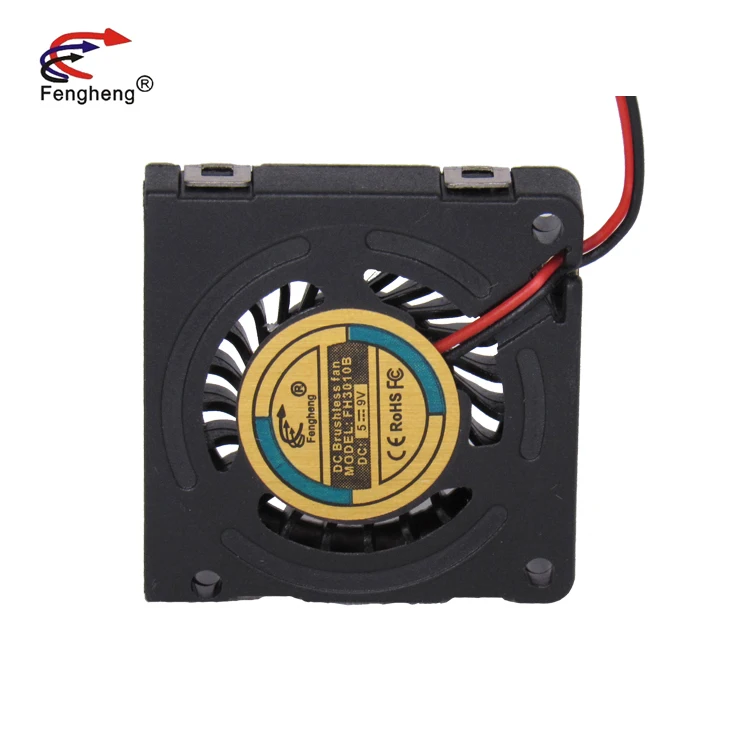

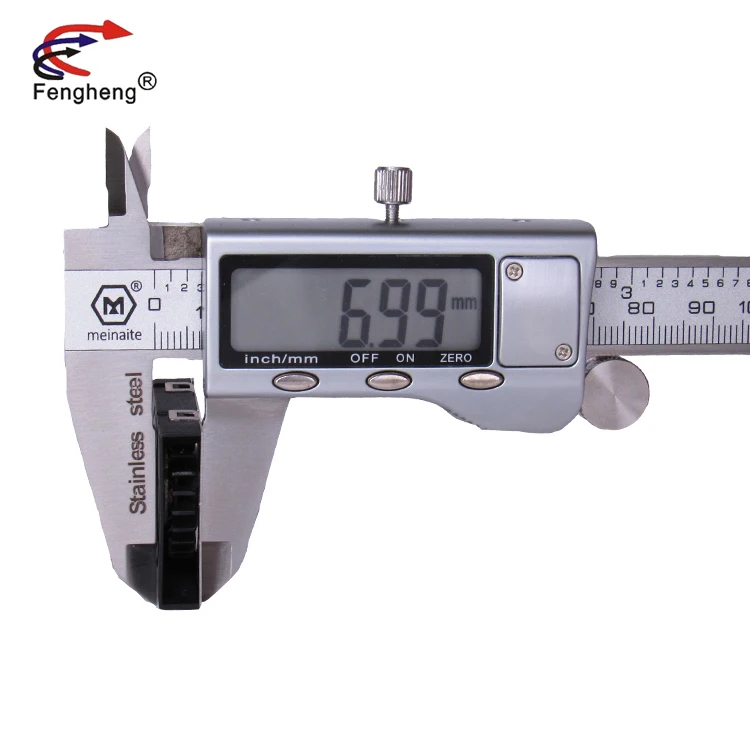

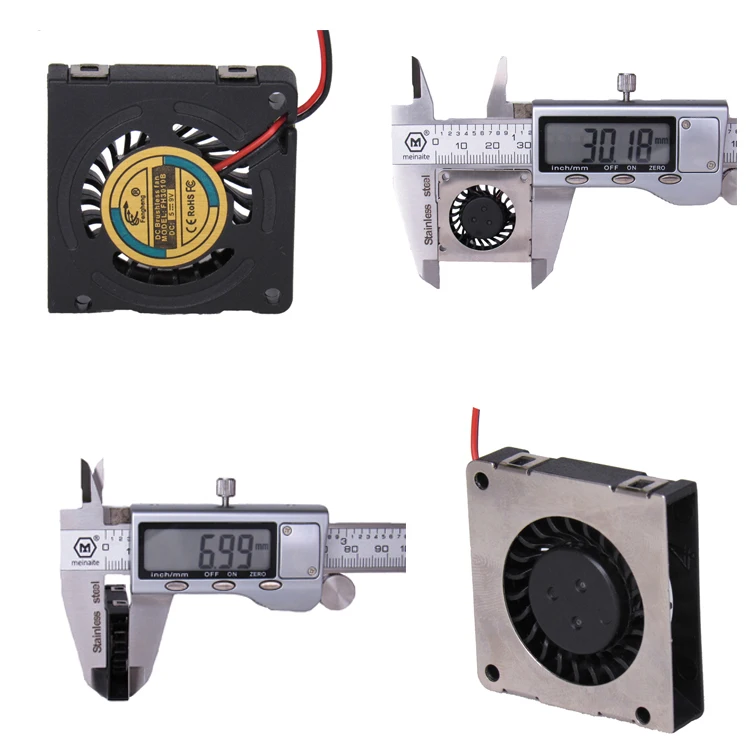

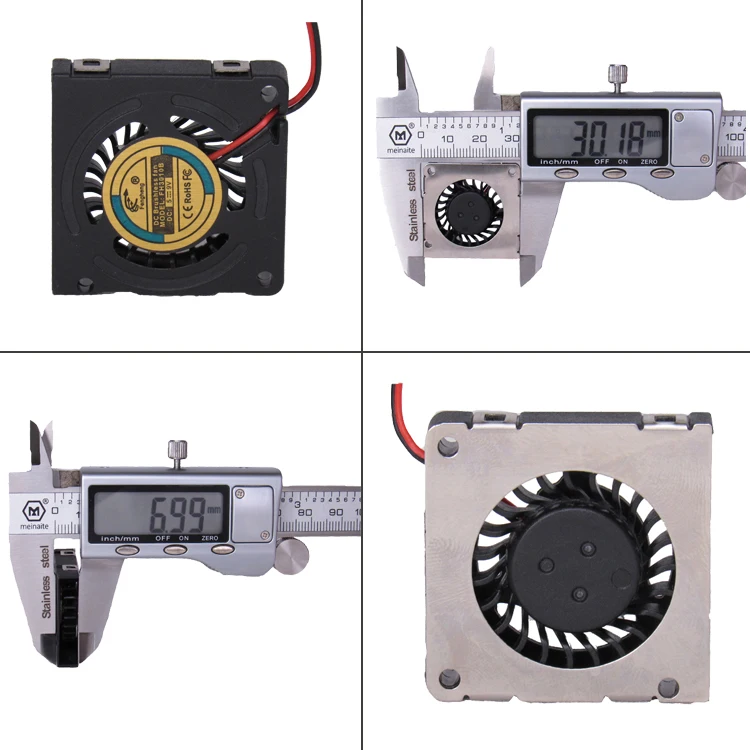

FH3007 5v 12v 30x30x07mm 2Pin DC mini waterproof Silent centrifugal Blower Fan 30mm for Medical equipment
- Category: >>>
- Supplier: Shenzhen City Fengheng Technology Co. Ltd.
Share on (1600370770210):
Product Overview
Description
FH3007 5v 12v 30x30x07mm 2Pin DC mini waterproof Silent centrifugal Blower Fan 30mm for Medical equipment
Avalilable Functions
| NO1: Motor Protection | NO2: Signal Out Put | NO3:Speed Control Mode | |||||||||||||
| RP | SS | LP | CL | OVP | FG | RD | RDB | LD | PWM | TC | VC | CC | CS | ||
| ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ | ||
Specification

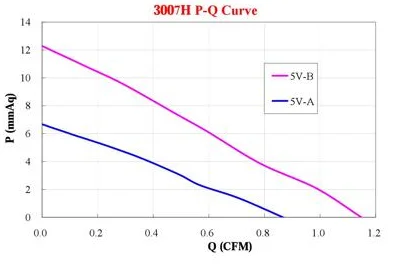

| Model | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Weight | ||
| PART NO. | B/S/Y | VDC | VDC | AMP | WATT | R.P.M | m3/min | CFM | mmH20 | INH20 | DB-A | g |
| FH3007L5 | S | 5 | 2.8 to 5.5 | 0.10 | 0.50 | 8500 | 0.06 | 0.95 | 6.67 | 0.10 | 25.9 | 5 |
| FH3007M5 | S | 5 | 2.8 to 5.5 | 0.15 | 0.75 | 11000 | 0.08 | 1.22 | 12.29 | 0.15 | 26.6 | 5 |
| FH3007L12 | S | 12 | 7.0 to 13.5 | 0.05 | 0.60 | 6000 | 0.10 | 2.10 | 2.22 | 0.20 | 25.3 | 5 |
| FH3007M12 | S | 12 | 7.0 to 13.5 | 0.07 | 0.84 | 8000 | 0.12 | 2.80 | 5.23 | 0.25 | 26.5 | 5 |
If you want another rpm or voltage or functions which one in the list ,please contact with our sales.
Notes: Product have a detail in the approval sheet.
Notes:Specifications are subject to change without notice.
