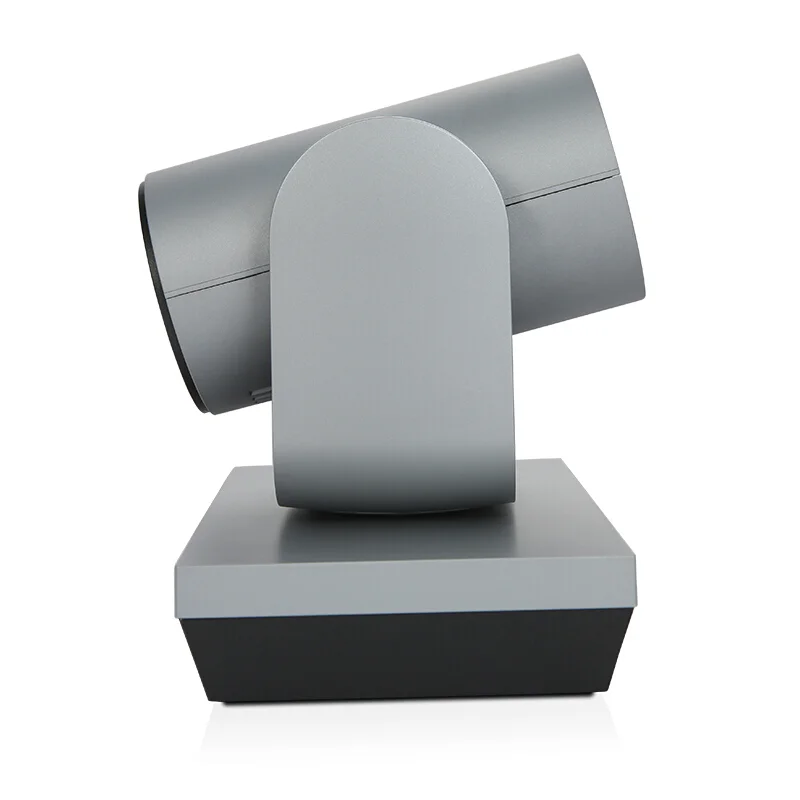

Wide angle Fixed zoom Video conference camera HD1080P image quality Compatible with win7/8/10
- Category: >>>
- Supplier: Shanghai Shidao Electronic Technology Co. Ltd.
Share on (1600370784402):
Product Overview
Description
Product Description
HOSODO-VL200 Fixed lens full hd 1920x1080 video conference camera with USB2.0 output
Technical parameter
Image Sensor | 1/2.7" SONY CMOS |
Effective Pixels | 2.1 Megapixel |
Minimum Scene illumination | 0.1 Lux at F1.6 |
White Balance | ManualL/Auto |
Gain Control | Auto |
Back-light compensation | Support |
S/N Ratio | >50db |
IRIS | F1.7-F3.0 |
Focus Lens | 4mm |
Lens | Wide Angle fixed lens |
Horizontal ViewAngle | 72° |

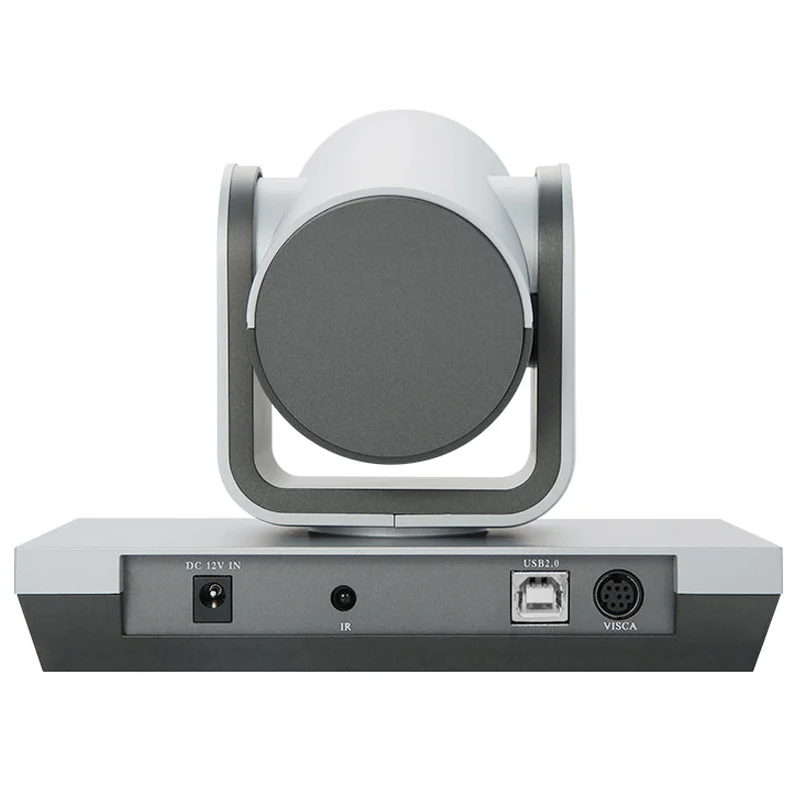

Video Output | USB 2.0 Type B |
Video format | MJPEG: 1080P30/25,720P30/25,640x480, 640x360 |
Control Interface | USB |
PTZ Control Protocol | VISCA, PELCO-D, UVC |
Baud Rate | 9600/38400 bps |
Patrol tours | 4 |
Preset | 64 |
OSD Menu | Support |
Speed Matching Function | Support |
Image Auto Flip | Support flip/mirror |
Pan Speed | 0-40 degrees/s |
Tilt Speed | 0-40 degrees/s |
Pan Rotation Angle | 0-330 degree |
Tilt Rotation Angle | + 30, - 30 degree |
Auto Pan Scan | Support |
Remoter Control | IR Wireless remote control P/T/Z |
Power | DC12V±10%，1 Ah Power supply |
Operation Temperature | 0℃～50℃ |
Environmental humidity | 0-95%RH(non-condensaion) |

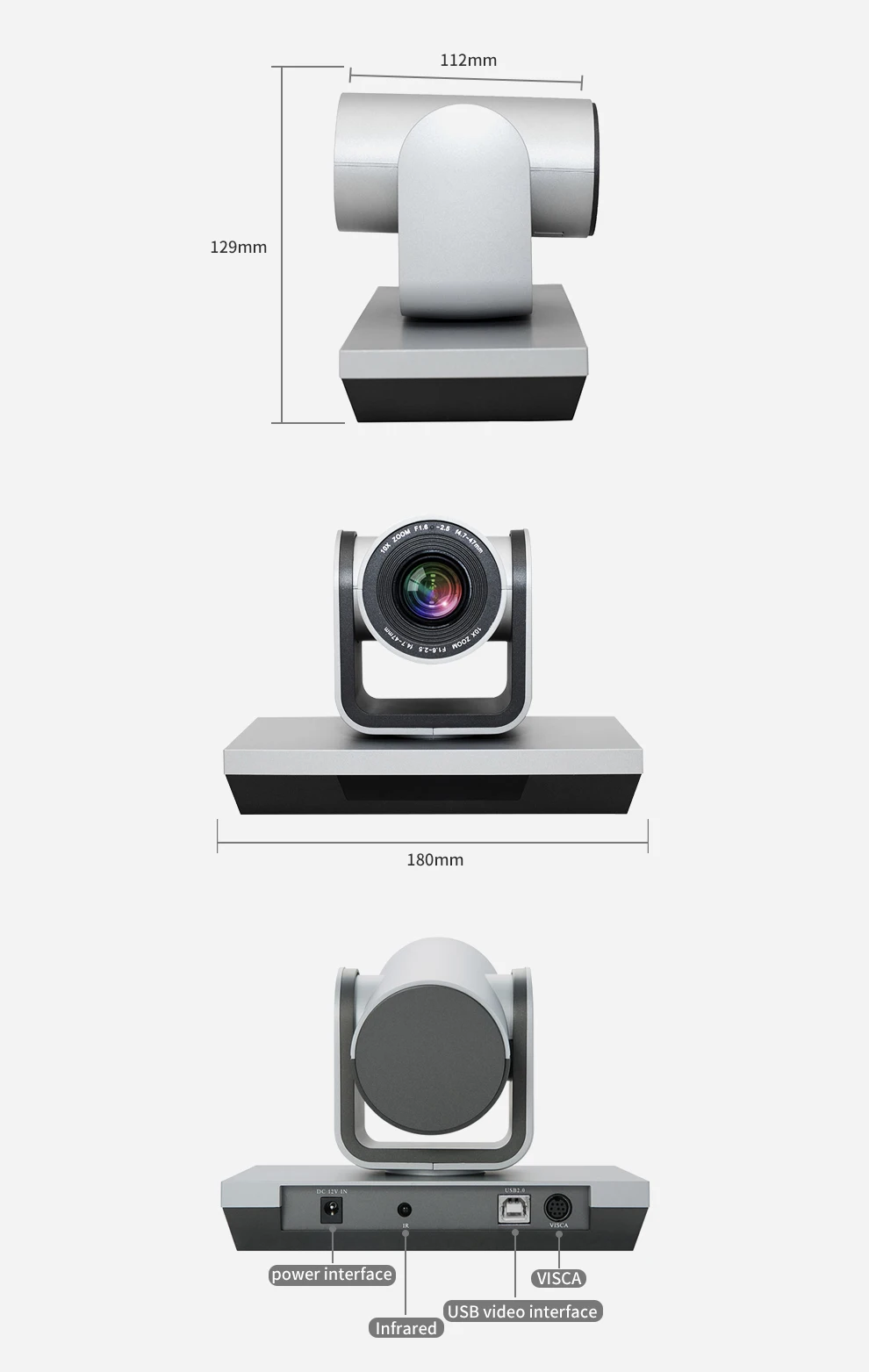

Camera Size | (L)180×(W)112×(H)166mm |
package Size | (L)310×(W)225×(H)135mm |
net weight | 550g |
Gross weight | 1550g |

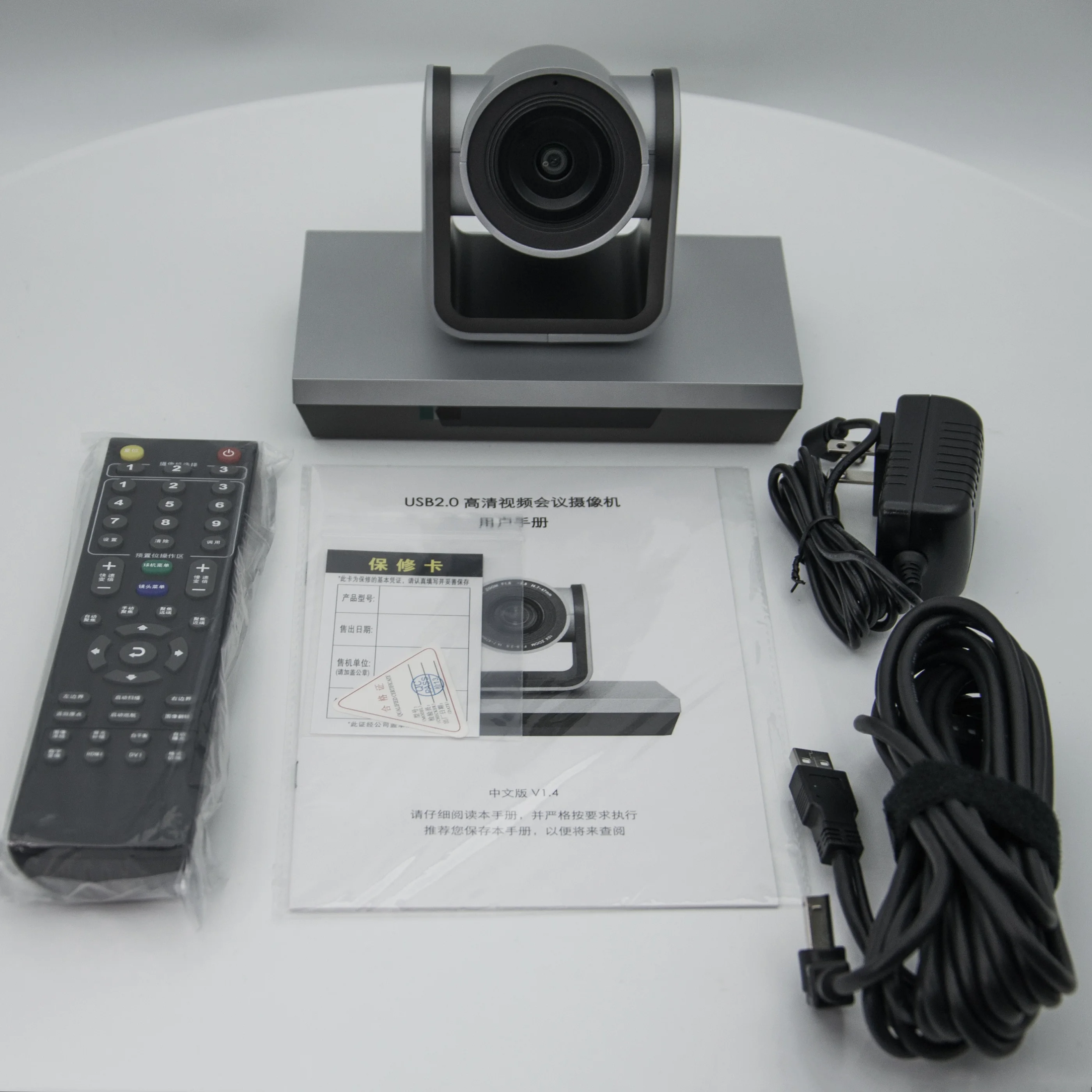

Accessories | DC 12V power adapter, IR remote control, operating manual, USB cable, wall bracket |
1. Main features of 1080P HD video conference camera:
Wide Angle fixed lens |
Sleek and intelligent design |
1080P full HD PTZ camera |
Plug & Play USB Connectivity |
Crystal clear HD1080P image quality |
Accurate,smooth and silent PTZ Movement |
Preset: 9 via IR remote setting (256 via RS232) |
Superior quality with Full Glass Lens Material |
72°wide field of view with no video distortion |
1/2.7" SONY CMOS high quality, 2.1MEGA PIXEL CMOS sensor |

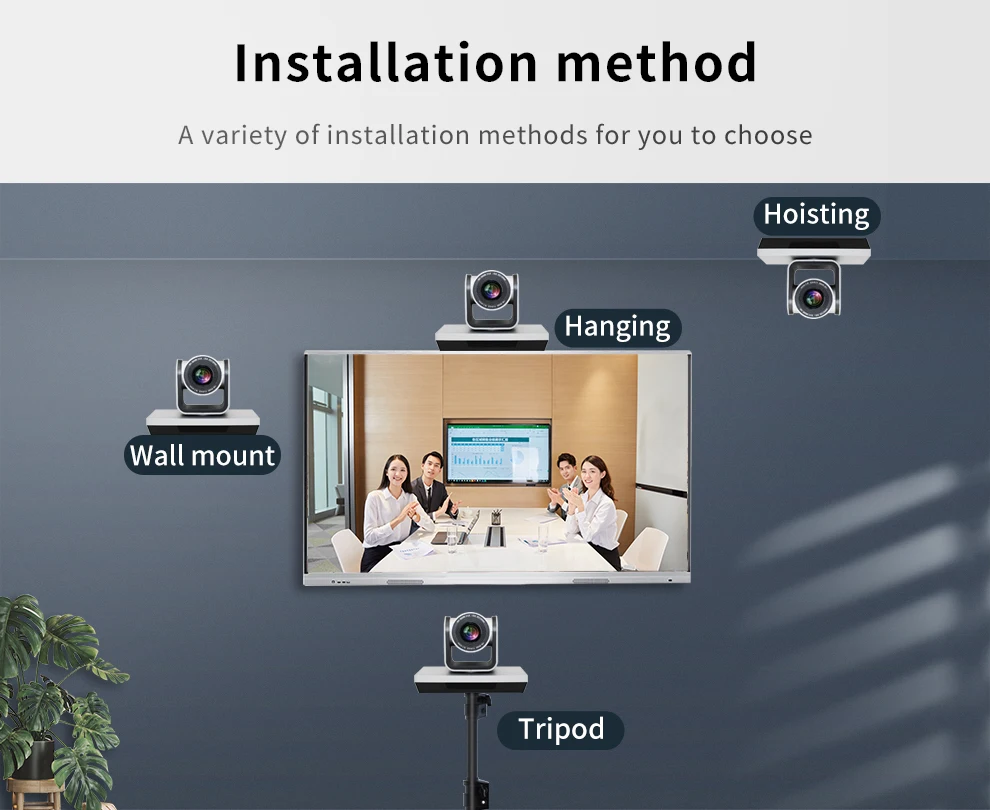

Support ceiling mount, wall mount and tripod mount (Reverse mountable) |
2D and 3D NR for best video quality in different lighting conditions |
Compatible with most leading video conferencing software and platform |
2. Main details of 1080P HD video conference camera:
3. The main application of 1080P HD video conference camera:
Related Products
Packaging & Shipping
Title goes here.
1.We have samples in stock,same day shipping. For big orders we ship within 3-7 business days.
2.We can ship to you by DHL/FEDEX/UPS/TNT/EMS or other shipping way as your instruction with fastest delivery ,cheapest price in
the safe way.
2.We can ship to you by DHL/FEDEX/UPS/TNT/EMS or other shipping way as your instruction with fastest delivery ,cheapest price in
the safe way.
Company Information
Title goes here.
Shanghai Shidao Electronic Technology Co., Ltd.LIMITED established in 2012, which specialize in video conference research and development, OEM/ODM service, commit to supply Hi-tech, High-quality and Humanized products.
We regard "find and meet customers' different requirements" as our duty, continuously innovating, refining and changing. We try to stimulate our customers' infinite reverie, and meet their great eagerness. Relying on abundant strength and good reputations, our products are widely used in such fields as Finance, Postal service, Telecommunication, etc.
Our main products including 4K cameras, SD/HD/USB PTZ video conference cameras, HD IP cameras, keyboard controller, microphone, etc. They are widely used in Meeting, Medical, Telecommunication, Long distance education, School, Government, church, Skype, recording and broadcasting and so on, they are popular all over the world.
HOSODOhigh-definition(HD) video conference PTZ camera and ultra high definition(4K) video conference cameras provide in credible video, along with the sophisticated MPEG-4 AC audio that takes your visual communication experience to a new level.
We regard "find and meet customers' different requirements" as our duty, continuously innovating, refining and changing. We try to stimulate our customers' infinite reverie, and meet their great eagerness. Relying on abundant strength and good reputations, our products are widely used in such fields as Finance, Postal service, Telecommunication, etc.
Our main products including 4K cameras, SD/HD/USB PTZ video conference cameras, HD IP cameras, keyboard controller, microphone, etc. They are widely used in Meeting, Medical, Telecommunication, Long distance education, School, Government, church, Skype, recording and broadcasting and so on, they are popular all over the world.
HOSODOhigh-definition(HD) video conference PTZ camera and ultra high definition(4K) video conference cameras provide in credible video, along with the sophisticated MPEG-4 AC audio that takes your visual communication experience to a new level.
Certifications
Why choose us?
Title goes here.
1. The MOQ is 1 unit.
2. We accept OEM, ODM orders.
3.We ship the sample order out as soon as we receive the payment.
4. 3 years warranty time. Low Repair Rate is our best reward during the past days.
5. After Sale System which makes to solve the problem quickly once met problems.
6. 14 years professional video conference supplier with superior quality & competitive prices.
7. Our QS department checks the video conference camera and speakerphone one by one strictly before sending out.
2. We accept OEM, ODM orders.
3.We ship the sample order out as soon as we receive the payment.
4. 3 years warranty time. Low Repair Rate is our best reward during the past days.
5. After Sale System which makes to solve the problem quickly once met problems.
6. 14 years professional video conference supplier with superior quality & competitive prices.
7. Our QS department checks the video conference camera and speakerphone one by one strictly before sending out.
common problem
Title goes here.
Q:What kind of camera should I use?
A:Most laptops and monitors come with built-in cameras—these work great for Tenveo software.For meeting room spaces, we have video
conferencing cameras and Omnidirectional microphones that are specifically designed for small huddle rooms, conference and
boardrooms,and large auditorium spaces.You can check our service guide for more information on different meeting room systems.
Q:Is it easy to operation?
A:Yes, it is easy to install, plug and play.
Q:Can I bring more than one person into a call at the same time?
A:Yes. We currently offer group calling for up to 500 different participants,which could be 500 people dialing in from their
laptops ,pad or mobile phones,500 different video conferencing systems full of people or some mix of individuals and video
conferencing systems.
Q:What is the resolution of your cameras?
A:We have 1920x1080p/60fps progressively output, and 1080p/30fps also 720p/30fps.
Q:What is the Video Connector?
A:There are USB 2.0, USB3.0,HD-SDI,DVI,YPBPR and CVBS Video output.
Q:How many time zoom?
A:Support fixed focus, 3X 10X, 20X, 30X optical zoom.
Q:How to control this Camera?
A:There are RS232, RS485 PTZ Control, and also support VISCA, PELCO-P, PELCO-D to control through your Codec or PC through RS232,
and support IR remote control.
Q:Which kind of software compatible with this Camera?
A:It’s compatible with PolyCom, Blue Jeans, Cisco, Vsee, GoToMeeting, Radvision, SeeVogh,WebEx, easy meeting, Vidtel and working
with Microsoft Lync Software,and ZOOM.US, SKYPE, VIDYO Etc.
A:Most laptops and monitors come with built-in cameras—these work great for Tenveo software.For meeting room spaces, we have video
conferencing cameras and Omnidirectional microphones that are specifically designed for small huddle rooms, conference and
boardrooms,and large auditorium spaces.You can check our service guide for more information on different meeting room systems.
Q:Is it easy to operation?
A:Yes, it is easy to install, plug and play.
Q:Can I bring more than one person into a call at the same time?
A:Yes. We currently offer group calling for up to 500 different participants,which could be 500 people dialing in from their
laptops ,pad or mobile phones,500 different video conferencing systems full of people or some mix of individuals and video
conferencing systems.
Q:What is the resolution of your cameras?
A:We have 1920x1080p/60fps progressively output, and 1080p/30fps also 720p/30fps.
Q:What is the Video Connector?
A:There are USB 2.0, USB3.0,HD-SDI,DVI,YPBPR and CVBS Video output.
Q:How many time zoom?
A:Support fixed focus, 3X 10X, 20X, 30X optical zoom.
Q:How to control this Camera?
A:There are RS232, RS485 PTZ Control, and also support VISCA, PELCO-P, PELCO-D to control through your Codec or PC through RS232,
and support IR remote control.
Q:Which kind of software compatible with this Camera?
A:It’s compatible with PolyCom, Blue Jeans, Cisco, Vsee, GoToMeeting, Radvision, SeeVogh,WebEx, easy meeting, Vidtel and working
with Microsoft Lync Software,and ZOOM.US, SKYPE, VIDYO Etc.
