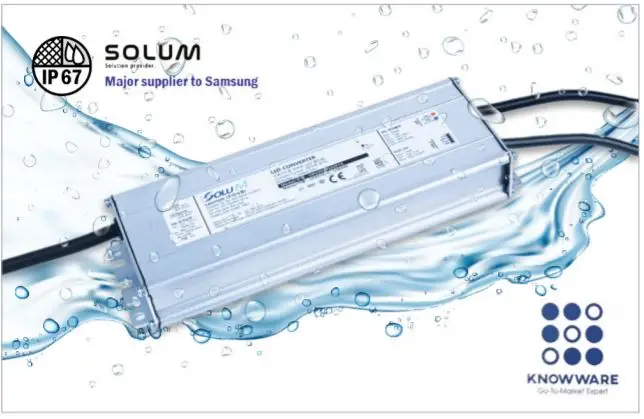

High Quality LED Switching Driver IP67 Programmable Constant & Voltage control Flicker Free 200W LED Driver(OPU201P162S1A)
- Category: >>>
- Supplier: Knowware Co.Ltd
Share on (1600370790140):
Product Overview
Description
Products Description
IP67, C-Unified Dim for SMART Control, Flicker-less
* Flicker-less : FI ≪0.01 ,%F ≪ 5% (@<800Hz)
Built-in active PFC
Low Output Current Ripple : 5%↓
* High Density Power
C3-2_Dimension 1 : 180(L) * 68.0(W) * 31.4(H)
C4-1_Dimension 2 : 191(L) * 68.0(W) * 31.4(H)

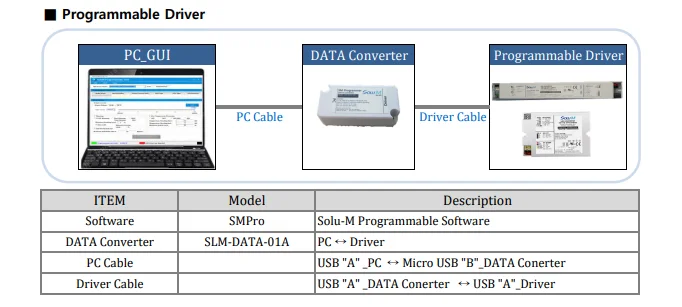

* Programmable UI
AOC_Adjustable Of Current

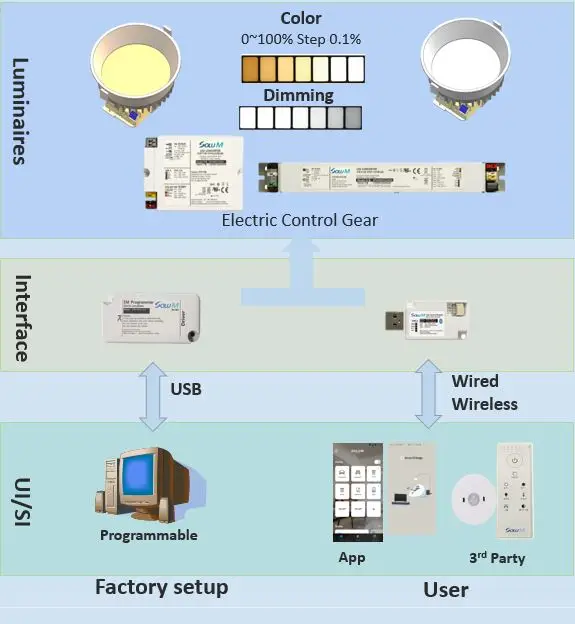

* C-Unified Dim for SMART Control
UART_On/Off, Dim
Status Monitoring
* Low Stand by Power Dissipation : 0.5W↓
Applied Eco Design & Energy star : 0.5W↓
* Aux Power : 12Vdc 250mA PK
* High Performance
High Efficiency : Up to 88~94%
High PF (90%↑), Low THD (20%↓)
Wide Vin : 108 ~ 305VAC
Wide Vout : ± 30% LED Load
Protection : OLP, SCP, OVP, OCP, OTP _Autorecovery
Temperature tc : 85℃
* High Surge Immunity
L-L 6KV↑, L-FG 8KV↑
* Classification : Class Ⅱ
* IP67, Independent type
* CCCV (Constant Current & Constant Voltage)
* Flicker-less : FI ≪0.01 ,%F ≪ 5% (@<800Hz)
Built-in active PFC
Low Output Current Ripple : 5%↓
* High Density Power
C3-2_Dimension 1 : 180(L) * 68.0(W) * 31.4(H)
C4-1_Dimension 2 : 191(L) * 68.0(W) * 31.4(H)
* Programmable UI
AOC_Adjustable Of Current
* C-Unified Dim for SMART Control
UART_On/Off, Dim
Status Monitoring
* Low Stand by Power Dissipation : 0.5W↓
Applied Eco Design & Energy star : 0.5W↓
* Aux Power : 12Vdc 250mA PK
* High Performance
High Efficiency : Up to 88~94%
High PF (90%↑), Low THD (20%↓)
Wide Vin : 108 ~ 305VAC
Wide Vout : ± 30% LED Load
Protection : OLP, SCP, OVP, OCP, OTP _Autorecovery
Temperature tc : 85℃
* High Surge Immunity
L-L 6KV↑, L-FG 8KV↑
* Classification : Class Ⅱ
* IP67, Independent type
MODEL NAME | MODEL CODE |
OPU201P162S1U | LP201S162U/WGN |
Features:
ㅡ Flickerless, Constant Current & Voltage
ㅡ Programmable Set

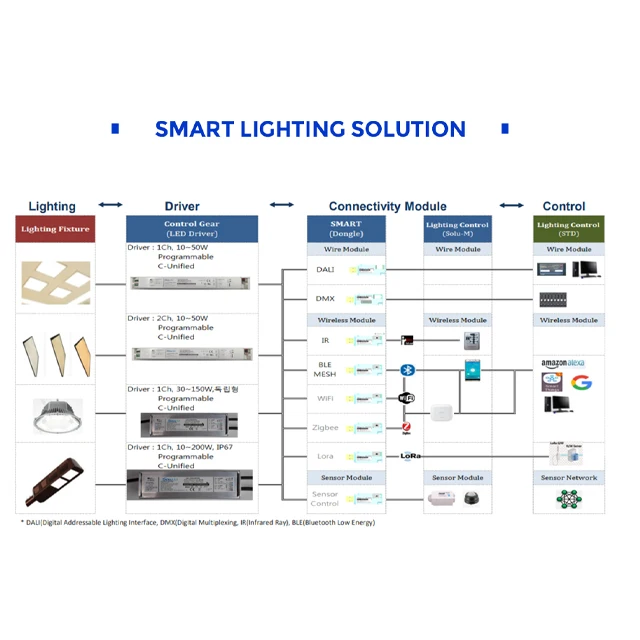

ㅡ SMART Lighting Control by SLM_Smart Lighting Module
- IP67 Waterproof approved
ㅡ Full-protection provided: OCP/OVP/OTP/SCP/OLP
ㅡ Wide Vout: 24 to 45 Vdc
ㅡ Compliant with CB, CE, KC, KS, UL safety requirements for LED lighting
Product Paramenters
Electrical Specification
No | Item | Min | Typ | Max | Unit | Remark |
1 | Nominal input Voltage | 120 | 220 | 277 | Vac | |
2 | Variable Input Voltage | 108 | 300 | Vac | ||
3 | Maximum Input Current | 2.5 | Arms | |||
4 | Maximum Input Power | 200 | W | |||
5 | Nominal input Frequency | 47 | 50/60 | 63 | Hz | |
6 | Power Factor | 90 | % | |||
7 | Total Harmonic Distortion(THD) | 20 | % | |||
8 | Inrush Current | A | Meets NEMA 410 | |||
9 | Electical Efficiency | 89 | 94 | % | ||
10 | Turn-On Delay | 0.5 | S | |||
11 | LED Output Voltage | 100 | 119 | 150 | Vdc | |
12 | LED Output Current | 80 | 1,267 | 1,600 | mA | |
13 | LED Output Power_Max | 190 | W | |||
14 | LED output Current Ripple | 160 | mA | |||
15 | Operating Temperature | -20 | 25 | 50 | 'C | |
16 | Case Temperature (Tc) | 50 | 85 | 'C | ||
17 | Humidity | 20 | 85 | % | ||
18 | Insulation Resistance | 10 | Mohm | |||
19 | Surge | 6 | Kv | Line to Ground, IEC 610000-4-5 | ||
20 | ESD | 8 | Kv | Air Discharge IEC 610000-4-5 |
