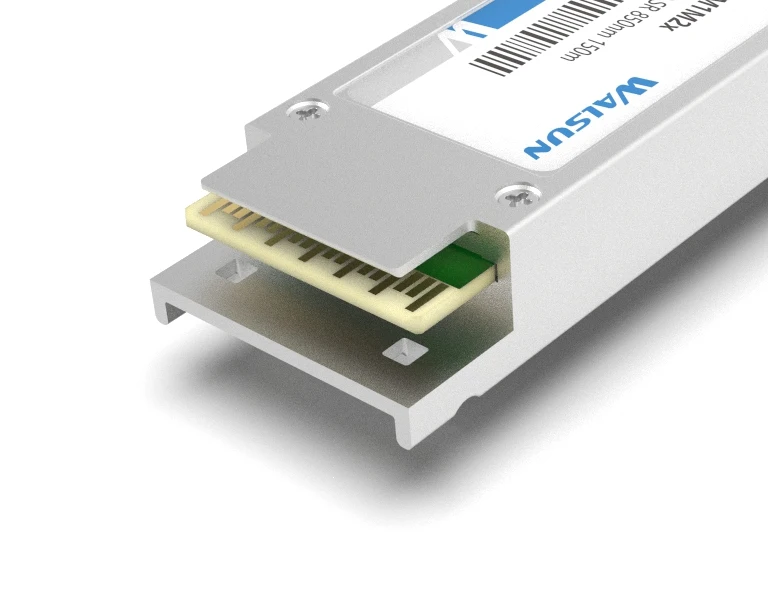

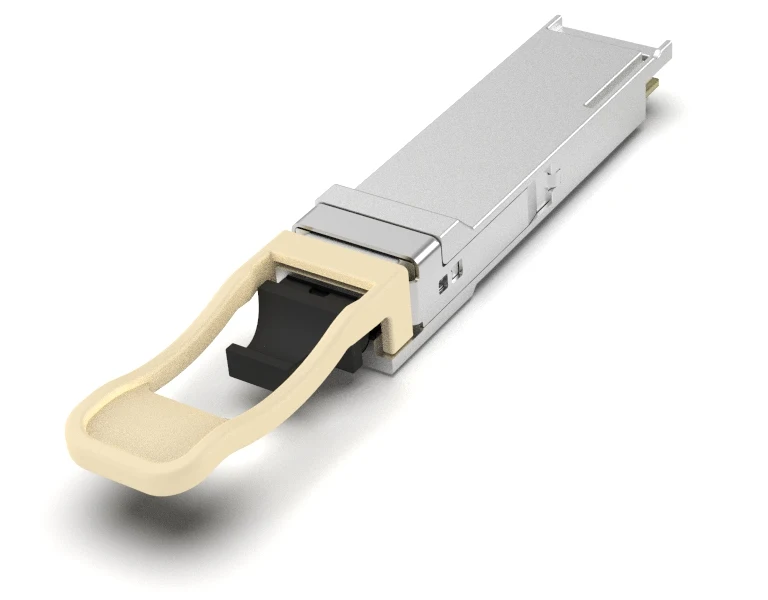

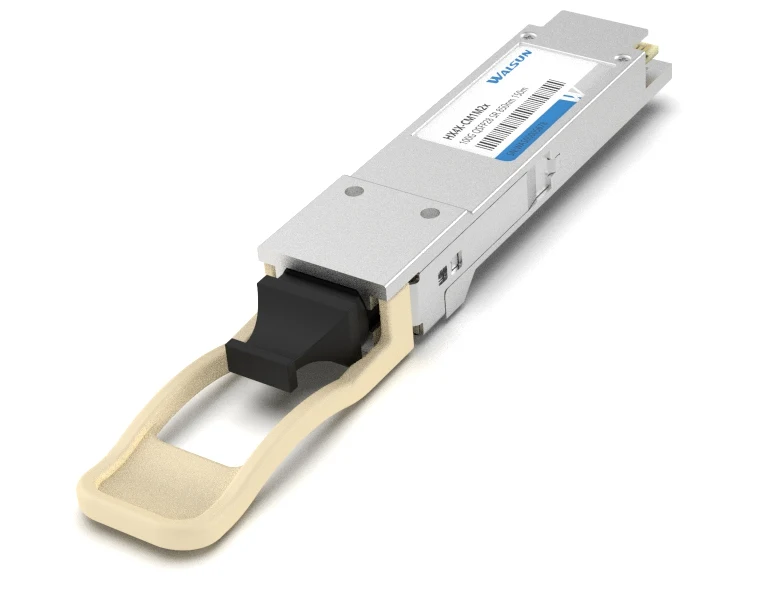

HX4X CM1M2I_100G QSFP28 SR4 850nm 150m DDM LC for industrial optical module
- Category: Telecommunications >>>
- Supplier: Zhejiang Litian Video Information Technology Co. Ltd.
Share on (1600370801606):
Product Overview
Description
Product Features
Up to 27.952 Gbps Data rate per channel
Maximum link length of 150m links on OM4 multimode fiber
High Reliability 850nm VCSEL technology
Electrically hot-pluggable
Digital diagnostic SFF-8636 compliant
RoHS-10 compliant and lead-free
Compliant with QSFP28 MSA with MPO connector
Single +3.3V power supply
Maximum power consumption 2.0W
All-metal housing for superior EMI performance
Case operating temperature : -40°C to +85°C
Maximum link length of 150m links on OM4 multimode fiber
High Reliability 850nm VCSEL technology
Electrically hot-pluggable
Digital diagnostic SFF-8636 compliant
RoHS-10 compliant and lead-free
Compliant with QSFP28 MSA with MPO connector
Single +3.3V power supply
Maximum power consumption 2.0W
All-metal housing for superior EMI performance
Case operating temperature : -40°C to +85°C
Product Number | Data Rate（Gb/s） | Wavelength（nm） | Reach（km） | LD | Tx Power（dBm） | PD | Rx Sens（dBm） | Temperature（℃） |
HX4X-CM1M2I | 100 | 850 | 150 | VCSEL | -8.4～2.4 | PIN | < -10.3 | -40~85 |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1. Can the price be negotiable?
Re: Yes, best price for you and depend on quantity.
2.what is the lead time?
Re: For standard products,we keep enough stock, shipping out in 1-3 days after PO confirmation.For big quantity and special products,Please check lead time with our sales representative.
Re: Yes, best price for you and depend on quantity.
2.what is the lead time?
Re: For standard products,we keep enough stock, shipping out in 1-3 days after PO confirmation.For big quantity and special products,Please check lead time with our sales representative.
