E21S контроллер гидравлическая гильотинная стрижка машина, автоматическая резка ножницы для 4 мм нержавеющей стали лист резки
- Category: Shearing Machines >>>
- Supplier: Anhui,Aoxuan,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

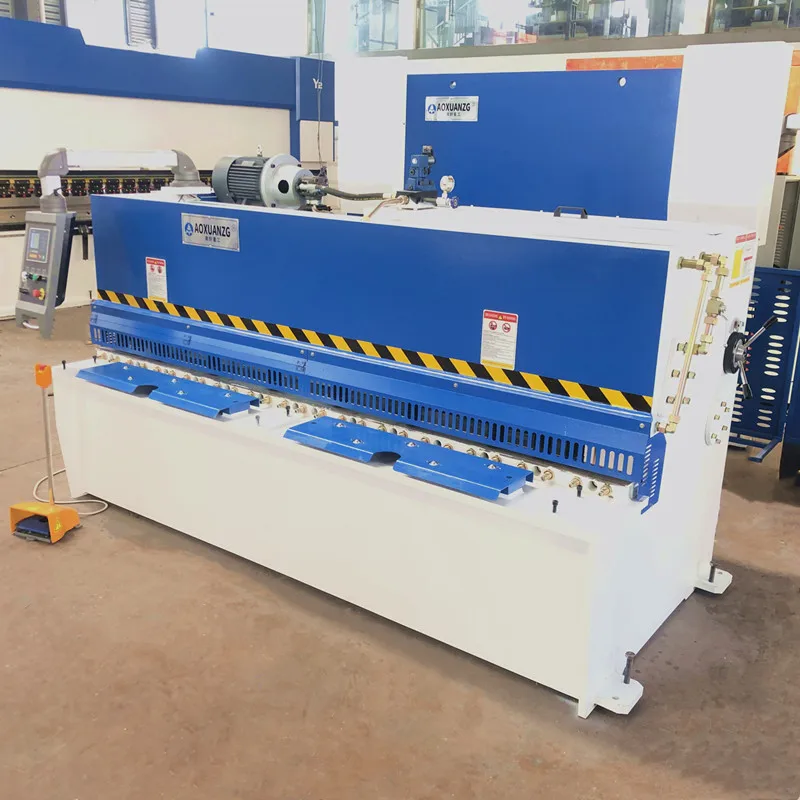

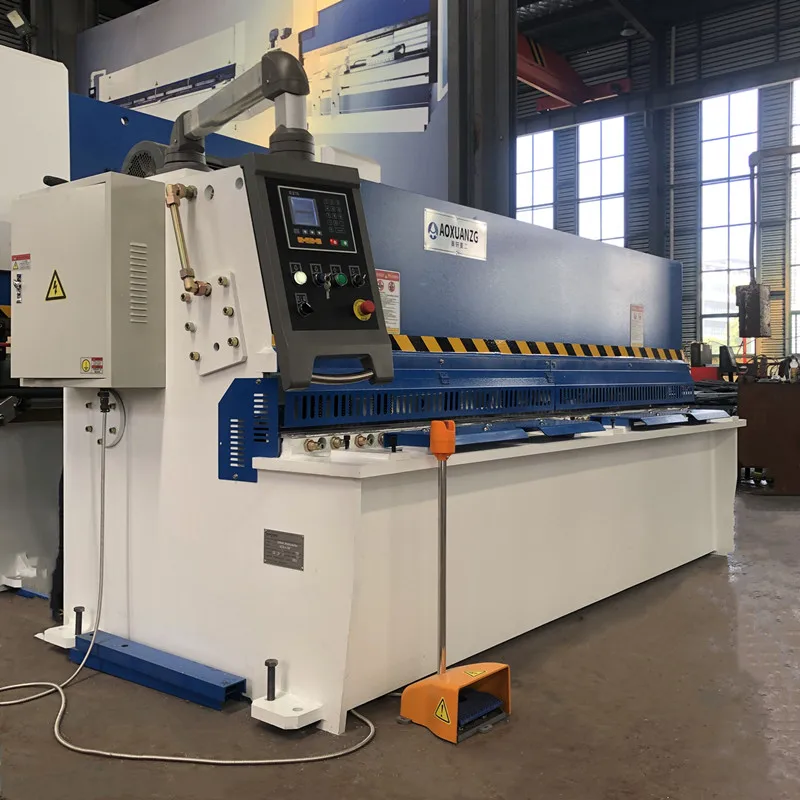

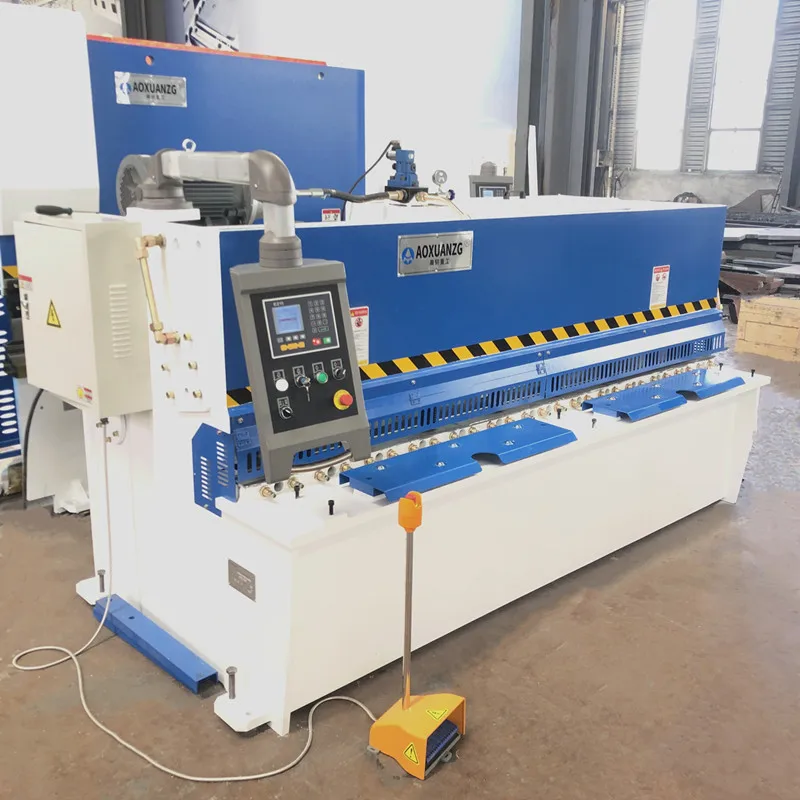

E21S Controller Hydraulic Guillotine Shearing Machine, Automatic Cutting Shear for 4 MM Stainless Steel Sheet Cut
QC12K series hydraulic shearing machine is suitable for cutting carbon steel, stainless steel, galvanized sheet, aluminum and many other metals. It is widely used in metal processing industry, machine building industry, building construction, mining industry, railway construction and aerospace industry.
1.Totally EU streamlined design, monoblock by welding robots & aparatus and stress relief process by annealing treatment.
2. Our engineers utilize parametric 3D SolidWorks using FEM & DOE analysis as well as static and mechanism analysis.
3. Our Hydraulic Shearing Machine is a swing beam action machine which is produced in a variety of cutting lengths and capacity options.
4. Adopt integrated hydraulic system, more reliable and easy for maintenance. And the hydraulic system from Bosch-Rexroth, Germany.
5. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
6. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
7. CE conformity including tiltable front finger guard and optical rear safety guard.
8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
1. Rapid and precise blade clearance adjustment by single handle on the side frame.
2. Multi edge blades for cutting aluminium, mild steel and stainless steel.
3. Cutting line illumination and wire for shadow line cutting. 4. Counter of strokes, cutting length adjustment.
5. Hydraulic and electrical overload protection.

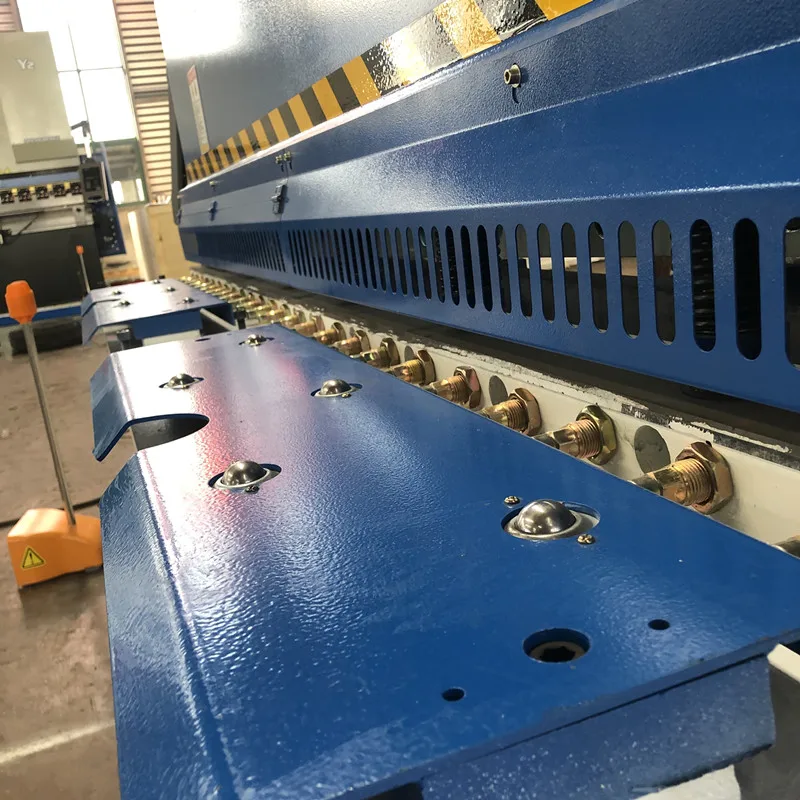

6. Squaring arm and front support arms.
7. Germany Bosch-Rexroth hydraulic valve.
8. Telemecanique/Schneider Electrics.
9. Hydraulic and Electrical overload protection.

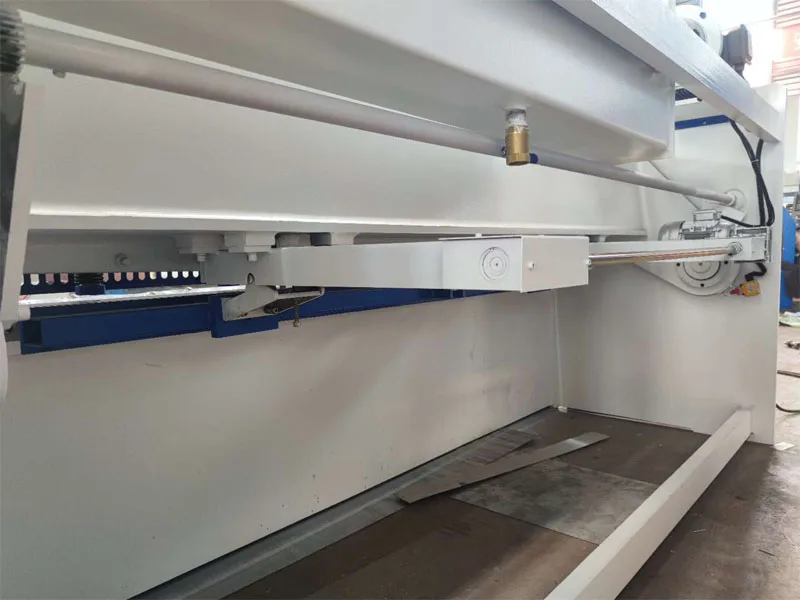

10. Delta inverter with ball screw and polished rod with 0,05 mm accuracy.
11. Side guard is standard meeting CE regulations.
12. E21s control system.(optional)

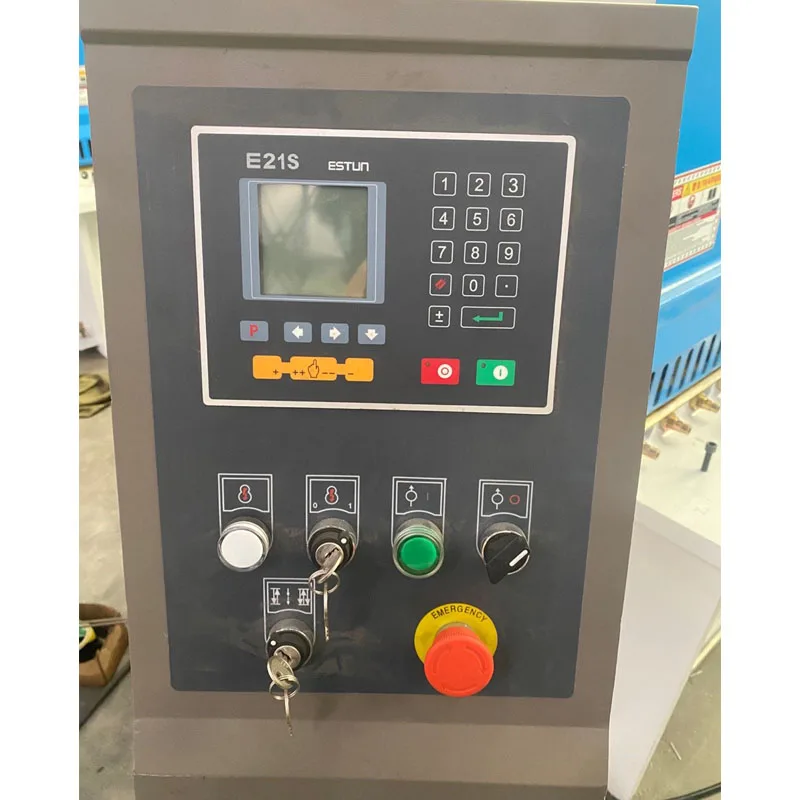

E21s control system:
▪ 160x160 LCD Display
▪ Positioning control of backgauge.
▪ Controllable cutting angle.
▪ Controllable shearing gap.
▪ Controllable cutting time.
▪ Control ordinary motor for general AC motors, or frequency converter.
▪ Intelligent positioning function.
▪ One-way and two-way positioning function, effectively eliminate lead screw gap.
▪ Dual programmable digital output.
▪ Retreat and escape material function.
▪ Automatic search for reference point function.
▪ One-key parameter backup and restore function.
▪ Fast position teaching function.
▪ 40 multi-step program storage space, up 25 steps per program.
▪ Power-off protection function.
▪ Workpiece counting.
▪ Inch/metric conversion
▪ Chinese/English
▪ Positioning control of backgauge.
▪ Controllable cutting angle.
▪ Controllable shearing gap.
▪ Controllable cutting time.
▪ Control ordinary motor for general AC motors, or frequency converter.
▪ Intelligent positioning function.
▪ One-way and two-way positioning function, effectively eliminate lead screw gap.
▪ Dual programmable digital output.
▪ Retreat and escape material function.
▪ Automatic search for reference point function.
▪ One-key parameter backup and restore function.
▪ Fast position teaching function.
▪ 40 multi-step program storage space, up 25 steps per program.
▪ Power-off protection function.
▪ Workpiece counting.
▪ Inch/metric conversion
▪ Chinese/English
2 kinds of ways: LCL is for small machine, FCL is for big machine.
※ LCL: Covered by plastic films, packed by wooden case.
※ FCL: Covered by plastic films, packed by a container.
※ LCL: Covered by plastic films, packed by wooden case.
※ FCL: Covered by plastic films, packed by a container.
Delivery Detail :
✈ Shipped in 30 days after payment.
✈ Shipped in 30 days after payment.
☀Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
☂ After tested, the machines will be wrapped with plastic sheet, machine will be securely wired to the container.
☂ Each machine packed with plastic film first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal. At the dock we pack the goods in containers and ship them abroad.
☂ After tested, the machines will be wrapped with plastic sheet, machine will be securely wired to the container.
☂ Each machine packed with plastic film first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal. At the dock we pack the goods in containers and ship them abroad.
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
Coordonnées
If you are interested in our machines, please contact me for more details.
FAQ
1. Are you the manufacturer? Can we visit your factory?
Of course, you can. We are manufacturer and we are located in Anhui, China. We have our own team for products design. Welcome to visit our factory and check our machine qualtiy, any question will be solved on time.
2. What's your main product? What is your main foreign market?
Our main products are press brake, shears machines, hydraulic press, cutting machine, locking machine, auto duct line and related products. Our main foreign markets are Asia, North America, Europe, and Africa.
3. What are the advantages of your machines? And how can I believe the quality of your product?
The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. For example, Germany Bosch-Rexroth Valve group, Germany Siemens Main Motor, Schneider Electrics system and so on. Once tested as qualified, our machine would be sent out. So the quality of our product is stable and reliable.
4. Are you able to update the production process Information in time after placing our order?
After confirming your order, we would keep you updated of production details of emails and photos.
5. Can we be your agent?
Yes, we are looking for global agent, and we will help agent improve the market, and supply all the service like machine technical problem or other after-sales problem, meanwhile, you can get big discount and commission.
6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment etc.
7. Are you provide product metal parts and provide us technical guidance?
Wearing parts, Disassembly tool(free) are what we could provide. And we can give you technical guidance. Our technical staff can go abroad to provide you with professional technical guidance.
8. How long is your warranty?
2 years free warranty, life-long maintenance.
9. Do you accept customer Logo and customized?
We accept kinds of customized, including logo and machine.
