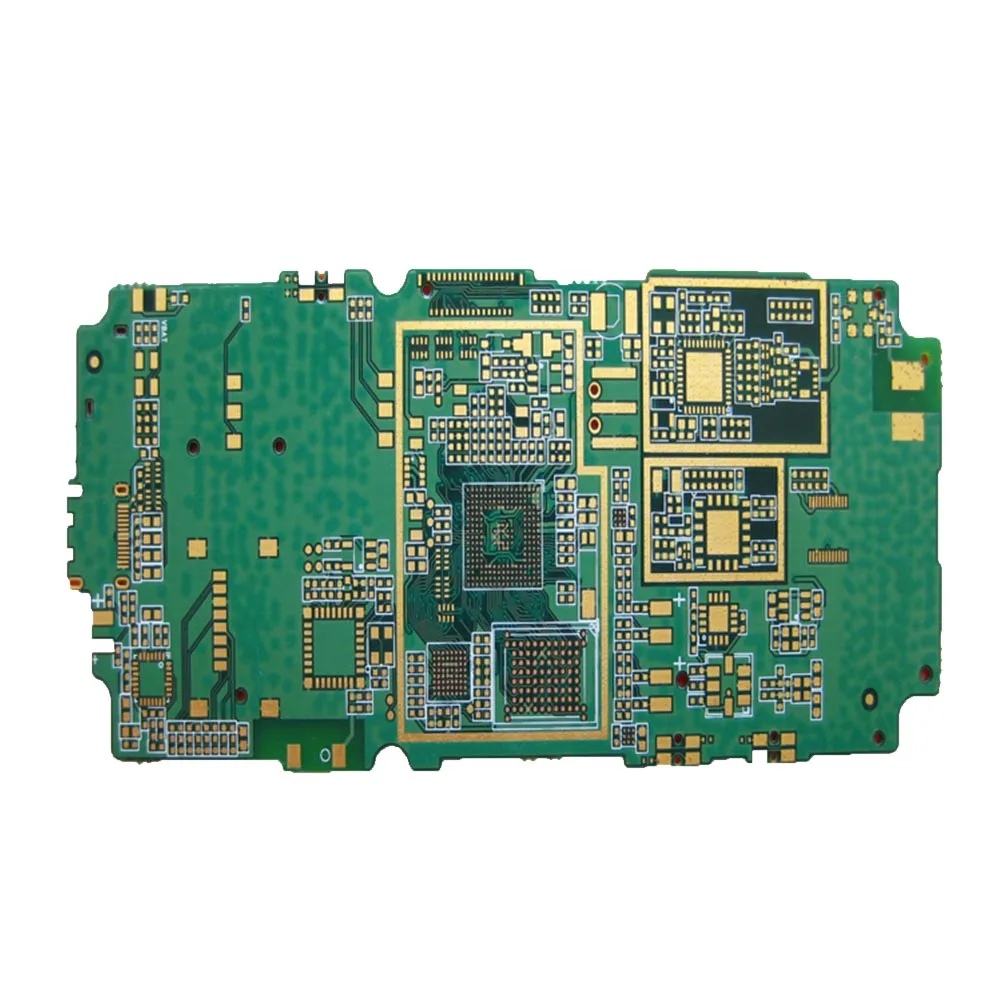

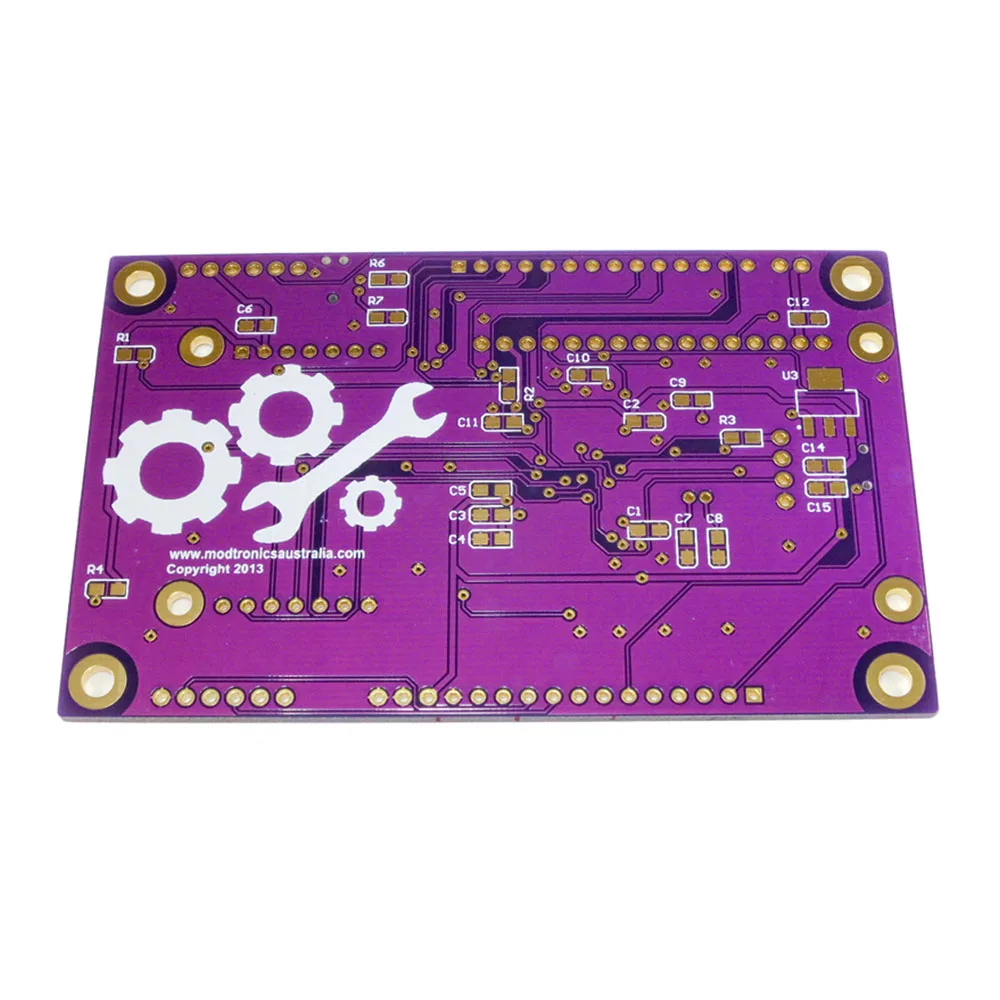

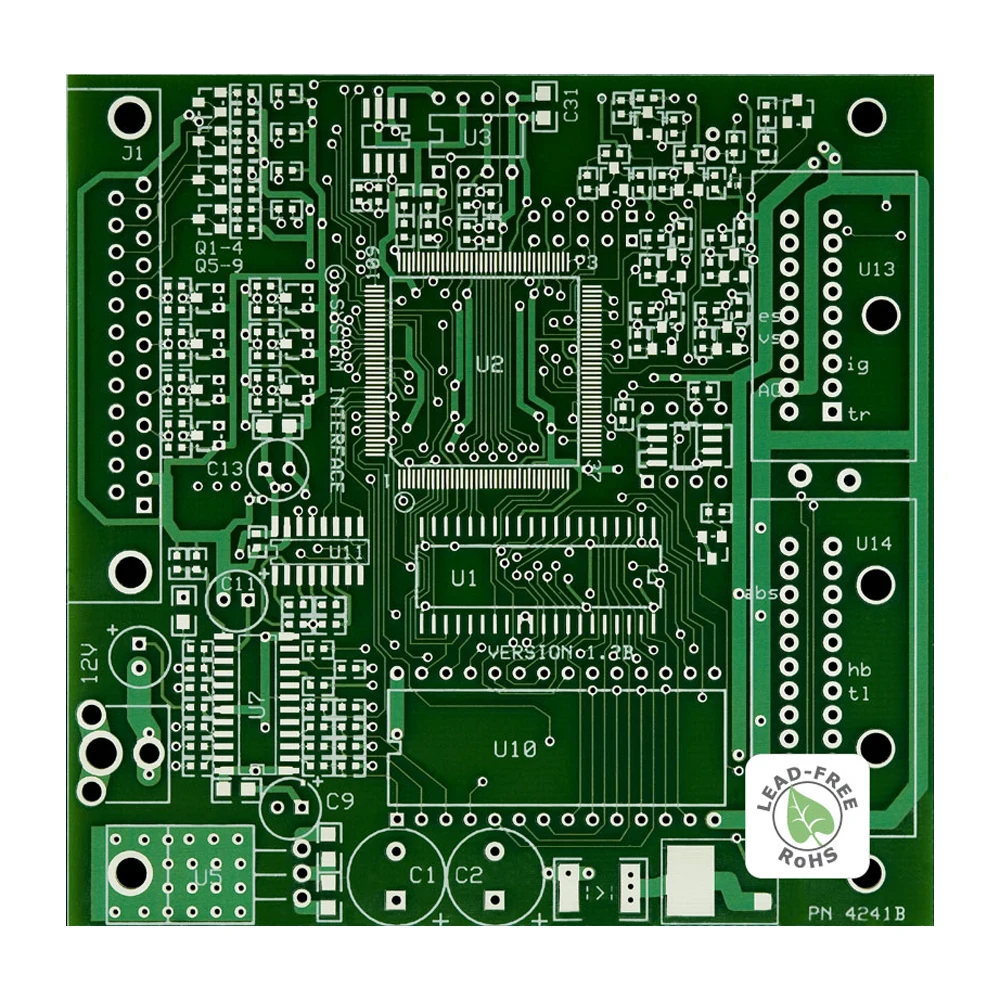

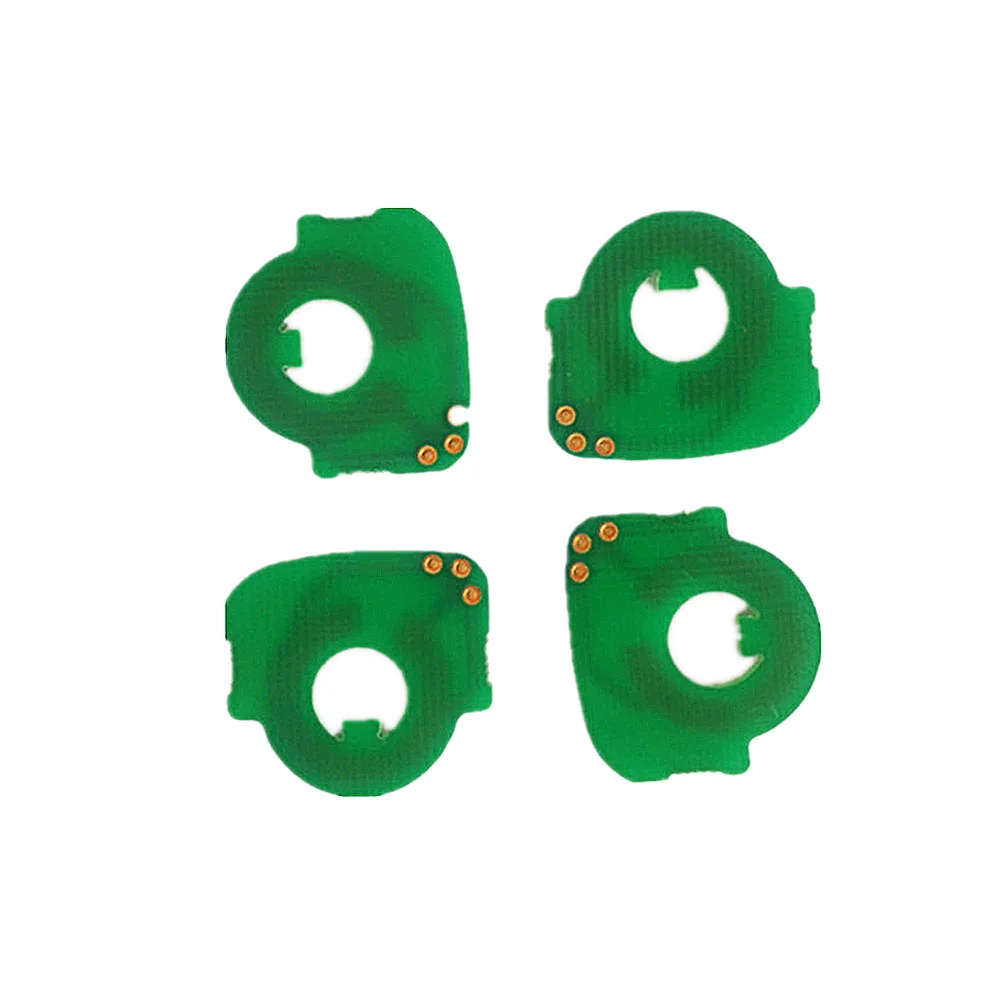

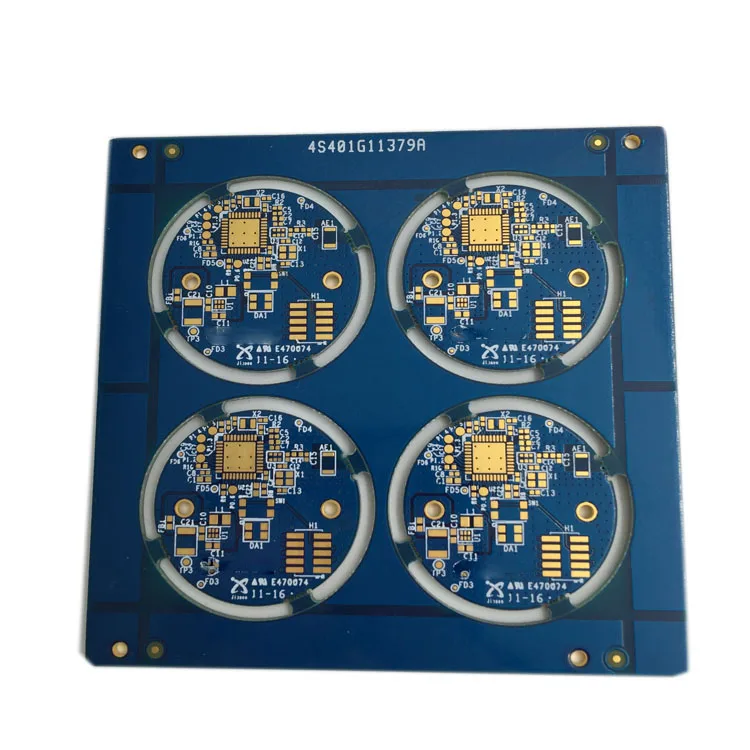

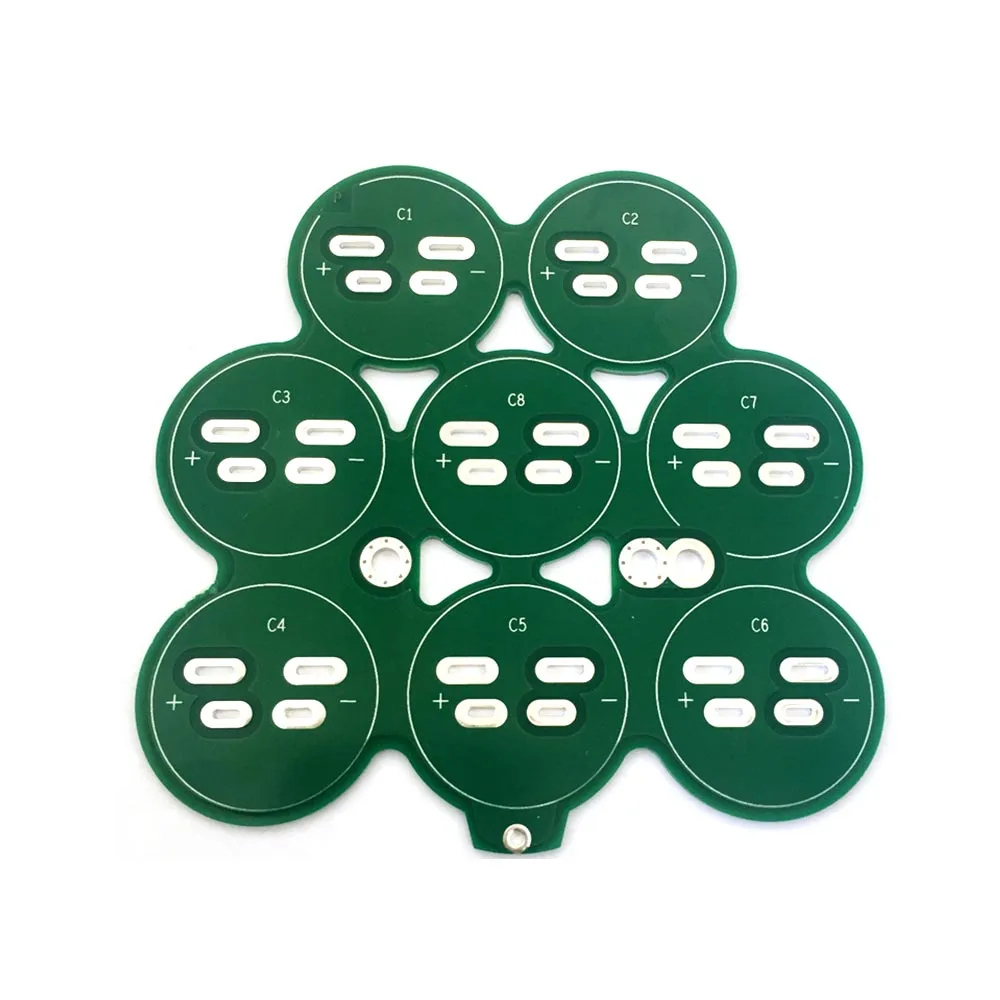

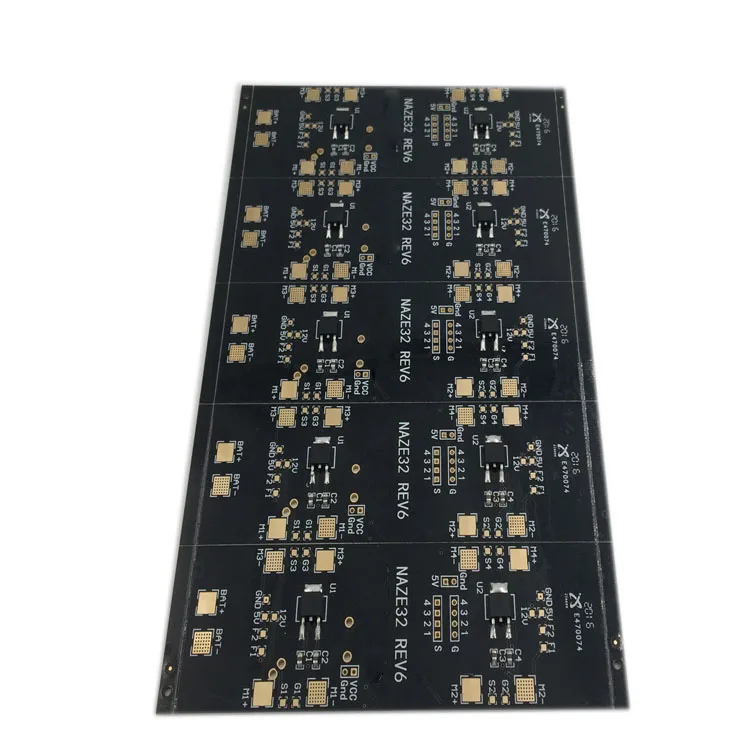

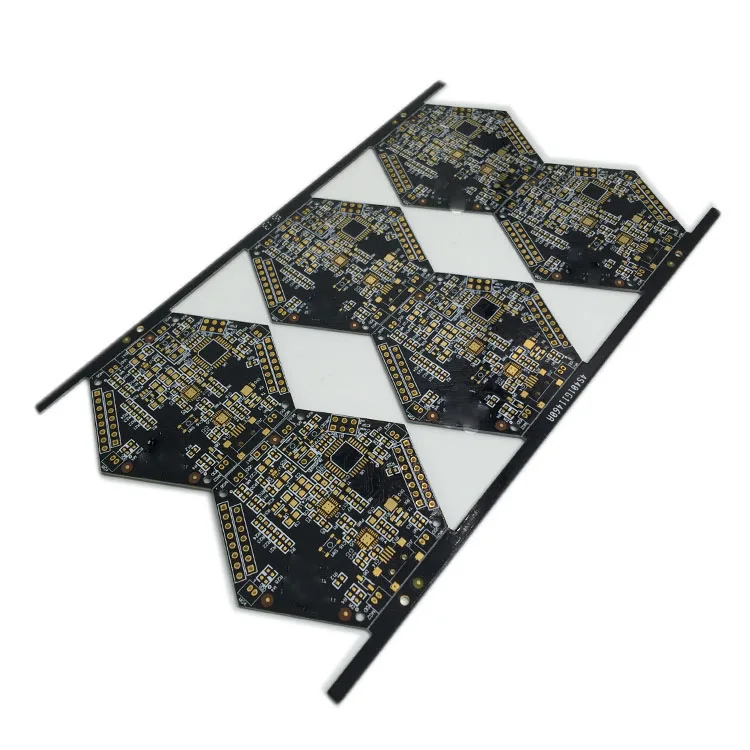

Control Box PCB PCBA Receiver Match Children Electric Ride On Toy Car Circuit Board

SPECIFICATIONS

TYPICAL

ADVANCED

NUMBER OF LAYERS

1 - 12

14 - 42

BOARD MATERIAL

FR4 STANDARD TG 130/140

FR4 TG150,
FR4 HIGH TG 170,
Polyimide (Kapton),
ROGERS,
GETEK Copper Clad Thermal Substrates,
Arlon, Nelco, PTFE,
Black FR4,
Hybrid (Rogers and FR4) BT Epoxy,
Metal Core Materials,Ceramic, Aluminum

MINIMUM BOARD
THICKNESS

.004'' (0.10mm)

MAXIMUM BOARD
THICKNESS

.25''(6.40mm)

MIN. BOARD SIZE

.78''(20mm) X .78''(20mm)

MAX. BOARD SIZE

24''(600mm) x 16''(400mm)

47''(1200mm) x 20''(500mm)

BOARD THICKNESS
TOLERANCE

+/- 10%

+/- 5%

OUTER COPPER
THICKNESS

0.5oz, 1oz

2oz, 3oz, UP TO 20 oz

INNER LAYER
COPPER THICKNESS

0.5oz, 1oz

2oz, 3oz

MIN. TRACE/SPACE

4mil/4mil (0.15/0.15mm)

3mil/3mil (0.075/0.075mm)

MIN. PITCH

1mm

0.3mm

MIN. HOLE SIZE

.008'' (0.20mm)

.006'' (0.15mm) - Mechanical drill

.004'' (0.10mm) - Laser drill

TOLERANCE OF
PTH HOLE SIZE

+/- .003''

+/- .002''

TOLERANCE OF
NPTH HOLE SIZE

+/- .002''

+/- .001''

HOLE ASPECT RATIO

6 : 1

15 : 1

SURFACE FINISH

HASL(Solder), LEAD FREE HASL,
ENIG (Immersion Gold),Immersion Silver (Ag),
Immersion Tin (White Tin),
OSP (Entek), Flash Gold,
Electrolytic Hard Gold, Wirebondable Gold,
Gold Fingers, Carbon Ink

SOLDER MASK

GREEN, BLUE, BLACK, RED,
YELLOW, WHITE

Other colors per your request

SILKSCREEN

WHITE, BLACK,RED, YELLOW

Other colors per your request

CONTROLLED
IMPEDANCE

+/- 10%

+/- 5%

OUTLINE PROFILE

PUNCH & CNC

INSPECTION
TECHNIQUES

100% Visual inspection

AOI

Electrical testing - Flying probe or Nails Bed

QUALIFICATIONS

IPC Class 2 - A600

IPC Class 3, MIL

CERTIFICATES

ISO 9001:2008, RoHS

TS 16949

SPECIAL PCB

we can make various special printed circuit boards, but not limited to:

High Frequency
RF Boards

RF board us Rogers, Taconic or other high frequency materials and normally,
the frequency is between 300MHz ~ 3GHz, or much bigger;

High Tg PCB

Tg value of board material is 170~210 Degree.
Tg value of normal FR4 board is about 130~150 Degree.

Heavy Copper PCB

Copper weight is 4~10 OZ/ft2, and 20~200 OZ/ft2 refers
to extreme heavy copper printed circuit board;

Ceramic PCB

Has excellent high pressure, high insulation, high frequency,
high temperature,and high reliable and minor volume electronic;

HDI PCB

With buried & blind via, drill layer up like: 1-2-1, or 2-4-2, need laser drilling, and PTH <=0.1mm;

Impedance
controled PCB

50 ohms, 100 ohms, in outer or/and inner layer and tolerance
can be +/-10%;

Carbon ink PCB

The resistance of carbon in can be normal as 100 ohms, 500 ohm,
or as high as to 10,000~500,000 ohms;

Extra Thin PCB

For extra thin PCB, we can make it at 0.10mm, 0.15mm, 0.20mm, 0.25mm,
0.30mm,with or without the soldermask, and copper thickness 1/2OZ,
1OZ. Extra thin FR4 PCB can be bendable similar like a flexible circuit,
but more rigid,and cost will be lower,comparing with the same copper traces.

Metal Core (MC) PCB

Single Layer MCPCB, Chip-on-board (COB) MCPCB, Double Layers MCPCB,
Double Sided MCPCB, Multi Layers MCPCB

Others

Any other special request or demand, pls contact us directly.
We will try our best to fulfill it.
