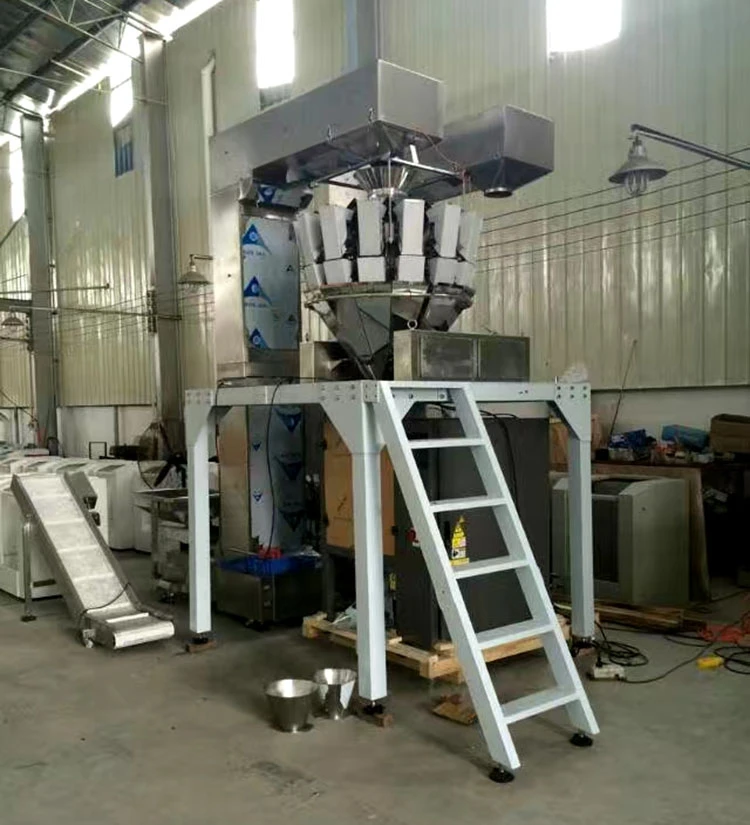

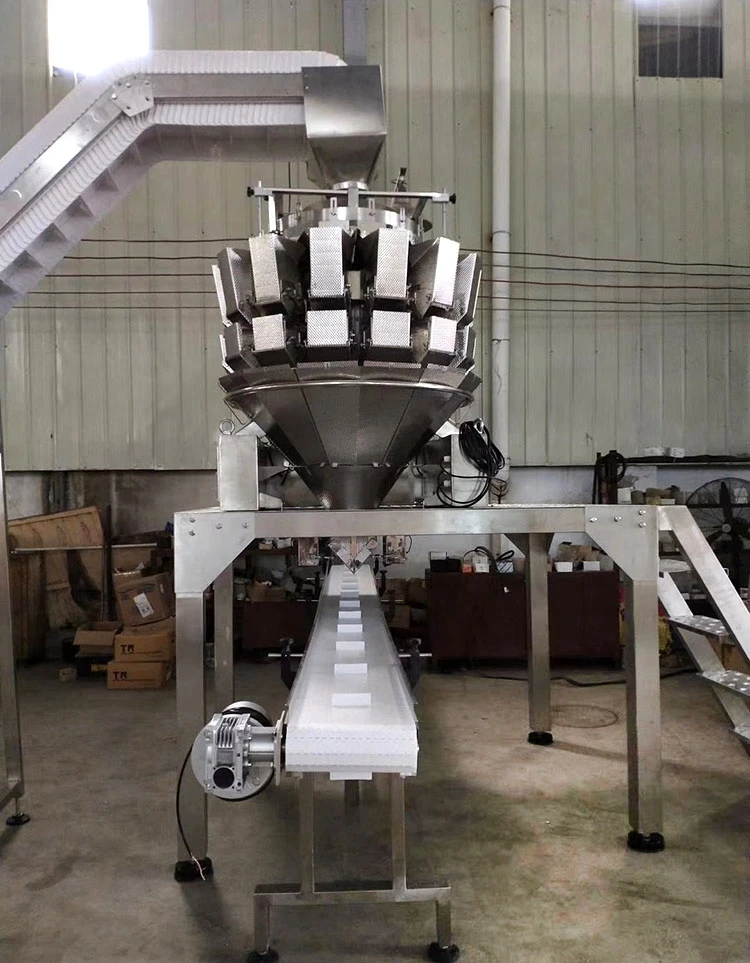

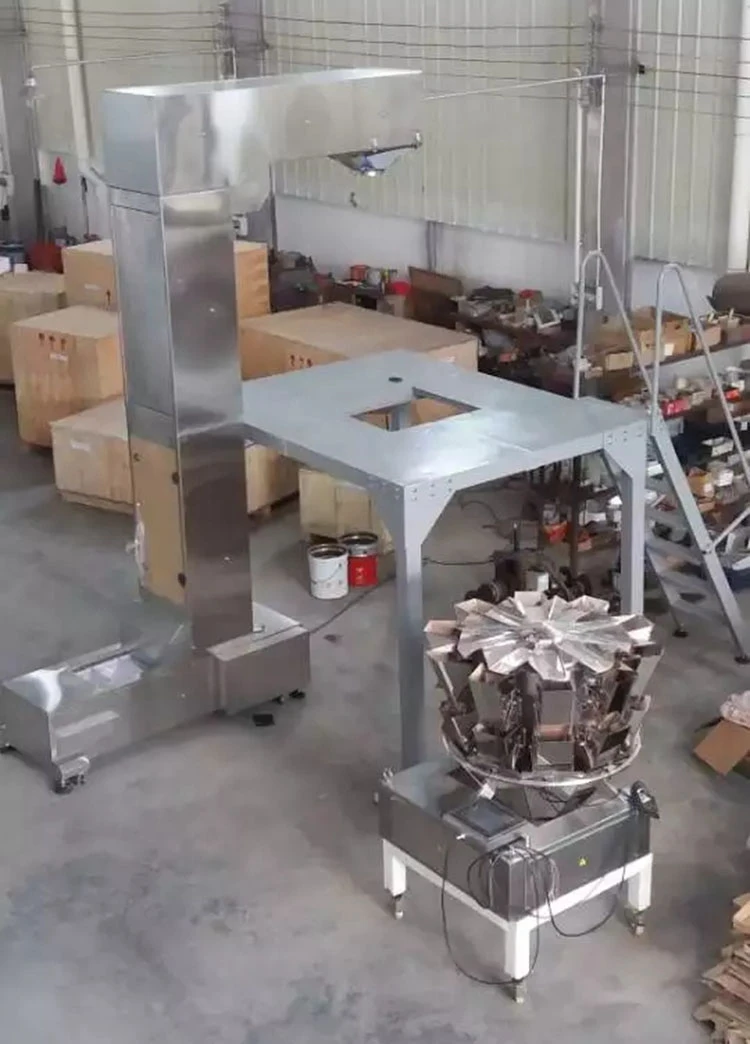

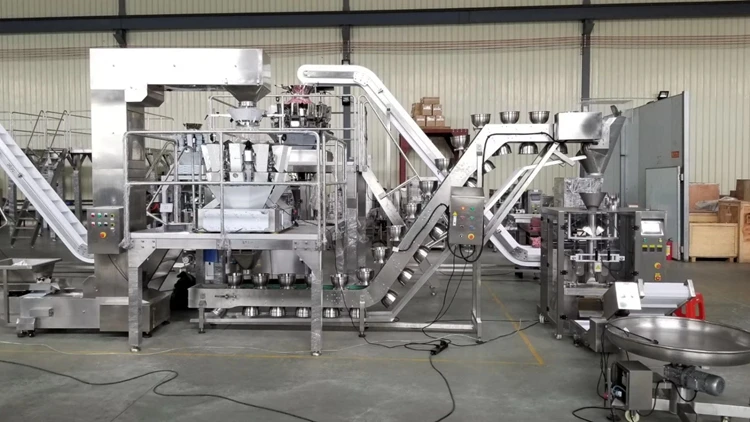

Economic Small Type Spices / Chili / Curry Powder Small Bag Packing Machine Manufacturer
- Category: >>>
- Supplier: SHANGHAI BODI AUTOMATION EQUIPMENT CO. LTD
Share on (1600371534072):
Product Overview
Description
Suitable for: irregularly granulated material and powder material, including inflatable foods, candy, sugar, deep freeze foods, washing powder, milk powder, milk tea, etc.
Feature:
1.Computerized touch screen, easy to adjustments and operation, and easy to change
products, with exception appearance system, easily and rapidly to repairing;
2.Servo drive for film feed system allows for accurate positioning and easy to adjust;
3.Horizontal sealing use pneumatic drive，low noise, could suitable for kinds of different
thickness and complicated packing material;
4.Could be automatically to finish making bags, sealing, printing, and optional functions:
connected bags system, European style hole punching, handing hole, nitrogen system, etc;
5.Design with alarming for clipping material, door unclosed, rolled film on wrong position, no print tape, no rolled film etc;
Selected installations:
>Linked bags or multi-bags cutting function；
>Pothook holes punching function (circle hole and others)；
>Outlet conveyer machine；
>All kinds of automatic or half-automatic measuring transportation structure；
>Inflatable and exhaust functions；
>Compressed air system and nitrogen making machine
Feature:
1.Computerized touch screen, easy to adjustments and operation, and easy to change
products, with exception appearance system, easily and rapidly to repairing;
2.Servo drive for film feed system allows for accurate positioning and easy to adjust;
3.Horizontal sealing use pneumatic drive，low noise, could suitable for kinds of different
thickness and complicated packing material;
4.Could be automatically to finish making bags, sealing, printing, and optional functions:
connected bags system, European style hole punching, handing hole, nitrogen system, etc;
5.Design with alarming for clipping material, door unclosed, rolled film on wrong position, no print tape, no rolled film etc;
Selected installations:
>Linked bags or multi-bags cutting function；
>Pothook holes punching function (circle hole and others)；
>Outlet conveyer machine；
>All kinds of automatic or half-automatic measuring transportation structure；
>Inflatable and exhaust functions；
>Compressed air system and nitrogen making machine
model | 430 | 530 | 630 | 730 |
Bag size | L=70-300mm W=60-200mm | L=70-330mm W=70-250mm | L=70-450mm W=70-300mm | L=70-500mm W=70-350mm |
Packing speed | 35-90 bags/min | 35-90 bags/min | 35-70 bags/min | 35-70 bags/min |
Electrical and power supply | AC220V,50-60HZ,3KW | AC220V,50-60HZ,4KW | AC220V,50-60HZ,4KW | AC220V,50-60HZ,4KW |
Compressed air consumption | 6kg/cm²，0.25m³/min | 6kg/cm²，0.25m³/min | 6kg/cm²，0.25m³/min | 6kg/cm²，0.25m³/min |
Total weight | 500 kg | 600 kg | 700 kg | 800 kg |
Outer dimension | 1330*1020*1390(mm) | L1300*W1150*H1500mm | L1478*W1280*H1750mm | L1678*W1360*H2015mm |
