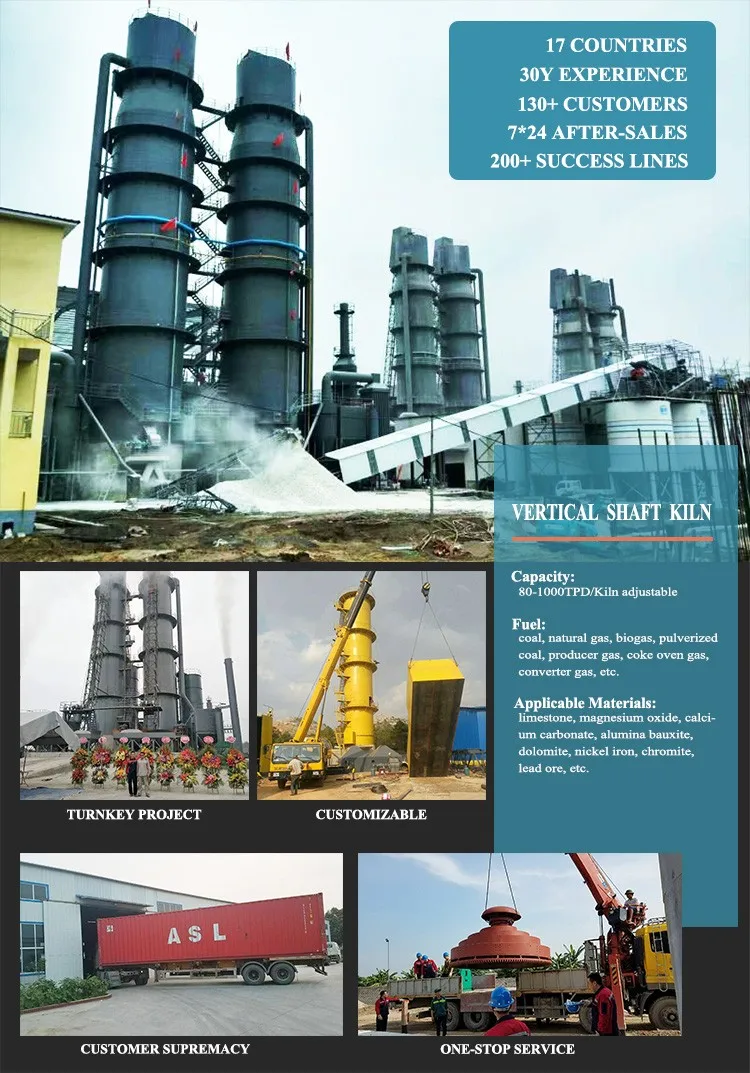

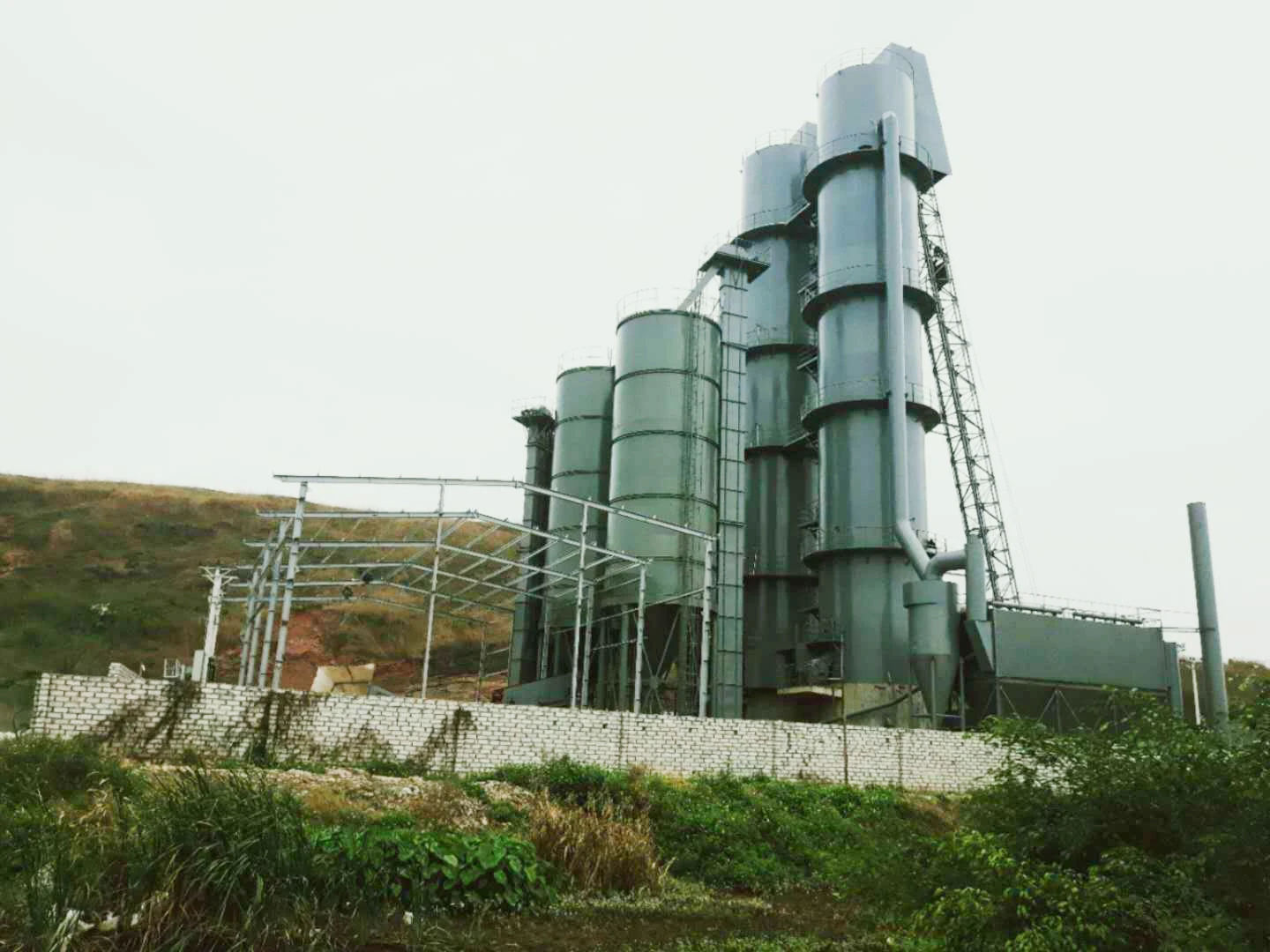

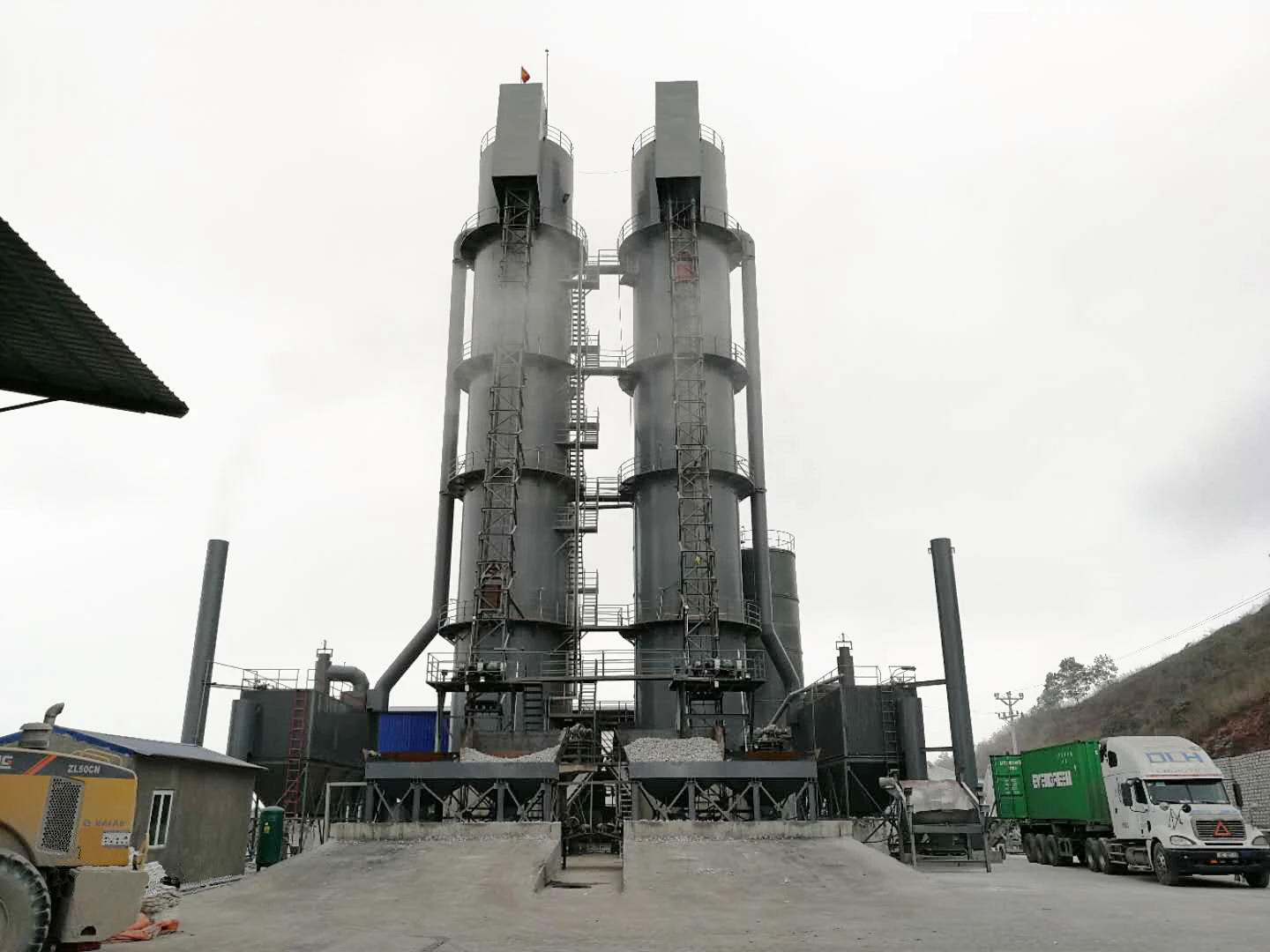

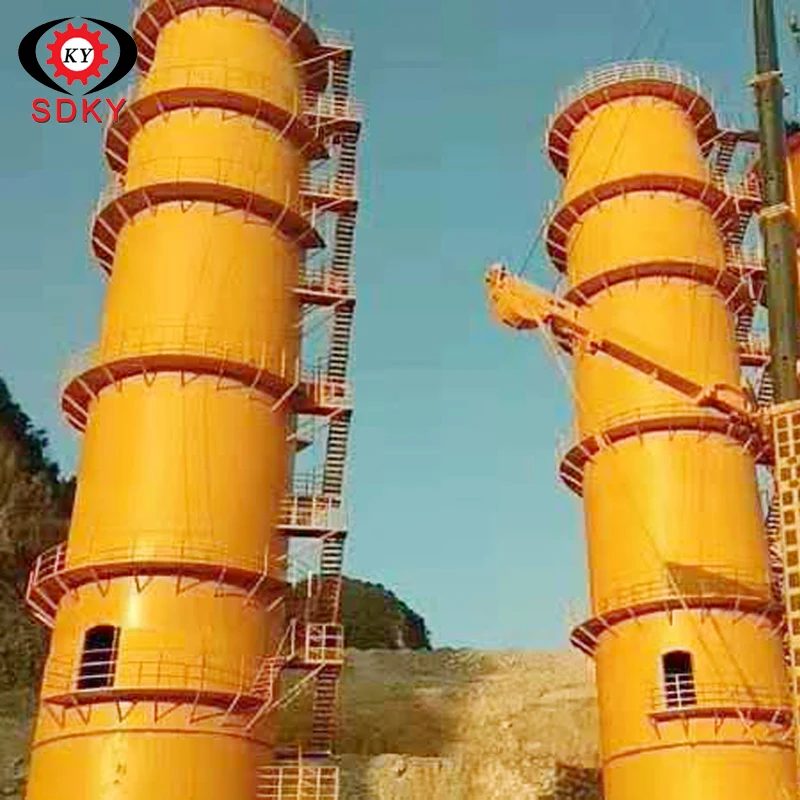

vertical shaft kiln factory kiln for lime dolomite calcination plant

Lime is used for producing cement for the construction industry. Lime is very important for many other uses and chemical applications, to produce gypsum wallboard or drywall panels, to neutralize toxic chemicals, for air pollution control scrubbing systems, for neutralizing the acidity of soil for agricultural, and Vertical Lime Kilns are used for the production of sugar. Lime is used for pigment in paints.

         100-150TPD LIME KILN

        150-220TPD  LIME KILN

        300-420TPD  LIME KILN

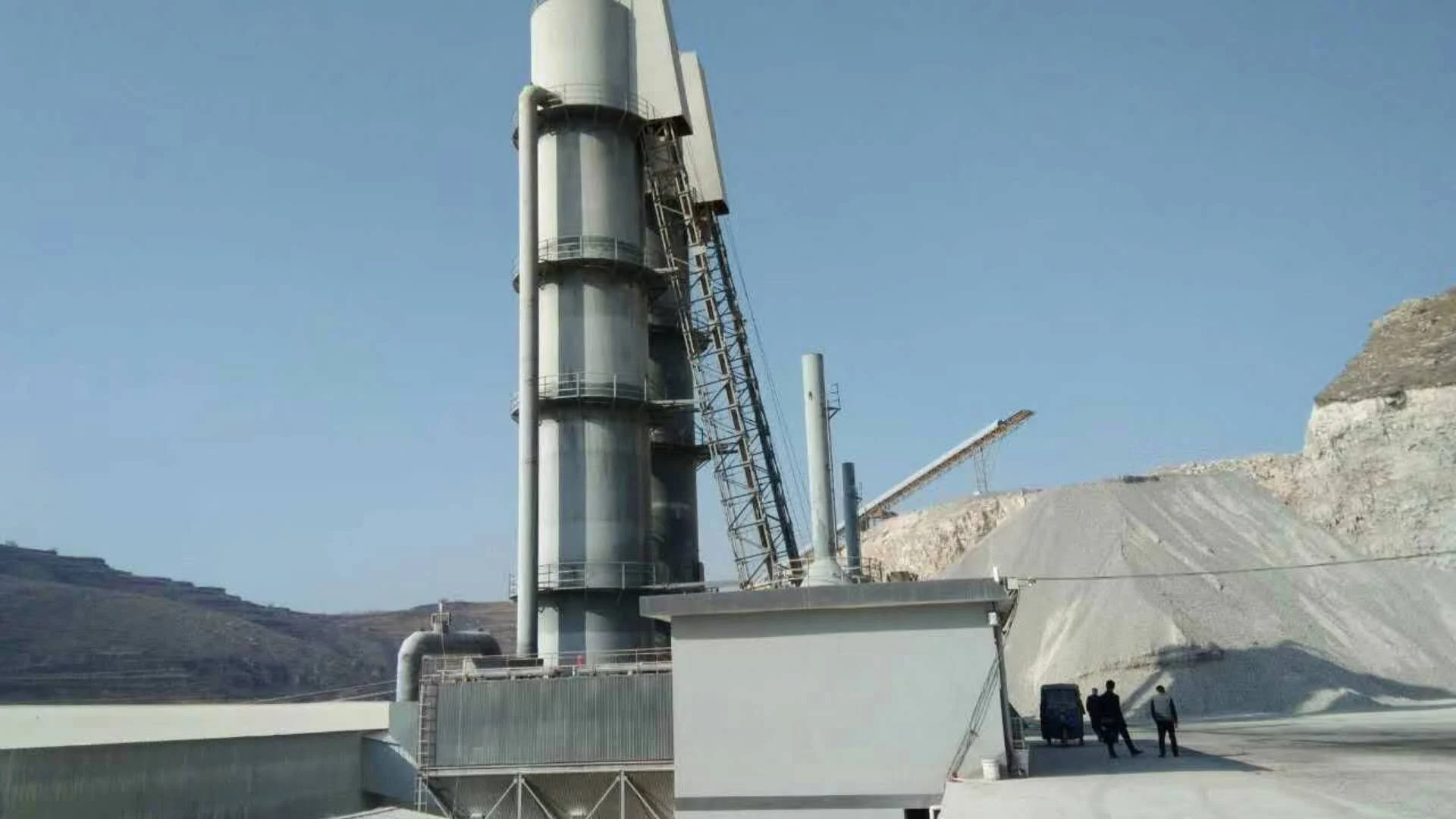

Large 1,000+ ton/day capacity Vertical Lime Kilns are possible, are very energy efficient and easy to operate. Minimal maintenance is required, because the limestone is brought to the top and into the kiln. Then the limestone is burned (calcined) for a specified time of hours to produce powdered lime. Then the lime is withdrawn at the bottom of the vertical kiln.

The withdrawal at the kiln bottom regulates the gravity flow of limestone and controls the calcining retention time in the kiln. A clinkergrinding mill grinds any remaining chunks of limestone into powder. The lime is then transported by truck trailers or by rail cars. White cement is now very much in demand by the construction industry.

1.Rotate to distribute raw materials evenly,so it can calcining evenly,to improving the quality of finished products.
2.The floor area is small and the sealing is good. It can effectively avoid the exhaust of thermal waste gas without environmental pollution.
3.Rotary discharge, increase stability, to avoid the loss of heat.
4.The temperature and output can be adjusted freely.
5.Automatically control the best air distribution and reduce the incomplete combustion loss of fuel.
6.the automation level is high. The adjustment, control and alarm of operation of production system are centralized controlled by PLC in the main control room, with few on-site operators and high labor efficiency.
7.We have 30 years experience in the production of lime production equipment. There are numerous successful cases at home and abroad. The quality is assured and the service is satisfactory.

1. Feeding system: lifting raw materials to the top of the kiln, rotating the raw materials.
2. Calcining system: shaft kiln body, including preheating zone, calcining zone, cooling zone.
3. Dedusting system: collecting dust and ensuring zero pollution emission.

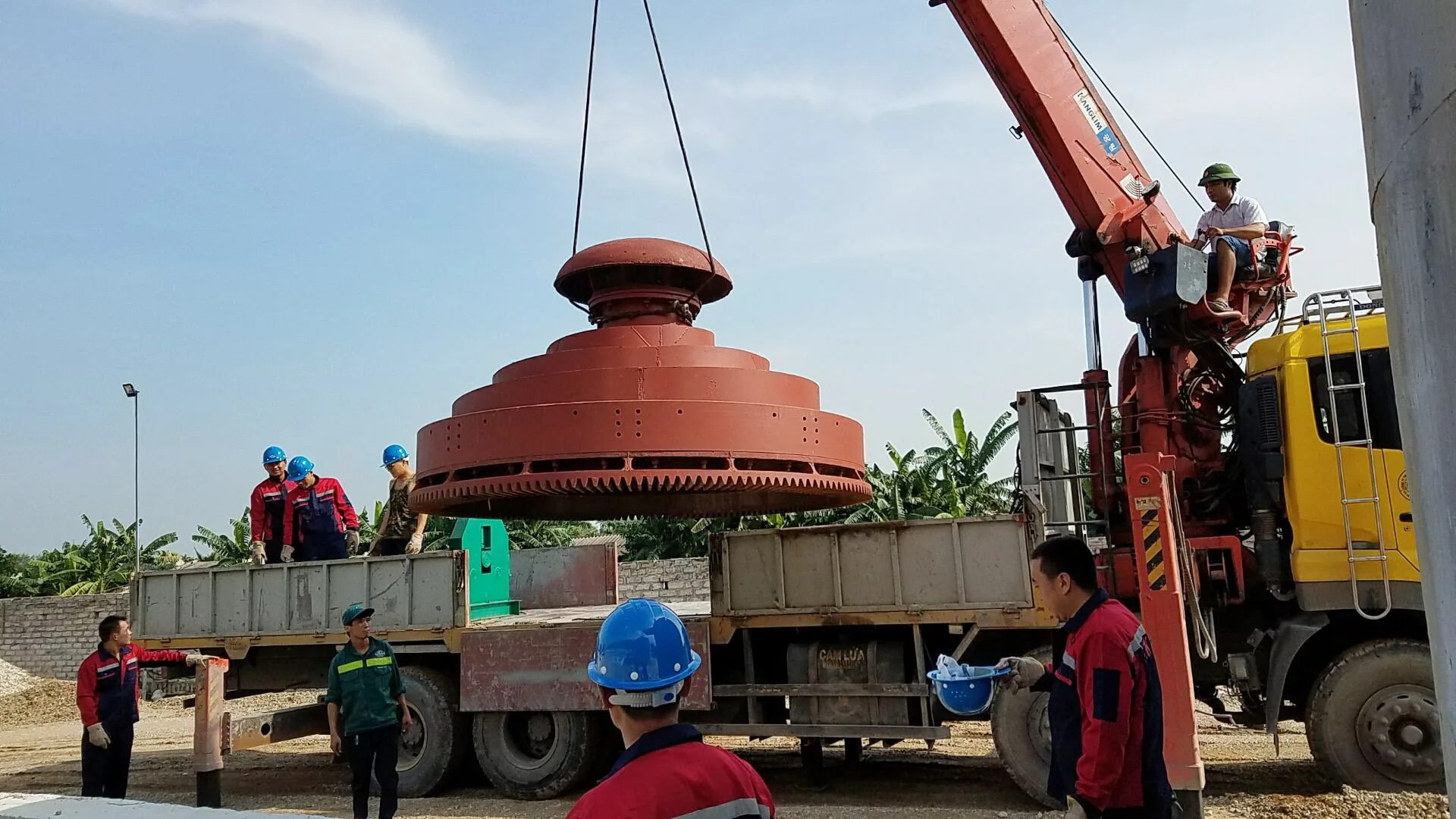

4. Discharging system: Rotary discharging, fast speed, large output, transport to finished product warehouse.
5. Control system: Automatically control the operation of each part of the system.

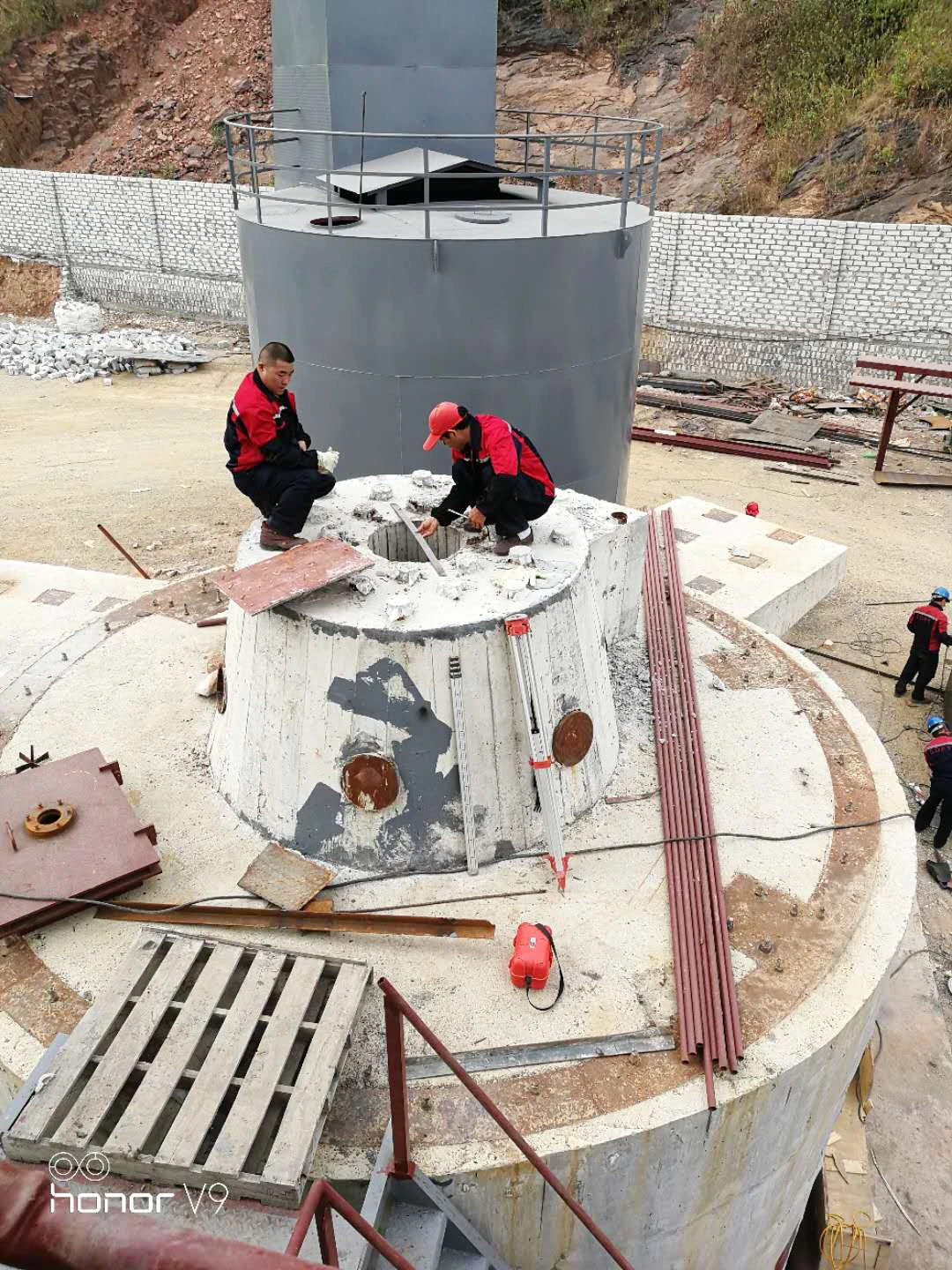

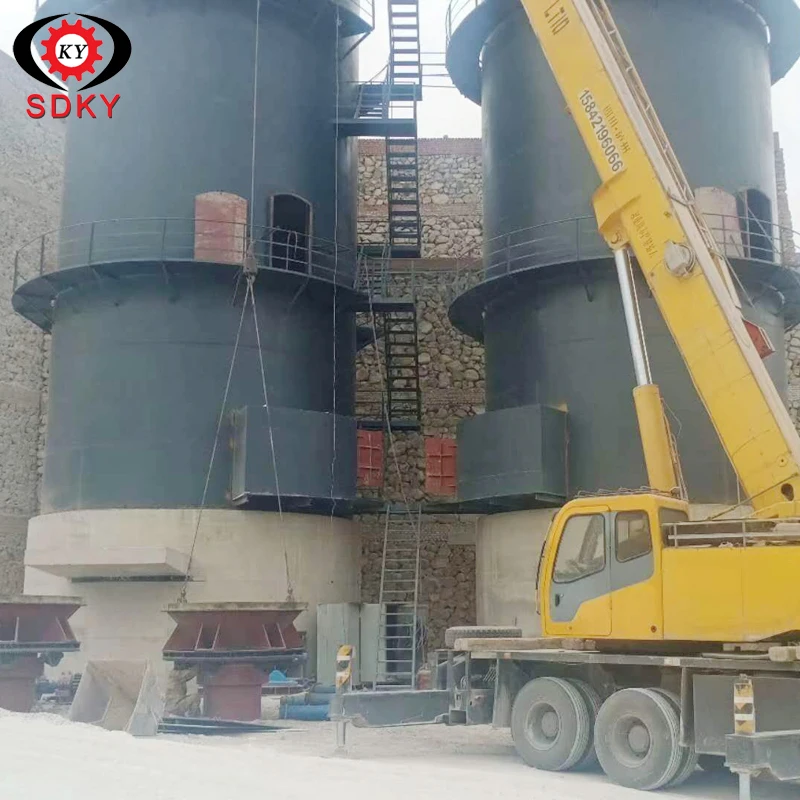

The installation quality of the kiln will affect the kiln's working life and the quality of the finished lime. We will dispatch engineers to install on site, including follow-up commissioning and training.

Shaft kiln can use a lot kind of raw materials, because raw materials composition and physical and mechanical properties are not the same, the materials chemical composition and impurities must have certain requirements in order to produce good finished product.

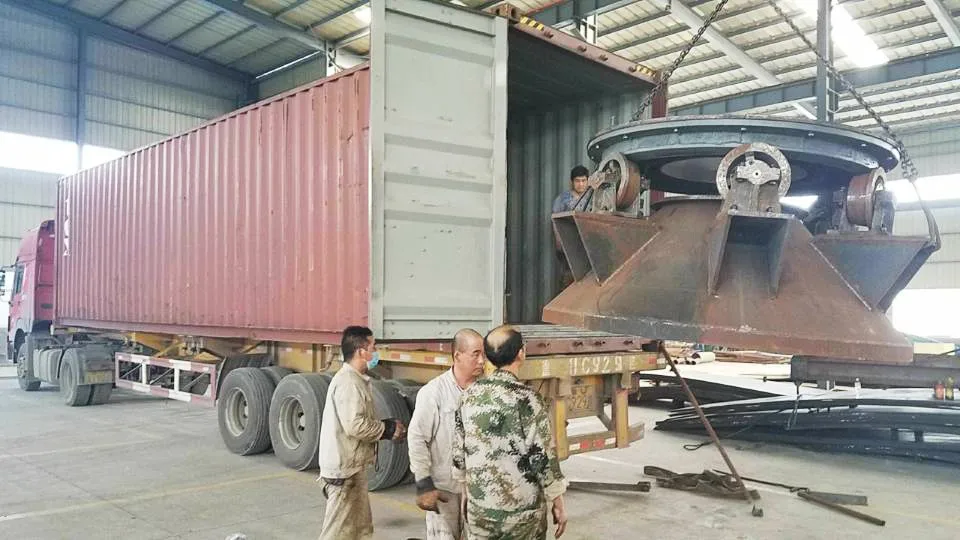

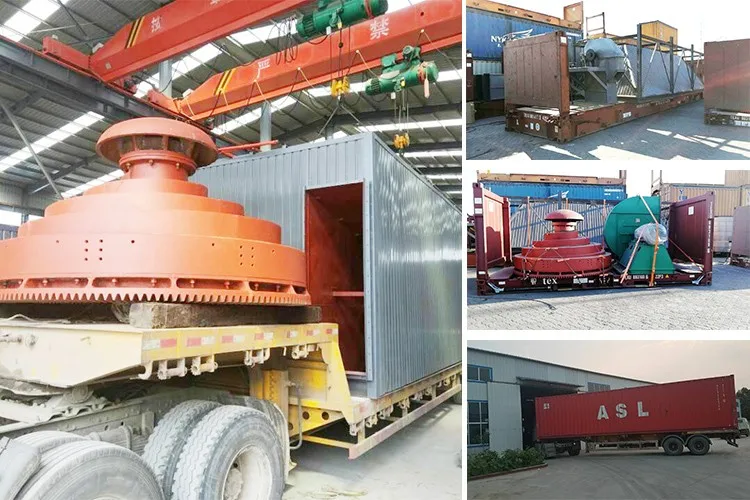

The shaft kiln's parts are relatively large and good packaging and shipping are necessary to ensure product transportation safety and reduce freight costs.

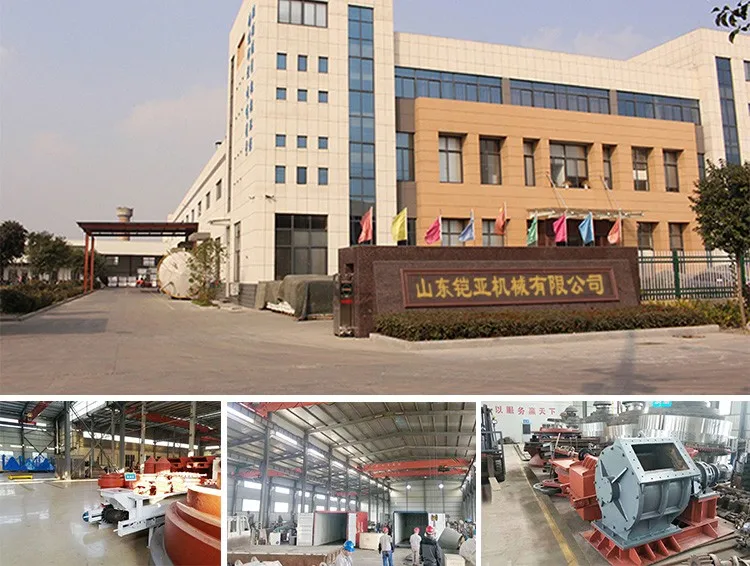

Kaiya Machinery Co., Ltd.'s main products cover cement production lines, lime production lines, stone crushing and screening equipments, which can provide customers with one-stop services including on-site design guidance, machine installation and commissioning, after-sales service, spare parts supply etc. We can provide customers with a "turnkey" project.

Our One-stop Service and Turnkey Project

Pre-sales service

Freely provide project designing, process designing, such as detailed turnkey project technical solutions, draft commercial quotation, processing CAD models etc. And choosing suitable equipment for you.

Medium-sales service

Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export kiln.

After-sales service

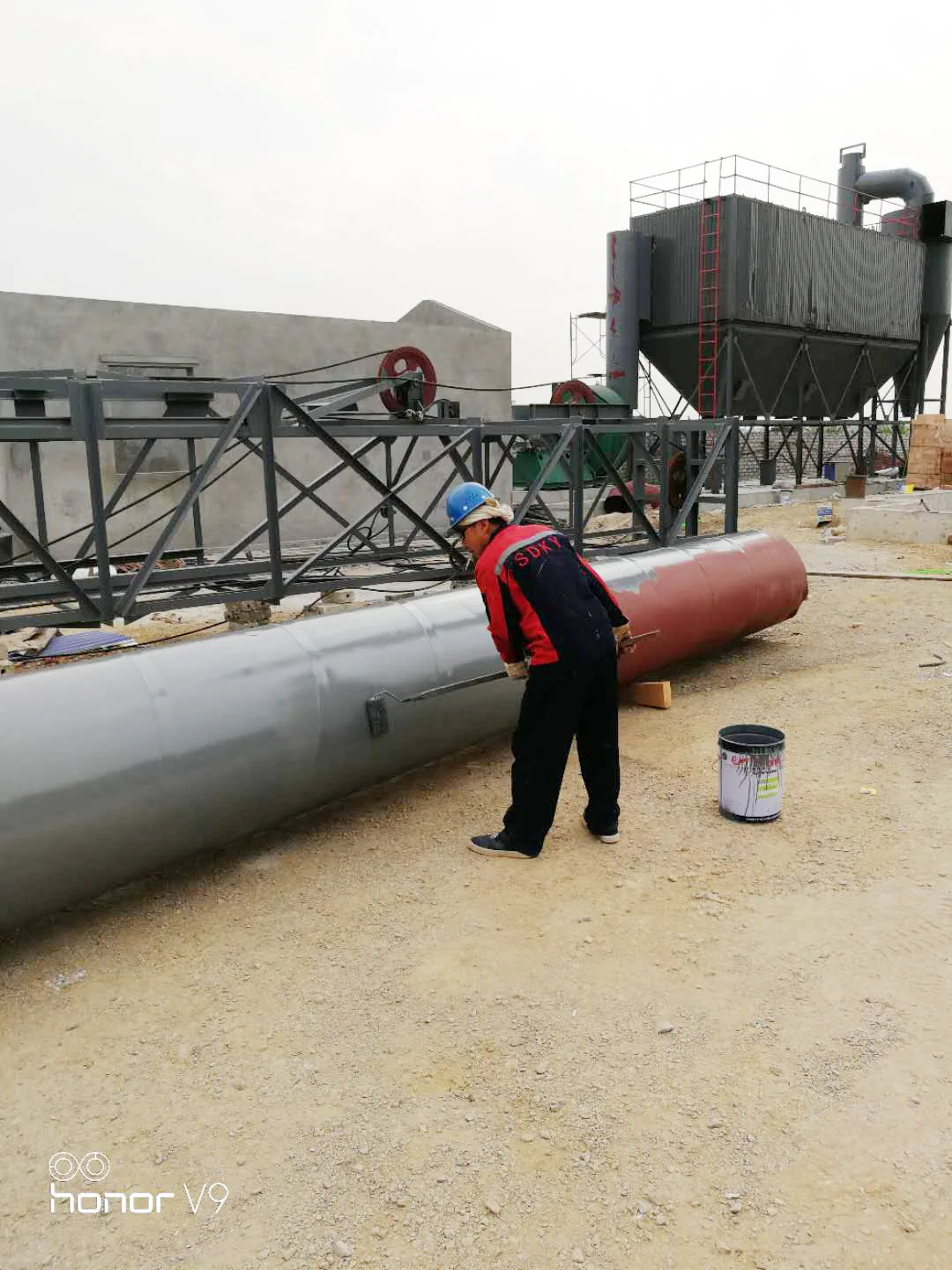

We sent engineers to the scene to guide installation, debugging and training.
In addition, we provide warranty to ensure normal operation of the machine, lifelong technical adviser.

Our Certificate:

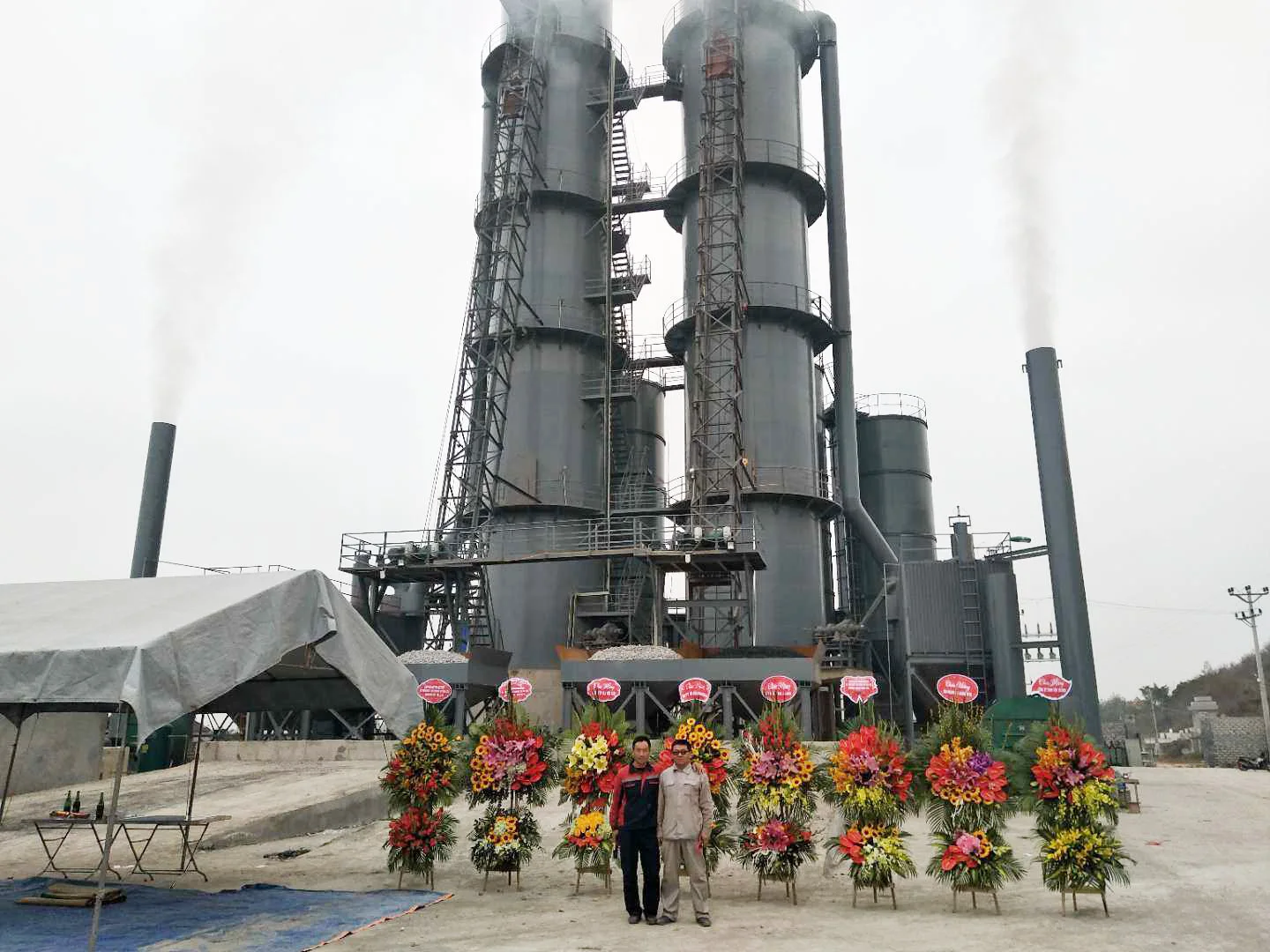

Customer visits and exhibitions:

1.What is the raw material for the production line?
2.What is the capacity per day or year you required?
3.What will the final product be used for?
4.It is better if you have some report of the raw materials and the fuel.

Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models. Reply message you will get 5% discount price.

Kaiya Machinery grants our customers a three-year-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will at our discretion replace or repair the defective parts freely.

1.Professional manufacturer of supplying cement production line, lime production line, stone crushing and screening equipment, 30-year road and bridge experience.
2.To provide customers with on-site design guidance, machine installation and commissioning, after-sales service, spare parts supply and other      comprehensive one-stop service, to provide customers with turnkey projects.
3.Experienced professional R & D team and manufacturing team, with a number of exclusive advanced technology.
4.More than 200 customer success cases at home and abroad, you can choose to examine the nearest case.
5.Professional packaging and transportation, save delivery time and transportation costs, ensure product safety and timely delivery around the world.
