SKA RP 3/4 Sunnywell SW E Series On/Off Motorized Valve Body
- Category: Valve >>>
- Supplier: Shanghai Kara Instruments Co. Ltd.
Share on (1600372020498):
Product Overview
Description

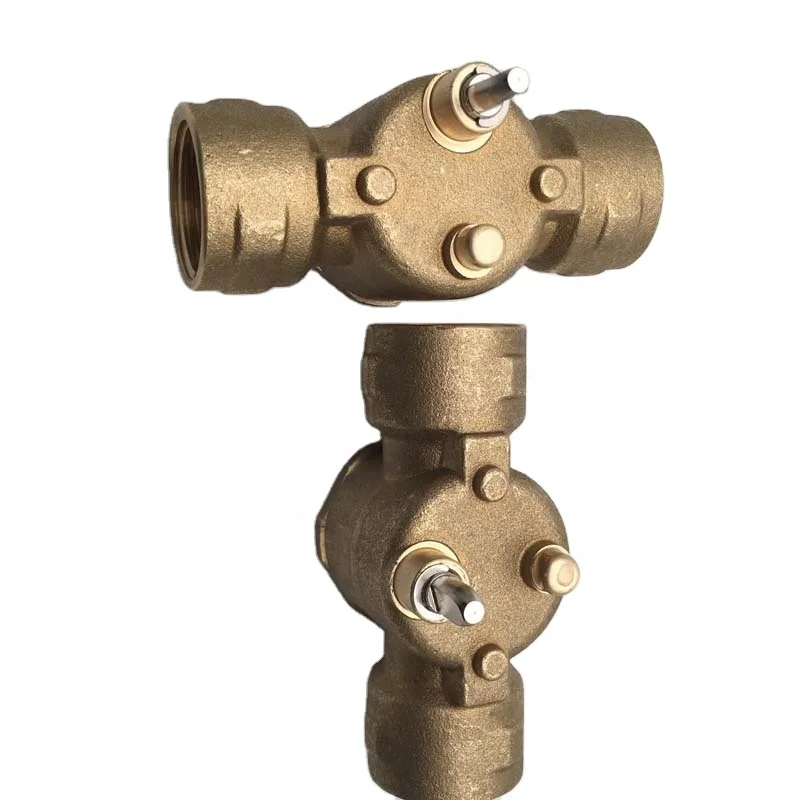

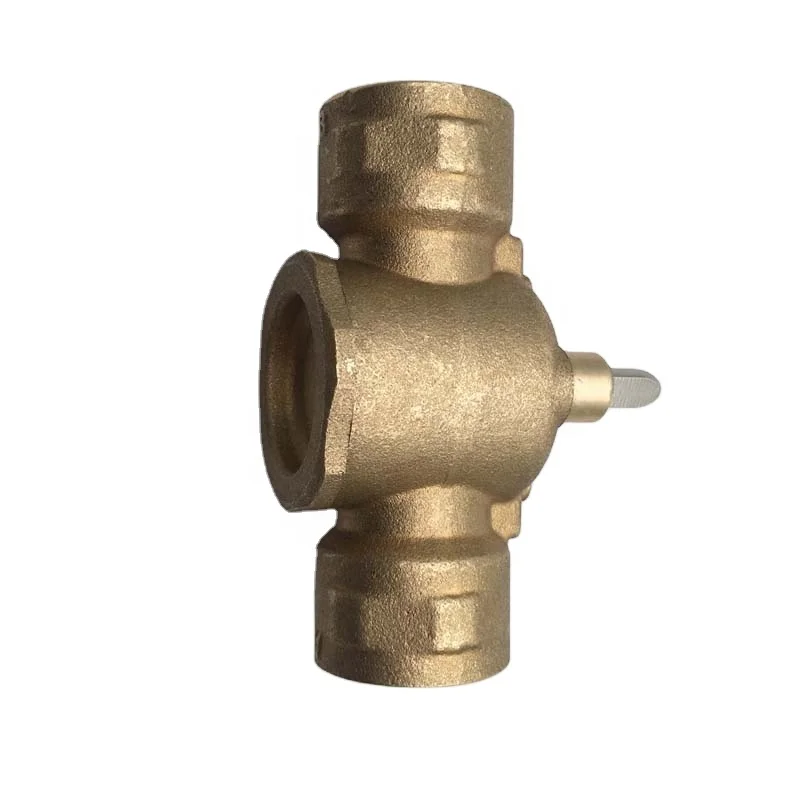

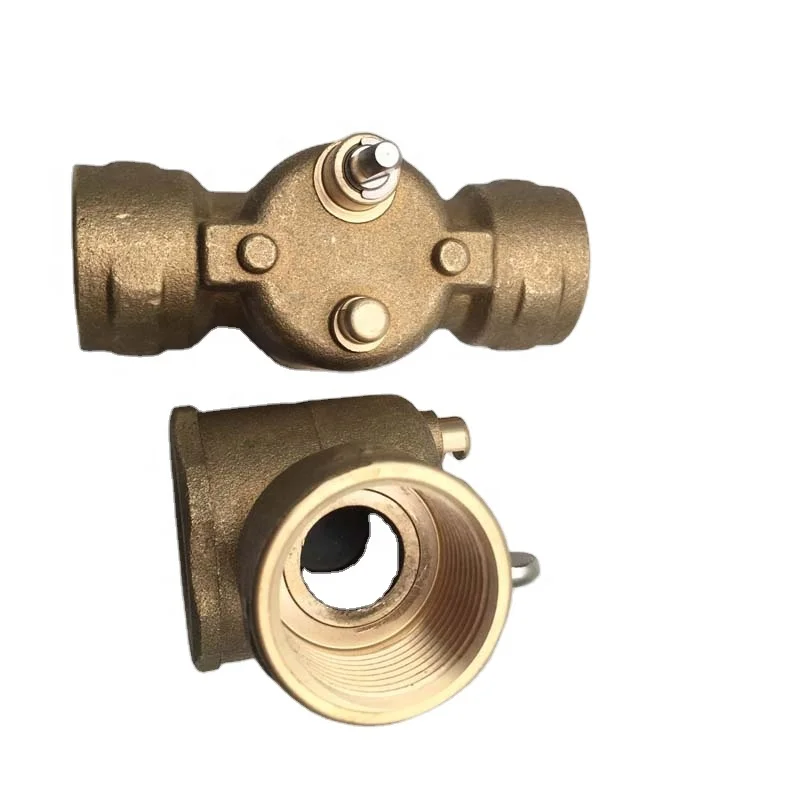

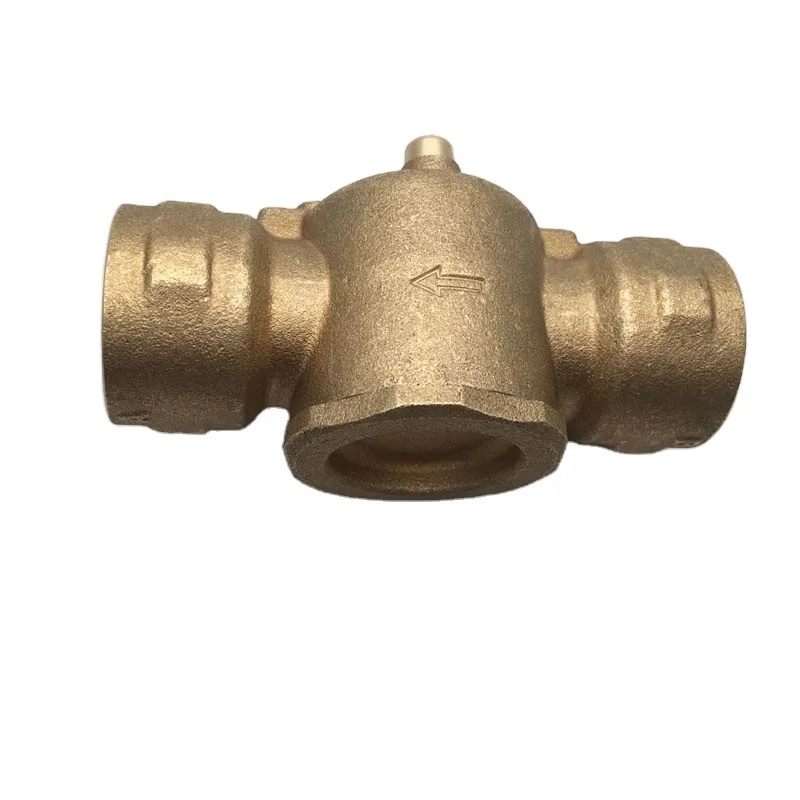

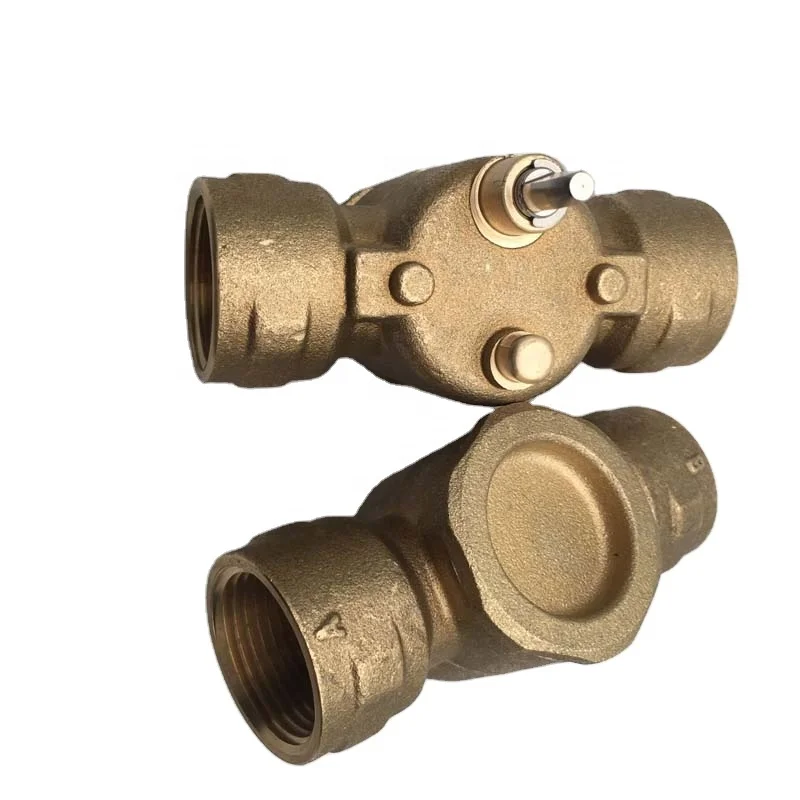

SKA-RP 3/4 Sunnywell SW-E Series On/Off Motorized Valve Body
Used in Fan Coil Units，heating equipment control，air-condition, heating system and other HVAC systems
On/Off type, 2-way normally-closed and diverting.
Uses fully enclosed one way hysteresis synchronous motor with spring return.
The valve actuator can be easily mounted on a pre-installed valve body in a fan coil
unit, a radiator or a compressed air unit.
No need for calibrations or special fittings to connect the actuator to the valve body.
SPECIFICATIONS:
Mold: 2-way
Material: Brass
Process: Forged
Thread：RP3/4”, NPT3/4”, BSPT or customized
Pressure: 1.5—2.2Bar
Weight: 280g
On/Off type, 2-way normally-closed and diverting.
Uses fully enclosed one way hysteresis synchronous motor with spring return.
The valve actuator can be easily mounted on a pre-installed valve body in a fan coil
unit, a radiator or a compressed air unit.
No need for calibrations or special fittings to connect the actuator to the valve body.
SPECIFICATIONS:
Mold: 2-way
Material: Brass
Process: Forged
Thread：RP3/4”, NPT3/4”, BSPT or customized
Pressure: 1.5—2.2Bar
Weight: 280g
Mold | 2-way | ||||
Material | Brass | ||||
Process | Forged | ||||
Thread | RP3/4”, NPT3/4”, BSPT or customized | ||||
Pressure | 1.5—2.2Bar | ||||
Weight | 280g | ||||
Materials | |||||
Body | Forged Brass | ||||
Stem | Nickel-Plated | ||||
Seat | Brass | ||||
Paddle | NBR | ||||
Ambient Temperature Limits | Shipping & Storage | -40˚ to 160˚ F | -40˚ to 71˚ C | ||
Operating Fluid | 32˚ to 200˚ F | 0˚ to 93˚ C | |||
Operating Ambient | 32˚ to 104˚ F | 0˚ to 40˚ C | |||
