Beltwin All In One Air Cooling Splice Press PA900 conveyor belt splices pu belt splice press machine

All In One Air Cooling Press PA300-2400

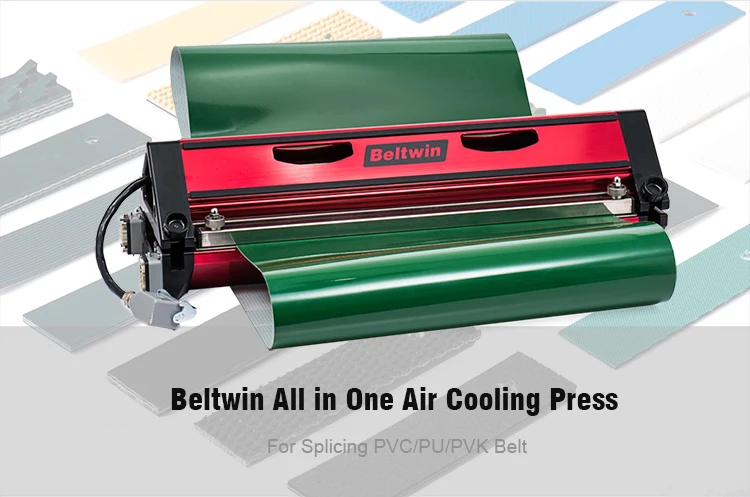

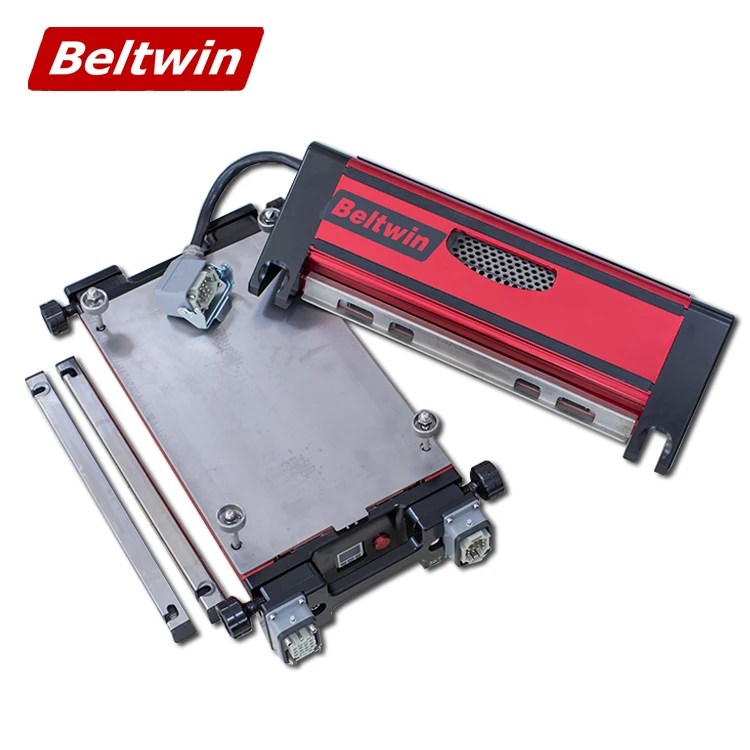

The All In One Splice Press, new Portable Splice Press. This air cooled press has all components integrated into the tool, allowing a user to simply plug it into electricity and it is ready for use.

Specifications:

l The PA series air cooled press, have different models for width from 24″ (300 mm) to 95″ (2400 mm)

l Used for PVC PU PVK belt etc. thermoplastic belt materials

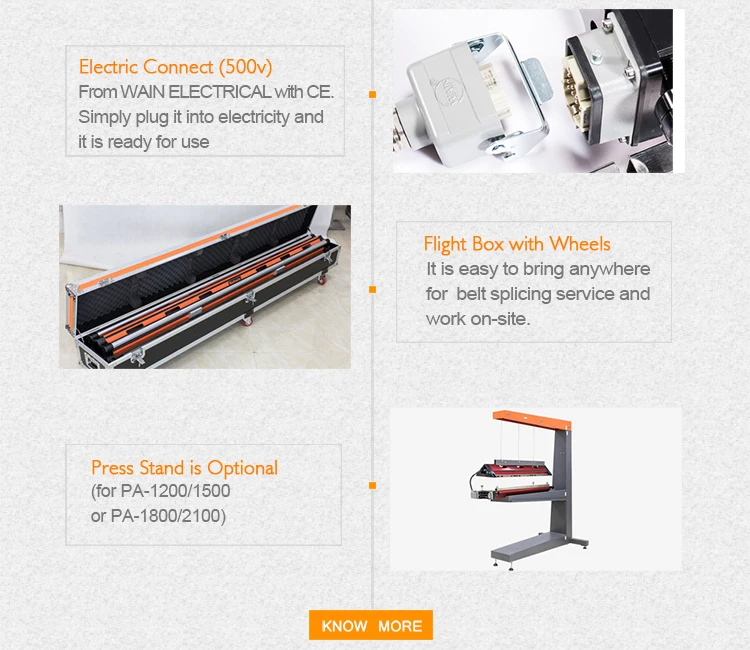

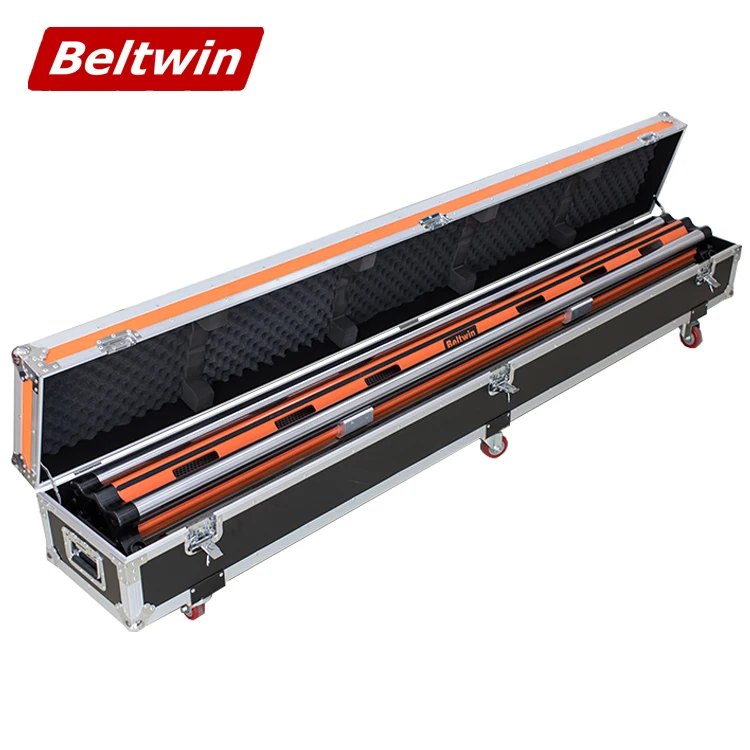

l Portable Splice Press, light weight and with flight case as standard packing, is easily removed to any where for job site use

l Fast Splicing: include heating time and cooling time, no more than 12 mins.

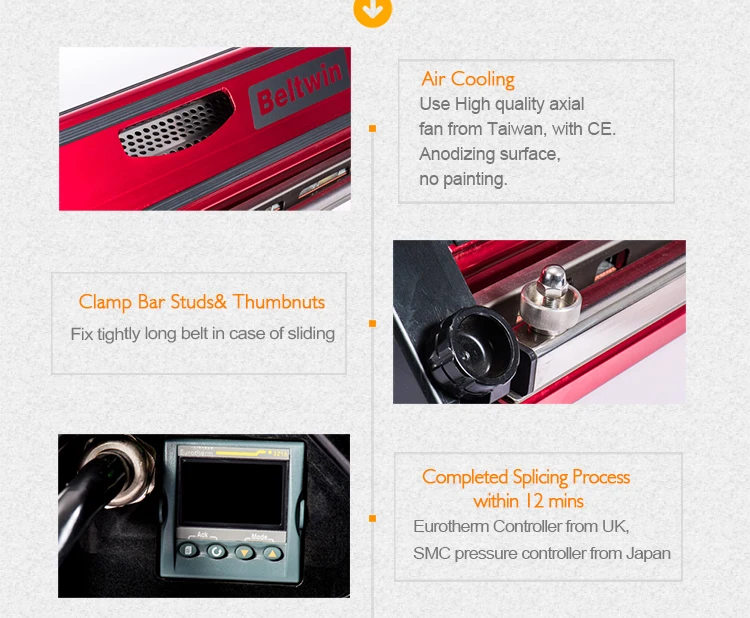

l All in one design: The press has an integrated air-cooling system and also air compresor inside. To ensures that the belt is quickly cooled down and auto press on, without water pump or aditional air compresor.

l Easy to use and assemble, how to operate pls freely to refer to below video.

l Light weight

l Reliable and automatic Temperature Control with time control (in one meter, also you can set by yourself). High quality Eurotherm controller.

l Air pressure controller (set the air pressure and display the current pressure), High quality SMC controller.

l Voltage: 220V or 380V, if special voltage pls freely to inform us.

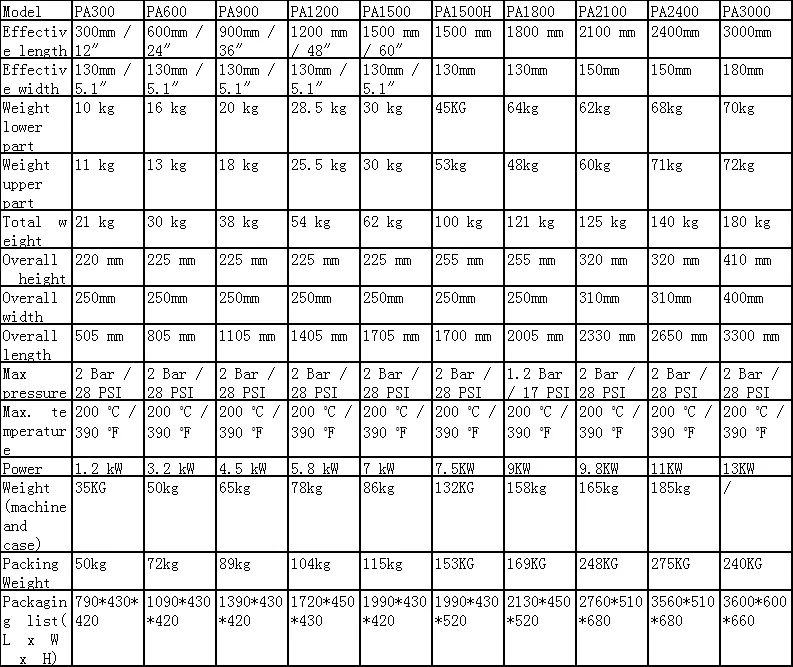

Datasheet:

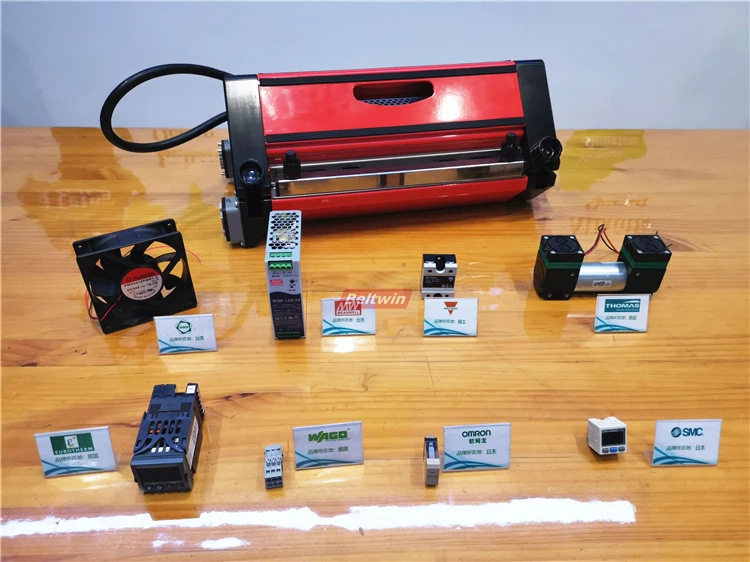

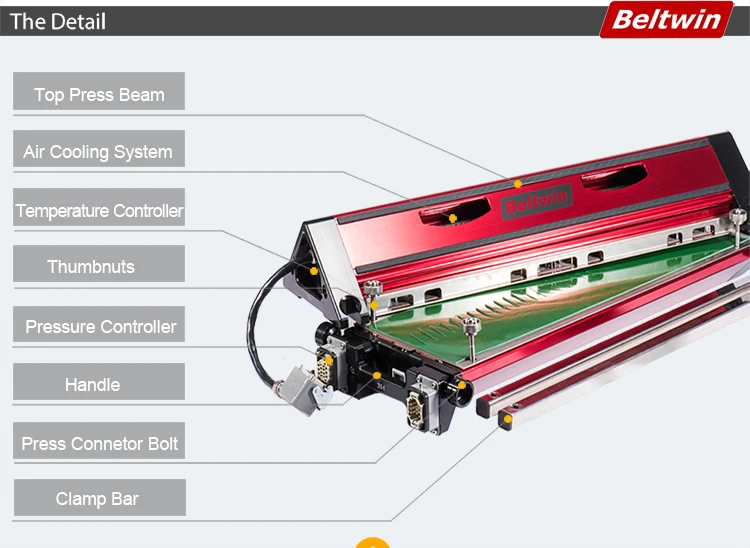

Spare Parts In Famous Brand For Air Cooling Press

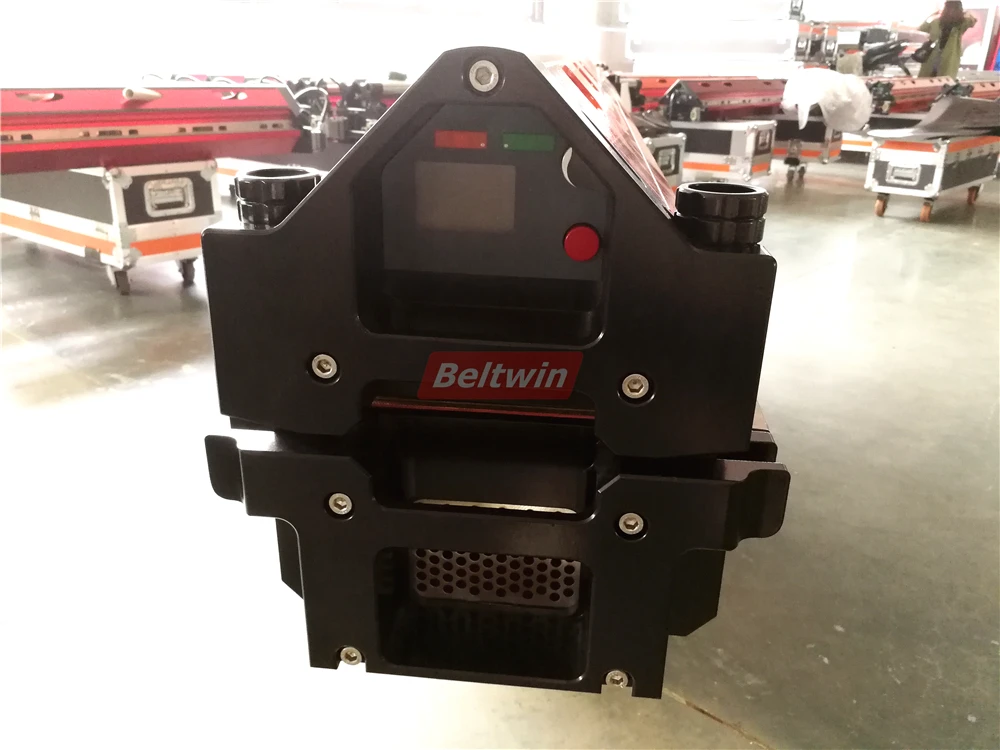

New PA2100 Air Cooling Press

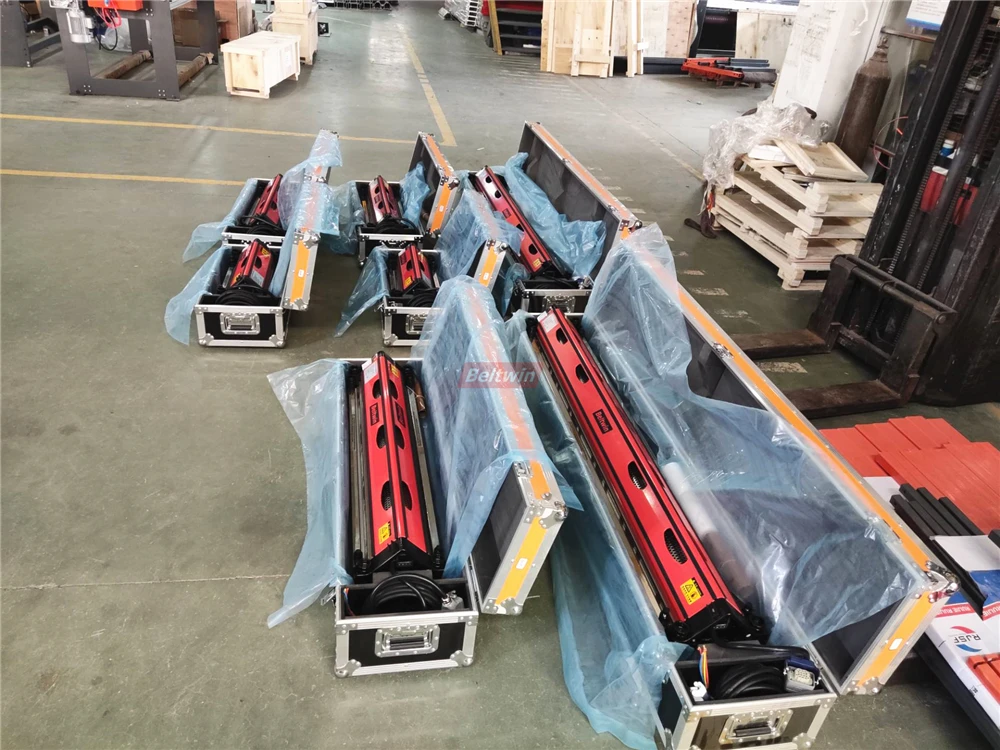

Photos for delivery

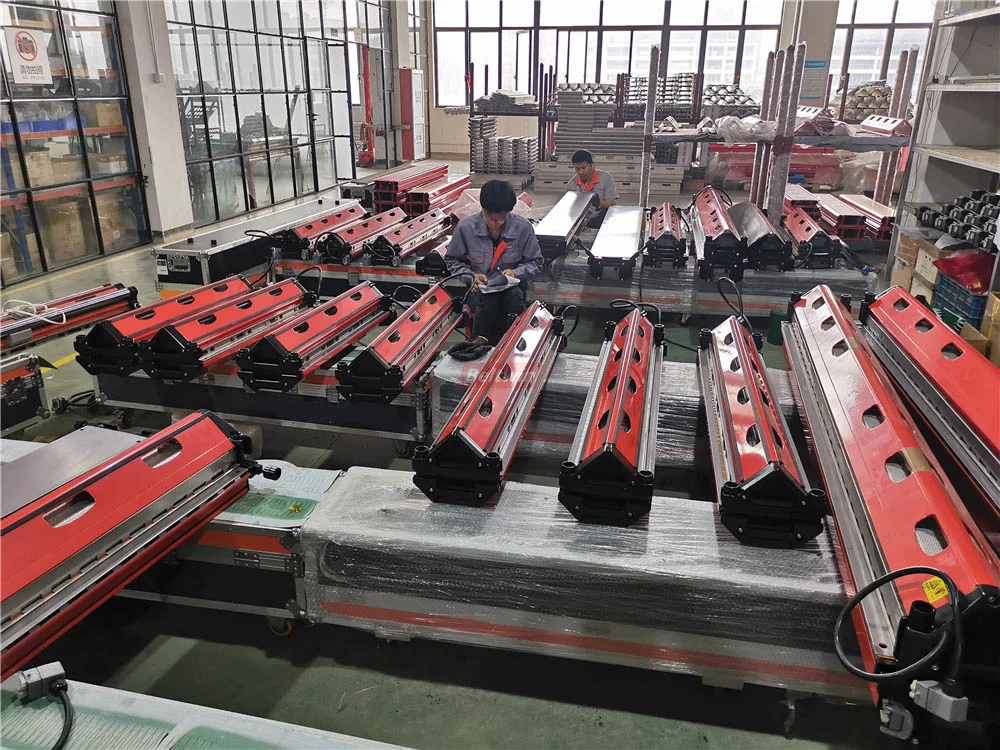

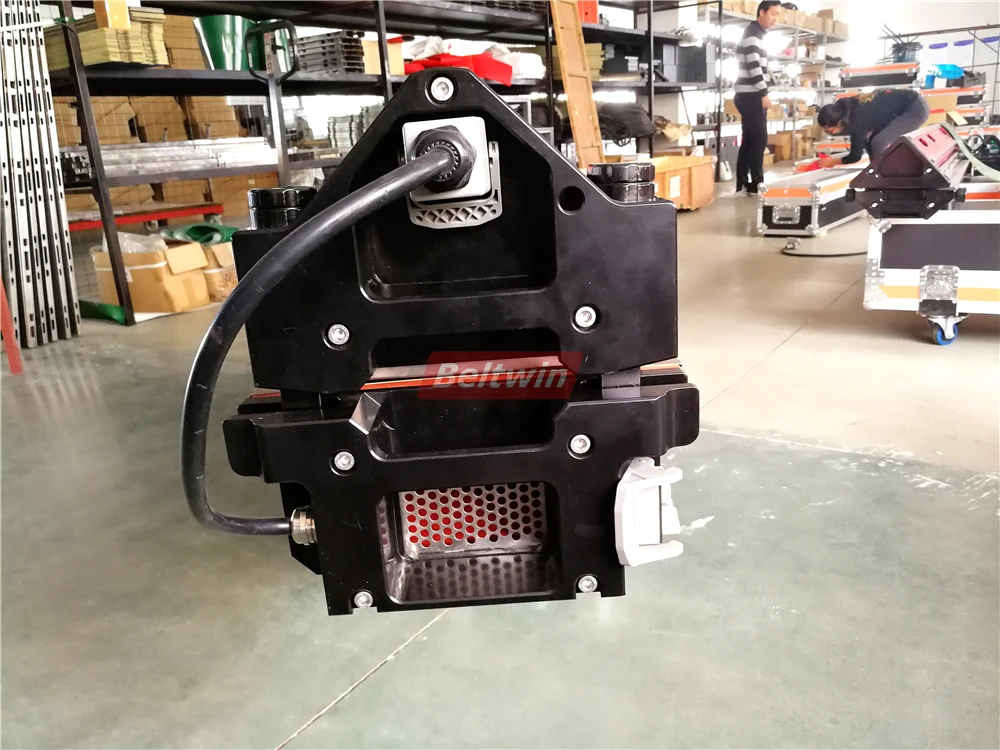

Photos for warehouse and production
