Прямая продажа с фабрики HD серии ручной постоянный магнетический подъемник с 3 раза напряжения
- Category: Magnetic Lifter >>>
- Supplier: Xiamen,Zhaobao,Perm,Magnet,Tech,Co.,Ltd.
Share on:
Product Overview
Description
Note:
* The material price fluctuates greatly, price is for reference only, please confirm with us before ordering.
* WE HAVE THE RIGHT NOT TO DELIVER GOODS WITHOUT CONFIRMATION.
Product Description

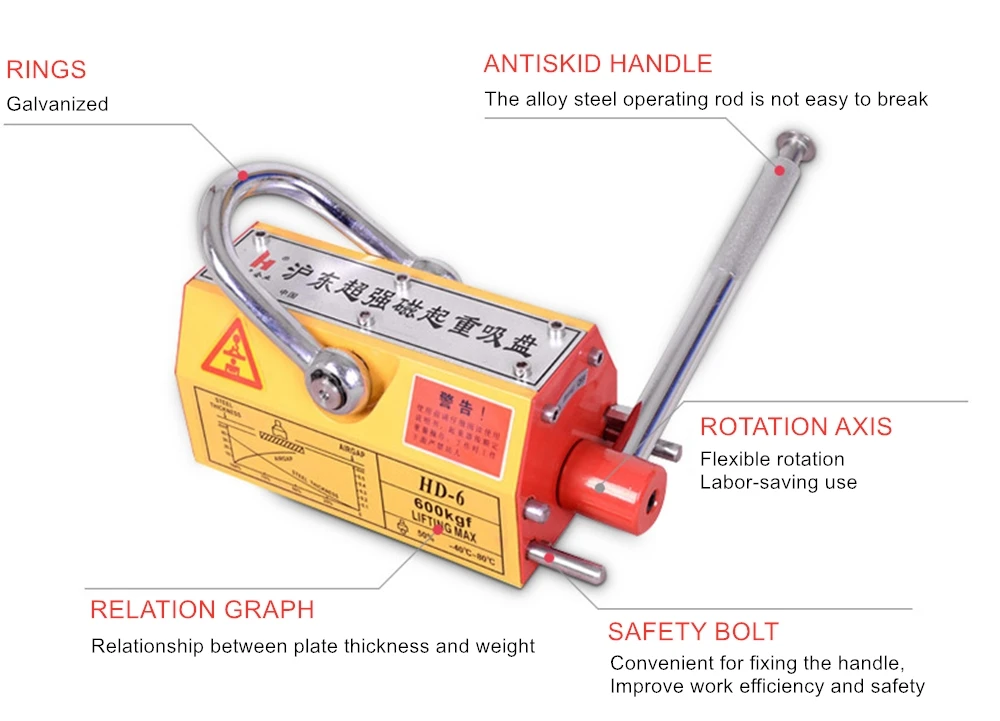

The permanent magnet crane / magnetic lifter adopts high-performance permanent magnet material qintieboron (NdFeB) as the core, which makes the volume smaller, the lifting force stronger and the magnetic force lasting. The unique magnetic circuit design makes the residual magnetism almost zero. The safety factor is high, and the maximum pulling force is 3.5 times of the rated lifting force. The handle switch is attached with a safety button, which can be operated by one hand, safe and convenient. There is a "V" groove on the bottom of the crane, which can lift the corresponding round steel and steel plate.
Product Name | Permanent Magnet Lifter |
Customization | Logo, Pattern, Color, Packing, etc.. |
Rated lifting capacity | 100 to 5000 KG |
Maximum tension ratio | 3 TIMES |
Max Holding Force | 300 to 15000 KG |
MOQ | 1 PC |
Delivery Time | 1-10 working days |
Certificates | ROHS, REACH, EN71, CHCC, CP65, ISO, IATF16949, etc.. |
Hoisting curve of HD-1 to HD-2 models
Hoisting curve of HD-3 to HD-8 models
Hoisting curve of HD-10 to HD-20 models
Hoisting curve of HD-30 to HD-50 models
Packing Details

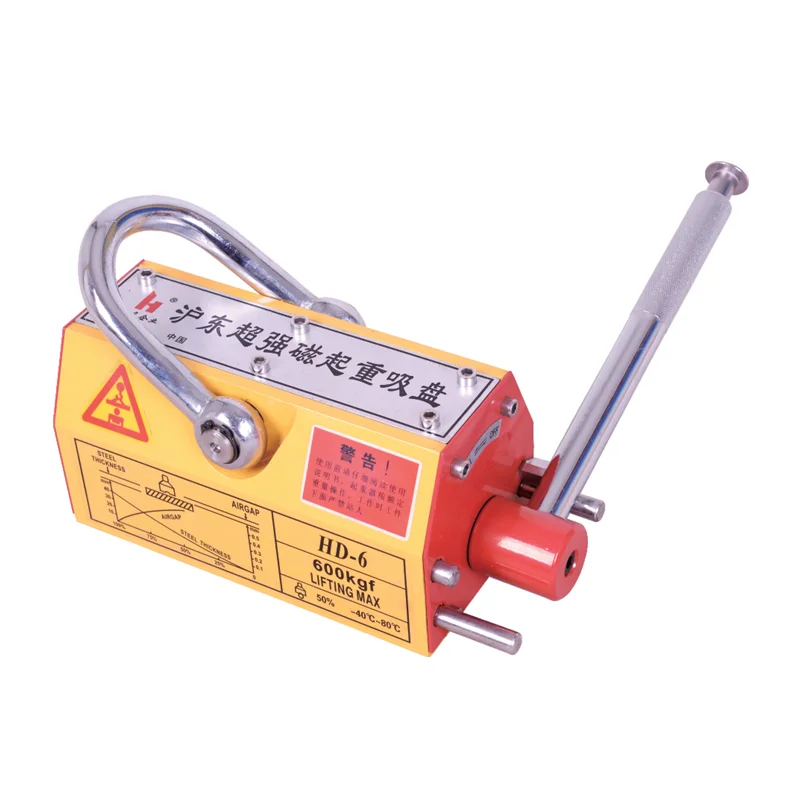

Product Shows
Why Choose Us
30 Years Magnet Manufacturer--ZHAOBAO MAGNET
1. Annual output of NdFeB Magnet has been more than 5000 tons
2. More than 60000m2 workshop
3. More than 500 employees
4. More than 50 engineers
5. Welcome to visit our factory
Conventional: +/-0.05mm, +/-0.1mm
Customized: +/-0.03mm, +/-0.02mm, +/-0.01mm
Independent production from raw materials to finished products
We have mastered all NdFeB production equipment and technology, and has a number of patents
We have mastered all NdFeB production equipment and technology, and has a number of patents
Excellent sales team, one to one service
7 * 12 hours online service
Reply within 8 hours at night or on holidays
Certifications
We have independent patents and intellectual property rights, and have passed a number of international authoritative certifications, such as IATF16949 (ISO9001), ISO14001, ROHS, REACH, EN71, CE, CP65, CPSIA, ASTM, etc..
We are the only factory capable of passing CHCC certification!
Delivery:
Global Supply
Door to door deliveryTrade term: DDP, DDU, CIF, FOB, EXW, etc..
Channel: Air, express, sea, train, truck, etc..
Payment:
Support: L/C, Westerm Union, D/P, D/A, T/T, MoneyGram, Credit Card, PayPal, etc..

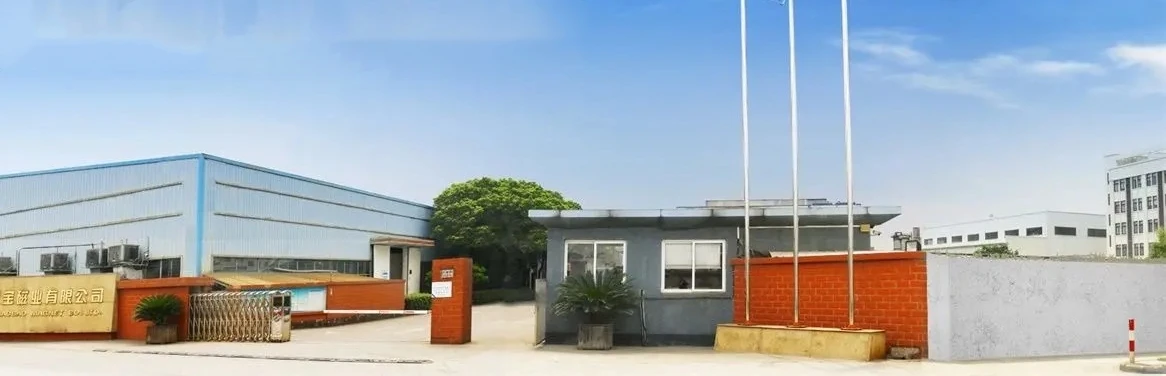

Our Company
Exhibition
Berlin coil, motor insulation and electrical manufacturing exhibition
Production Process
Independent production from raw materials to finished products

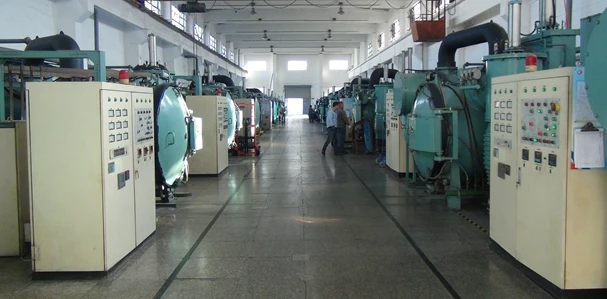

Production Equipment
Have mastered a full set of production and testing equipment
Testing Equipment
More than 20 inspection processes in the whole process!
FAQ
Q: Are you trader or manufacturer?
A: We are manufacturer, we have our own factory for more than 30 years.We are one of the earliest enterprises engaged in the production of rare earth permanent magnet materials.
Q: What's the payment method?
A: We support Credit Card,T/T, L/C, western Union, D/P,D/A, MoneyGram, etc...
Lower than 5000 usd, 100% in advance; more than 5000 usd,30% in advance.Also can be negotiated.
Q: May I get some samples to test?
A: Yes, we can provide samples, if there is some stock, sample will be free. You just need to pay shipping cost.
Q: What's the lead time?
A: According to the quantity and size, if there is enough stock, delivery time will be within 5 days; Otherwise we need 10-20 days for production.
Q: What's the MOQ?
A: No MOQ, small quantity can be sold as samples.
Q: What if the goods are damaged?
A: If you need, we can help you buy goods insurance.
Certainly, even if there is no insurance, we will send an additional part in the next shipment.
Certainly, even if there is no insurance, we will send an additional part in the next shipment.
Q:How to ensure product quality?
A: We have 20 years of production experience and 15 years of service experience in European and American markets. Disney, calendar, Samsung, apple and Huawei are all our customers. We have a good reputation, although we can rest assured. If you are still worried, we can provide you with the test report.
A: We have 20 years of production experience and 15 years of service experience in European and American markets. Disney, calendar, Samsung, apple and Huawei are all our customers. We have a good reputation, although we can rest assured. If you are still worried, we can provide you with the test report.
