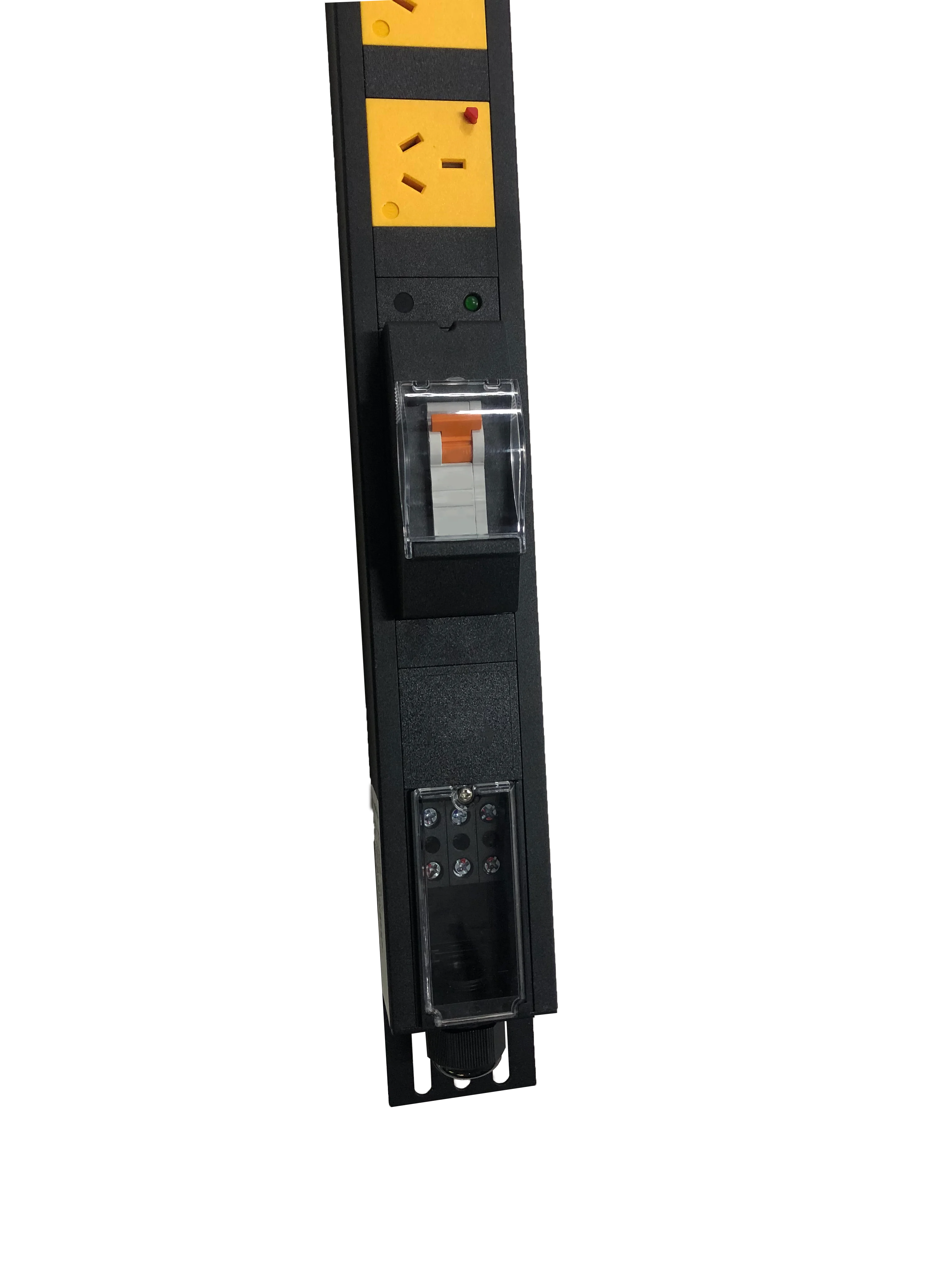

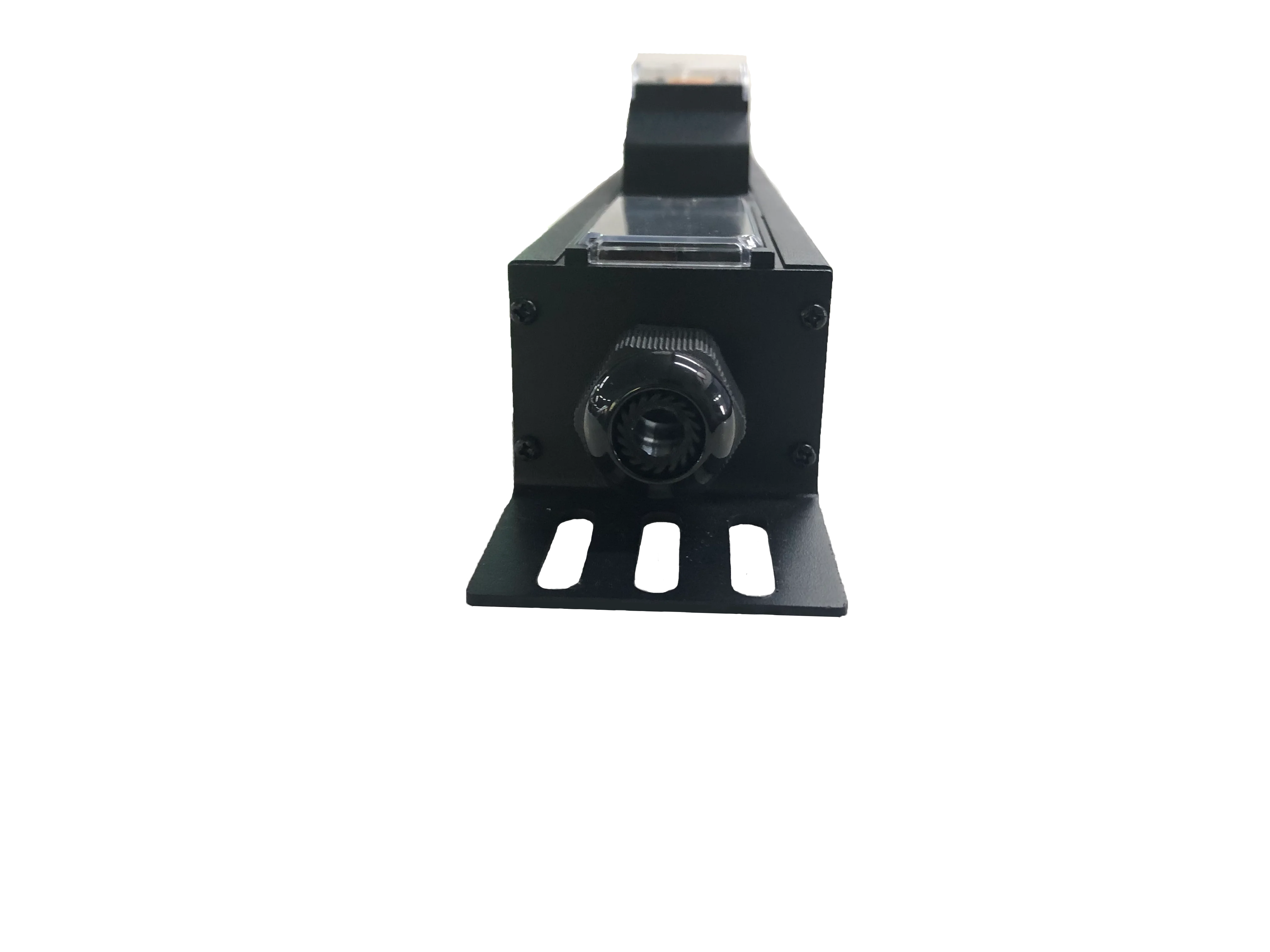

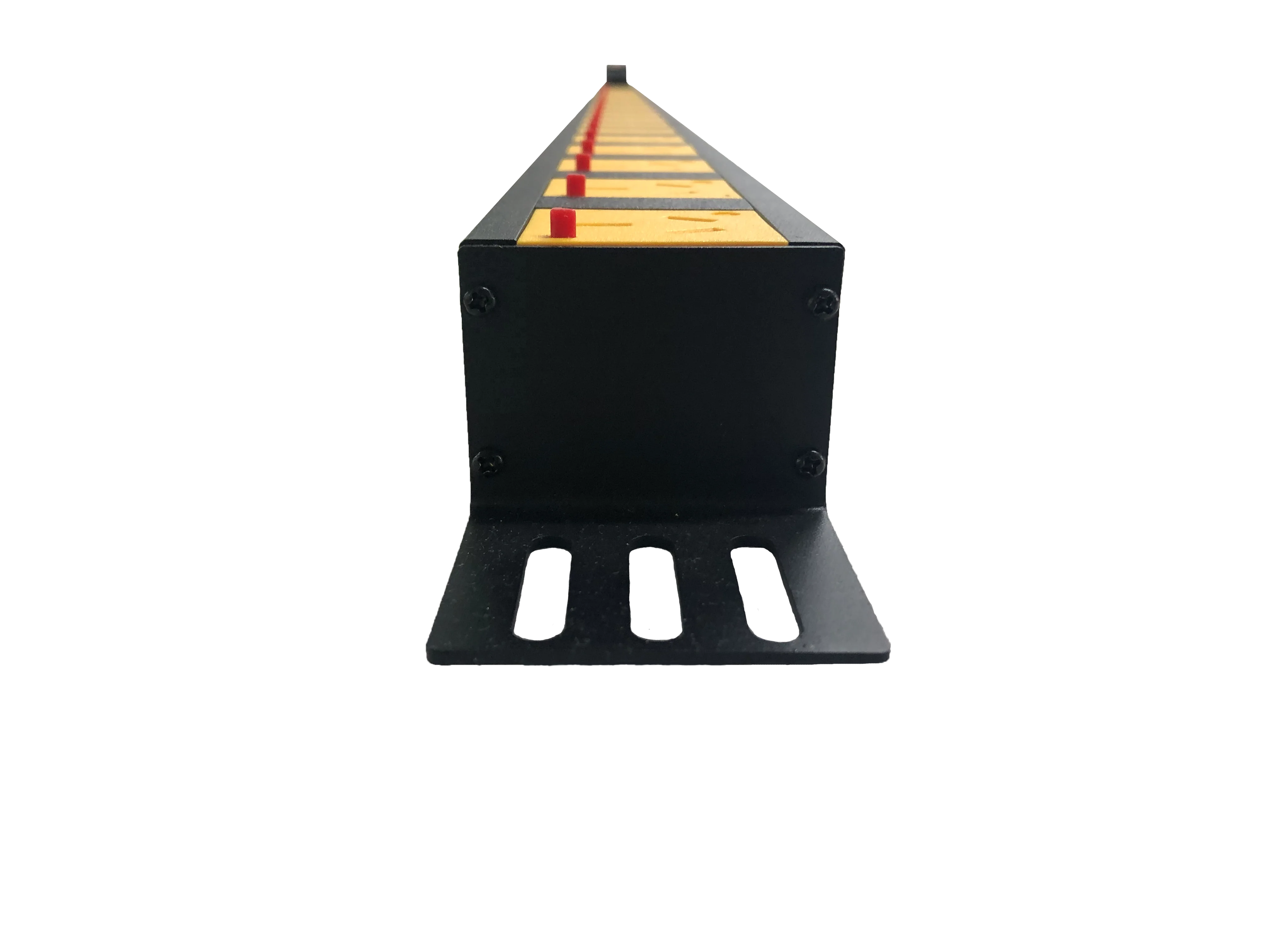

OEM PDU 1P 32A circuit breaker 19 Inch 1.5U Aluminum Black 24 Ways Outlet Overloading Protected Rack Mount Pdu
- Category: >>>
- Supplier: Shenzhen Shaoguan Technology Co. Ltd.
Share on (1600372920005):
Product Overview
Description
Certifications
Details Images
Socket standard and number | 20way 10A+4 way 16A anti-drop | |
Socket combination | 20+4 | |
Internal connection line | Copper bar connection (diameter 2.5mm) | |
Power supply input mode | Junction box (black+transparent cover) | |
Cable plug standard | / customizable | |
Input terminal connection wire capacity | 3*6mm² | |
Cable installation method | Upper input | |
Cable fixing | PG19 | |
Shell color | Black and Yellow | |
Dimensions (L*W*H) 1784×60×45mm | 1711×60×45mm Deviation: (L) ±4mm, (W/H) ± 2mm | |
Fixed hole center distance | 1669mm | |
Aluminum alloy shell length | 1616mm | |
Installation method | Bracket installation | |
Bracket installation direction | Vertical left/right installation | |
Control indicator function | Hot plug indicator | |
Protection and monitoring function | / customizable | |
The above content all accept the corresponding customized service | ||
Screw specifications | Required torque ±10% | ||
M3 | 0.6N.m | 6kgf.cm | |
M4 | 1.6N.m | 16.3kgf.cm | |
M5 | 3N.m | 30.5kgf.cm | |
M6 | 5N.m | 51kgf.cm | |
M8 | 11N.m | 112kgf.cm | |
Company Profile
VR
Shaoguan Guard Mine Protection Technology Co., Ltd., formerly a national high-tech enterprise Shenzhen Guard(ZB) Technology Co.,Ltd., moved to Industrial transferpark,Lechang , Shaoguan City in 2015. with a registered capital of 70 million yuan, is a manufacturer of surge protectors, PDU sockets,telecom power supply and other related products integrating R&D, production and sales.
●The company has advanced production equipment and management concepts, and has cooperated with dozens of well-known domestic and foreign companies and the world’s top 500 multinational companies, such as: ZTE, Vertiv, Sunsea Communications, SDG, Nanjing Putian, Nanjing Huamai, Kexin, Delta, etc.
●The company has established a high-quality R&D team, including a number of invention patents and utility model patents. The surge protector produced is at the forefront of technology in the country and even the world.
●The company launched the "Guard" brand of surge protectors with complete intellectual property rights and the "Shenhao" brand of high-end lightning protection sockets in 2009 and 2015 respectively.
●The company is located in the Industrial Transfer Industrial Park of Lechang City, Shaoguan City. It will build 12,000 square meters of factory buildings, office buildings and dormitories. It was put into operation in March 2017. The second phase will be completed in 2021.
●The company has advanced production equipment and management concepts, and has cooperated with dozens of well-known domestic and foreign companies and the world’s top 500 multinational companies, such as: ZTE, Vertiv, Sunsea Communications, SDG, Nanjing Putian, Nanjing Huamai, Kexin, Delta, etc.
●The company has established a high-quality R&D team, including a number of invention patents and utility model patents. The surge protector produced is at the forefront of technology in the country and even the world.
●The company launched the "Guard" brand of surge protectors with complete intellectual property rights and the "Shenhao" brand of high-end lightning protection sockets in 2009 and 2015 respectively.
●The company is located in the Industrial Transfer Industrial Park of Lechang City, Shaoguan City. It will build 12,000 square meters of factory buildings, office buildings and dormitories. It was put into operation in March 2017. The second phase will be completed in 2021.
Product packaging
FAQ
1.How long does it take to get your quotation and detailed information?
2.What about the sample policy?
3.How about delivery time?
Within 24 hours.
2.What about the sample policy?
We provide samples .Please contact us
3.How about delivery time?
Samples cost 8-12 days.Bulk order cost 15-26 days.
