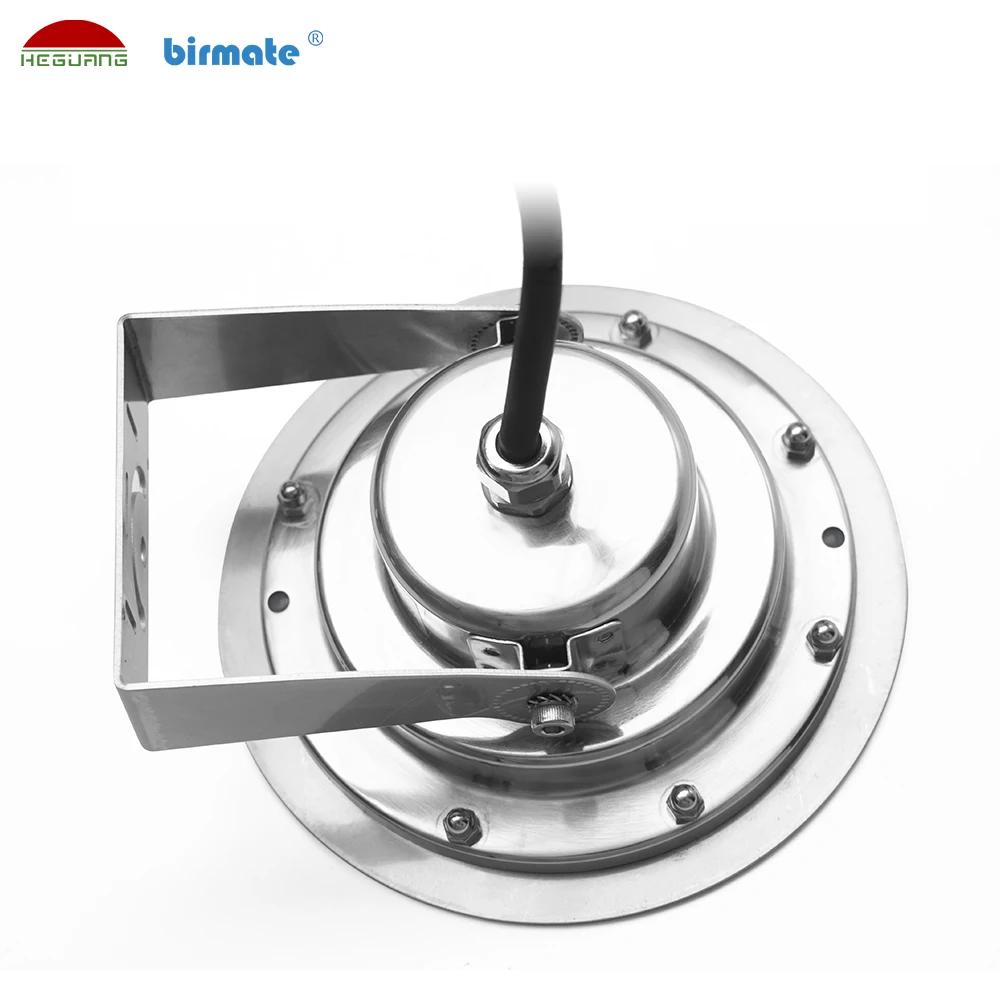

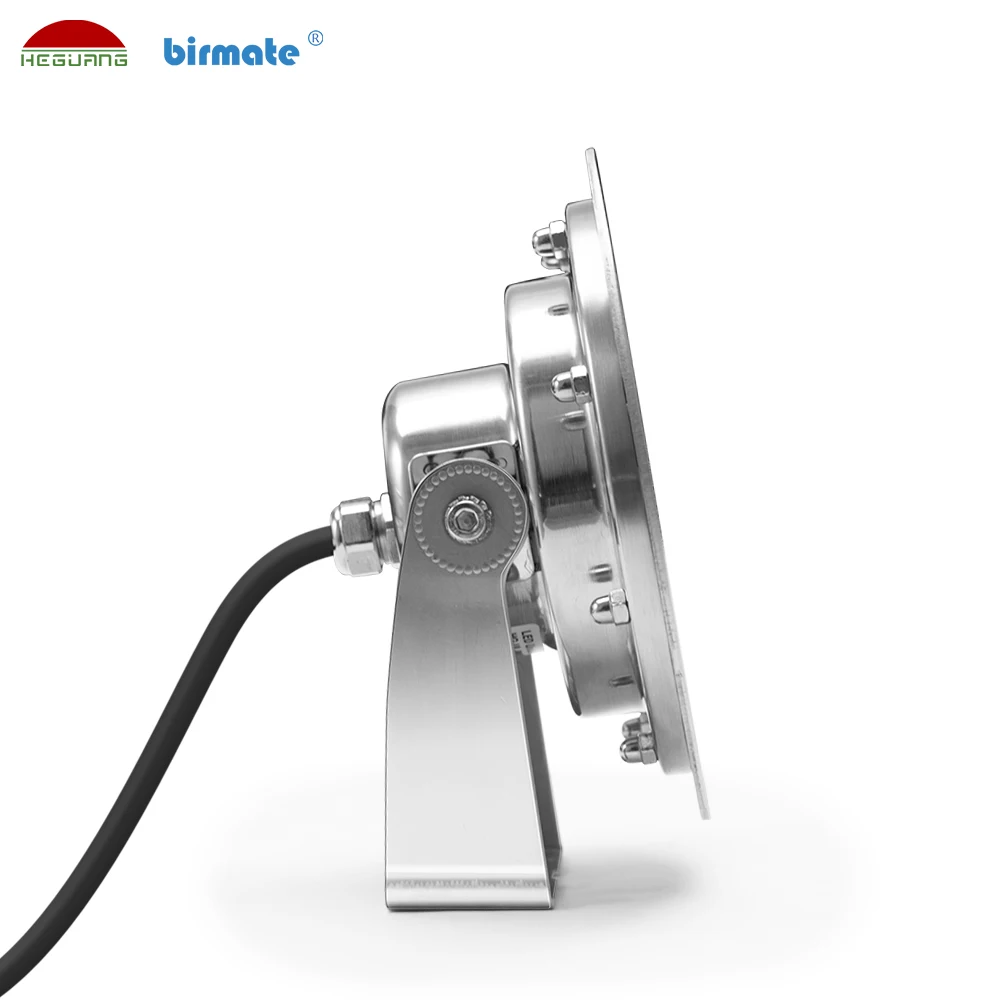

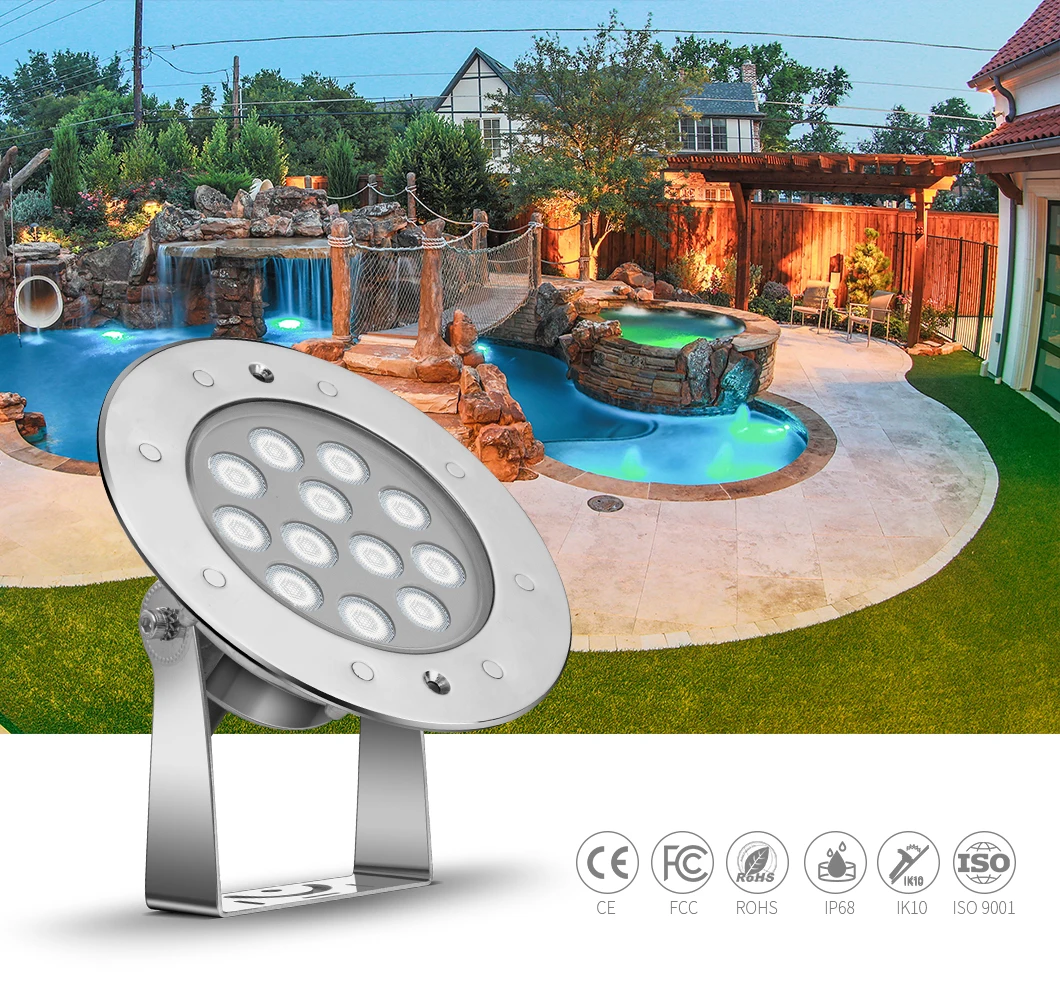

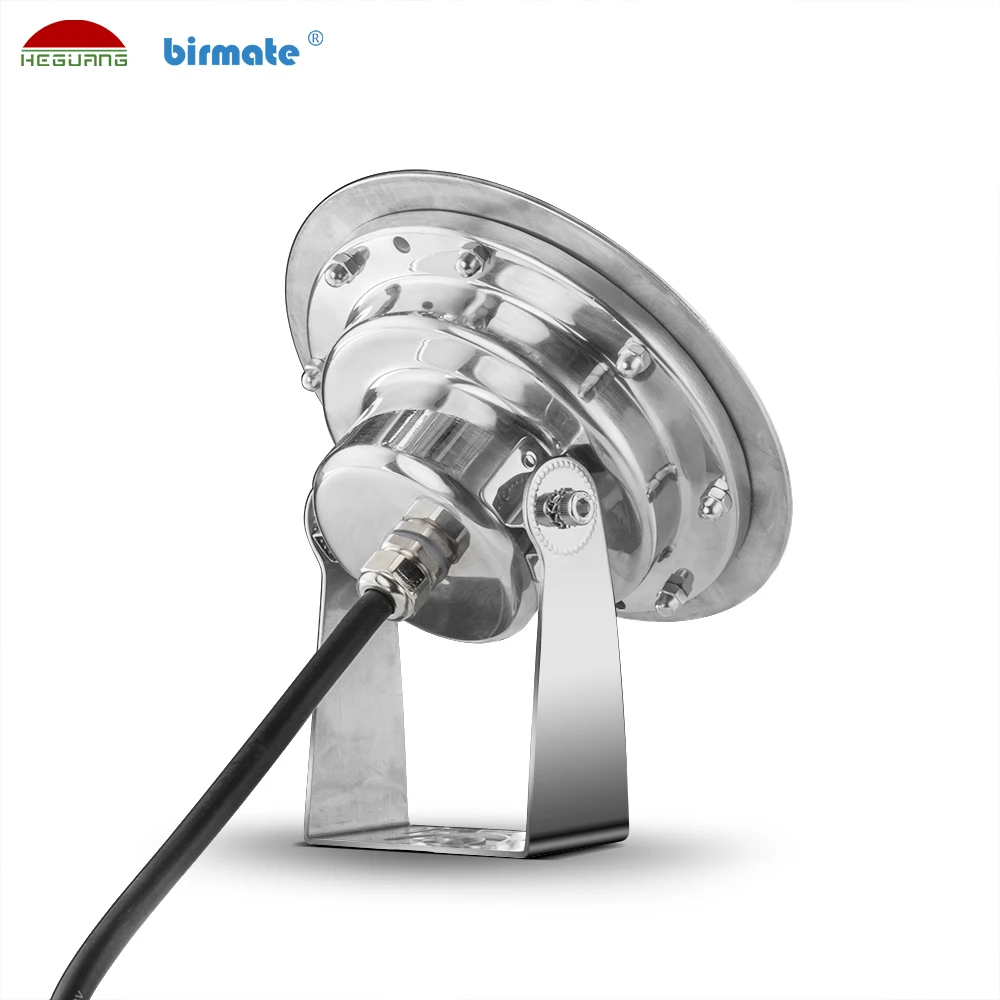

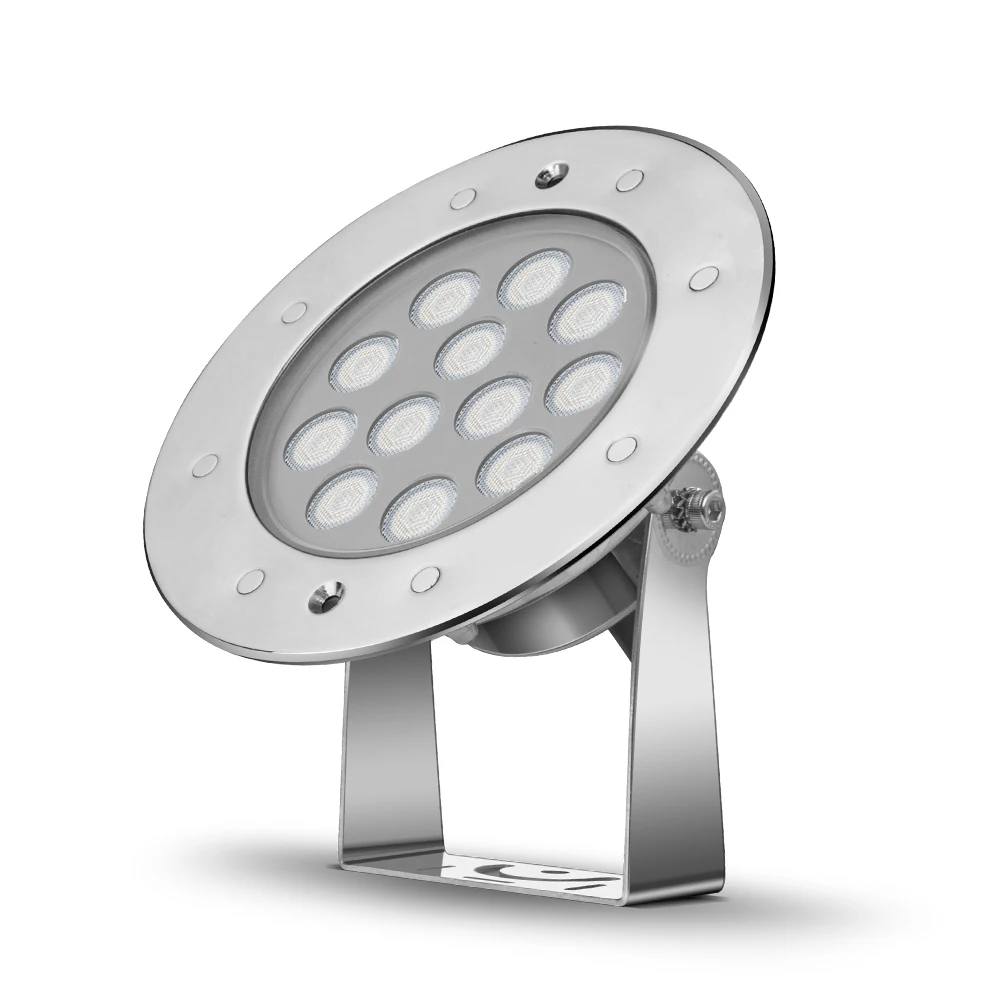

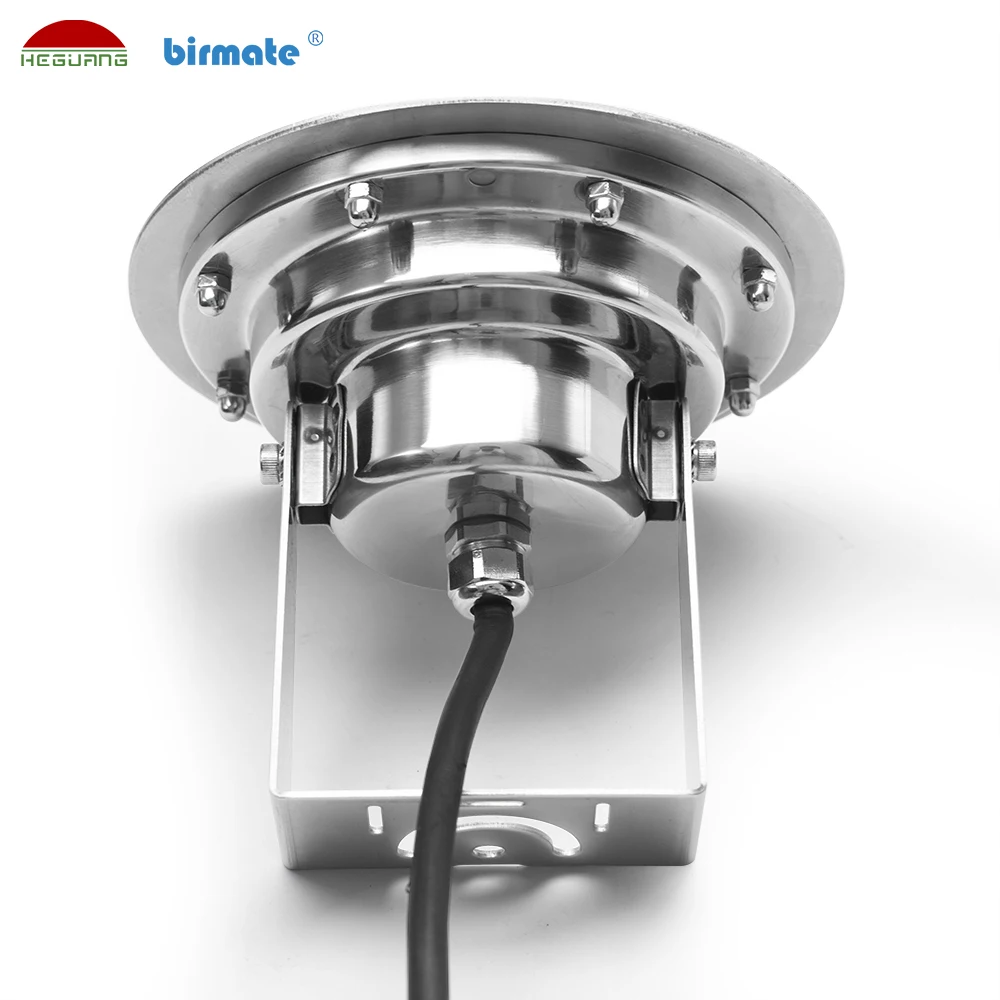

9W 12V RGB IP68 Structure waterproof 316l stainless steel led swimming pool light
- Category: >>>
- Supplier: Shenzhen Heguang Lighting Co. Ltd.
Share on (1600373327971):
Product Overview
Description
Product Description
9W 12V RGB IP68 Structure waterproof 316l stainless steel led swimming pool light

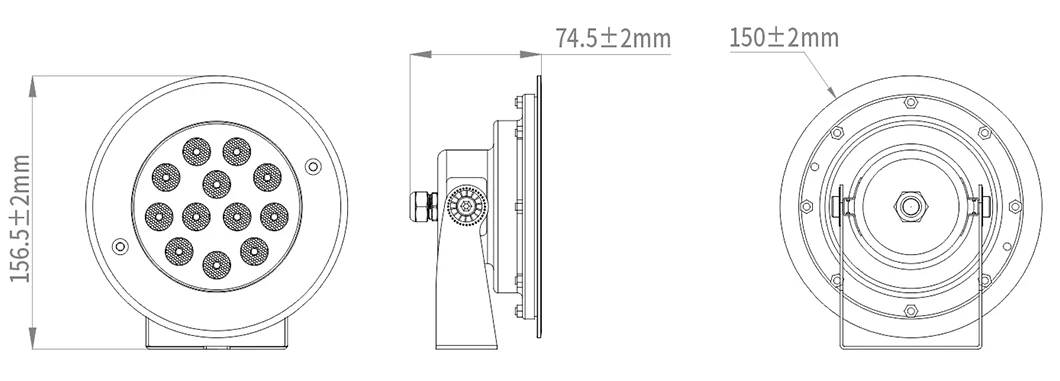

Product size :
Product Parameter
| HG-UL-9W-SMD-RGB-X | ||||||||
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable | ||||||
| length | Φ150×156.5mm | |||||||
| Input voltage | DC12V | |||||||
| Constant Driver | yes | |||||||
| Over-current Protection | yes | |||||||
| Wattage | 9±1W | |||||||
| Light lumen | 350LM±10%CREE | |||||||
| Beam angle | 15°/30°/45°/60° | |||||||
| Color: | RGB(DMX512/External /Wifi control | |||||||
| Specifics | Operating Temperature (℃) | -20~40℃ | ||||||
| IP Rating | IP68 | |||||||
| Certificate | CE, RoHS,FCC,IP68,IK10 | |||||||
| Life-span | 50,000 hours | |||||||
| Warranty | 2Years | |||||||

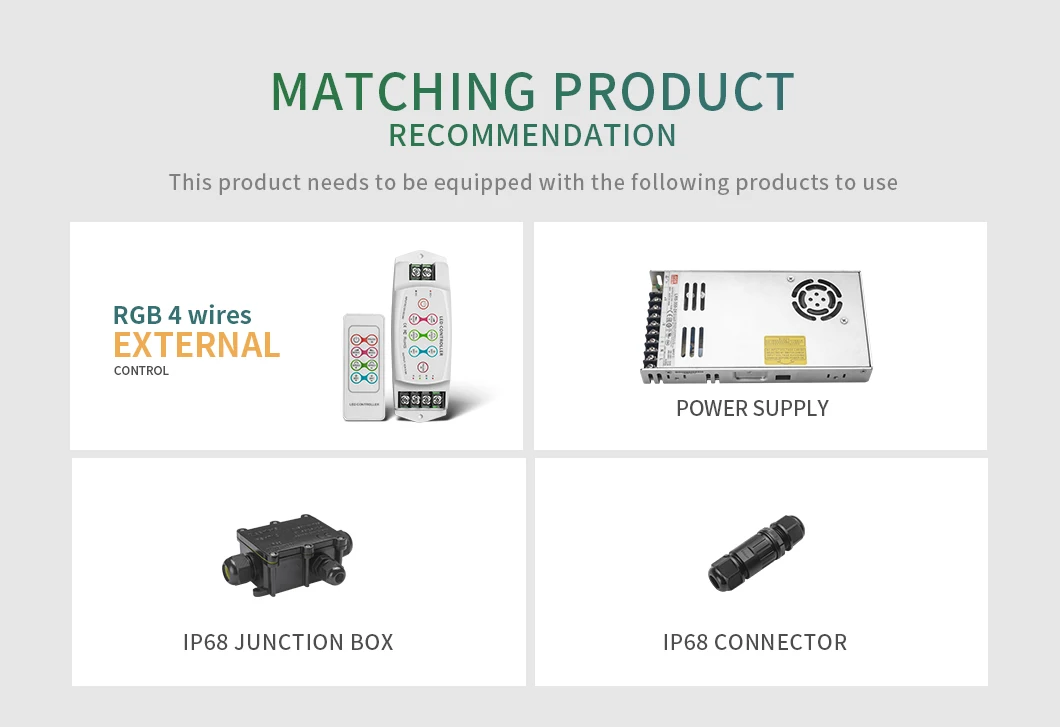

| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires | ||||||
| 2, external controller (can get the RGB color changing synchronous) 4 wires | ||||||||
| Test position | LED Underwater light (Min) | |||||||
| Working temperature 28℃ | Working temperature 40℃ | |||||||
| Underwater test time(Min) | 480 | 480 | ||||||
| LED edge temperature(℃) | 59 | 68 | ||||||

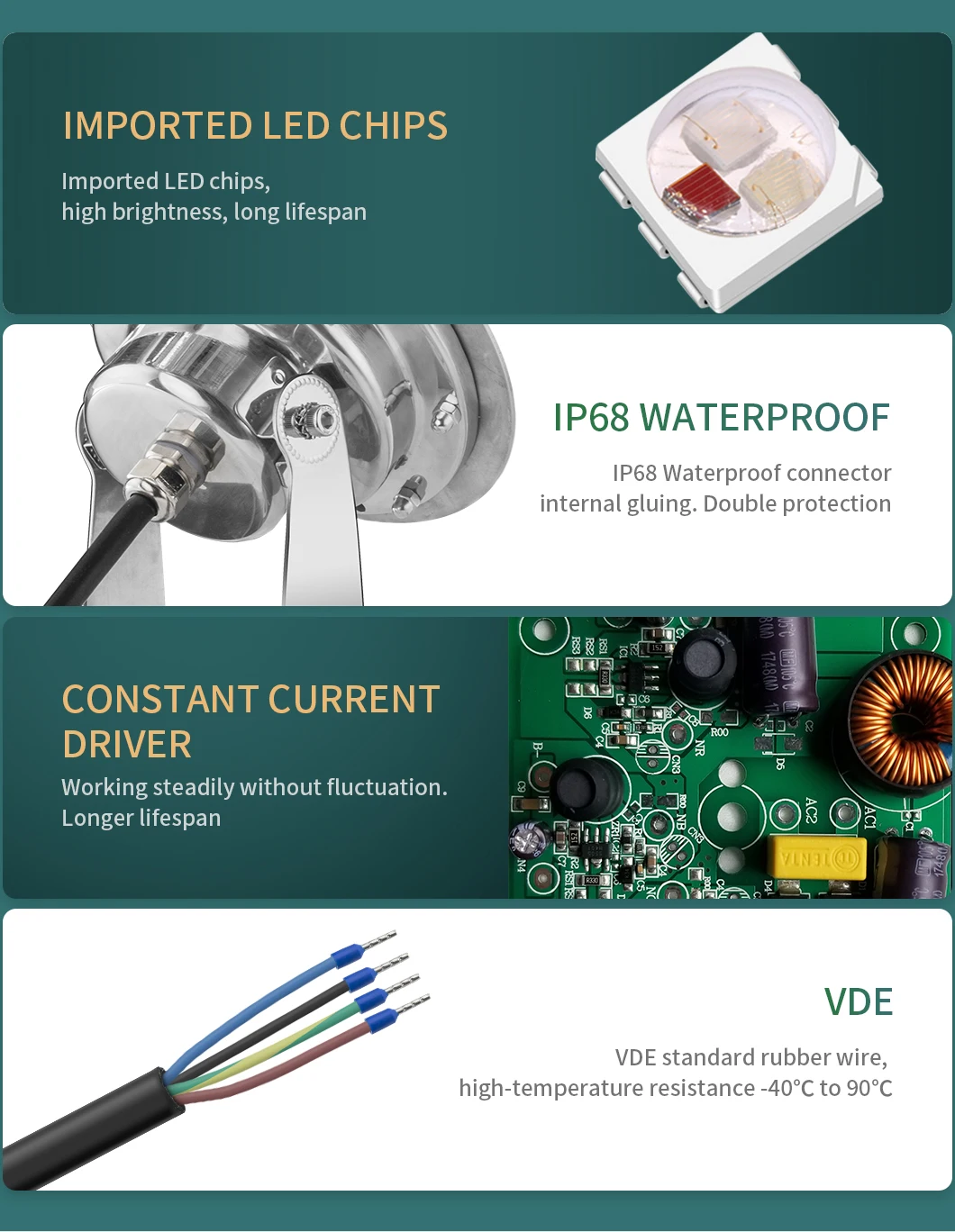

Advantages
1. IP68 Structure waterproof, all products succeeded in 10m deep water testing before delivery.
2. The whole lamp made of 316L stainless steel, strong corrosion-resistance, can be used in salty water.
3. 8mm IK10 tempered glass, high light transmittance > 90%, no effect on the LED color temperature
4. Imported highlight CREE LED chip, CRI>80. Low light degradation and long lifespan.
5. Optical LED lens, 15/30/45/60°for optional.
6. The patented anti-loose bracket for fixing lighting angle.
7. 316 screws are riveted on the surface cover, good looking and won't loosen.
8. Constant current driver, high efficiency>90%, assure the LED stable working without input fluctuation
9. 2mm aluminum light board for excellent heat dissipation, 2.0W/(m.k) Thermal conductivity.
10. VDE standard rubber wire, connected with IP68 nickel-plated copper connector.
11. 8 hours aging testing, 30 steps quality inspections, assure the great quality pool light.
led underwater light for swimming pool Compared to others :
Packaging & Shipping
Item | HG-UL-9W(SMD)-X led underwater light for swimming pool |
Product weight | 890g |
color box size | 160×160×110mm |
Carton/pcs | 20pcs/Carton |
Carton size | 820x340x250mm |
Carton weight | 21.66kg |

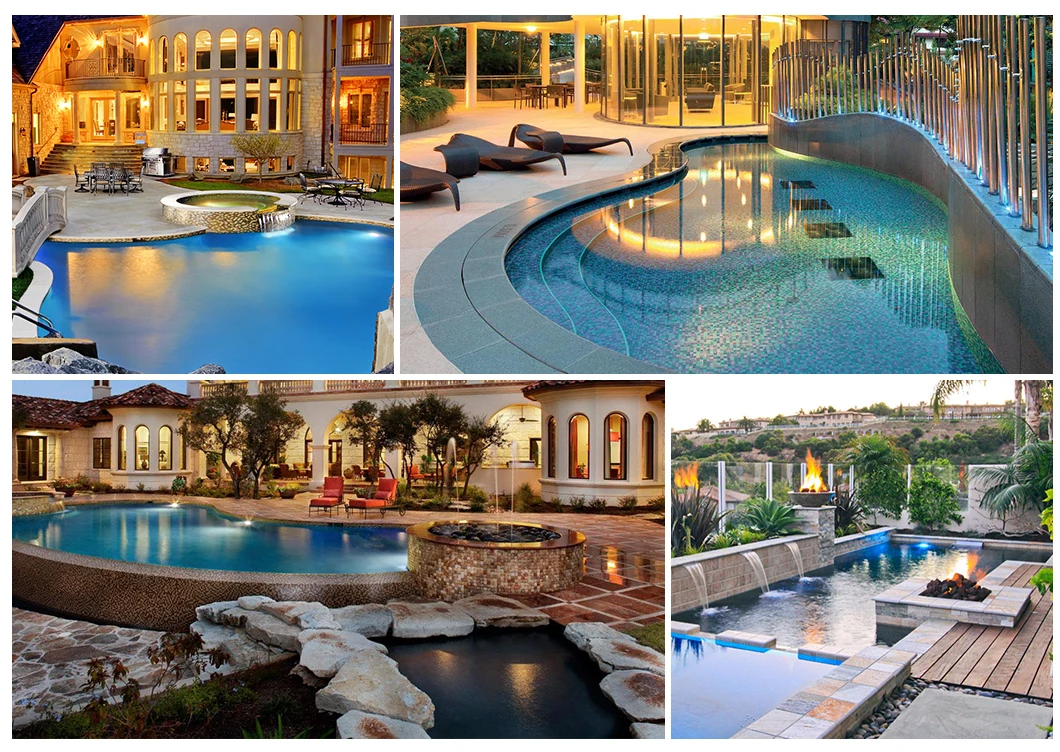

Application
1. IP68 Outdoor LED underwater light is used for pond, pool, waterfall
About Company
In 2006, we began working in LED Underwater product development and production. factory area of 2,000 square meters, we are a high-tech enterprise also the only one China supplier who is
listed in UL certificate in Led Swimming pool light industry.
MAIN PRODUCTS
1.UL Certificated pool light
2.LED PAR56 pool light
3. LED Surface Mount LED Pool light
4. LED Fiberglass pool lights
5. LED Vinyl pool lights
6. LED Underwater Spot light
7. LED Fountain Light
8. LED Ground lights
9. IP68 Led Strip light
10.RGB Led Controller
11. IP68 par56 housing/Niche/fixture
CERTIFICATION AND GLORY
1.UL Certification (PAR56 Pool lights), CE, ROHS, FCC, EMC, LVD, IP68 , IK10.VDE
2.ISO9001 certification
3.Private model products
4.Structure waterproof technology
5.Customer satisfaction rate >98%
Heguang always adheres to the quality first, constantly develops new products to adapt to the development of the market,and provides customers with comprehensive and intimate product solutions to ensure worry-free after-sales!
The factory is located in Baoan, Shenzhen, close to Hong Kong and Shenzhen Airport. Welcome to visit factory.
Heguang LED pool lighting Certification :
Heguang Exihition
FAQ
Advantage
1. High Power high bright LED chip.
2. eather resistance, aging resistance.
3. test 8 hours LED agening test.
4. Multiple wattage options from 3W-48W.
5. Finished product passed 30 steps quality inspection.
6. 316L stainless steel lamp cup, stronger corrosion resistance,
Some tips for you
Q1:How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip should be ≤120℃, so the center temperature at the LED bottom of light board should be ≤ 80 ℃.
